Metra 99-7382HG Single or Double DIN Dash Kit for 2017-Up Kia Niro (w/o NAV)

by Metra
In Stock
SKU MET-99-7382HG
Checked Fast Shipping on all US Orders
Checked Contact Customer Service Representative for more info
Checked Buy Online, Free Local Pickup
Metra 99-7382HG Single or Double DIN Dash Kit for select 2017-Up Kia Niro (without NAV)

Brand: Metra
MPN: 99-7382HG
Condition: New

The 99-7382HG provides the ability to install either an
aftermarket ISO DIN radio with pocket, or an ISO DDIN
radio, and is designed specifically for vehicles without
factory NAV. The kit retains the climate info that was
displayed on the NAV screen, the back-up camera,
hazard switch, and also includes an ASWC-1, AX-CAM6V,
and antenna adapter for a complete installation.

WIRING & ANTENNA CONNECTIONS
Wiring Harness: Included with kit
Antenna Adapter: Included with kit
Steering Wheel Control Interface: Included with kit
12V-to-6V Camera Step-Down: Included with kit


TOOLS REQUIRED (sold separately)
- Panel removal tool
- Phillips screwdriver
- 5/16” Socket wrench
- Wire cutter
- Crimp tool
- Solder gun
- Tape
- Connectors (example: butt-connectors, bell caps, etc.)

Applications
Kia Niro (without nav) 2017-Up

*Please contact us for up to date vehicle applications

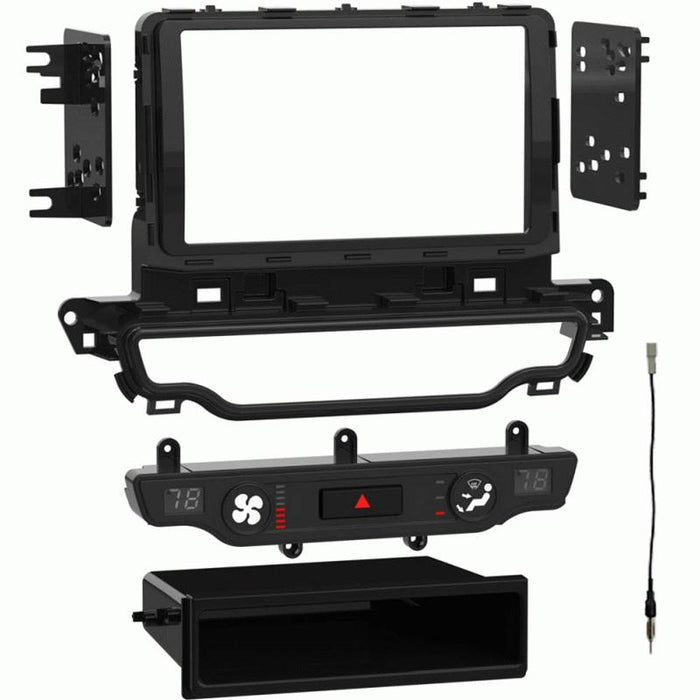

KIT COMPONENTS

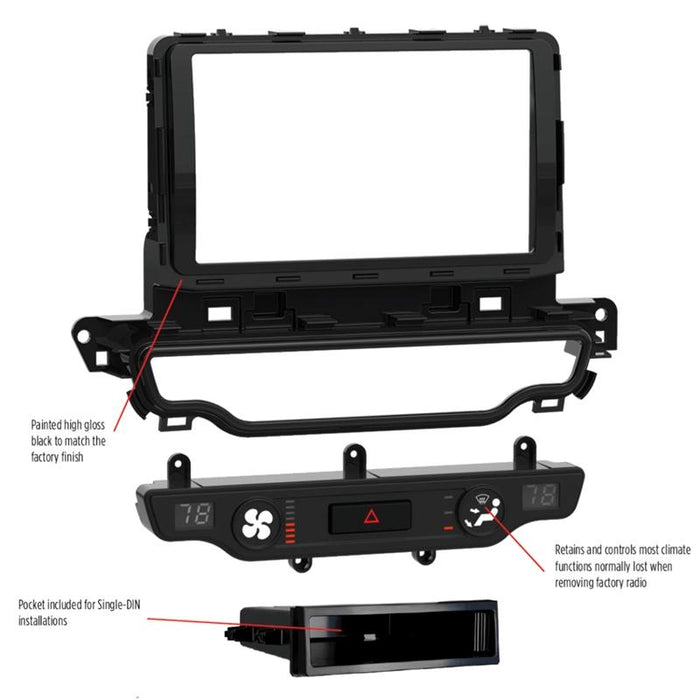

- Radio trim panel with climate display and hazard switch
- Radio brackets
- Pocket
- (4) #8 x 3/8” Phillips screws
- Wiring harness
- Antenna adapter
- ASWC-1
- AX-CAM6V
