Metra 99-6526S Silver Double DIN Dash Kit for Select Jeep Cherokee
Brand: Metra
MPN: 99-6526S
Condition: New
ISO Double DIN radio provision
Painted scratch-resistant matte black with silver
Mechanically designed for a two-tone paint scheme to properly match the factory silver color
Intended for installation of double DIN radios with a backup camera input
Provides accessory power (12-volt 10-amp)
Retains R.A.P. (retained accessory power)
Retains the factory personalization menu and climate controls status
Can be used in amplified or non-amplified models
Provides NAV outputs (parking brake, reverse, and speed sense)
Prewired ASWC-1 harness included (ASWC-1 sold separately)
High level speaker input
Retains balance and fade
Ability to add aftermarket backup camera and additional video input
Retains factory screen
Micro "B" USB updatable
Compatible with 2014-up Jeep Cherokee Latitude/Limited Vehicles
Includes (1) One Radio trim panel, (2) Two Radio brackets, (4) Four #8 x 3/8" Phillips screws, (1) One Axxess Interface, (1) One 18-pin Harness with stripped leads, (1) One 6526 Harness, (1) One 4-pin Harness with stripped leads and (1) One Installation Instructions
Panel removal tool, 10mm socket wrench, Torx T-15 screwdriver, Phillips screwdriver, Phillips screwdriver (short stubby version), Cutting tool, Crimping tool, Tape and Connectors (example: butt-connectors, bell caps, etc.) Tools Needed (sold separately)
Authorized Dealer
Note: The rear-view camera Input is used to display the climate control status and personalization menu. If the aftermarket radio does not have a screen with a rear-view camera Input, then there will be no visualization of the climate controls status and personalization menu, which makes adjusting the climate control impossible. An externally mounted screen could be substituted in this situation.
Compatible With
Jeep Cherokee Latitude/Limited 2014-up
Note: The rear-view camera Input is used to display the climate control status and personalization menu. If the aftermarket radio does not have a screen with a rear-view camera Input, then there will be no visualization of the climate controls status and personalization menu, which makes adjusting the climate control impossible. An externally mounted screen could be substituted in this situation.
Wiring & Antenna Connections (sold separately)
Wiring Harness: Axxess interface and harness included
Antenna Adapter: 40-EU55
Tools Needed (sold separately)
Panel removal tool
10mm socket wrench
Torx T-15 screwdriver
Phillips screwdriver
Phillips screwdriver (short stubby version)
Cutting tool
Crimping tool
Tape
Connectors (example: butt-connectors, bell caps, etc.)

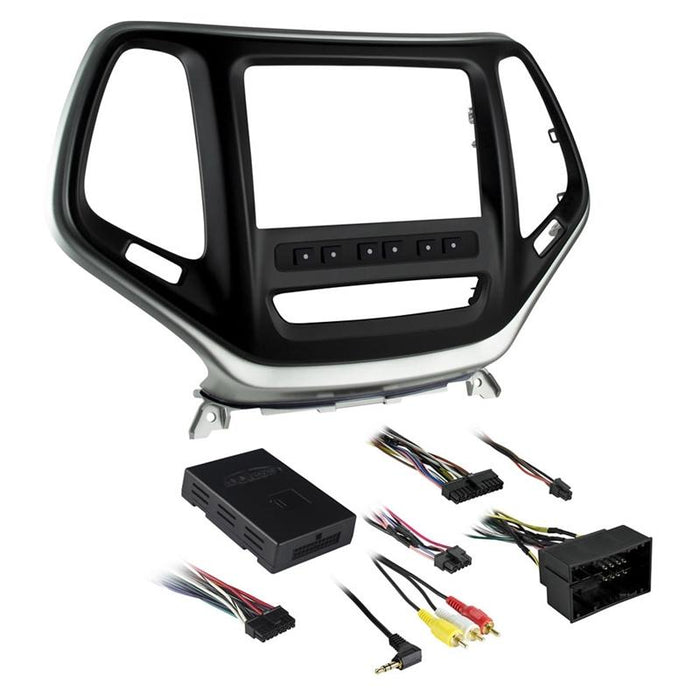

(1) One Radio trim panel
(2) Two Radio brackets
(4) Four #8 x 3/8" Phillips screws
(1) One Axxess Interface
(1) One 18-pin harness with stripped leads
(1) One 6526 harness
(1) One 4-pin harness with stripped leads
