Metra 95-9317B Double DIN Dash Kit for select 2014-2016 BMW 3 and 4 Series

SKU MET-95-9317B

Sorry, this product has been discontinued.

Metra 95-9317B Double DIN Car Stereo Dash Kit for 2014-2016 BMW 3 and 4 Series (w/ NBT iDrive, w/o MOST amp)

Brand: Metra
MPN: 95-9317B
Condition: New

This kit provides the ability to install an ISO DDIN aftermarket radio.

Features:
• ISO DDIN radio provision
• Retains the factory climate controls
• Retains the factory ambient ashtray light (if equipped)
• Includes all necessary data interfaces, wiring harnesses, and antenna adapter, for a complete installation
• Painted black to match the factory dash
• Provides accessory power
• Retains audio/phone† controls on the steering wheel
• Provides NAV outputs (parking brake, reverse, speed sense)
• Retains warning chimes through an outboard speaker
• Comes with all necessary wiring to relocate the factory radio to retain vehicle settings
• Retains balance and fade
• Micro-B USB updatable

Wiring & Antenna Connections:
• Wiring Harness: Included with kit
• Antenna Adapter: Included with kit
• Steering Wheel Control Interface: Included with kit

It is very important that you have this kit installed by a professional installer.
Warranty can and will be void if this kit is altered and not installed by a professional.

Tools Required:
• Cutting tool
• Panel removal tool
• Phillips screwdriver
• 3mm Allen screwdriver
• T-20 Torx screwdriver

Applications:
BMW

• 3 Series (F30/F31/F34/F80) 2014-2016
• 4 Series (F32/F33/F36/F82/F83) 2014-2016
(w/ NBT iDrive, w/o MOST amp)

*Please contact us for up to date vehicle applications

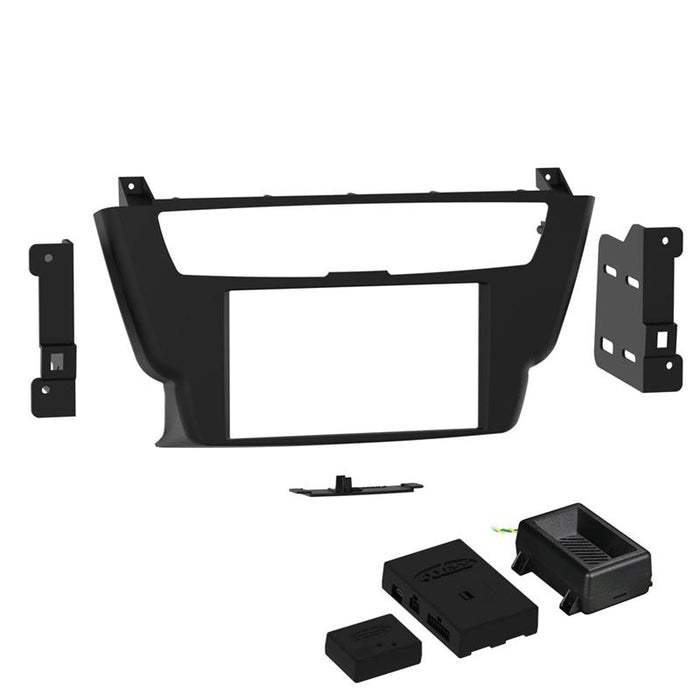

Kit Components:

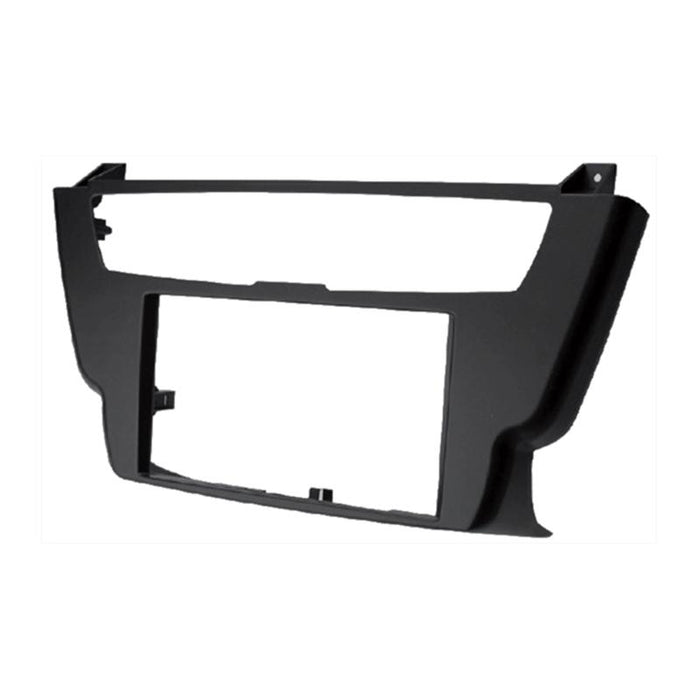

• Radio trim panel
• Radio brackets
• Panel clips (2)
• Radio screws (8)
• ASWC-1 interface and wiring harness
• Axxess interface and wiring harness
• Antenna adapter
• Chime speaker
• Comes with all necessary wiring to relocate the factory radio to retain vehicle settings
