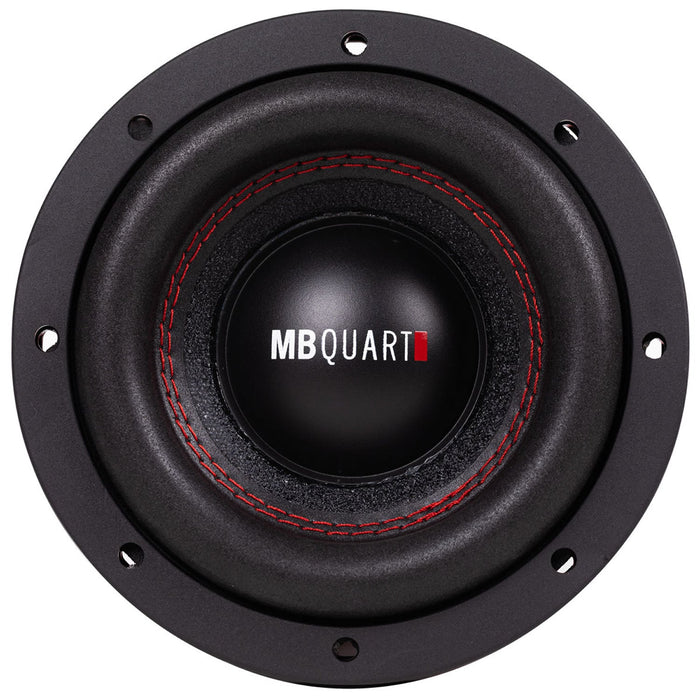

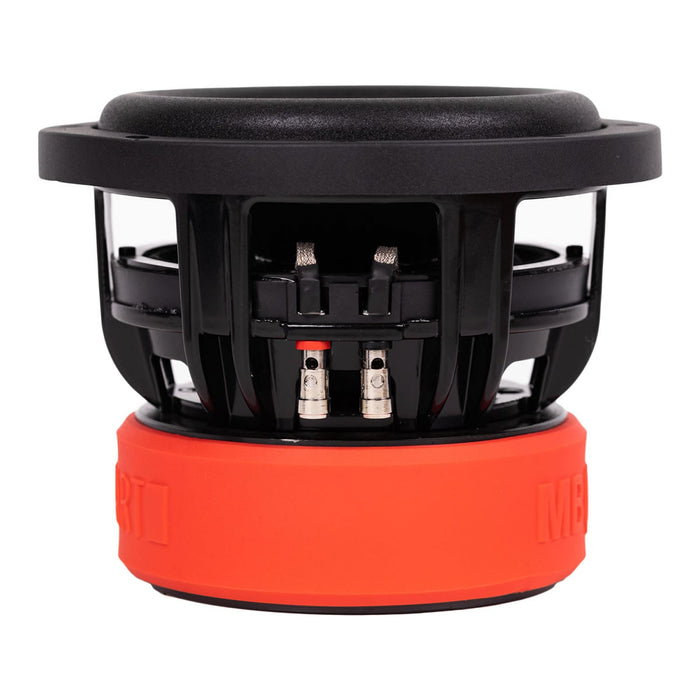

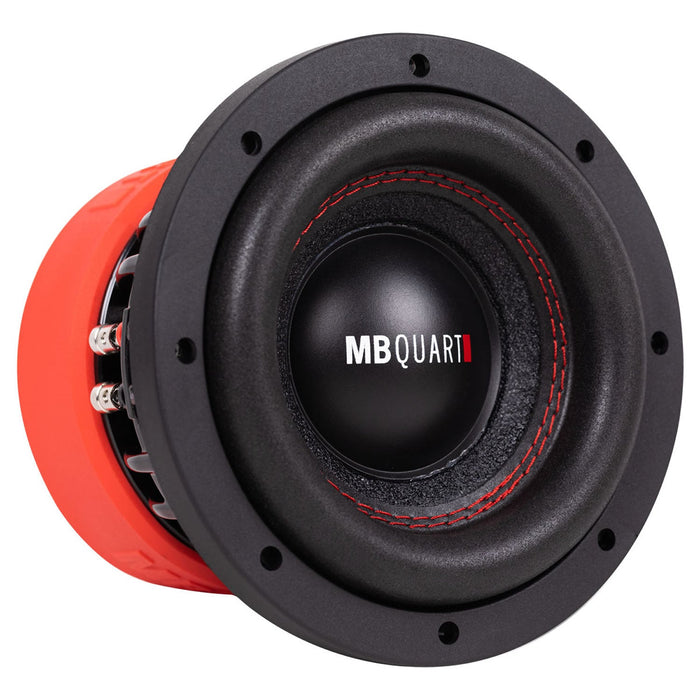

MB Quart RW1-164 Reference 6.5 Inch 4 Ohm DVC Subwoofer

Availability:
in stock, ready to be shipped
SKU MB-RW1-164

MB Quart RW1-164 Reference 6.5 Inch 4 Ohm DVC Subwoofer

MB Quart Reference subwoofer with dual 4 Ohm design delivers 600 watts and features heavy gauge, powder-coated, aluminum die-cast basket.

Terminal Type: Push & insert style terminals for easy installation.

Configuration: Round

Surround / Cone Coupling: The pressure treated double stitched foam surround along with the dual poly cotton spider helps keep the piston motion of the subwoofer linear and distortion free.

Voice Coil / Former Assembly: Vented aluminum former holds a 1.5" voice coil while allowing the heat to be exchanged. (Less heat means less distortion)

Spider: Specialized MB Quart dual poly cotton spider with double centering allows the woofer to handle more power with minimum distortions.

Frame / Venting: Heavy duty aluminum die-cast basket allows back venting, which exchanges heat with cool air, resulting in more power handling and increased reliability.

Motor: Vented high energy motor assembly with heavy duty magnets increases power handling and increases SPL.

Cone: Non-Pressed Paper Cone with Coating

Specs

  • Weight: 10.85 lbs
  • Dimensions: 9 × 9 × 8.5 in
  • Type: Subwoofer
  • Brand: MB Quart
  • Series: Reference
  • Category: Mobile
  • Condition: New
  • Color: Black
  • Warranty: 1 Year
  • Compatible Vehicles: Universal
  • Subwoofer Configuration: Round
  • Subwoofer Voice Coils: 2 (DVC)
  • Subwoofer Impedance: 4 Ohms
  • Subwoofer RMS Power Handling: 300 Watts
  • Subwoofer Peak Power Handling: 600 Watts
  • Subwoofer Cut-Out: 5.94 inch
  • Subwoofer Mounting Depth: 4.17 inch
  • Subwoofer Outside Diameter: 7.16 inch
  • Subwoofer Sensitivity: 83dB (1 watt/1 meter)
  • Subwoofer Size: 6.5 inch
