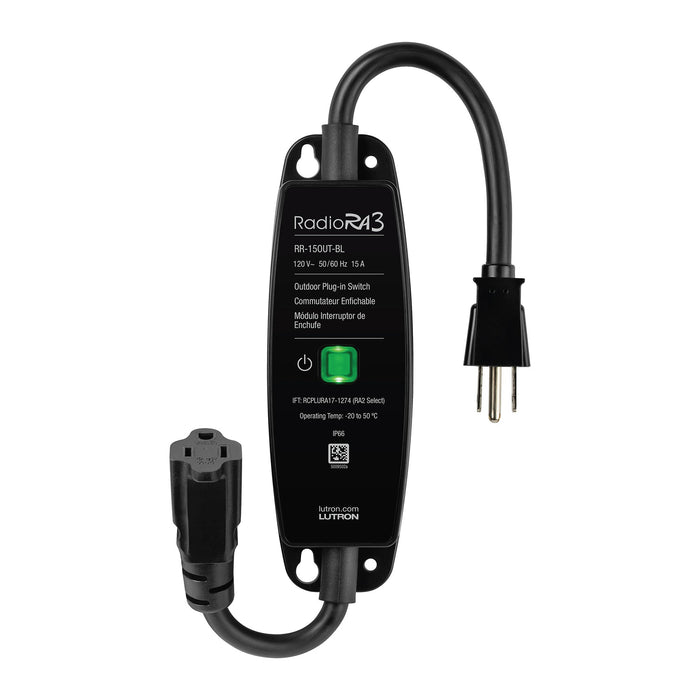

Lutron RR-15OUT-BL Radiora 3 Outdoor Plug-in Switch 120V - Black

Availability:
Low stock
SKU LUT-RR-15OUT-BL

(Available only for RadioRA 3 Certified Integrators)

Lutron RR-15OUT-BL RadioRA 3 Outdoor Plug-In Switch, 15 Amp Lighting, 0.5 hp Motor, On/Off Switching, IP66 Rated, 120V


RR-15OUT-BL Lutron RadioRA 3 Outdoor Plug-in Switch is a weather-resistant, smart outdoor module that controls lighting, pumps, and select motors as a standalone switch or as part of a RadioRA 3 system using Clear Connect—Type A RF technology. Ideal for landscape and string lights, holiday décor, and small motor loads, it delivers reliable performance season after season.

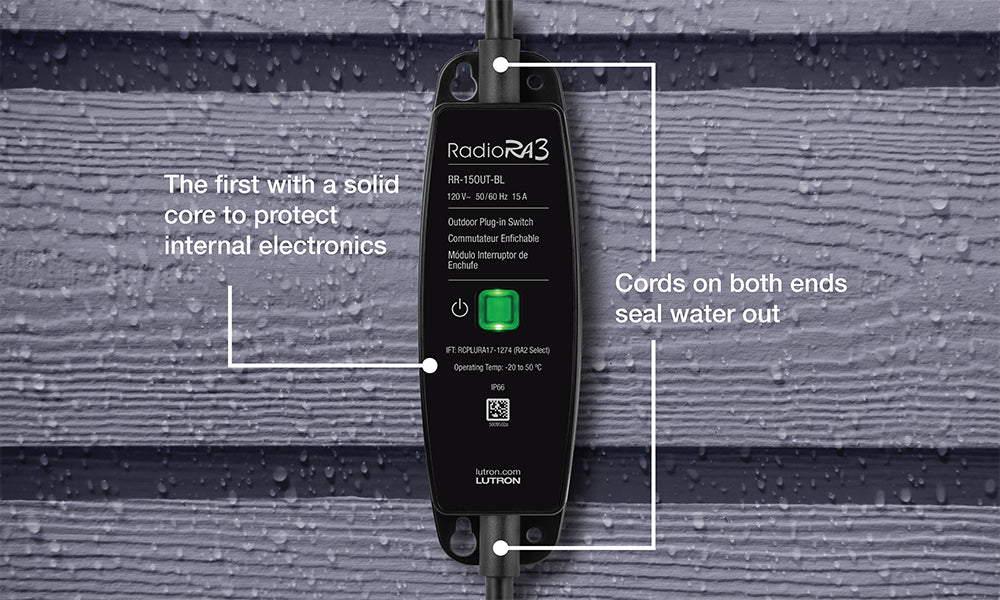

  • Weatherproof durability: Solid-core, fully encapsulated electronics defend against water, humidity, dust, and dirt for reliable outdoor operation.
  • Smart control & scenes: Pair with a RadioRA 3 processor to schedule daily events, create scenes, and control from anywhere via the Lutron app.
  • Broad load compatibility: Supports lighting, low-voltage transformers, and select motors/pumps within ratings, simplifying outdoor control.
  • Strong RF performance: Clear Connect – Type A works through walls/floors with dependable range for flexible placement.
  • IP66 enclosure for exposure to rain, sprinklers, and snow.
  • Power failure memory restores the previous ON/OFF state after outages.
  • Multi-color status LED with error reporting.
  • Local control works even without system connectivity.

Docs/Instruction Links

Specifications

  • Operating Voltage   - 120V~ 50/60Hz
  • RF Technology  -  Clear Connect – Type A (RadioRA 3)
  • Wireless Range  -  Up to 60 ft (line-of-sight) / 30 ft (through walls)
  • Power Failure Memory  -  Returns to previous ON/OFF state after power restoration
  • Status Indicator  -  Multi-color LED with status/error reporting
  • Standby Current  -  6.8 mA @ 120V~ (no load)
  • Lighting Loads  -  Up to 15A
  • Motors & Pumps  -  Up to 1/2 HP
  • Transformers / Magnetic Ballasts  -  Up to 1200VA (8A)
  • Ingress Protection -   IP66
  • Operating Temperature  -  -4°F to 122°F (-20°C to 50°C), 0–100% RH, non-condensing
  • Overall Length  -  19.25 in (490 mm)
  • Main Body Length  -  7.00 in (178 mm)
  • Body Width  -  5.5 in (140 mm)
  • Body Thickness   - 1.5 in (38 mm)
  • Weight  -  0.9 lb (0.41 kg)
