(Available only for RadioRA 3 Certified Integrators)
Lutron RRST-PRO-N-WH Sunnata RF PRO LED+ Touch Dimmer for RA3 Systems, Phase Selectable, LED/ ELV/ MLV, Neutral Required, 120V, White
The Lutron RadioRA 3 Sunnata RF PRO LED+ Touch Dimmer Switch combines sleek, modern design with advanced lighting control, featuring an intuitive touch light bar that allows users to swipe or tap to set precise light levels, while the built‑in rocker provides quick On/Off control. Powered by Lutron’s Clear Connect–Type X 2.4 GHz wireless technology, it supports remote operation through RA 3 keypads, Pico remotes, and the Lutron app when paired with a RA 3 Processor. The PRO LED+ technology ensures superior dimming performance across LED, halogen, incandescent, MLV, and ELV loads, and includes enhanced modes such as fade‑on/fade‑off, delayed long fade‑to‑off, and rapid full‑on. It also supports multi‑location control with up to four Sunnata RF companion dimmers (RRST‑RD‑xx). Neutral wire required; coordinating wall plate sold separately.
- Soft-glow locator light makes the switch easy to find in the dark; light bar brightness is fully customizable or can be turned off.

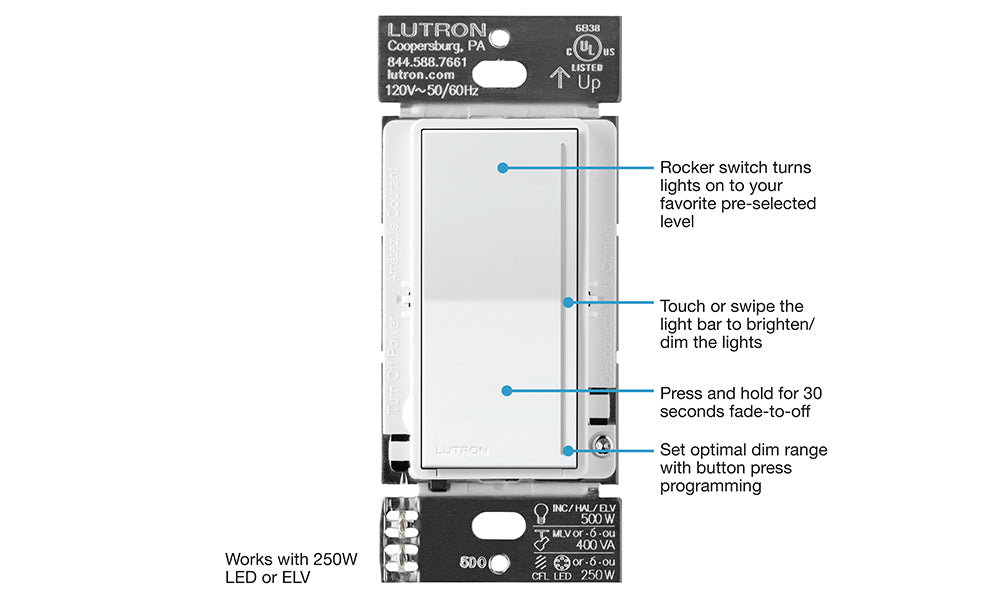

- Touch light bar allows swipe or tap control with customizable fade rates for gradual fade‑on/fade‑off and optional 30‑second delayed fade‑to‑off.
- MyLevel Personalization enables adjustment of phase control, high/low-end trims, preset light levels, light bar brightness, and locator light settings.
- Supports single-pole or multi-location control using up to four Sunnata Companion Dimmers (RRST‑RD‑xx) for up to five control points; light bars stay perfectly synchronized across all devices.

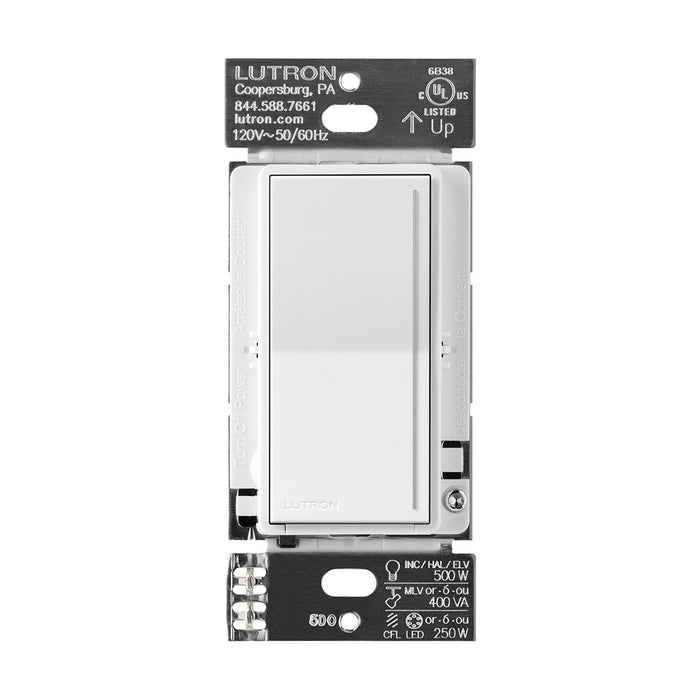

- Works with a wide range of dimmable loads: 250W LED, 500W incandescent/halogen/ELV, 400VA MLV.
- PRO LED+ technology improves dimming performance, with easy adjustment of dimming range to optimize bulb compatibility.

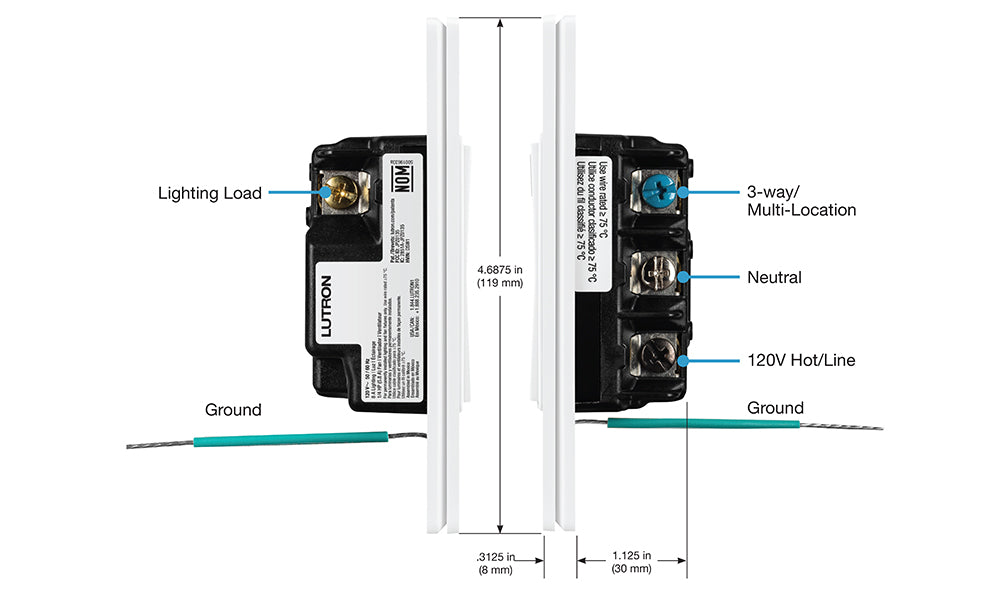

- Quick installation in about 15 minutes with screw-terminal wiring; neutral wire required for the primary dimmer (not required for companion dimmers).
- Includes front-access service switch for safe bulb replacement.

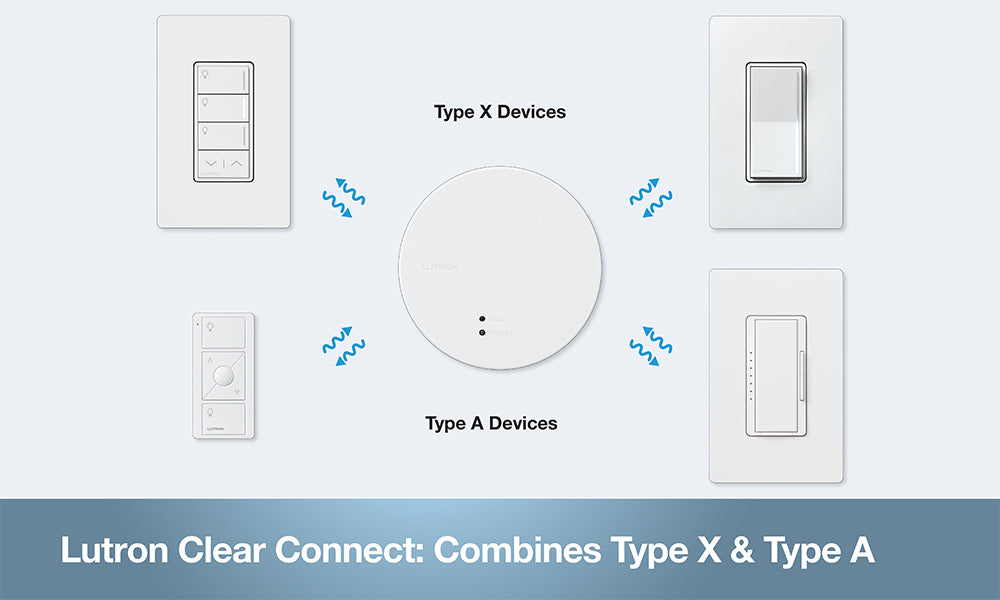

- RF connectivity enables scheduling, scenes, and system-controlled events; operates on Clear Connect–Type X radio frequency.
- Each Sunnata RF device should be within 75 ft of a RadioRA 3 processor and have at least two other non‑battery Clear Connect-Type X devices within 25 ft for optimal performance.
- Continues to function locally without Wi‑Fi or internet access.

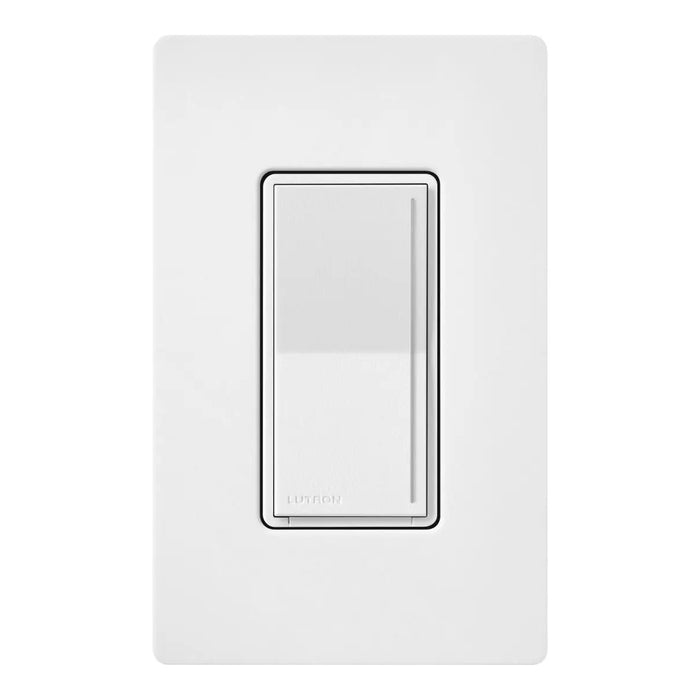

- Compatible with Lutron Designer (Claro) wallplates (sold separately).
- Color: White.
