Lutron DVRF-BDG-1D Caseta Smart Home Starter Kit with Dimmer, Remote, and Smart Hub - White

Lutron DVRF-BDG-1D Caseta Smart Home Starter Kit with Dimmer, Remote, and Smart Hub - White
Availability:
Low stock
SKU LUT-DVRF-BDG-1D

Lutron DVRF-BDG-1D Caseta Smart Home Starter Kit with Dimmer, Remote, and Smart Hub - White

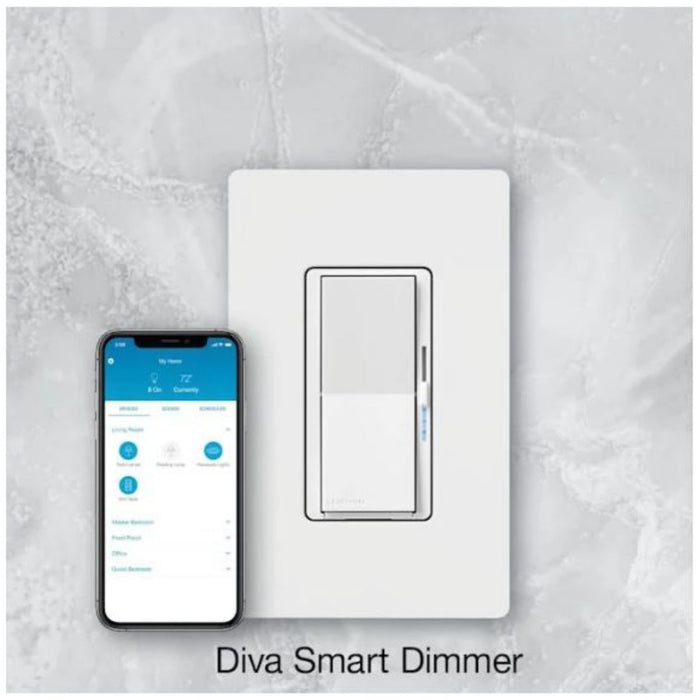

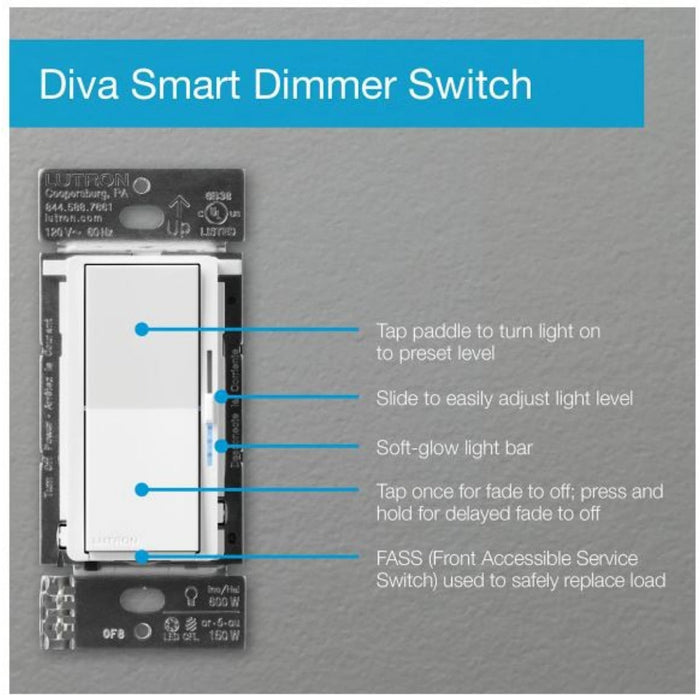

Introducing the Diva smart dimmer starter kit for Caseta smart lighting. America's #1 dimmer is now smart and works with your existing Caséta products. Match existing Diva LED and dimmer switches in your home with the same elegant, recognized rocker-style, updated to match existing Caséta products with an LED-backlit light bar. Welcome home to peace of mind - always come back to a well-lit home with the Diva smart dimmer switch. Use the smart hub to connect your Diva smart dimmer switch to more leading smart home devices.

Features:

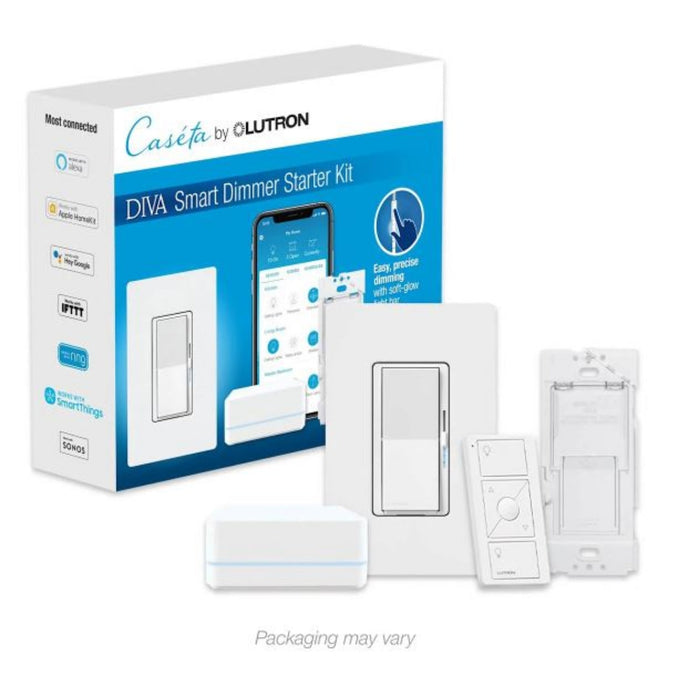

  • Includes (1) Diva smart dimmer switch for Caséta smart lighting, (1) wall plate, (1) Pico smart remote, (1) wall plate bracket, and (1) smart hub
  • Always come back to a well-lit home with Caséta; enable the smart away feature to randomly turn your lights on and off to look like you're home even if you're away
  • The smart hub provides an ultra-reliable and responsive local network for your lighting system; simple setup with a single button press and works even when your Wi-Fi goes down
  • Caséta puts the smarts in the switch, so you can control your lights a variety of ways – via the Lutron app, with your voice, at the switch, or with a Pico smart remote
  • Connects wirelessly with ClearConnect

Wall Control Dimensions:

  • Height: 4-1/8"
  • Width: 2-1/4"
  • Depth: 1-1/2"

Electrical Specifications:

  • Amperage: 1.25
  • Load Type: Incandescent, LED
  • Wattage: 150 watts
  • Voltage: 120

Docs/Instruction Links

Specifications

Regulatory Approvals

  • cULus Listed
  • NOM Certified
  • FCC Approved. Complies with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules
  • Industry Canada Certified
  • IFTEL Certified
  • NEMA 410: PD (-5ANS, -6ANS, -5WS, -10NXD, -5NE), DVRF (-6L, -5NS, -5NE) Power

Operating voltage:

  • 120 V~ 50/60 Hz: PD (-3PCL, -6WCL, -10NXD, -6ANS, -5ANS, -5NE, -FSQN), DVRF (-6L, -5NS, -AS, -5NE)
  • 120/277 V~ 50/60 Hz: -5WS-DV

Key Design Features

  • Tested to withstand electrostatic discharge without damage or memory loss, in accordance with IEC 61000-4-2.
  • Tested to withstand surge voltages without damage or loss of operation, in accordance with IEEE
  • C62.41-1991 Recommended Practice on Surge Voltages in Low-Voltage AC Power Circuits.
  • Load controls always operate locally and do not require system control.
  • Power failure memory: should power be interrupted, the control will return to its previously set level prior to the interruption when power is restored.
  • PD-5WS-DV, PD-5ANS, PD-6ANS, PD-10NXD, DVRF-5NS, and DVRF (-6L, -5NE) use conventional 3-way wiring.
  • PD-5WS-DV, PD-5ANS, PD-6ANS, PD-10NXD, DVRF-5NS, and DVRF (-6L, -5NE) can be used with a mechanical switch in 3-way applications.
  • DVRF (-6L, -5NE) and DVRF-5NS can also be wired with an accessory switch, DVRF-AS.
  • Uses Lutron Claro wallplates or designer-style wallplates from other manufacturers. Wallplates are sold separately.
  • Lutron Claro wallplates snap on with no visible means of attachment
  •  Requires a 1-gang U.S. wallbox. 31⁄2 in (89 mm) depth recommended, 21⁄4 in (57 mm) depth minimum1.

Key Design Features (continued)

  • PD- models use green status LED(s) to indicate load status.
  • DVRF (-6L, -5NE) uses a white soft glow light bar and the DVRF-5NS uses a white status LED to indicate load status.
  • PD-FSQN provides 4 quiet fan speeds plus OFF for a single ceiling fan.
  • Claro Smart accessory switches (DVRF-AS) control Diva Smart dimmers and switches from additional locations and do not directly control the load.

System Communications and Capacity

  • • Caséta switches, dimmers, and fan controls communicate with Pico remote controls, Caséta motion sensors, and the Lutron Smart Hub/Smart Hub PRO through Radio Frequency (RF).
  • • The Caséta switches, dimmers, and fan controls must be located within 60 ft (18 m) line-of-sight or 30 ft (9 m) through walls of a Lutron Smart Hub, Smart Hub PRO, or Caséta Repeater.
  • • The Caséta switches, dimmers, and fan controls must be located within 60 ft (18 m) line-of-sight or 30 ft (9 m) through walls of Pico remote controls or Caséta motion sensors (with no Smart Hub installed).

Device limits

  • Pico remote controls and Caséta motion sensors: up to 10 devices (total) may be paired to each Caséta switch/dimmer (with no Smart Hub installed).
  • Smart Hub or Smart Hub PRO system: up to 75 total wireless devices (Caséta dimmers / switches, Pico remote controls, Caséta motion sensors, and shades) are supported per system. Smart Hub or Smart Hub PRO counts as one device. The Caséta repeater counts as one device. Environment
  • Ambient operating temperature: 32 °F to 104 °F (0 °C to 40 °C), 0%to 90% humidity, non-condensing. Indoor use only
