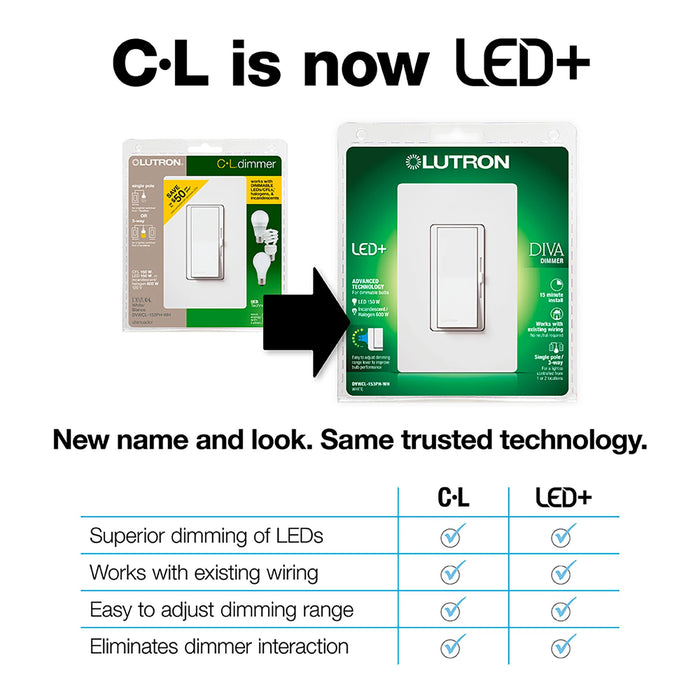

Lutron DVCL-153P-WH Diva LED+ Dimmer Switch White 150W LED 600W Incandescent Halogen 3-Way Single-Pole

Availability:
in stock, ready to be shipped
SKU LUT-DVCL-153P-WH

Lutron DVCL-153P-WH Diva LED+ Dimmer Switch White 150W LED 600W Incandescent Halogen 3-Way Single-Pole, No Neutral Required

The Lutron DVCL-153P-WH Diva LED+ Dimmer in gloss white is designed to provide reliable, smooth dimming control for dimmable LED, CFL, incandescent, and halogen bulbs in single-pole or 3-way applications. Featuring a large paddle switch with a captive linear-slide dimmer, it allows easy on/off operation and precise brightness adjustment with over 250 lighting levels to create the right ambiance for a wide range of activities. This 120V in-wall dimmer supports up to 150W dimmable LED/CFL loads or 600W incandescent/halogen loads, installs with existing wiring, and does not require a neutral wire. It is factory tested for performance, includes low-end adjustment for bulb compatibility, and is intended for indoor use. Wallplate is sold separately.

  • Model: Lutron DVCL-153P-WH
  • Diva LED+ dimmer switch in gloss white
  • Works with dimmable LED, CFL, incandescent, and halogen bulbs
  • Rated for 150W LED/CFL or 600W incandescent/halogen
  • Supports single-pole and 3-way applications
  • No neutral wire required

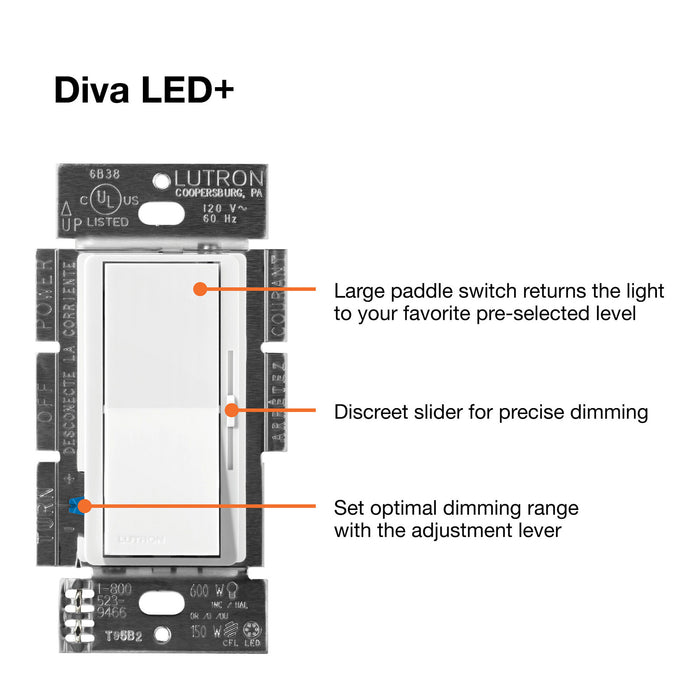

  • Large paddle switch with linear slide dimmer
  • Offers 250+ lighting levels
  • Low-end adjustment for improved bulb compatibility
  • 120V in-wall installation
  • Indoor use only
  • Coordinating Claro wall plate sold separately.

Docs/Instruction Links:

Specifications:

  • Product Line: Diva LED+
  • Type: Dimmer Switch
  • Color: White
  • Finish: Gloss White
  • Application: Lighting Control
  • Wiring Type: Single-Pole / 3-Way
  • Number of Poles: 1
  • Voltage: 120V
  • Frequency: 50/60 Hz
  • Max Load: 150W LED/CFL
  • Max Load: 600W Incandescent/Halogen
  • LED Driver Rating: 250W Lutron LTEA Hi-lume 1% forward-phase LED driver (max 6 drivers)
  • Switch Style: Paddle Switch with Slide Dimmer
  • Mounting Type: In-Wall / Wallbox
  • Connection Type: Wire Leads
  • Neutral Wire Required: No
  • Wallplate Included: No
  • Indoor/Outdoor Use: Indoor Only
  • Operating Temperature: 32°F to 104°F (0°C to 40°C)
  • Standards: UL, CSA, NOM
  • Material: Plastic/Metal
