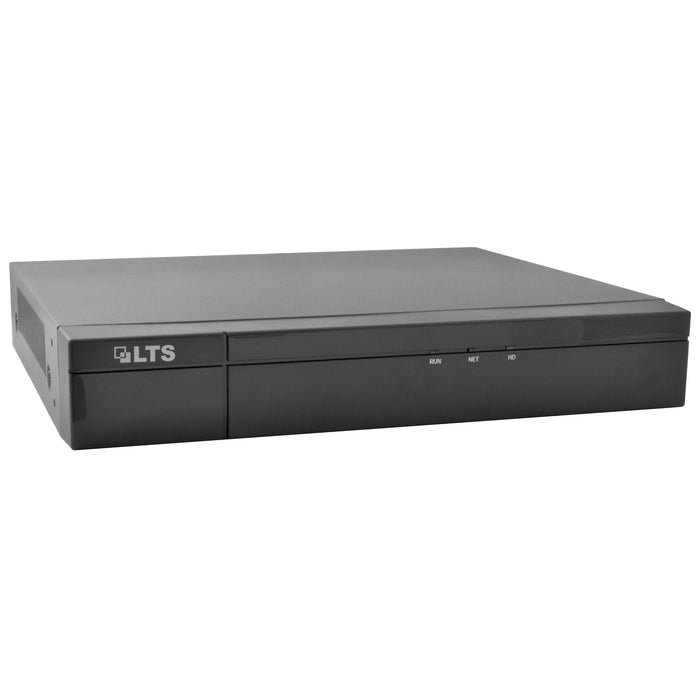

LTS VSN8104-P4 4-Channel 4K H.265 NVR with 4 Ports Built-in PoE (No HDD)

SKU LTS-VSN8104-P4

Sorry, this product has been discontinued.

LTS VSN8104-P4 4 Channel 4K H.265 NVR with 4 Ports Built-in PoE (No HDD)

Introducing our 4-channel network video recorder (NVR), a powerful solution for your surveillance needs. With support for Ultra265/H.265 video formats, up to 8 Megapixels resolution recording, and compatibility with mainstream cameras, our NVR ensures high-quality footage. Enjoy a hassle-free setup with independent PoE ports, simultaneous HDMI and VGA output, and expandable storage capacity. Our NVR incorporates ANR technology for reliable storage and offers cloud upgrade support for easy updates. Elevate your surveillance capabilities with our advanced 4-channel NVR and enjoy peace of mind knowing your property is protected.


This model is compliant with the NDAA (National Defense Authorization Act), meaning it's safe to use and install on U.S. government properties. It was constructed with trusted and reliable technology at its core. Hard drive not included

HDD Storage Sold Separately:
1TB Surveillance HDD
2TB Surveillance HDD

Features:

  • Support Ultra265/H.265 video formats
  • 4-channel input
  • Plug & play with 4 independent PoEs
  • Support mainstream cameras of ONVIF conformance (Profile S, Profile G, Profile T) and RTSP protocols
  • Support HDMI and VGA simultaneous output
  • Up to 8 Megapixels resolution recording
  • 1 SATA HDDs, up to 8TB for each HDD
  • ANR technology to enhance the storage reliability
  • Support cloud upgrade

Specifications:

Video/Audio Input

  • IP Video Input
  • 4-ch

Audio Input

  • 1-ch, RCA Network
  • Incoming Bandwidth
  • 80Mbps
  • Outgoing Bandwidth
  • 64Mbps
  • Remote Users
  • 128
  • Protocols
  • TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP
  • Browser (IE(IE10/11) for Windows Firefox (version 52.0 and above) for Windows Chrome (version 45 and above) for Windows Edge (version 79 and above) for Windows)

Video/Audio Output

  • HDMI/VGA Output HDMI: 4K (3840x2160)@30, 1920x1080p@60, 1920x1080p@50, 1600x1200@60, 1280x1024@60, 1280x720@60, 1024x768@60
  • VGA: 1920x1080p@60, 1920x1080p@50, 1280x1024@60, 1600x1200@60, 1280x720@60, 1024x768@60

Recording Resolution

  • 8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
  • Audio Output 1-ch, RCA
  • Two-way Audio 1-ch, RCA(Using the audio input and output)
  • Audio Compression G.711A, G.711U
  • Synchronous Playback4-ch
  • Liveview display 1/4
  • Corridor Mode Screen 3/4

Snapshot

  • FTP/Schedule/Event 4-ch snapshot, up to D1 resolution

Decoding

  • Decoding format Ultra 265/H.265
  • Live view/Playback 8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
  • Capability 4 x 4K@30, 6 x 5MP@30, 8 x 4MP@30, 9 x 4MP@25, 10 x 3MP@30, 16 x 1080p@30

Hard Disk

  • SATA 1 SATA interfaces
  • Capacity Up to 8TB for each disk (The maximum HDD capacity varies with environment temperature)

General Alarm

  • General Alarm Motion, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection
  • Alert Alarm IP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal

External Interface

  • Network Interface 1 RJ-45 10M/100M self-adaptive Ethernet Interface
  • USB Interface Front panel: 1 x USB2.0, Rear panel: 1 x USB3.0

PoE

  • Interface 4 RJ-45 10M/100M self-adaptive Ethernet Interface
  • Max Power Max 30W for single port; Max 50W in total
  • Supported Standard IEEE 802.3af/at

General

  • Power Supply 48V DC/1.35A; Power Consumption: ≤ 10W (without HDD)
  • Working Environment -10°C~+ 55°C (+14°F~+131°F), Humidity ≤ 90% RH (non-condensing)

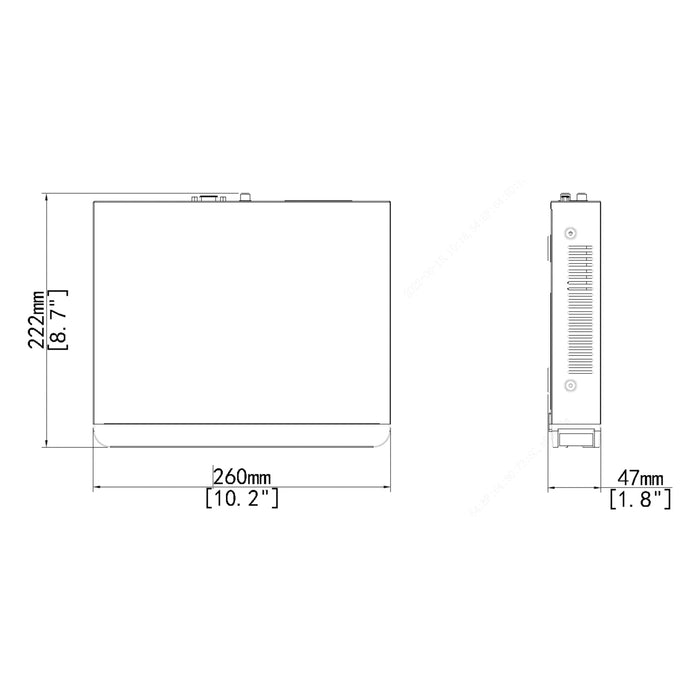

  • Dimensions (W×D×H) 260mm × 222mm × 47mm (10.2" × 8.7" × 1.8")
  • Weight (without HDD)≤ 0.98Kg (2.16lb)

Certification

  • Certification CE, FCC, UL, RoHS, WEEE
  • CE EN 55032: 2015, EN 61000-3-3: 2013, EN IEC 61000-3-2: 2019, EN 55035: 2017
  • FCC Part15 Subpart B, ANSI C63.4
