LTS VSN7208-P8 8 Channel 4K H.265 NVR with 8 Ports Built-in PoE (No HDD)

LTS VSN7208-P8 8 Channel 4K H.265 NVR with 8 Ports Built-in PoE (No HDD)
SKU LTS-VSN7208-P8

Sorry, this product has been discontinued.

LTS VSN7208-P8 8 Channel 4K H.265 NVR with 8 Ports Built-in PoE (No HDD)

  • Compression : H.265, H.264, Ultra 265,
  • Pre-Installed Storage : No HDD included
  • Video Output : 1x VGA 1x HDMI
  • Max. Recording Resolution : 8MP (4K)
  • Hard Drive Ports : 2 SATA Ports
  • Max. Storage Capacity : 20 TB Storage Capacity
  • Dimensions : 380 x 315 x 53 mm (14.9 x 12.4 x 2.1 in)
  • Color : Black
  • Environmental : Indoor
  • Number of PoE Ports : 8 PoE Ports

This model is compliant with the NDAA (National Defense Authorization Act), meaning it's safe to use and install on U.S. government properties. It was constructed with trusted and reliable technology at its core.

Features:

  • Video Input: 8CH IP@160Mbps
  • HDD Options available
  • NDAA Compliant
  • Video Output: HDMI up to 4K(3840 x 2160) / VGA up to 1080P
  • Max. Recording Resolution: Up to 8MP(3840 x 2160)
  • Decoding Format: H.265/H.264
  • Decoding Capability: 2CH@4K / 8CH@1080P
  • Max. Playback Resolution: Up to 8MP(3840 x 2160)
  • Audio In/Out: 1CH/1CH, RCA
  • Alarm In/Out: 4CH/1CH
  • Built-in PoE: 8CH
  • Network: 10M/100M/1000M, 1 RJ45
  • Storage: 2 SATA up to 10TB
  • Backup: 1 USB 2.0, 1 USB 3.0
  • Dimensions: 14.9”(W)x12.4”(D)x2.1”(H)
  • Recorder Case: 1U

Specification:

Video/Audio Input

  • IP Video Input: 8-ch
  • Two-way Audio Input: 1-ch, RCA

Network

  • Incoming Bandwidth: 160Mbps
  • Outgoing Bandwidth: 64Mbps
  • Remote Users: 128
  • Protocols: P2P, UPnP, NTP, DHCP, PPPoE

Video/Audio Output

  • HDMI: 4K (3840x2160@30), 1920x1080@60, 1920x1080@50, 1600x1200@60, 1280x1024@60, 1280x720@60, 1024x768@60
  • VGA: 1920x1080@60, 1920x1080@50, 1280x1024@60, 1280x720@60, 1024x768@60
  • Recording Resolution: 8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
  • Audio Output: 1-ch, RCA
  • Synchronous Playback: 8-ch
  • Corridor Mode Screen: 3/4/5/7/9

Decoding

  • Decoding format: Ultra265/H.265/H.264
  • Liveview/Playback: 8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
  • Capability: 2 x 4K@30, 4x 4MP@30, 5 x 3MP@30, 8 x 1080P @30

Hard Disk

  • SATA: 2 SATA interfaces
  • Capacity: Up to 10TB for each disk

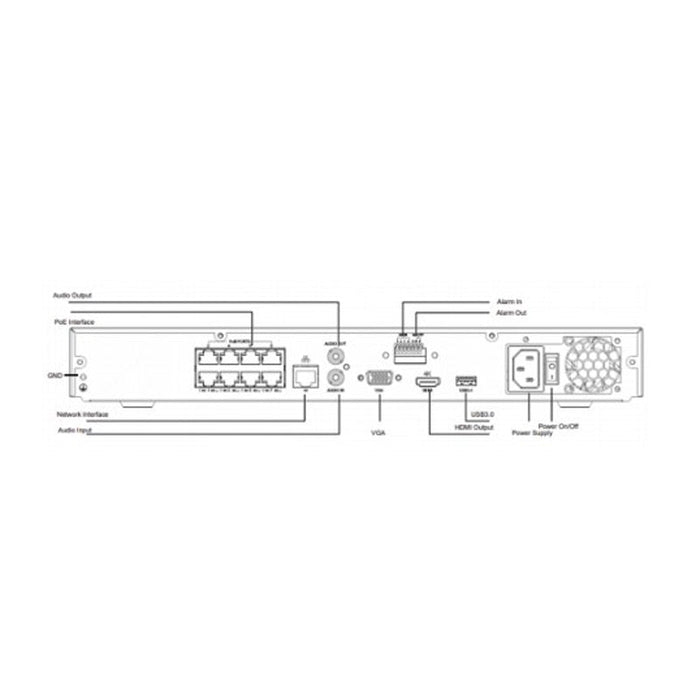

External Interface

  • Network Interface: 1 RJ-45 10M/100M/1000M self-adaptive Ethernet Interface
  • USB Interface: Front panel: 1 x USB2.0, Rear panel: 1 x USB3.0
  • Alarm In: 4-ch
  • Alarm Out: 1-ch

PoE

  • Interface: 16 independent 100Mbps PoE network interfaces
  • Max Power: Max 30W for single port / Max 130W in total
  • Supported Standard: IEEE 802.3af/at

General

  • Power Supply: 100 ~ 240 V AC
  • Power Consumption: ≤10W(without HDD)
  • Working Environment: -10℃ ~ + 55℃ (+14℉ ~ +131℉), Humidity ≤ 90% RH (non-condensing)

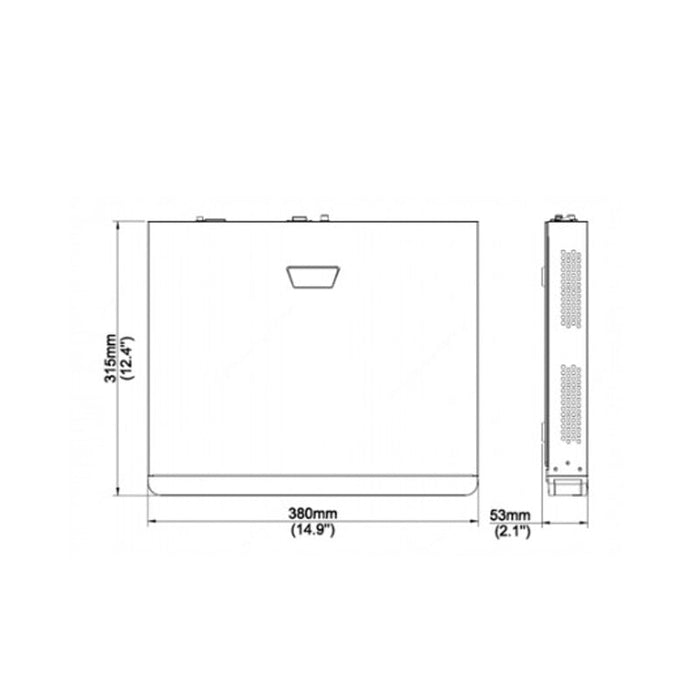

  • Dimensions (W×D×H): 380mm x315mm x 53mm (14.9" x 12.4" x2.1")
  • Weight (without HDD): ≤2.6kg (5.29lb)
