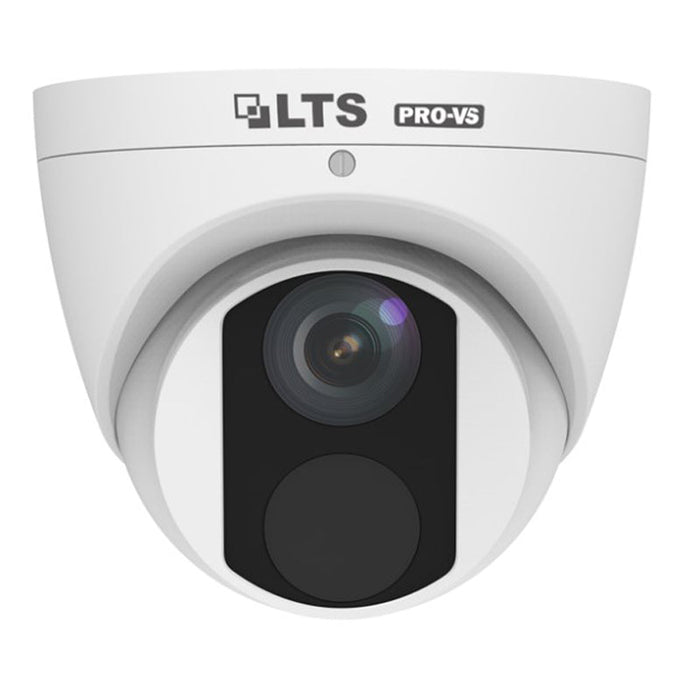

LTS VSIP3442W-28MA 4Mp InfraRed Outdoor Turret Network (IP) Security Camera

LTS VSIP3442W-28MA 4Mp InfraRed Outdoor Turret Network (IP) Security Camera
Availability:
Out of stock
SKU LTS-VSIP3442W-28MA
Sold out

LTS VSIP3442W-28MA 4Mp InfraRed Outdoor Turret Network (IP) Security Camera

4 Megapixel InfraRed for Night Vision Outdoor Turret Network (IP) Security Camera, Ultra 265 Compression, Weatherproof, SD Card Support, Built-in Microphone, 2.8mm Fixed Lens, VSIP3442W-28MA

This model is compliant with the NDAA (National Defense Authorization Act), meaning it's safe to use and install on U.S. government properties. It was constructed with trusted and reliable technology at its core.

Features:

  •  Compression : Ultra 265, H.265, H.264, MJPEG,
  •  Field of View (Horizontal) : 107.8°Field of View
  •  Max. FPS and Resolution : 30fps at 4MP
  •  Lens Type : Fixed Lens
  •  Lens Size : 2.8mm Lens
  •  Sensor Type : CMOS
  •  Sensor Size : 1/3" Sensor
  •  Dimensions : 118 x 96 mm (4.6 x 3.8 in)
  •  Protection Code : IP67
  •  Color : White
  •  Material : Metal Plastic
  •  Environmental : Outdoor
  •  Sensor Size : 1/3"
  • NDAA compliant

Specification:

Camera

  • Sensor: 1/3", 4.0 megapixel, progressive scan, CMOS
  • Lens: 2.8mm@F2.0
  • Angle of View (H): 107.8°
  • Angle of View (V): 57.0°
  • Angle of View (O): 140.1°
  • Adjustment angle: Pan: Pan: 0° ~ 360°, Tilt: 0° ~ 80°, Rotate: 0° ~ 360°
  • Shutter: Auto/Manual, 1 ~ 1/100000s
  • Minimum Illumination: Colour:0.01Lux (F2.0, AGC ON) 0Lux with IR on
  • Day/Night: IR-cut filter with auto switch (ICR)
  • Digital noise reduction: 2D/3D DNR
  • S/N: >56dB
  • IR Range: Up to 30m (98ft) IR range
  • Wavelength: 850nm
  • IR On/Off Control: Auto/Manual
  • Defog: Digital Defog
  • WDR: 120dB

Video

  • Video Compression: Ultra 265, H.265, H.264, MJPEG
  • H.264 code profile: Baseline profile, Main Profile
  • Frame Rate
  • "Main Stream: 4MP (2688*1520), Max 30fps; 4MP (2560*1440), Max 30fps; 3MP (2304*1296), Max 30fps; 1080P(1920*1080),Max30fps
  • Sub Stream: 720P (1280*720), Max 30fps;
  • Third Stream: 4CIF (704*576), Max 30fps"
  • Video Bit Rate: 128 Kbps~16 Mbps
  • OSD: Up to 4 OSDs
  • Privacy Mask: Up to 4 areas
  • ROI: Up to 4 areas
  • Motion Detection: Up to 4 areas


  • White Balance: Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
  • Digital noise reduction: 2D/3D DNR
  • Smart IR: Support
  • Flip: Normal/Vertical/Horizontal/180°
  • HLC: Supported
  • BLC: Supported

Audio

  • Audio Compression: G.711
  • Two-way audio: Supported
  • Suppression: Supported
  • Sampling Rate: 8KHZ

Storage

  • Edge Storage: Micro SD, up to 256GB
  • Network Storage: ANR

Smart
Behavior Detection: Human Body Detection

Network

  • Protocols: IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL
  • Compatible Integration: ONVIF (Profile S, Profile G, Profile T), API
  • Web Browser: Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below / Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+

Interface

  • Network: 1 RJ45 10M/100M Base-TX Ethernet
  • Built-in Mic: Supported

Certifications

  • CE: EN 60950-1
  • UL: UL60950-1
  • FCC: FCC Part 15
  • General
  • Power: DC 12V±25%, PoE (IEEE 802.3af) Power consumption: Max 5.5W

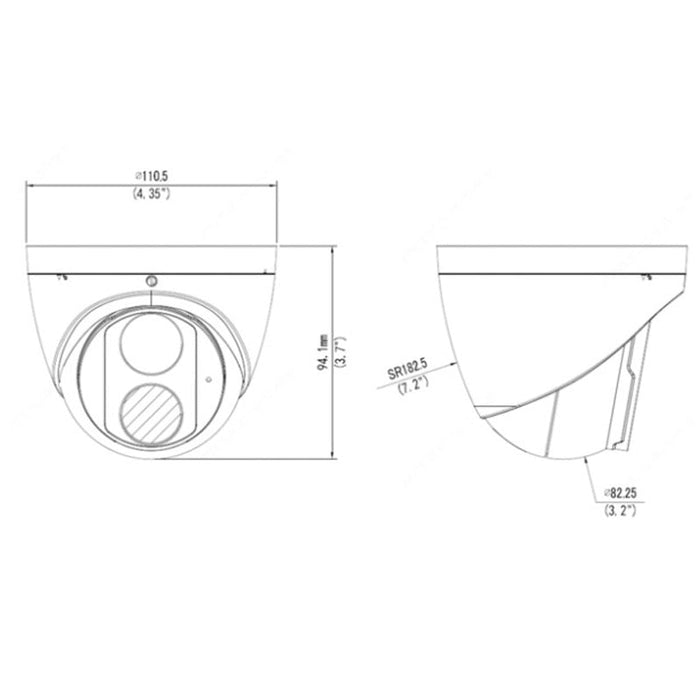

  • Dimensions (Ø x H): Φ118 x 96mm (Φ4.6" x 3.8")
  • Material: Front cover: metal; Rear cover: plastic; Bracket: plastic; Bottom plate: metal
  • Working Environment: -30℃ ~ 60℃ (-22℉ ~ 140℉), Humidity: ≤95% RH (non-condensing)
  • Strorage Environment: -30℃ ~ 60℃ (-22℉ ~ 140℉), Humidity: ≤95% RH (non-condensing)
  • Surge Protection: 2KV
  • Ingress Protection: IP67
