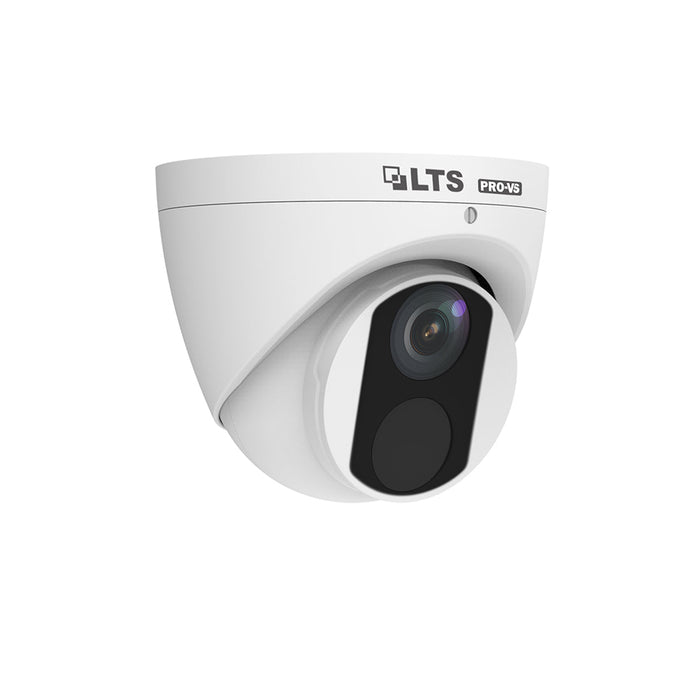

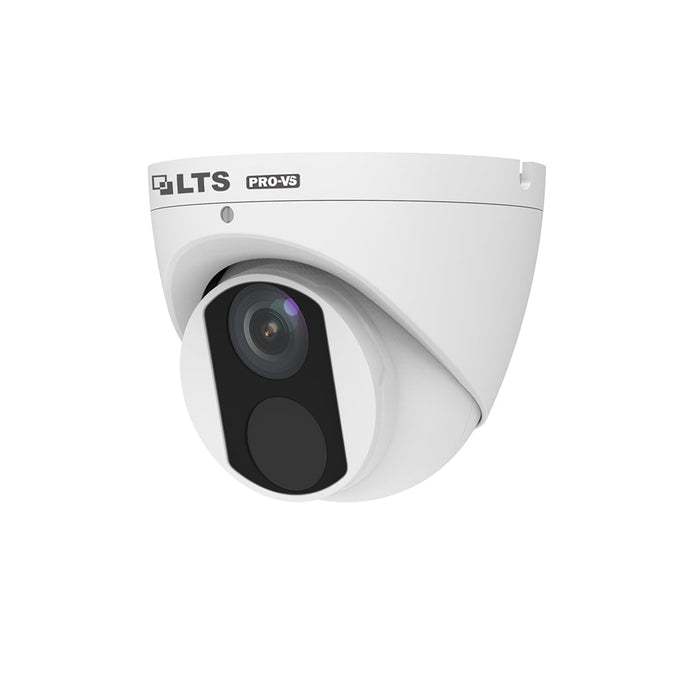

LTS VSIP3182W-28 8MP 2.8mm Fixed Lens 4K H.265 Outdoor IR Turret IP Security Camera

LTS VSIP3182W-28 8MP 2.8mm Fixed Lens 4K H.265 Outdoor IR Turret IP Security Camera
SKU LTS-VSIP3182W-28

Sorry, this product has been discontinued.

LTS VSIP3182W-28 8MP 2.8mm Fixed Lens 4K H.265 Outdoor IR Turret IP Security Camera

  • Resolution: 8MP, 3840 x 2160@20fps
  • Fixed Lens: 2.8mm
  • Lux: 0.05 lux @F2.0
  • Compression: Ultra 265/H.265/H.264/MJPEG
  • IR: Smart IR LED up to 98ft
  • Features: 120dB WDR, 2D/3D DNR, BLC, HLC, Digital Defog
  • Axis: 3 Axis
  • Rating: IP67, 2KV Surge Protection
  • Power: DC 12V, PoE
  • NDAA Compliant

This model is compliant with the NDAA (National Defense Authorization Act), meaning it's safe to use and install on U.S. government properties. It was constructed with trusted and reliable technology at its core.

Features:

  • Resolution: 8MP, 3840 x 2160@20fps
  • Fixed Lens: 2.8mm
  • Lux: 0.05 lux @F2.0
  • Compression: Ultra 265/H.265/H.264/MJPEG
  • IR: Smart IR LED up to 98ft
  • Features: 120dB WDR, 2D/3D DNR, BLC, HLC, Digital Defog
  • Axis: 3 Axis
  • Rating: IP67, 2KV Surge Protection
  • Power: DC 12V, PoE
  • NDAA Compliant

Specification:

Camera

  • Sensor: 1/3", 8.0 megapixel, progressive scan, CMOS
  • Lens: 2.8mm@F2.0
  • Angle of view(H): 112.7°
  • Angle of View (V: 60.1°
  • Angle of View (O: 146.5°
  • Shutter: Auto/Manual, 1~1/100000 s
  • Adjustment angle: Pan: 0°~360°, Tilt: 0°~80°, Rotate:0°~360°
  • Min. Illumination: Colour: 0.05 Lux (2.0, AGC ON) 0 Lux with IR
  • Day/Night: IR-cut filter with auto switch (ICR)
  • Digital noise reduction    2D/3D DNR
  • S/N: >56dB
  • IR Range: Up to 30m (98 ft) IR range
  • Wavelength: 850nm
  • IR On/Off Control: Auto/Manual
  • Defog: Digital Defog
  • WDR: 120dB

Video

  • Video Compression: Ultra 265, H.265, H.264, MJPEG
  • H.264 code profile: Baseline Profile, Main Profile
  • Frame Rate:
  • "Main Stream:8MP (3840*2160): Max. 20 fps;5MP(2944*1656): Max. 30 fps; 4MP(2560*1440): Max. 30 fps; 2MP(1920*1080): Max. 30 fps
  • Sub Stream:720P (1280*720): Max. 20 fps
  • Third Stream:4CIF (704*576): Max. 20 fps"
  • Video Bit Rate: 128 Kbps~16 Mbps
  • OSD: Up to 4 OSDs
  • Privacy Mask: Up to 4 areas
  • ROI: Up to 2 areas
  • Motion Detection: Up to 4 areas


  • White Balance: Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
  • Digital noise reduction: 2D/3D DNR
  • Smart IR: Support
  • Flip: Normal/Vertical/Horizontal/180°
  • HLC: Supported
  • BLC: Supported

Smart

  • Behavior Detection: Human Body Detection

Network

  • Protocols: IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL,QoS
  • Compatible Integration: ONVIF (Profile S+ Profile T), API
  • Web Browser: Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
  • Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+

Interface

  • Network: 10/100M Base-TX Ethernet

Certifications

  • CE: EN 60950-1
  • UL: UL60950-1
  • FCC: FCC Part 1

General

  • Power: 12 V DC±25%, PoE (IEEE802.3 af) Power consumption: Max 5W
  • Dimensions (Ø x H): Φ118x96mm (Φ4.6"×3.8")
  • Net Weight: 0.33kg (0.73lb)
  • Material: Front cover: metal; Rear cover: plastic; Bracket: plastic; Bottom plate: metal
  • Working Environment: -30℃ ~ +60℃ (-22℉ ~ 140℉), Humidity: ≤95% RH(non-condensing)
  • Strorage Environment: -30℃ ~ +60℃ (-22℉ ~ 140℉), Humidity: ≤95% RH(non-condensing)
  • Surge Protection: 2KV
  • Ingress Protection: IP67
