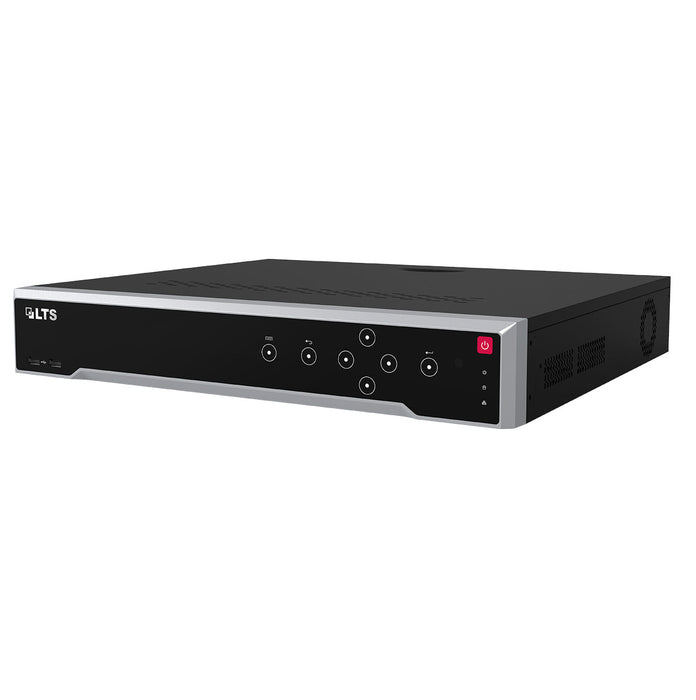

LTS LTN8932-P16N Platinum 32-Channel M-Series 8K NVR with 16TB HDD

Availability:
Out of stock
SKU LTS-LTN8932-P16N-16TB
Sold out

LTS LTN8932-P16N Platinum 32-Channel M-Series 8K NVR with 16TB HDD

Platinum, NVR, 32 channels, 4K, 320 Mbps, 16 PoE ports, Up to 32 MP recording, 4 x SATA ports for HDDs.

Professional and Reliable
  • H.265+ compression effectively reduces storage use by up to 75%
  • Dual-stream recording uses bandwidth more effectively
  • Streaming over TLS encryption technology provides more secure transmission
  • Supports double verification for playback and downloading
HD Video Output
  • Independent HDMI and VGA outputs
  • HDMI video output at up to 8K resolution
  • Dual 4K HDMI output resolution
Storage and Playback
  • Up to 4 x SATA interfaces for HDD connection
  • 16 channels of synchronous playback
POS & Smart Functions
  • Supports multiple Video Content Analytics (VCA) events
  • Special camera smart functions can be configured such as VCA detections (motion, line crossing, intrusion, etc.), heat mapping, LPR, etc.
  • POS information overlay on live view and playback; POS-triggered recording and alarms
Network & Ethernet Access
  • 16 independent PoE network interfaces
  • Single self-adaptive 10/100/1000 Mbps Ethernet interface
  • PT Cloud & DDNS for easy network management
  • Smooth streaming technology
  • Supports web access without plug-in

Specifications

Video and Audio Specifications:

  • IP Video Input: 32 channels, up to 32 MP resolution
  • Bandwidth: Incoming: 320 Mbps, Outgoing: 400 Mbps
  • HDMI 1 Output:
    • 8K: 7680 × 4320 / 30 Hz
    • 4K: 3840 × 2160 / 60 Hz, 30 Hz
    • 2K: Various resolutions up to 2560 × 1440 / 60 Hz
  • HDMI 2 Output: 2K: Various resolutions up to 2560 × 1440 / 60 Hz
  • VGA Output: Various resolutions up to 1920 × 1080 / 60 Hz
  • Video Output Mode: HDMI1/VGA simultaneous, HDMI2/VGA independent
  • CVBS Output: 1 ch, BNC, PAL: 704 × 576, NTSC: 704 × 480
  • Audio Output: 1 ch, RCA (Linear, 1 KΩ)
  • Two-Way Audio: 1 ch, RCA (2.0 Vp-p, 1 KΩ)
  • Decoding Format: H.265+/H.265/H.264+/H.264
  • Decoding Capability:
    • 8 ch @ 8 MP (25 fps)
    • 16 ch @ 4 MP (30 fps)
    • 32 ch @ 1080p (30 fps)
  • Recording: Dual-stream, Video & Audio
  • Audio Compression: G.711 ulaw/alaw, G.722, G.726, AAC, MP2L2

Network Specifications:

  • Remote Connections: 128
  • Protocols: TCP/IP, DHCP, IPv4/IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
  • Network Interface: 1 x RJ-45 10/100/1000 Mbps
  • PoE Interface: 16 x RJ-45 10/100 Mbps
  • Power: ≤ 200 W, IEEE 802.3 af/at

Auxiliary Interface:

  • eSATA: 1 x eSATA
  • SATA: 4 x SATA, up to 14 TB per disk
  • Serial Interface: 2 x RS-485, 1 x RS-232
  • Alarm In/Out: 16/9
  • USB Interface: Front: 2 x USB 2.0, Rear: 1 x USB 3.0
  • Controllable Power Output: 12 VDC, 1 A

General Specifications:

  • Power Supply: 100-240 VAC, 50-60 Hz
  • Consumption: ≤ 15 W (without HDD and PoE off)
  • Operating Temperature: 14° to 131° F (-10° to 55° C)
  • Operating Humidity: 10% to 90%
  • Chassis: 19-inch rack-mounted, 1.5U
  • Dimensions: 17.5 × 15.7 × 3.0 in. (445 × 400 × 75 mm)
  • Weight: ≤ 11 lbs (5 kg)
  • Certifications: FCC, ANSI, CE
  • 16TB HDD included
