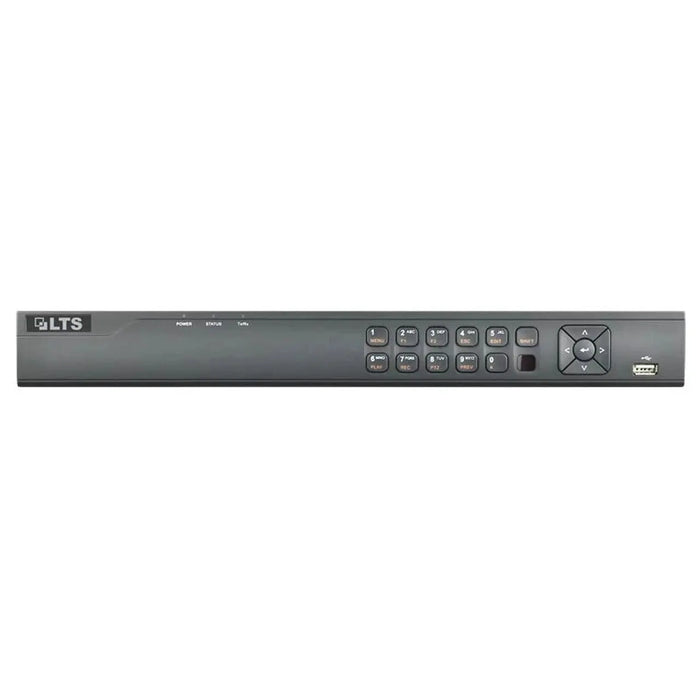

LTS LTD8304M-ET 4 Channel H.265 Pro+/H.265 Pro/H.265 HD-TVI Digital Video Recorder Platinum Advanced Level

LTS LTD8304M-ET 4 Channel H.265 Pro+/H.265 Pro/H.265 HD-TVI Digital Video Recorder Platinum Advanced Level
SKU LTS-LTD8304M-ET

Sorry, this product has been discontinued.

LTS LTD8304M-ET 4-Channel H.265 Pro+ Platinum Advanced HD-TVI ACUSENSE DVR

  • Deep learning-based motion detection 2.0 for all analog channels
  • Deep learning-based perimeter protection
  • H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 video compression
  • HDTVI/AHD/CVI/CVBS/IP video inputs
  • Audio via coaxial cable
  • Up to 6-ch IP camera inputs (up to 6 MP)
  • Up to 10 TB capacity per HDD

Specifications:

  • Audio Capability:    Two-way Audio
  • Audio Compression:    G.711u
  • Audio Input:    1x RCA
  • Audio Output:    1x RCA
  • Capacity for each disk:    up to 10TB
  • Channel Capacity:    4 camera channels
  • Compression:    H.265 Pro PlusH.265 ProH.265H.264H.264 Plus
  • Hard Drive Ports:    1 SATA Port
  • Languages:    English
  • Max. Recording Resolution:    4MP
  • Max. Storage Capacity:    10 TB
  • Operating Humidity:    10% to 90%
  • Operating Temperature:    -10 °C to 55 °C (14 °F to 131 °F)
  • Power Consumption:    18 Watts
  • Power Supply:    12 VDC 1.5A
  • Pre-Installed Storage:    No HDD included
  • Recorder Technology:    Digital Video Recorder (DVR)
  • Serial Interface:    1x RS485
  • USB Interface:    2x USB 2.0
  • Video Output:    1x HDMI, 1x VGA
