Camera Series: Platinum Starlight Series
Camera Resolution: 2MP
Camera Technology: HD-TVI

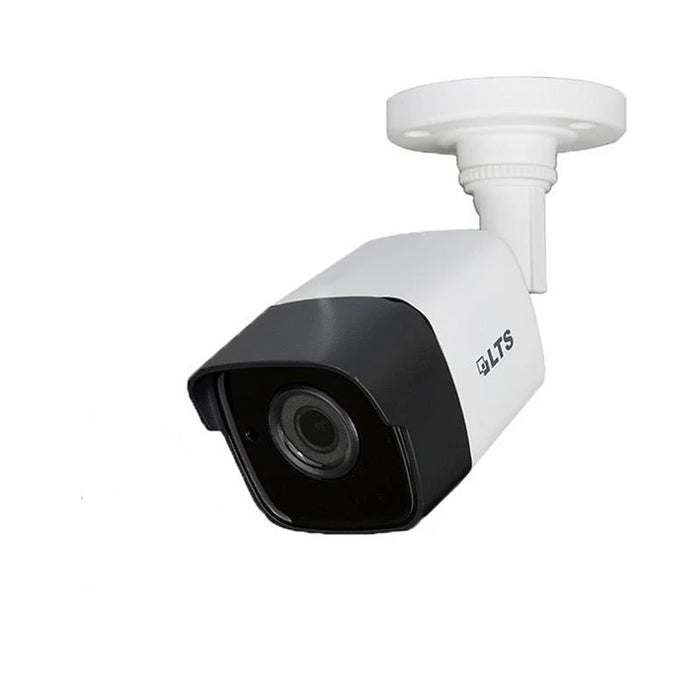

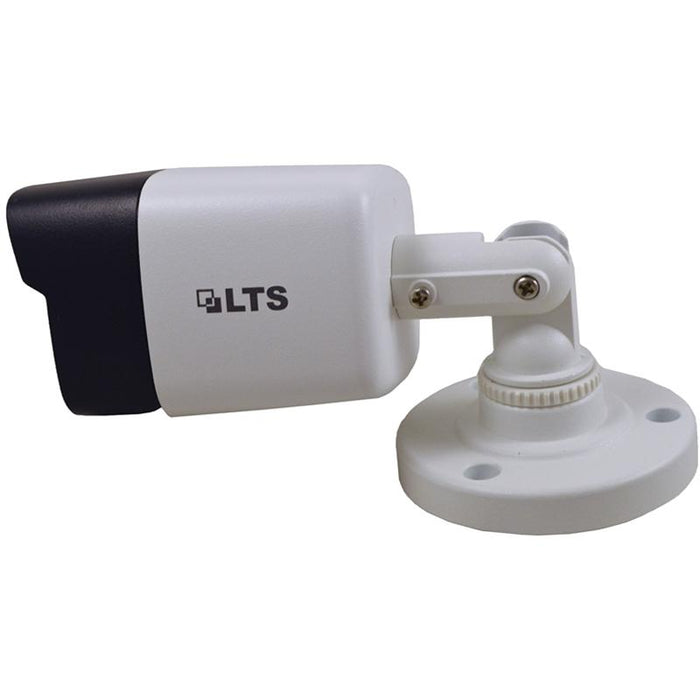

Camera Housing: Bullet
Specifications
Camera
Image Sensor: 2.0 megapixel progressive scan CMOS
Signal System: PAL/NTSC
Frame Rate: PAL: 1080p@25fps NTSC: 1080p@30fps
Resolution: 1920 (H) × 1080 (V)
Min. illumination Color: 0.005 Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter Time PAL: 1/25 s to 1/50, 000 s NTSC: 1/30 s to 1/50, 000 s
Slow Shutter: Max.: 16 times
Lens: 2.8 mm fixed focal lens
Horizontal Field of View: 103.5° (2.8 mm)
Lens Mount: M12
Day & Night: IR cut filter
Angle Adjustment: Pan: 0° to 360°, Tilt: 0° to 180, Rotate: 0° to 360°
Synchronization: Internal synchronization
WDR (Wide Dynamic Range): > 120 dB
Menu
AGC: Support
Day/Night Mode: Auto/Color/BW (Black and White)
White Balance: ATW/MANUAL
Privacy Mask: ON/OFF, 4 programmable privacy masks
Motion Detection: 4 programmable motion areas
Backlight Compensation: WDR/BLC/OFF
3D DNR (Digital Noise Reduction): Level 1 to 10
Language: English
Functions: Brightness, Sharpness, Mirror, Smart IR
Interface
Video Output: 1 HD analog output
General
Operating Conditions: -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
Power Supply: 12 VDC ±25%
Power Consumption: Max. 3.6 W
Ingress Protection: IP67
IR Range: Up to 66ft(20 m)
Communication: Up the coax, TVI output
Dimensions: 58 mm × 61 mm × 163 mm (2.28" × 2.40" × 6.42")
Weight: Approx. 350 g (0.77 lb.)
