Klipsch PRO-8-SBR SecureFit® In Ceiling Speaker Bracket Kit

Availability:
in stock, ready to be shipped
SKU KLIP-PRO-8-SBR

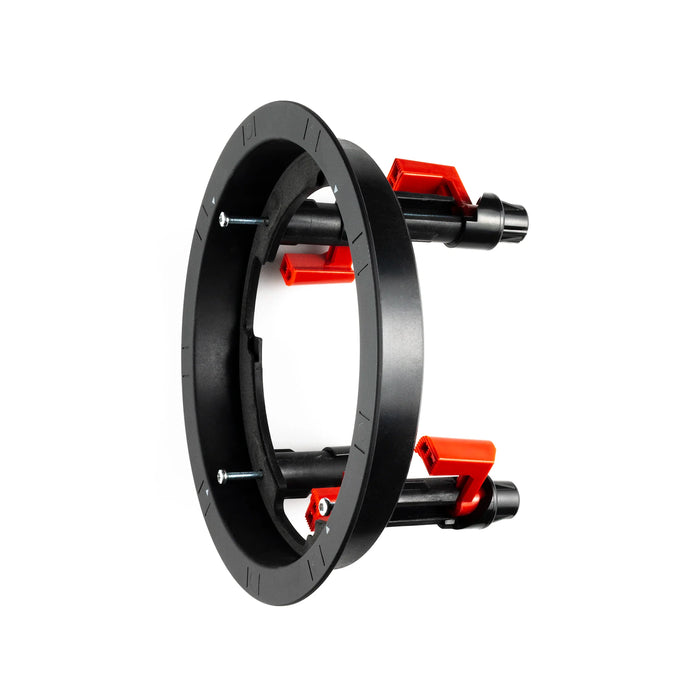

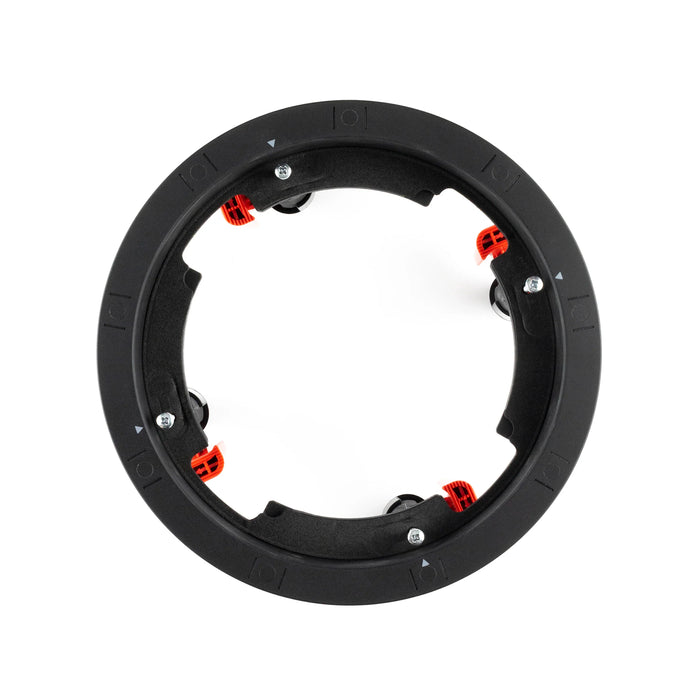

Klipsch PRO-8-SBR SecureFit® In Ceiling Speaker Bracket Kit

The Klipsch PRO-8-SBR SecureFit® Bracket Kit is a simple and flexible solution for future speaker placement and installation. The PRO-8-SBR is designed to give Klipsch in-ceiling speaker cutouts a finished, polished look prior to the final speaker installation, and guarantees pre-wire or install brackets won’t be lost in a closed ceiling.

CLEAN, COMPLETE PRE-WIRES
The Klipsch PRO-8-SBR SecureFit® Bracket Kit is a simple and flexible solution for future speaker placement and installation. The PRO-8- SBR is designed to give Klipsch in-ceiling speaker cutouts a finished, polished look prior to the final speaker installation, and guarantees that pre-wire or install brackets won’t be lost in a closed ceiling. The rear mounted cardboard cover ensures blown-in or batt insulation won’t fall through the cutout hole before or during speaker installation.
CLEAN, FINISHED LOOK

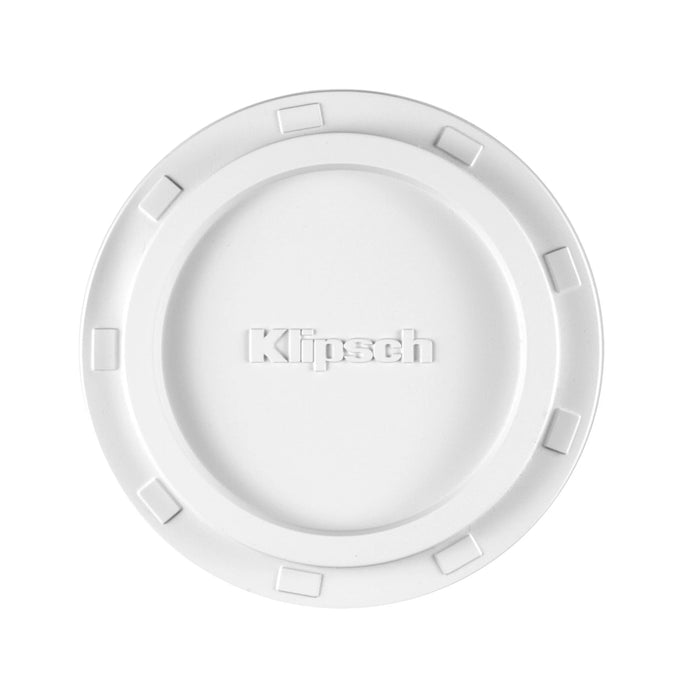

The Klipsch PRO-8-SBR SecureFit Bracket Kit includes a round, magnetic grille to visually resemble a speaker prior to the speaker purchase or installation. A magnetic plastic cover is also included to provide full vapor barrier protection, while a white eggshell finish allows it to disappear into white ceilings for a seamless look. Both the grille and cover are paintable to blend seamlessly into any décor.
EASY INSTALLATION
Patented SecureFit technology ensures easy installation without over-clamping or cracking drywall and is completely tool free when using the plastic cover. The grille bracket also matches the cutout for most Klipsch 8” in-ceiling speakers, so no additional measuring or
cutting is needed when swapping it for a speaker. Even better, direct compatibility with Klipsch Pro Series SecureFit speakers means no swapping is necessary. Simply install the Pro Series SecureFit speaker directly into the SecureFit Bracket Kit. A robust construction and easy-to-remove design mean it’s reusable from job to job

Specifications

  • CUT-OUT SIZE MATCHES
    • CS-18C
    • DS-180CDT
    • DS-180CSM
    • PRO-18RC
    • PRO-180RPC
    • R-1800-C
    • R-2800-CSM II
    • CDT-2800-C II
    • CDT-3800-C II
    • CDT-5800-C II
  • CUTOUT DIMENSIONS 9.8” (24.892 cm)
  • OVERALL DIMENSIONS
  • (With Grille) 10.9” W x 3.85” L (27.686 cm x 9.779 cm)
  • INSTALL SURFACE THICKNESS Max: 1”, Min: 0.3” (Max: 2.54 cm, Min: .762 cm)
  • BRACKET WEIGHT 0.73 lbs (0.331122 kg)
  • WEIGHT WITH GRILLE 0.90 lbs (0.408233 kg)
  • WEIGHT WITH PVC COVER 0.86 lbs (0.390089 kg)

INCLUDED IN BOX

  • Bracket
  • Round Steel Grille
  • Round PVC Cover

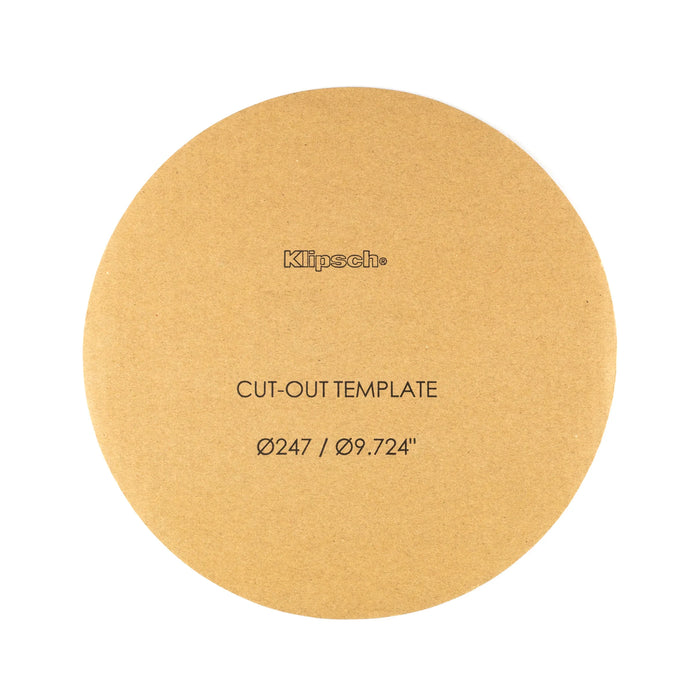

  • Cut Out Template
  • Install Manual
