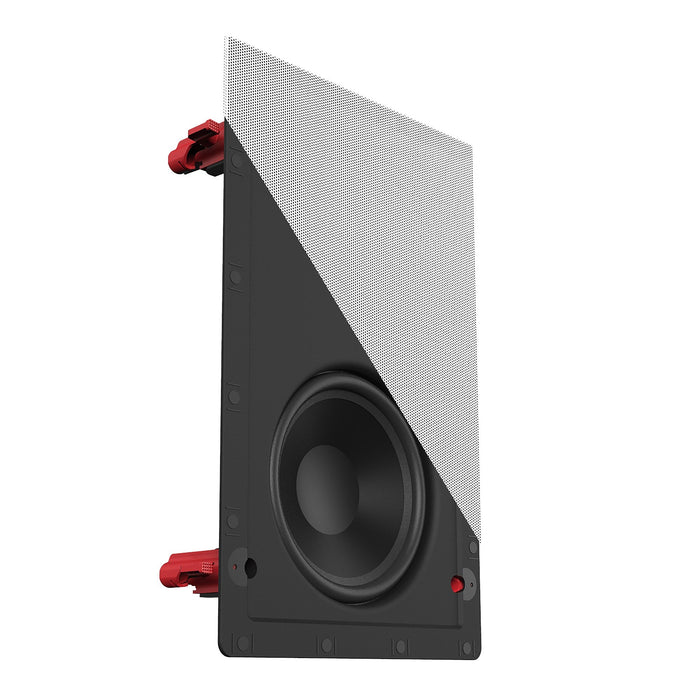

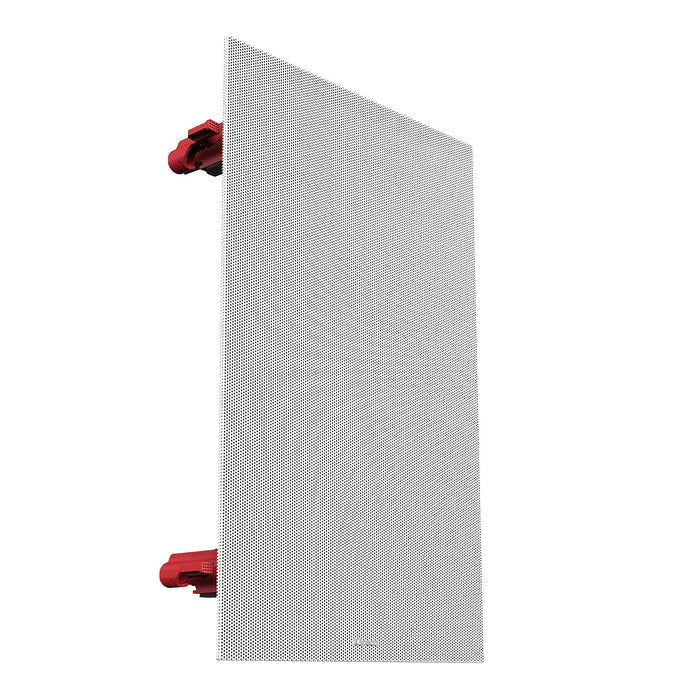

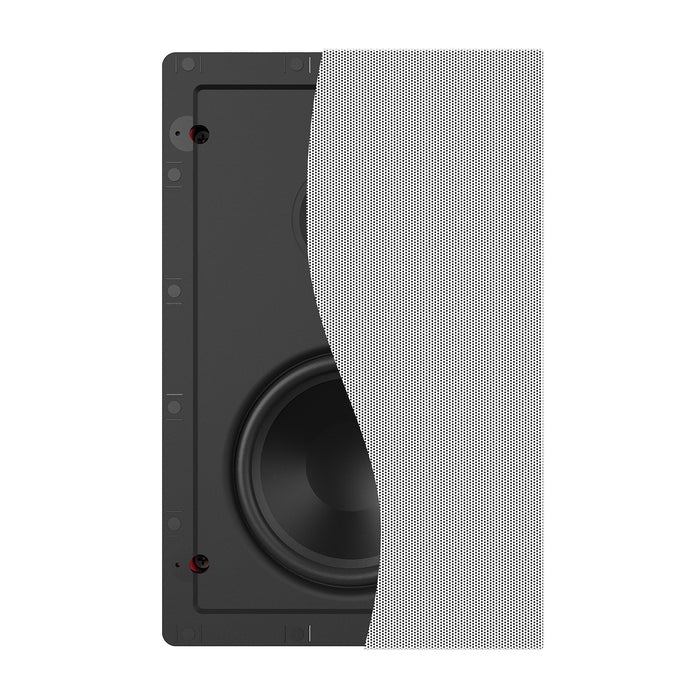

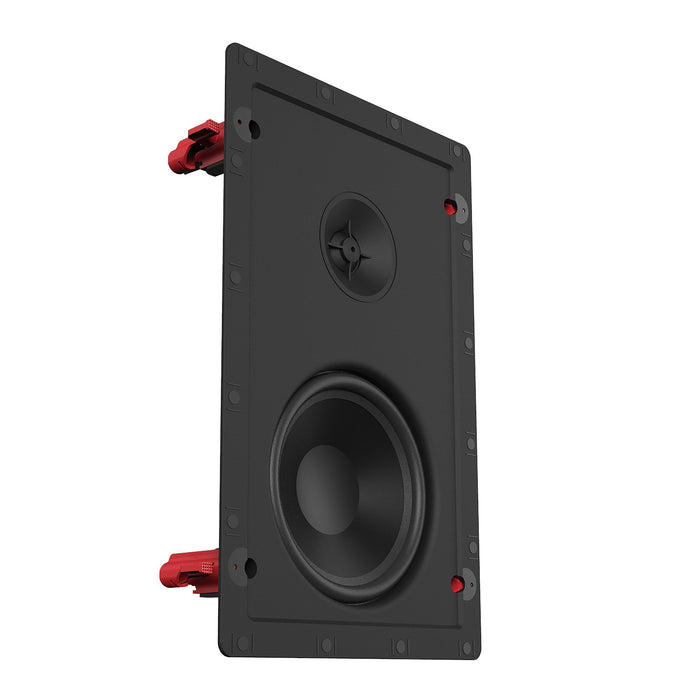

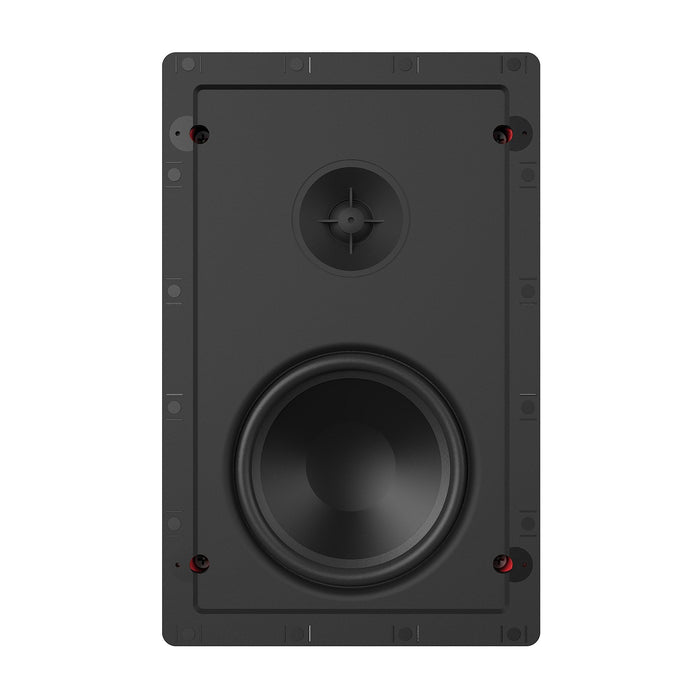

Klipsch DS-160W 6.5" 200 Watts 8 Ohms Home Audio In-Wall Speaker White (each)

Availability:
in stock, ready to be shipped
SKU KLIP-DS-160W

Klipsch DS-160W 6.5" 200 Watts 8 Ohms Home Audio In-Wall Speaker White (each)

The Klipsch DS-160W is a 6.5-inch in-wall speaker designed for distributed audio, home theater, and two-channel systems. It features a 6.5-inch polypropylene woofer and a 1-inch silk dome tweeter paired with Klipsch's Tractrix® horn technology for clear, dynamic sound with strong detail and output. The patent-pending SkyHook™ tool-free installation system automatically engages the mounting dog legs with preset clamping force, helping prevent overtightening and reducing installation time by up to 75%. A redesigned bezel-free magnetic steel grille provides a clean, low-profile appearance that blends seamlessly into any room.

  • 6.5” Polypropylene woofer
  • 1” Silk Dome tweeter
  • Patented Sky Hook® Tool-Free Installation System

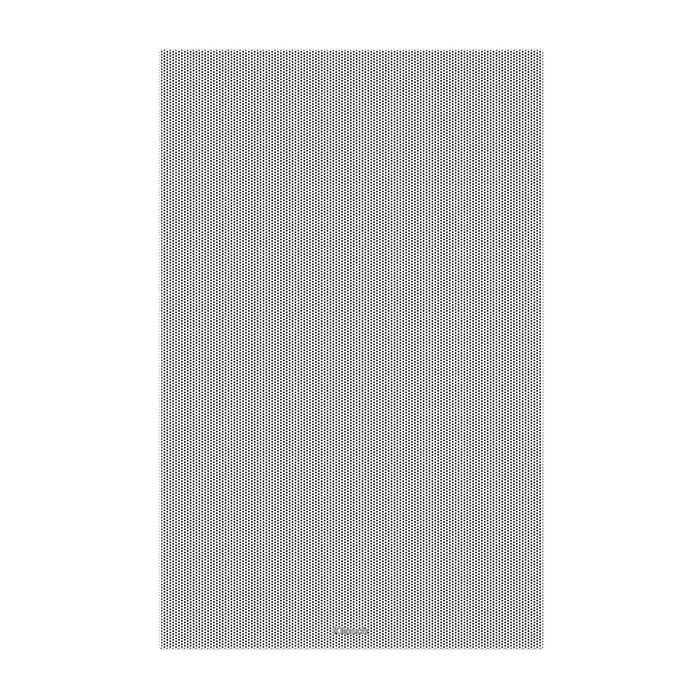

  • Bezel-Free Magnetic Grille

Docs/Instruction Links

Specifications

  • Frequency Range: 77Hz - 20kHz (+/- 3dB)
  • High Frequency Driver: 1" (2.54cm) Silk Dome Tweeter mated to a round Tractrix® Horn
  • Low Frequency Driver: 6.5" (16.51cm) Polypropylene Woofer
  • Sensitivity: 91 dB @ 2.83V / 1m
  • Coverage Angle: 100°
  • Power Handling: 50W RMS / 200W Peak
  • Impedance: 8 Ohm Compatible
  • Enclosure Material/Type: ABS / Infinite Baffle
  • Finish: Black Baffle/Frame, White Paintable Grille
  • Product Dimensions: 9.0" W x 14.1" H x 3.9" D (22.8cm W x 35.8cm H x 9.8cm D)
  • Mounting Depth: 3.78" (9.6cm)
  • Cutout Dimensions: 13" H x 8" W (33.0cm H x 20.3cm W)
  • Product Weight: 7.2 lbs (3.25kg)
  • Included in Box: Magnetic Grille
  • Install Kit: IK-650-W II (sold separately)
  • Fire-Rated Enclosure: ME-650-W (sold separately)
