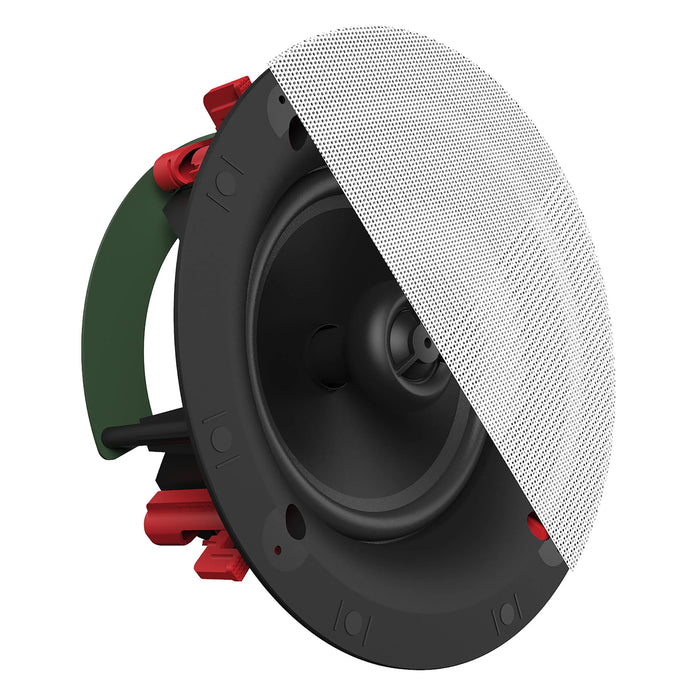

Klipsch DS-160C 6.5" 200W Max Power 8 Ohms In-Ceiling Speaker (Each)

Availability:
in stock, ready to be shipped
SKU KLIP-DS-160C

Klipsch DS-160C 6.5" 200W Max Power 8 Ohms In-Ceiling Speaker - White (Each)

Offering the Klipsch Signature Horn-Loaded performance at an incredible value, the DS-160C features a 6.5” Polypropylene woofer and a 1” Silk Dome tweeter mated to a round Tractrix® horn for dynamic acoustic performance. Utilizing the Sky Hook® patented Cinch by Swarm Installation System, your install time is reduced by 75%.

HORN-LOADED PERFORMANCE

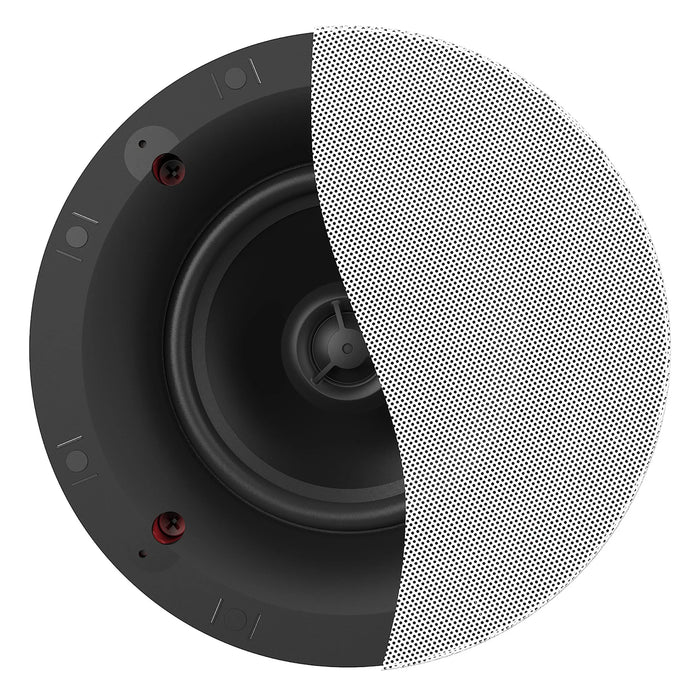

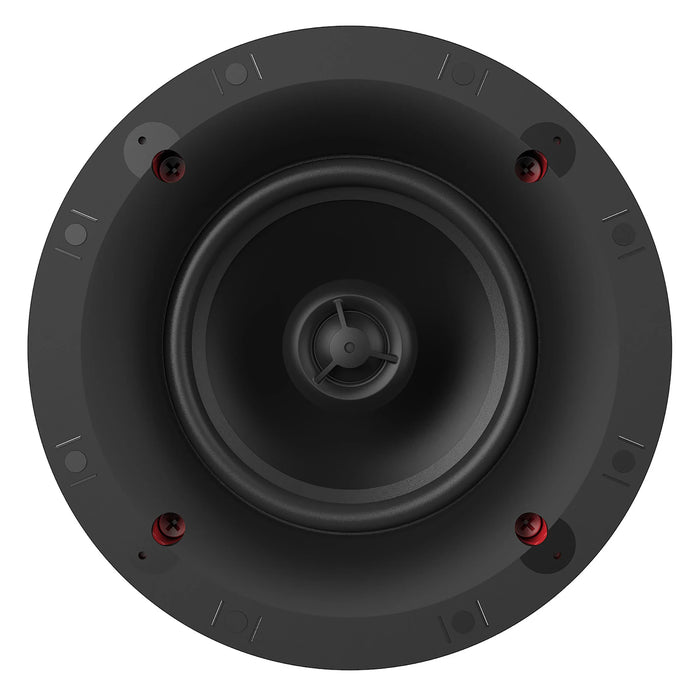

Using the same Tractrix® horn technology and design principles of our more premium architectural and box speaker lines, the all new Klipsch Designer series delivers true Klipsch power and performance. With a 6.5” Polypropylene woofer and a 1” Silk Dome tweeter mated to a round Tractrix® horn, the DS-160C brings dynamic, powerful, detailed Klipsch sound to your distributed audio, home theater, or 2-channel system.

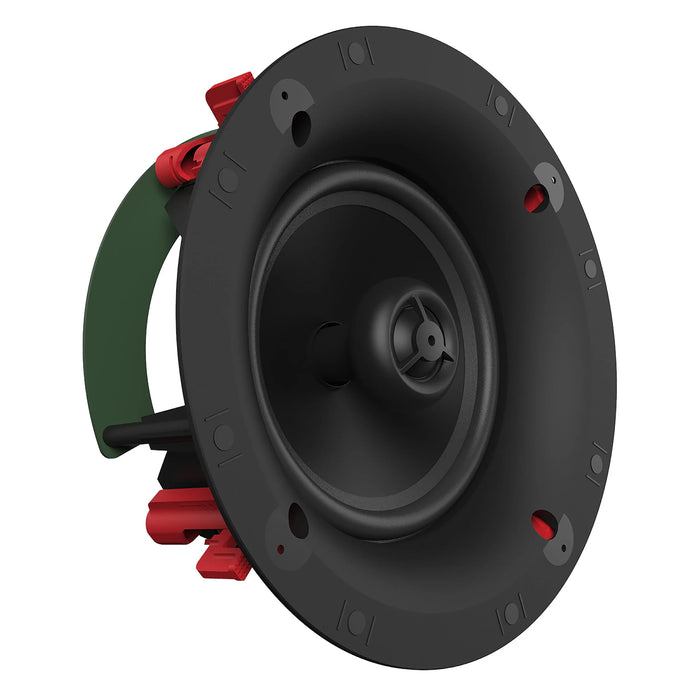

EXCLUSIVE PATENTED SKY HOOK® CINCH INSTALLATION SYSTEM
This exclusive installation system engages the dog legs automatically when the speaker is inserted into the cutout hole with a preset clamping force, eliminating the possibility of overtorquing. If dealing with an uneven space, a 1/4 turn of each dog leg screw achieves an even more flush finish. This fast, easy installation system reduces install time by up to 75%.

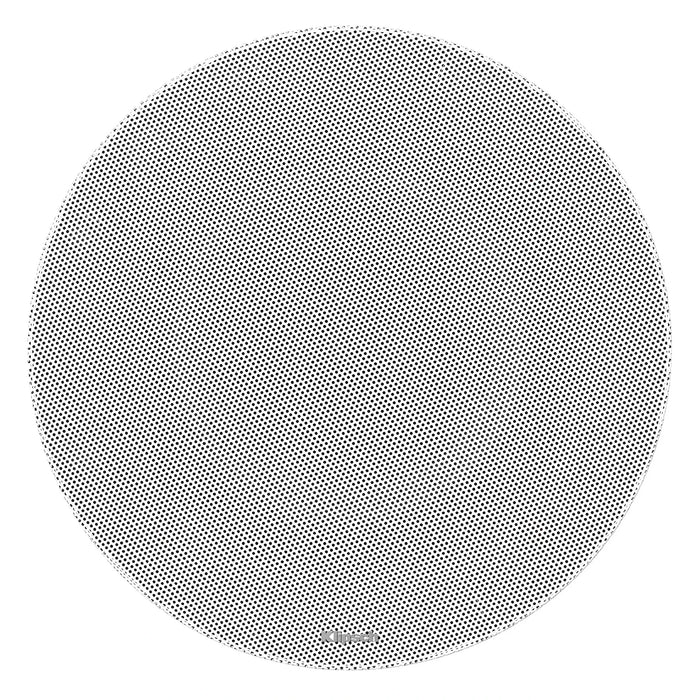

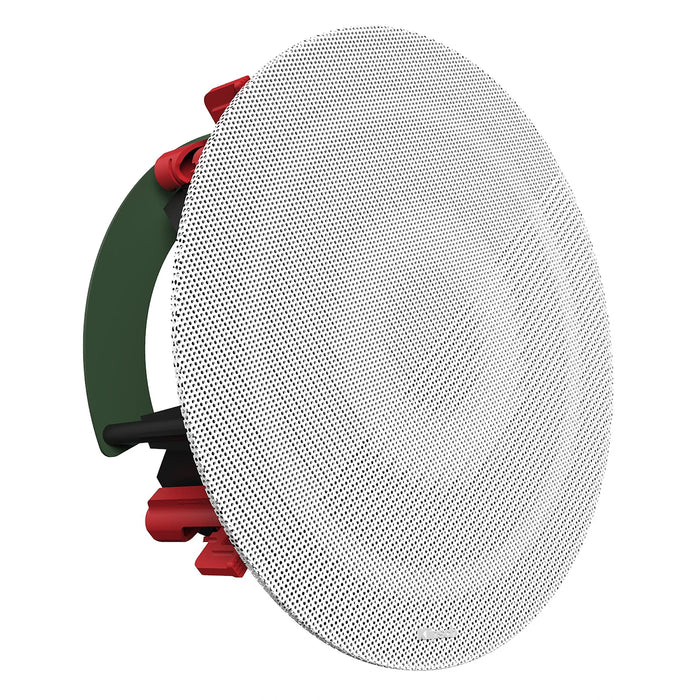

ALL NEW, BEZEL-FREE MAGNETIC GRILLE
A completely redesigned powder coated magnetic steel grille
eliminates the bezel for seamless, pristine integration into the living
space.

SPECIFICATIONS:

  • FREQUENCY RANGE - 65Hz-20KHz +/- 3dB
  • HIGH FREQUENCY DRIVER - 1" (25.4mm) Silk Dome Tweeter mated to a round Tractrix® Horn
  • LOW FREQUENCY DRIVER - 6.5” (165.1mm) Polypropylene Woofer
  • SENSITIVITY - 91 dB @ 2.83V / 1m
  • COVERAGE ANGLE - 100°
  • POWER HANDLING - 50W RMS / 200W RMS
  • IMPEDANCE - 8 Ohm Compatible
  • ENCLOSURE MATERIAL/TYPE - ABS/Infinite Baffle
  • FINISH - Black Baffle/Frame, White Paintable Grille
  • PRODUCT DIMENSIONS - 9.2” W x 9.2” H x 4.09” D (233mm H x 233mm W x 104mm D)
  • MOUNTING DEPTH - 3.98” (101mm)
  • CUTOUT DIMENSIONS - 7.99” (203mm)
  • PRODUCT WEIGHT - 7 lbs (3.18kg)
  • INCLUDED IN BOX - Flat Paintable Magnetic Grille
  • INSTALL KIT IK-650-C II (Sold Separately)
  • FIRE RATED ENCLOSURE ME-650-C (Sold Separately)
  • BUILT FROM 2017
