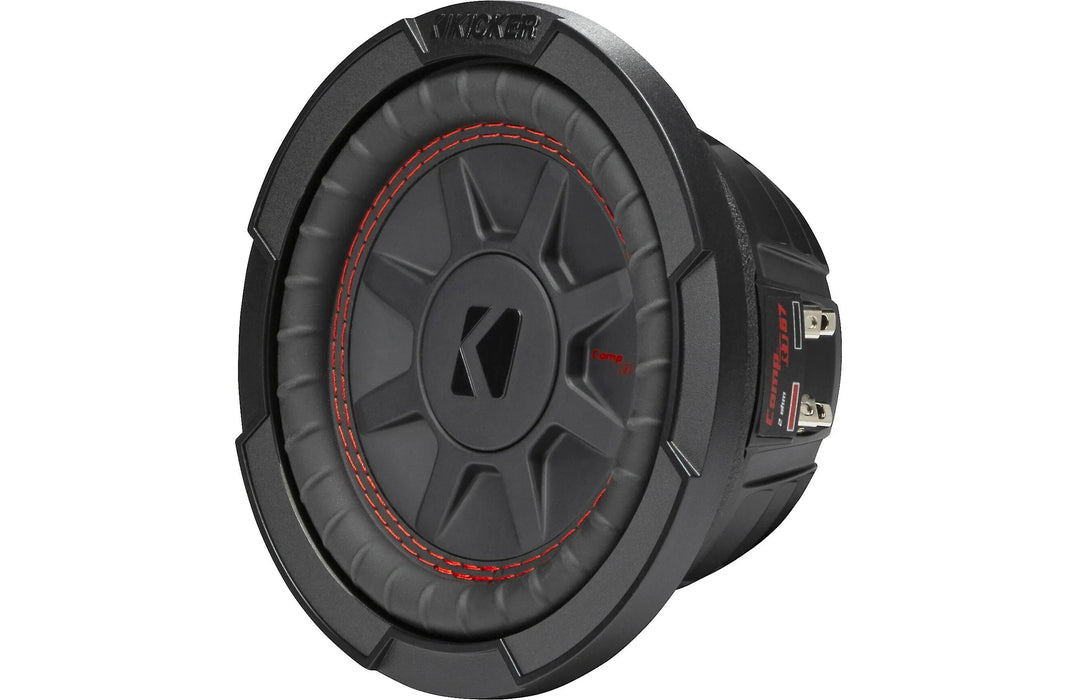

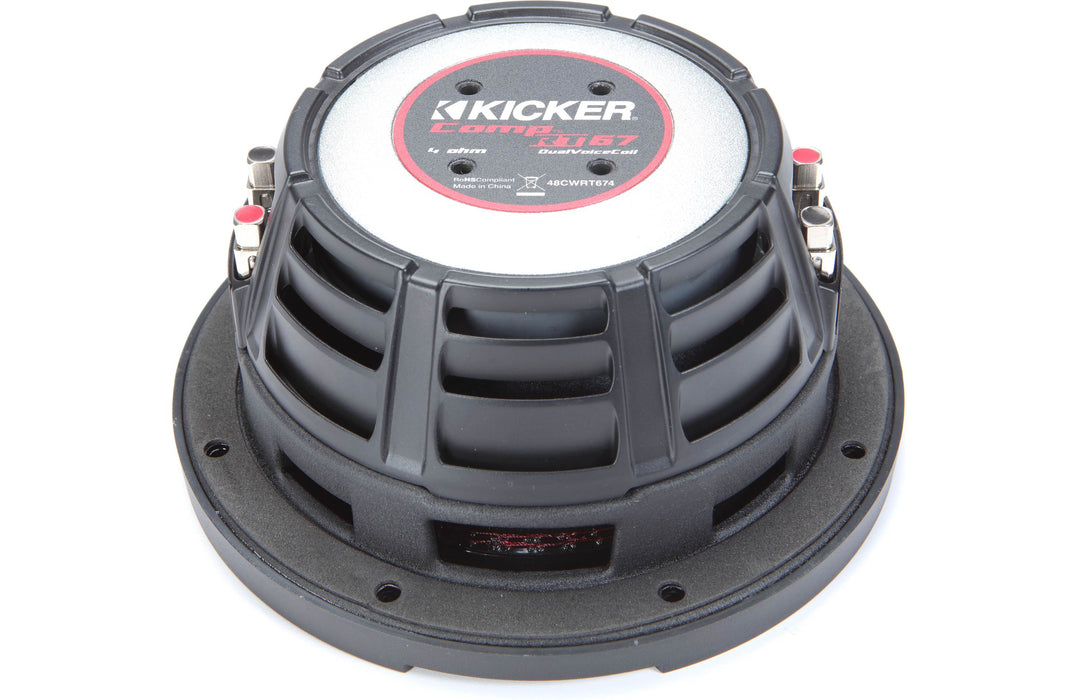

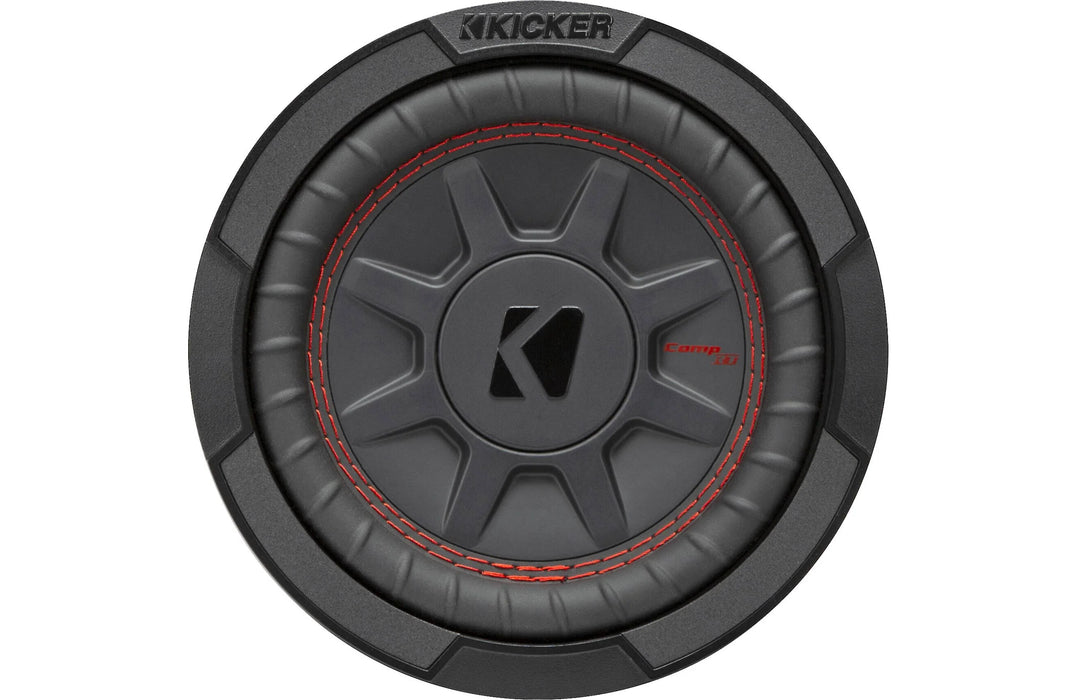

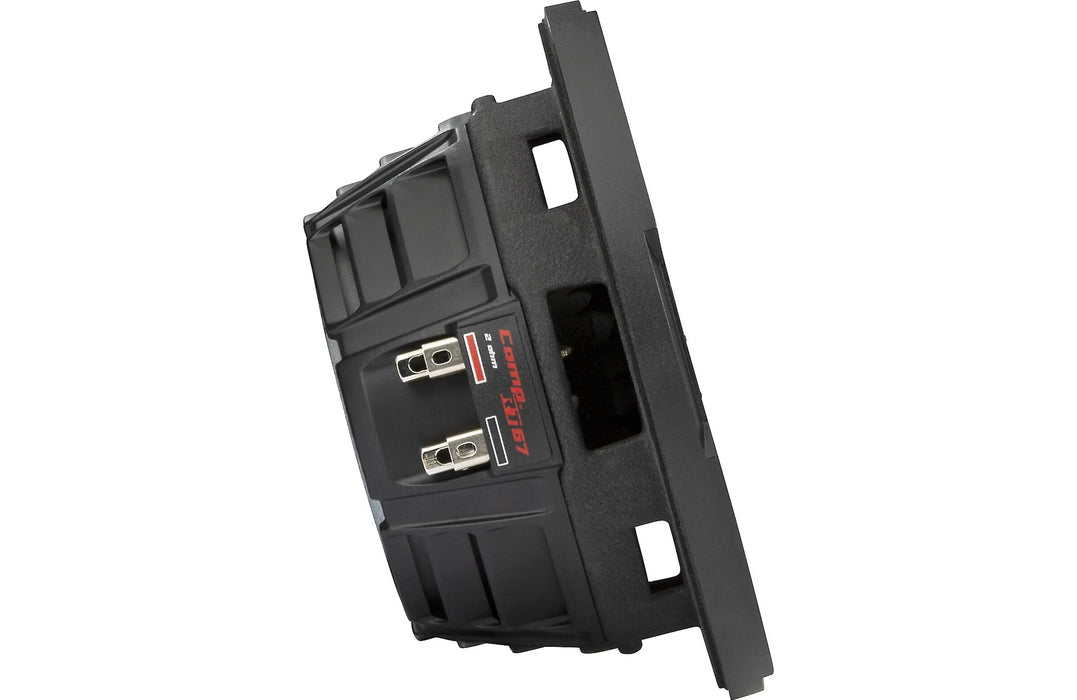

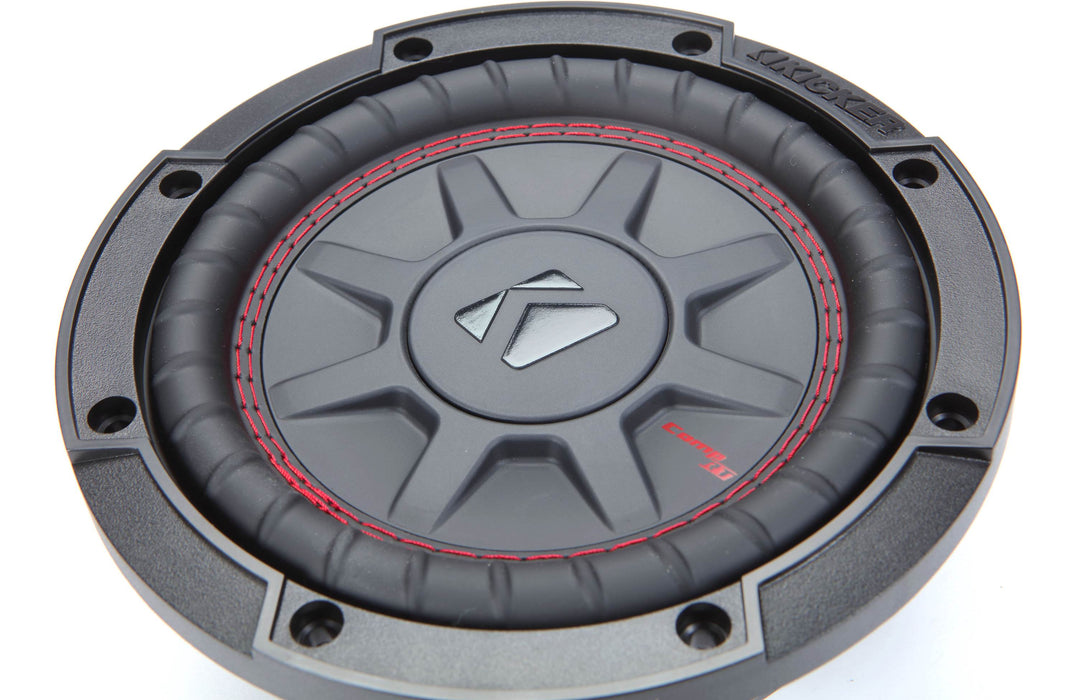

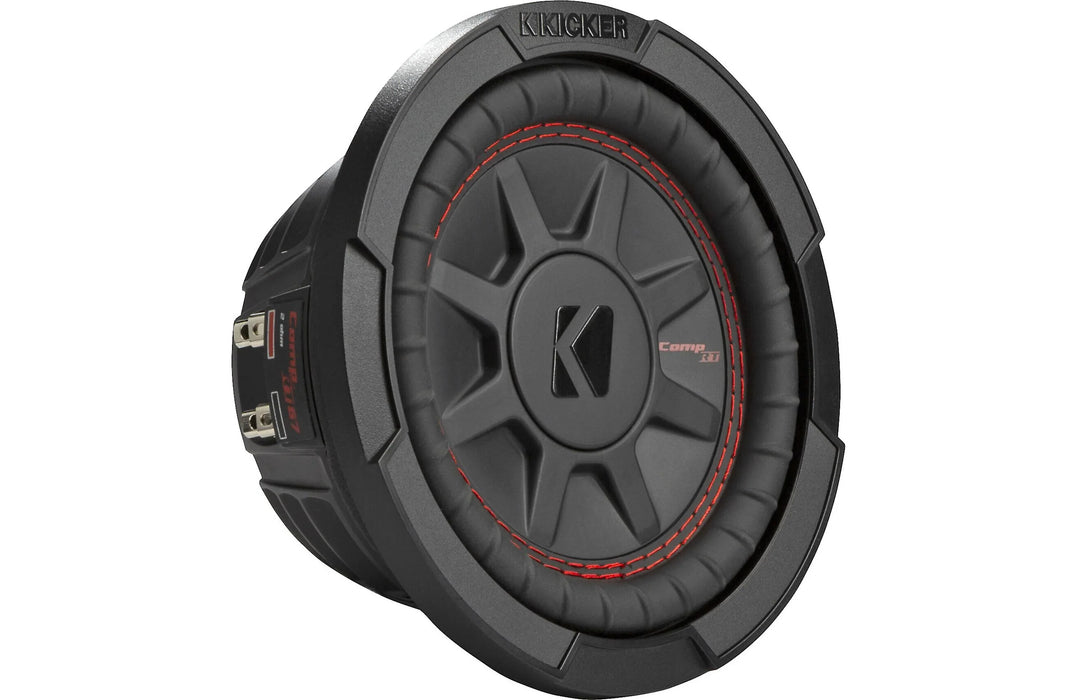

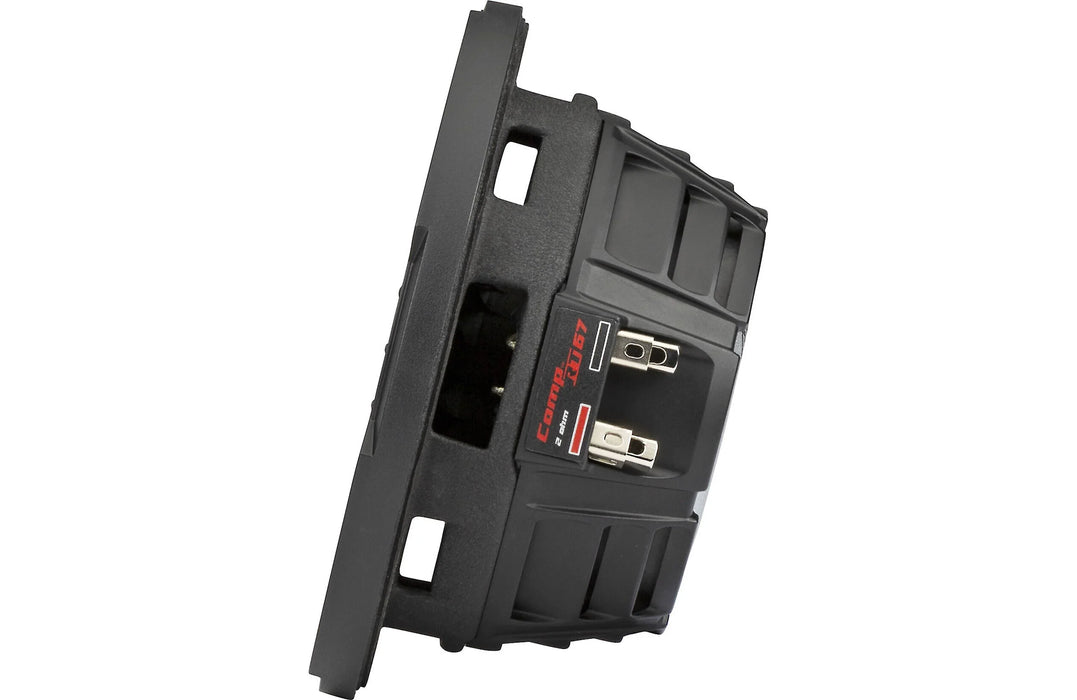

Kicker 48CWRT674 CompRT Series 6 3/4" Shallow Mount Subwoofer with Dual 4-ohm Voice Coils (each)

Availability:
Low stock
SKU KIC-48CWRT674

Kicker 48CWRT674 CompRT Series 6 3/4" Shallow Mount Subwoofer with Dual 4-ohm Voice Coils (each)

The CompRT 6-3/4-inch Subwoofer is an all-weather thin sub with a pair of 4-Ohm voice coils.

With a mounting depth under three inches and plenty of power handling, this go-anywhere sub is as flexible as it is powerful. An advanced suspension and heat management system helps to keep the bass powerful, deep and consistent. To make our subs even more reliable, KICKER engineers developed Forced-Air Cooling™ to help our subs run 20 percent cooler than before.

Our signature red double stitching makes an outstanding bond between the improved Santoprene surround and polypropylene woofer cone. Revolutionary SoloKon™ technology joins the cone to the vented back brace, creating a single integrated unit that both cools the motor and eliminates distortion.

The CompRT 6-3/4-inch Subwoofer works best with a sealed enclosure and 150 watts of recommended power. See below for more details.

  • 6-3/4" shallow-mount subwoofer with dual 4-ohm voice coils
  • injection-molded polypropylene cone with Santoprene rubber surround and steel basket
  • power handling: 75-150 watts RMS (300 watts peak)
  • frequency response: 30-500 Hz
  • sensitivity: 82.6 dB
  • top-mount depth: 2.75"
  • sealed box volume: 0.18 - 0.75 cu. ft
  • grille not included

Docs/Instruction Links

Specification

  • Thiele/Small Parameters - 48CWRT674 T/S Parameters
  • Product Dimension Sheet - 48CWRT67 Dimensions
  • CNC Software - Comp6.75-15.DXF - for subwoofer hole cutouts
  • 3D Printing Software - Comp6.75-15.SLDPRT - 3D-printing of grille spacers
  • SIZE [in, cm]: - 6-13/16, 17.3
  • IMPEDANCE [Ohms]: - 4 DVC
  • Recommended Amplifier Power (watts RMS) - 150
  • Peak Power (watts, per ANSI/CTA-2031-A) - 300
  • SENSITIVITY [dB 1w/1m]: - 82.6
  • MOUNTING DEPTH [in, cm]: 2-3/4, 7
  • MOUNTING DIAMETER [in, cm]: - 5-5/8, 14.3
  • MIN SEALED BOX VOL [cu. ft, L]: - 0.18, 5.1
  • MAX SEALED BOX VOL [cu. ft, L]: - 0.75, 21.24
  • MIN VENTED BOX VOL [cu. ft, L]:
  • MAX VENTED BOX VOL [cu. ft, L]:
