Jonard Tools TETP-901 COAX & Network Cable Tester Tone & Probe Kit+ w/ABN Clips

Availability:
Low stock
SKU JON-TETP-901

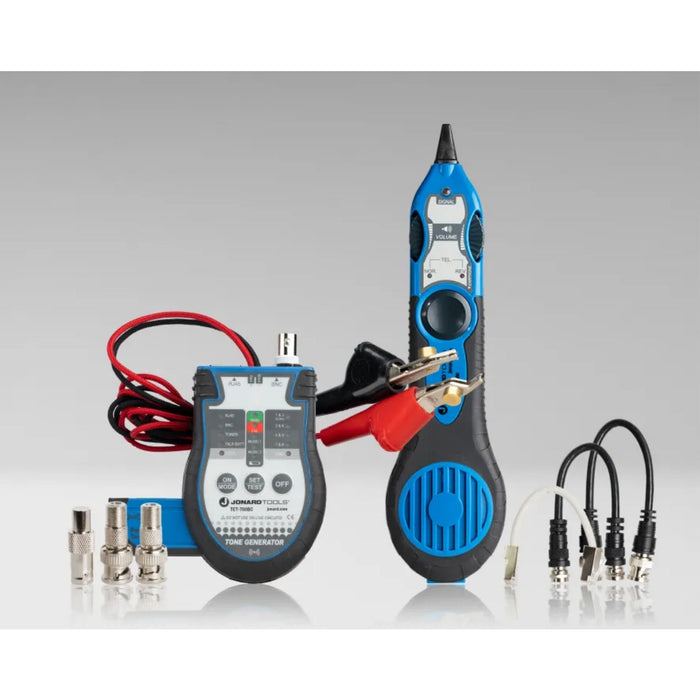

Jonard Tools TETP-901 COAX & Network Cable Tester Tone & Probe Kit+ w/ABN Clips

Designed to identify and test the continuity of RJ45, BNC, and F coaxial cables along with 6P2C/4P2C jacks, this multi-function cable tester tone and probe kit is the perfect kit for any Voice Data Video (VDV) professional. This kit features the following:

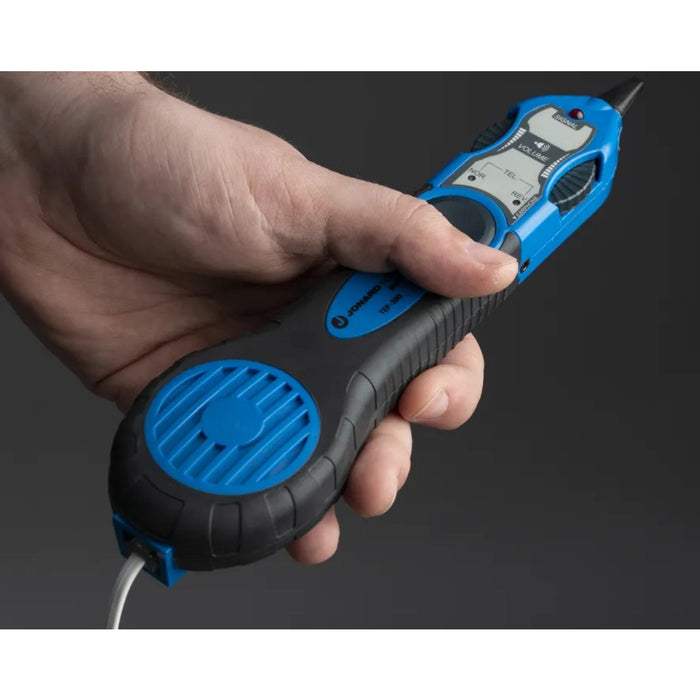

TEP-200 Tone Tracing Probe+

  • Plastic probe tip prevents accidental shorts
  • LED light provides a visual indication of signal strength
  • Able to check the polarity of many 6P2C/4P2C telephone jacks
  • Adjustable volume knob and headphone jack assist in tracing wires
  • Works with many other manufacturers’ analog tone generators
  • Includes (1) 9V battery required for operation
  • Limited Warranty

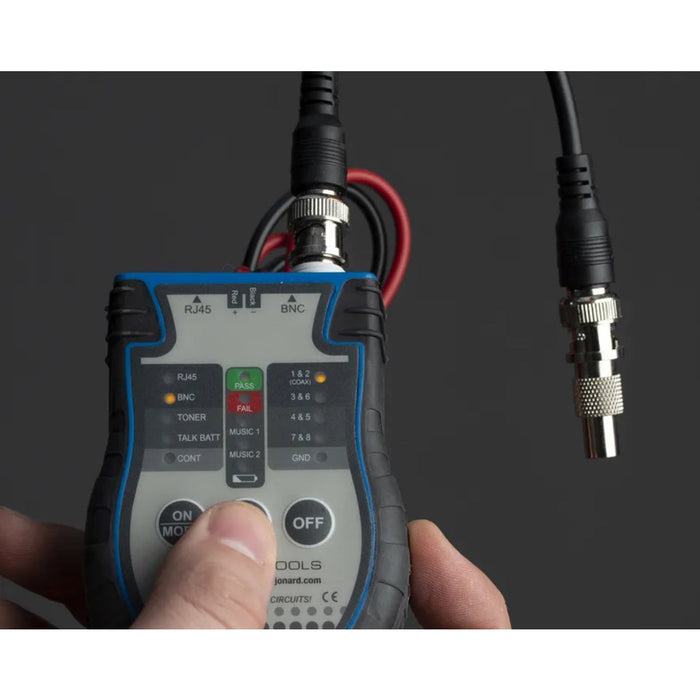

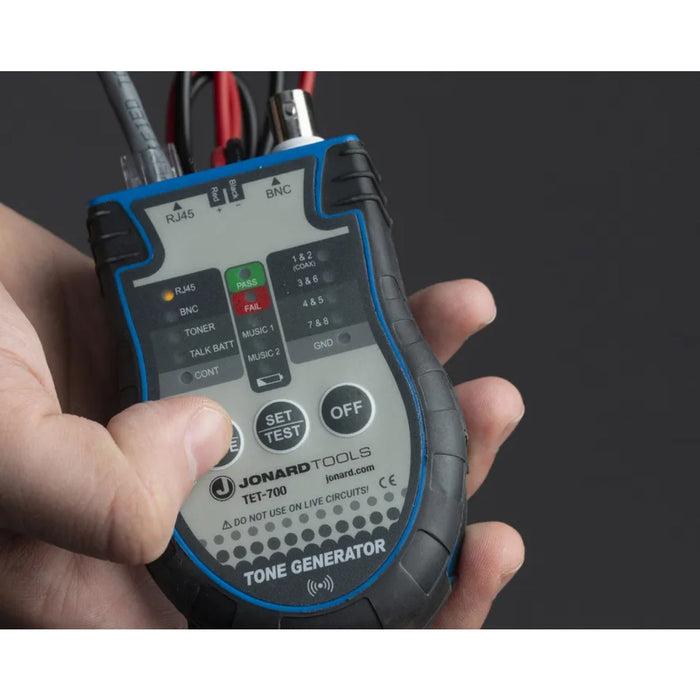

TET-700BC Tester & Tone Generator+ w/ ABN Clips

  • Comes with ABN (Angled Bed of Nails) clips for grabbing onto 66 blocks securely

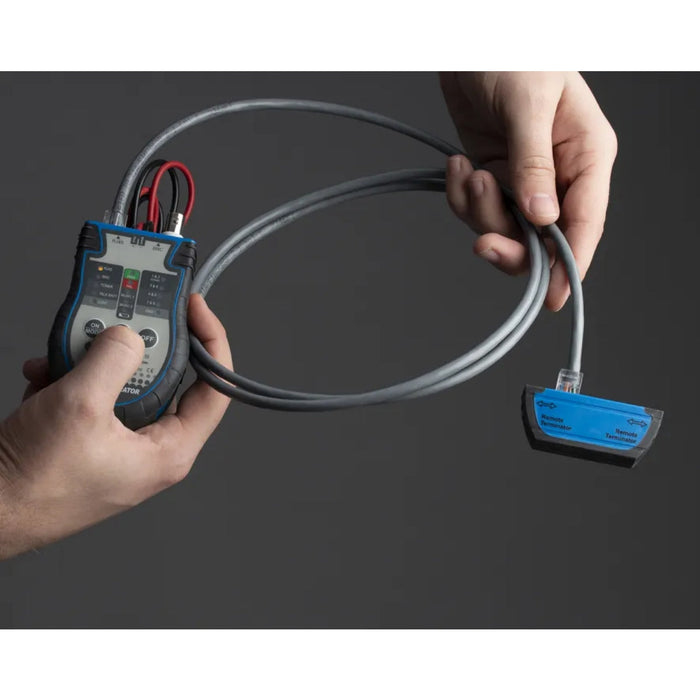

  • Remote terminator can be used to test network cables with ease
  • Provides tone via RJ45 and BNC connectors or test clips
  • Provides talk power to a telephone for testing
  • Two different musical tones to choose from
  • Works with our TEP-200 Tone Tracing Probe+ or others to identify cables
  • Limited Warranty

TET-6 Accessory Kit for Cable Testers & Toners+

  • (2) BNC to F Connector Adapters
  • 50 Ohm BNC Terminator
  • BNC Cable Jumper
  • F Connector Jumper
  • RJ45 Cable Jumper
  • Belt Clip

Docs/Instruction Links

Specifications

  • Application  -  Wire Toning & Tracing
  • Connectors  -  (2) ABN (Angled Bed of Nails) clips, (1) RJ45, (1) BNC, (1) F Connector
  • Max Distance  -  0.62 mi (1000 m)
  • Standards  -  CE Standards
  • Battery Type -   (2) 9V included
  • Dimensions  -  11.2 in x 6 in x 2.4 in (28.45 cm x 15.24 cm x 6.1 cm)Weight    1.37 lb (621.98 g)
