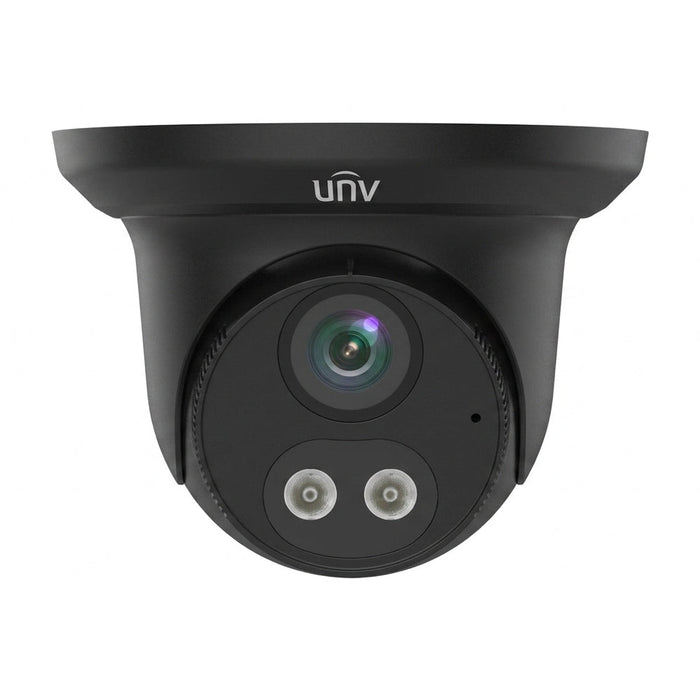

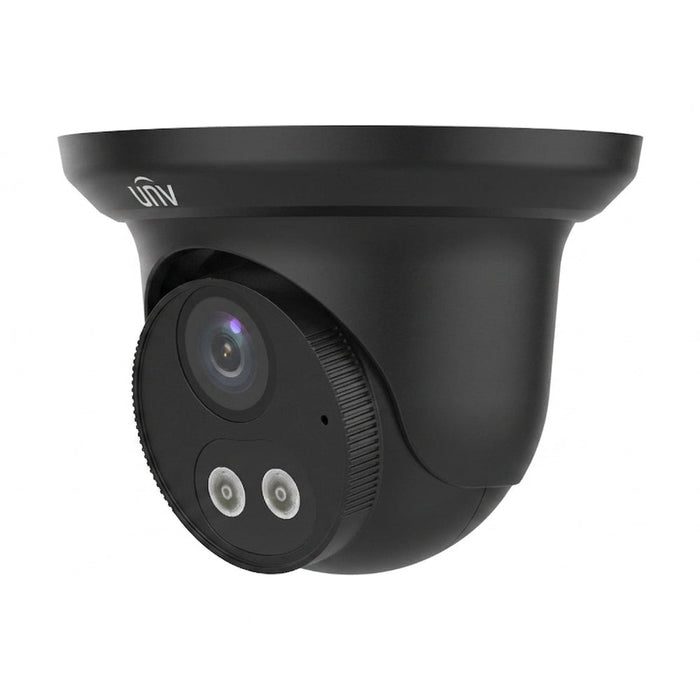

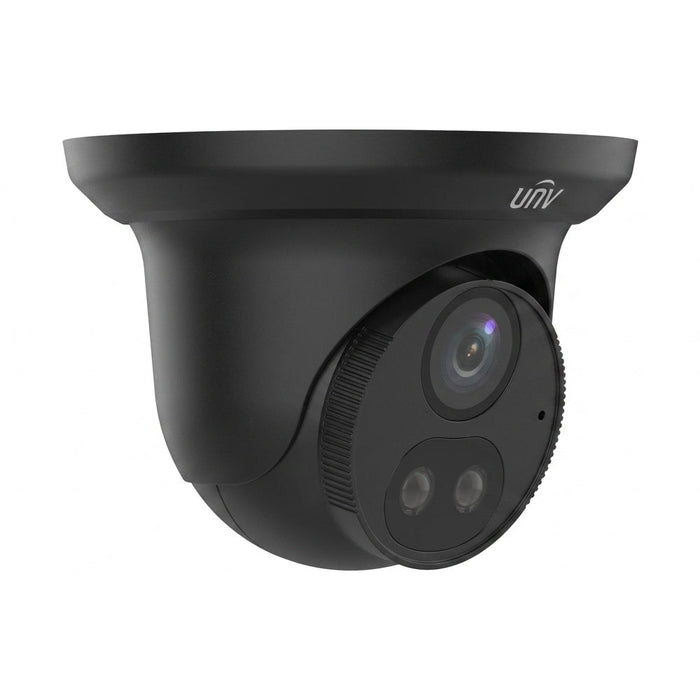

IPC3615LB-AF28K-DL 5MP HD ColorHunter Fixed Eyeball Network Camera - Black

IPC3615LB-AF28K-DL 5MP HD ColorHunter Fixed Eyeball Network Camera - Black
Availability:
in stock, ready to be shipped
SKU UNI-IPC3615LB-AF28K-DL-BK

IPC3615LB-AF28K-DL 5MP HD ColorHunter Fixed Eyeball Network Camera - Black

  • High quality image with 4 MP, 1/3.0" CMOS sensor
  • 5 MP (2880 × 1620)@20 fps; 4 MP (2560 × 1440)@25/20 fps; 3 MP (2304 ×
  • 1296)@30/25 fps; 1080P (1920 × 1080)@30/25 fps
  • Ultra 265, H.265, H.264, MJPEG
  • Supports 9:16 corridor mode
  • Built-in mic
  • Smart IR, up to 30 m (98.4 ft) IR distance
  • Warm light, up to 30 m (98.4 ft) warm light distance
  • 2D/3D DNR (digital noise reduction)
  • MicroSD, up to 512 GB
  • IP67 protection
  • Supports PoE power supply
  • 3-axis

Specifications

Camera

  • Max Resolution    5 MP
  • Sensor    1/3.0" CMOS
  • Min. Illumination    Color: 0.01 Lux ( F1.6, AGC ON), 0 Lux with IR
  • Day/Night    IR-cut filter with auto switch (ICR)
  • Shutter    Auto/Manual, 1 ~ 1/100000s
  • Adjustment Angle    Pan: 0° to 360°, Tilt: 0° to 80°, Rotate: 0° to 360°
  • S/N    >52 dB
  • WDR    DWDR

Lens

  • Focal Length    2.8 mm
  • Iris Type    Fixed
  • Iris    F1.6
  • Field of View (H)    97.0°
  • Field of View (V)    52.2°
  • Field of View (D)    107.5°

DORI

  • DORI Distance (Lens)    2.8 mm
  • DORI Distance (Detect)    63.0 m (206.7 ft)
  • DORI Distance (Observe)    25.2 m (82.7 ft)
  • DORI Distance (Recognize)    12.6 m (41.3 ft)
  • DORI Distance (Identify)    6.3 m (20.7 ft)

Illuminator

  • Illumination Distance (IR)    30 m (98.4 ft)
  • Illumination Distance (Warm Light)    30 m (98.4 ft)
  • Wavelength    850 nm
  • IR On/Off Control    Auto/Manual

Video

  • Video Compression    Ultra 265, H.265, H.264, MJPEG
  • H.264 Code Profile    Baseline profile, Main profile, High profile
  • Frame Rate    Main Stream: 5 MP@20 fps (default), 4 MP (2560 × 1440), max. 25 fps; 3 MP (2304 × 1296), max. 30 fps; 1080P (1920 × 1080), max. 30 fps; 720P (1280 × 720), max. 30 fps
  • Sub Stream: D1 (720 × 576), max. 30 fps; 640 × 360, max. 30 fps; 2CIF (704 × 288), max. 30 fps; CIF (352 × 288), max. 30 fps
  • Video Bit Rate    128 Kbps to 6144 Kbps
  • U-code    Support
  • OSD    Up to 4 OSDs
  • Privacy Mask    Up to 4 areas
  • ROI    Up to 8 areas
  • Video Stream    Dual streams


  • White Balance    Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2
  • Digital Noise Reduction    2D/3D DNR
  • Smart IR    Support
  • Flip    Normal, Flip vertical, Flip horizontal, 180°, 90° Clockwise, 90° Anti-clockwise
  • Dewarping    N/A
  • HLC    Support
  • BLC    Support
  • Defog    Digital defog

Events

  • Basic Detection    Motion detection, Tampering alarm, Audio detection
  • General Function    Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication

Audio

  • Audio Compression    G.711U, G.711A
  • Audio Bitrate    64 Kbps
  • Two-way Audio    N/A
  • Suppression    Support
  • Sampling Rate    8 kHz

Storage

  • Edge Storage    MicroSD, up to 512 GB
  • Network Storage    ANR, NAS (NFS)

Network

  • Protocols    IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, QoS, SSL/TLS, SNMP
  • Compatible Integration    ONVIF (Profile S, Profile G, Profile T), API, SDK
  • User/Host    Up to 32 users, 2 user levels: administrator and common user
  • Security    Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF
  • Client    UNV-Link, UNV-Link Pro, EZStation
  • Web Browser    Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+

Interface

  • Audio I/O    N/A
  • Alarm I/O    N/A
  • Serial Port    N/A
  • Built-in Mic    Support
  • Built-in Speaker    N/A
  • WIFI    N/A
  • Network    1 × RJ45 10 M/100 M Base-TX Ethernet
  • Video Output    N/A

Certification

  • EMC    CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 50130)
  • FCC (FCC 47 CFR part15 B)
  • Safety    CE LVD (EN 62368-1)
  • UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)
  • Environment    CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU)
  • Protection    IP67 (IEC 60529)

General

  • Power    DC 12 V±25%, PoE (IEEE 802.3af)
  • Power consumption: Max. 2.8 W
  • Power Interface    Ø5.5 mm coaxial power plug
  • Dimensions    Ø126 mm × 93.6 mm (Ø5.0" × 3.7") (Ø × H)
  • Weight    0.29 kg (0.64 lb)
  • Material    Metal + Plastic
  • Working Environment    -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)
  • Storage Environment    -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)
  • Surge Protection    4 KV
  • Reset Button    N/A
  • Web Client Language    4 Languages: English, Russian, Spanish, Vietnamese
