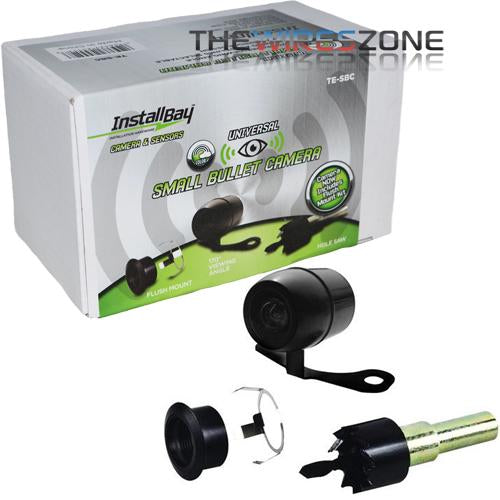

iBeam TE-SBC 170 Degree Angle Small Bullet Backup Reverse Camera


Sorry, this product has been discontinued.

170 Degree viewing angle
Resolution: 420 TV Lines
Lens Angle: 120 / 170
Waterproof design
Small black bullet mountable camera
Selectable parking assist lines
Night vision camera
Horizontal Sync Frequency: 15625 KHz
Scanning System: 2:1 Interlace
AGC: Auto
Current Consumption: No more than 150mA
Operating Temperature: -30C~80C RH95%MAX
Horizontal Angle: 110 / 160
Water-proof: IP67/IP68
Effective Pixel: 656 x 492
Vertical Sync Frequency: PAL 50Hz / NTSC 60Hz
Sync System: Internal
BLC: Auto
S/N Ration: More Than 48dB
Power Supply: DC12V±10%
Storage Temperature: -40C~80C RH95%MAX
Minimum Illumination: 0.5 Lux/F1.2 (0 Lux with Red)
