iBeam TE-AJPKT Multi Adjustable Bracket Rear View Camera Jeep Wrangler 2007-2018

iBeam TE-AJPKT Multi Adjustable Bracket Rear View Camera Jeep Wrangler 2007-2018
Availability:
Low stock
SKU TE-AJPKT
iBeam TE-AJPKT Multi Adjustable Bracket Rear View Camera Jeep Wrangler 2007-2018

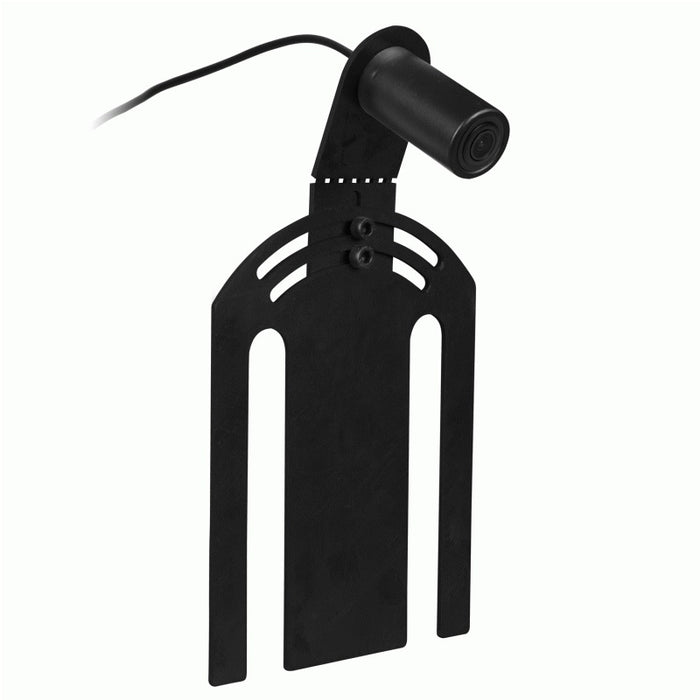

The new bracket allows 110 degrees of swing side to side with a 2 1/2 inches of travel at the head of the
bracket. The base can also be adjusted on the spare tire bolts with 5 inches of height adjustment to allow
for many different types of configurations for a variety of different wheels. The camera included in the
kit allows for a wide diagonal viewing angle of 170 degrees with an IP rating of IP67 for a water resistant
solution. The camera is made of a high quality metal housing that compliments the durability of the
brackets steel design. Powder coating on the bracket finishes up the design to provide a solid, high quality
product.

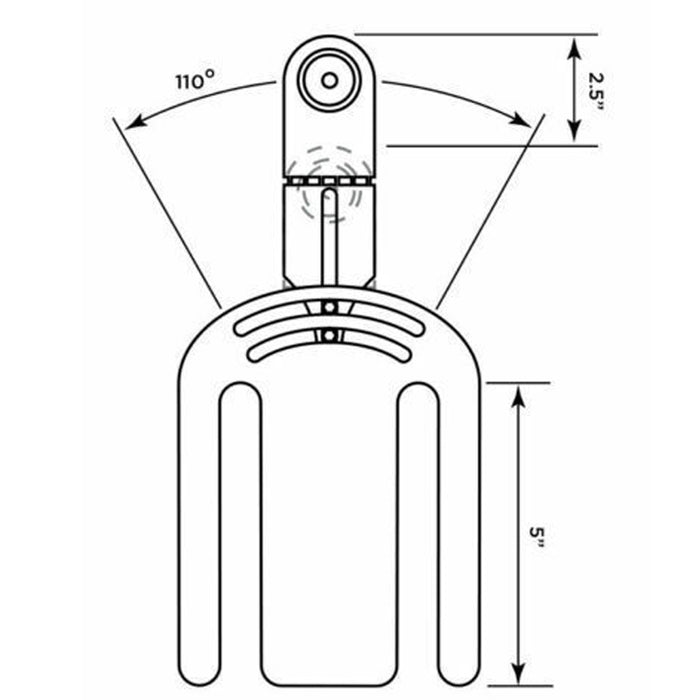

BRACKET
- 110 degrees of left to right slide
- 2 1/2 inches of lift at the top of the bracket
- 5 inches of additional lift at the base of the bracket
- Head of bracket is bendable for angle adjustment

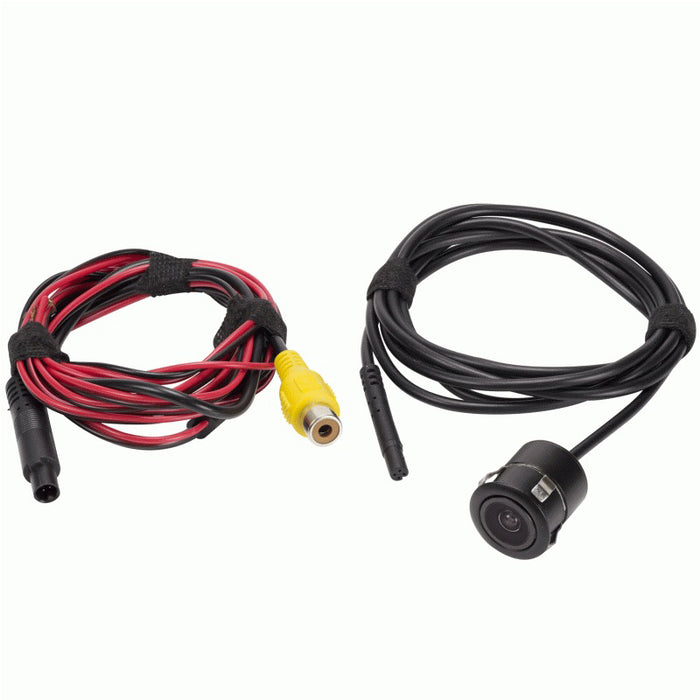

CAMERA
- Field of view Diagonal 170º, Horizontal 110º, Vertical 90º
- IP67 rating
- High quality metal housing
- 0.6 LUX night vision
- CMOS 7080 Camera Sensor
- 480 TV Lines Resolution
- Non-Defeatable Parking Lines
- 26 Feet Extension Cable
- NTSC TV System
- -20ºC ~ 70ºC Working Temp

Compatible with:
2007-2018 Jeep Wrangler (2018 JK trim only)
*Please contact us for up to date vehicle applications

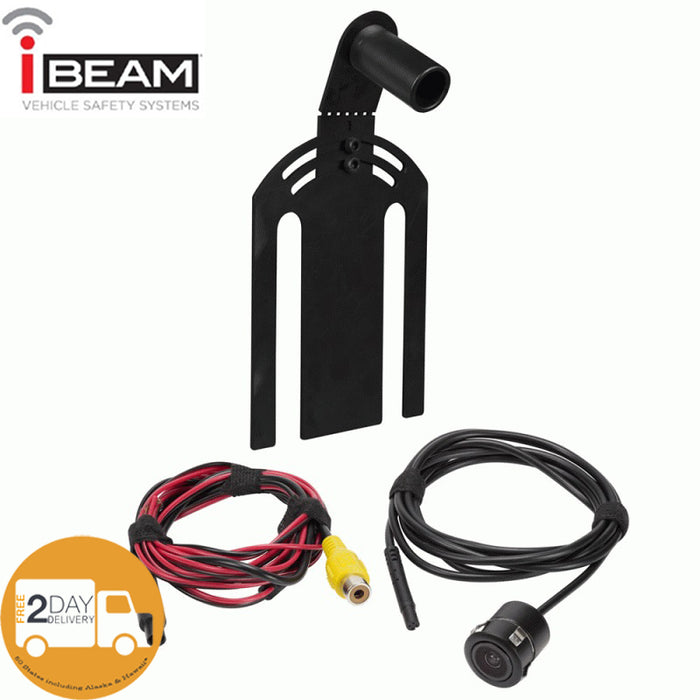

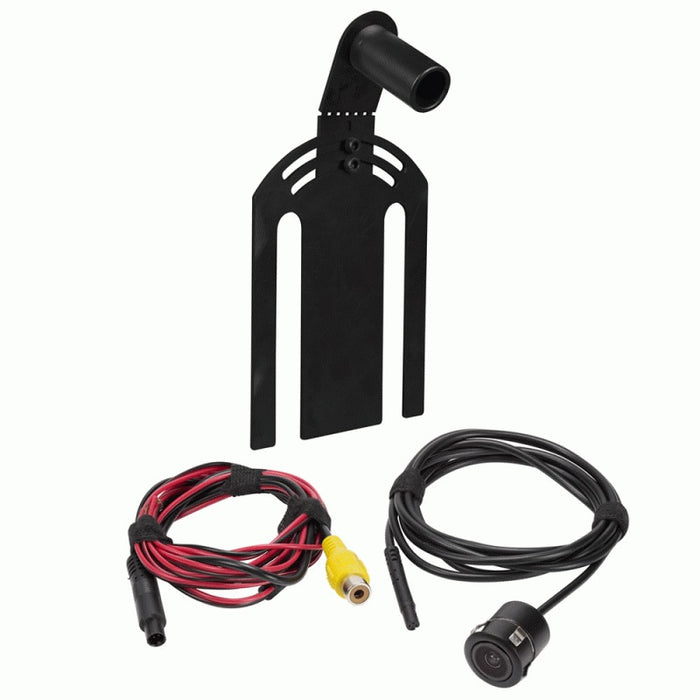

- Camera
- Wiring
- Bracket
