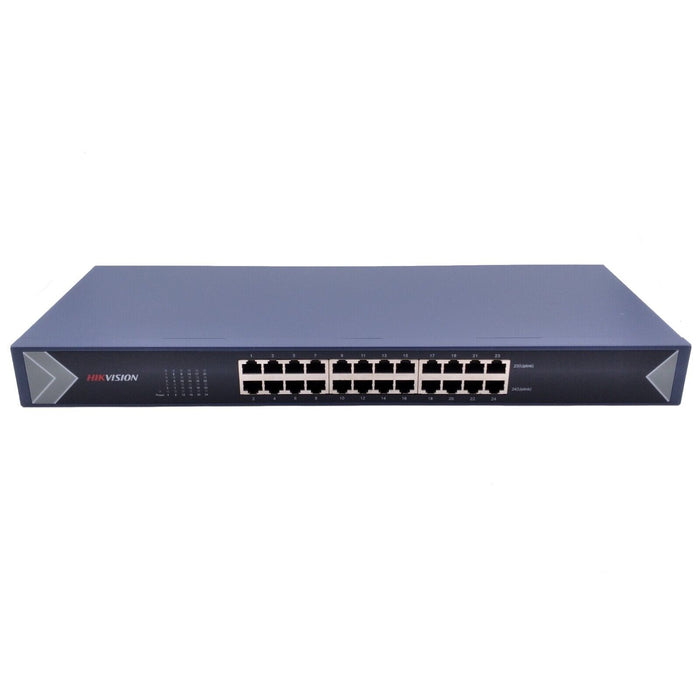

Hikvision DS-3E0524-E 24 Port Layer 2 Gigabit Unmanaged Switch Excellent

Hikvision DS-3E0524-E 24 Port Layer 2 Gigabit Unmanaged Switch Excellent
SKU HIK-DS-3E0524-E

Sorry, this product has been discontinued.

Hikvision DS-3E0524-E 24 Port Layer 2 Gigabit Unmanaged Switch Excellent

  • 24 x 1000M Ethernet ports
  • Supports IEEE 802.3, IEEE 802.3u and IEEE 802.3x
  • 1000M network access
  • Wire-speed forwarding and non-blocking design
  • Store-and-forward switching
  • Solid high-strength metal shell
  • Fan-free design with high reliability

Data Sheet
Quick Start Guide
Communication Matrix
Command and Interface File

Specifications:

Network Parameters

  • Ports: 24 × Gigabit RJ45 ports
  • Port Type: RJ45 port, Full duplex, MDI/MDI-X adaptive
  • Standar: IEEE 802.3, IEEE 802.3u, IEEE 802.3x
  • Forwarding Mod: Store-and-forward switching
  • MAC Address Tabl: 8 K
  • Switching Capacity: 48 Gbps
  • Packet Forwarding Rate: 35.712 Mpps
  • Internal Cache: 4.1 Mbits

General

  • Dimensions (W × H × D): 335 mm × 44.5 mm × 175.8 mm (13.2” × 1.8” × 6.9”)
  • Shell: Metal material, fan-free design
  • Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)
  • Storage Temperature: –40 °C to 85 °C (–40 °F to 185 °F)
  • Storage Humidity: 5% to 95% (no condensation)
  • Power Supply: 220 VAC， 50/60 Hz， Max. 0.7 A

Approval

  • EMC: FCC (ANSI C63.4, 47 CFR PART 15B); CE-EMC/RCM (EN 55032: 2015+A11:2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4:2011+A1:2014, EN 55035:2017+A11:2020); IC (ICES-003: Issue 14)
  • Safety: UL (UL 62368-1); CB/RCM (IEC 62368-1:2014); CE-LVD (EN 62368-1:2014+A11:2024)
  • Chemistry: CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2013)
