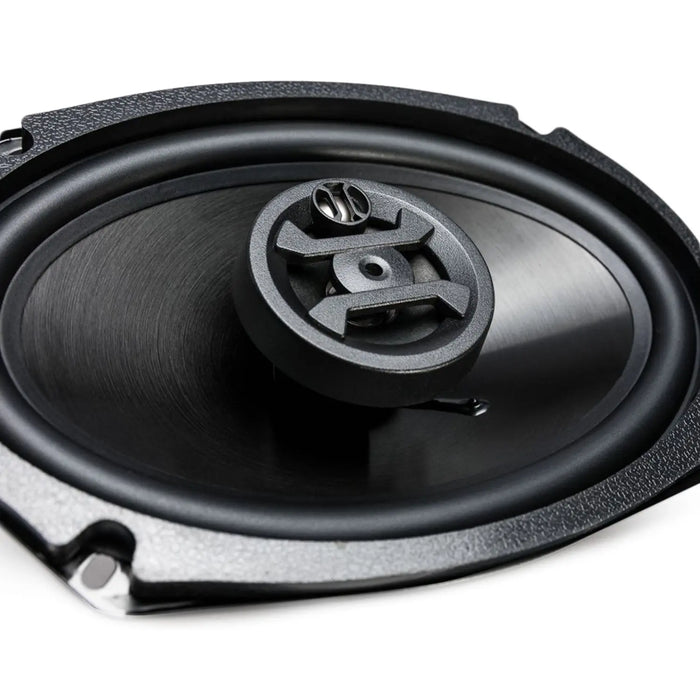

Hifonics ZS693 Zeus 6 x 9 inch 400 Watt 3-Way Car Audio Coaxial Speaker System (Pair)

Availability:
Low stock
SKU HIF-ZS693

Hifonics ZS693 Zeus 6 x 9 inch 400 Watt 3-Way Car Audio Coaxial Speaker System (Pair)

Hifonics Zeus 6 x 9 inch 3 way car audio coaxial speaker system with Mylar dome tweeter and Alpha-Cellulose Poly Woofer Cones nylon surrounds (pair).

Tweeters: 1 inch: Clear highs while handling plenty of power without sound harsh. Neo-Mylar Soft Dome Tweeter: Impact Resistant Tweeter Elements, Great sound quality and increased reliability. Kapton: Lightweight and efficiently dissipates heat.


Cone Material: Alpha-Cellulose Cones: Light weight for speed and very rigid for deep bass.

Surround / Cone Coupling: Rubber: Moisture Resistant Rubber Surround with high Mid-Bass Impact. High Temperature Adhesive: Special adhesive is chosen to create a permanent bond between the cone and the surround.

​Voice Coil / Former Assembly: Pure Copper: Creates strong magnetic field with a very thin extrusion. Kapton: Lightweight and efficiently dissipates heat.

Spider: Epoxy infused Natural Fiber: Natural fiber allows flexibility while the epoxy which gives strength during the manufacturing process.

Cooling System: Overcoil: Air is exchanged over the voice coil through the spider.

Crossover: Passive Butterworth: Smooth transition of frequencies from midrange/midbass to the tweeter element.

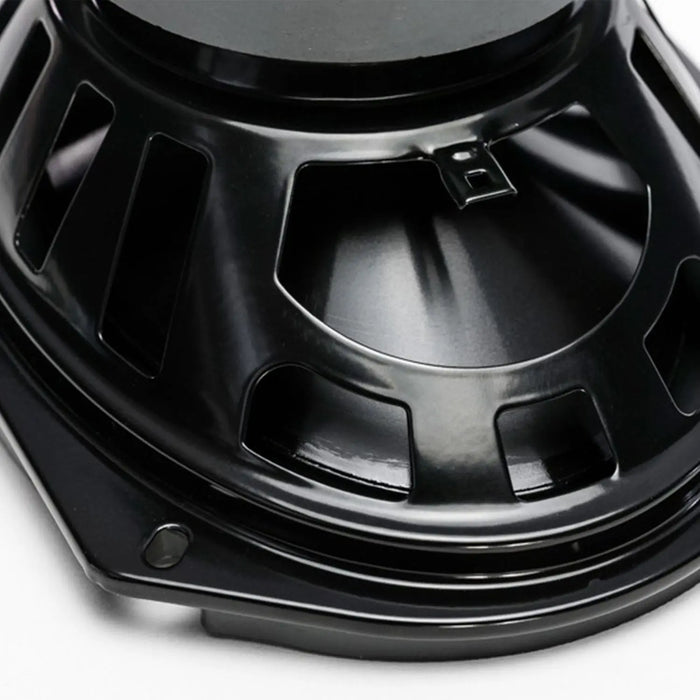

Frame: Anti-Resonant Stamped Steel Basket: Very strong with minimal harmonics or distortions from flex or ringing.

Motor: Ferrite Magnet: Creates a strong magnetic field while remaining small enough to fit nearly every application.

Connectors: Spade: Use spade connectors or solder direct for the best connection.

Grills: No: Typically used in factory dash replacement locations where grills are not required.

Weight 6.15 lbs
Type

Speaker

Brand

Hifonics

Series

ZEUS

Category

Mobile

Condition

New

Color

Black

Warranty

1 Year

CEA Standards

CEA426B

Compatible Vehicles

Universal

Speaker RMS Power Handling (watts)

60

Speaker Peak Power Handling (watts)

400

Speaker Impedance (ohms)

46Hz-20kHz

Speaker Sensitivity

88dB

Speaker Crossover Slope

1kHz + 3kHz 12dB

Speaker Mounting Diameter / Cut Out (in)

8.64 x 5.98

Speaker Outside Diameter (in)

10.35 x 7.20

Speaker Mounting Depth / Chassis Depth (in)

3.35

Speaker Size (in)

6 x 9
