Hifonics BXIPRO3.0 Digital Bass Enhancer Processor with Dash Mount Remote Control

Hifonics BXIPRO3.0 Digital Bass Enhancer Processor with Dash Mount Remote Control
Availability:
Out of stock
SKU HIF-BXIPRO3.0
Sold out

Hifonics BXIPRO3.0 Digital Bass Enhancer Processor with Dash Mount Remote Control

The BXiPRO3.0 processor integrates into any vehicle with an upgraded subwoofer system. Showcasing a compact design with a sleek finish to it, you’ll receive half the size in space with TRIPLE THE POWER for your audio. With adjustable mounting solutions and multi-point installation options including placing the processor behind dash-concealed locations, this processor will be as flexible as your installation demands it to be.

Features:

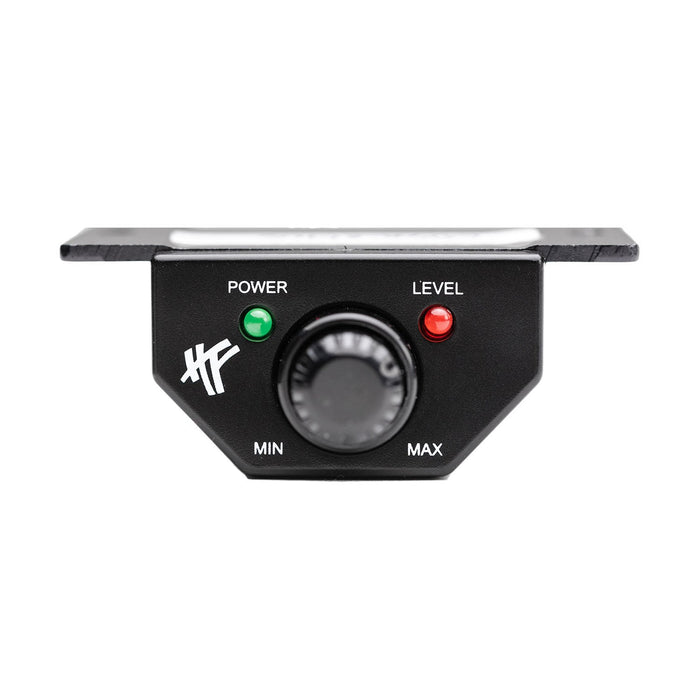

  • BXiPro Bass Enhancer Processor with Dash Mount Remote Control
  • Enhances and restores the bass level
  • Screw-in power and speaker connecters to chassis for secure connections that prevent disconnection
  • Dual function bass remote
  • Remote wire input, DC sense, and music sense turn on
  • Input and output signal clip indicators
  • Mono adjustable output level (can be controlled by bass remote)
  • 48v high-level inputs
  • Ability to use test tones to set input and output levels
  • Fine-tuning adjustability using bass width and sweep
  • Fixed 4v full range output
  • Small profile
  • Tiffany style RCA connectors
  • Low and high-level audio inputs (speaker level inputs)
  • Balanced differential inputs (for noise reduction)

Specification:

  • Type: Processor
  • Series: BXiPro
  • Category: Mobile
  • Compatible Vehicles: Universal
  • Accessory Hardware / Tools: Includes mounting hardware
  • Fuse value: 1A mini ATC
  • Voltage range: 9.5V -15V
  • Bass remote type: HF-U-02
  • Fixed voltage output full range: 4V
  • Adjustable subwoofer output voltage: 0V -9V
  • Maximally Flat Frequency Response Main: (-3dB) 10Hz to >50kHz
  • Input Impedance Low-level inputs: 20k Ohms
  • Input Impedance High-level inputs: 20k Ohms
  • Maximum high-level Input Voltage on any input before clipping: >48V
  • Maximum Output voltage at 1.0% THD+N (subwoofer output): 9.0V
  • Signal to Noise Ratio (ref to 2Vrms out, unity gain): -84.0dBA
  • EQ boost: Variable to +8.1dB
  • Unit turn on options: 30mV High-Level Audio, 59mV RCA Audio, 2.2V DC Offset
  • Current Draw: 0.32A
  • Turn on Delay Time: 0.1 seconds
  • Setup test tone track: 100 Hz & 1000Hz
  • Dimensions: 109mm W x134mm D x 30.5mm H
