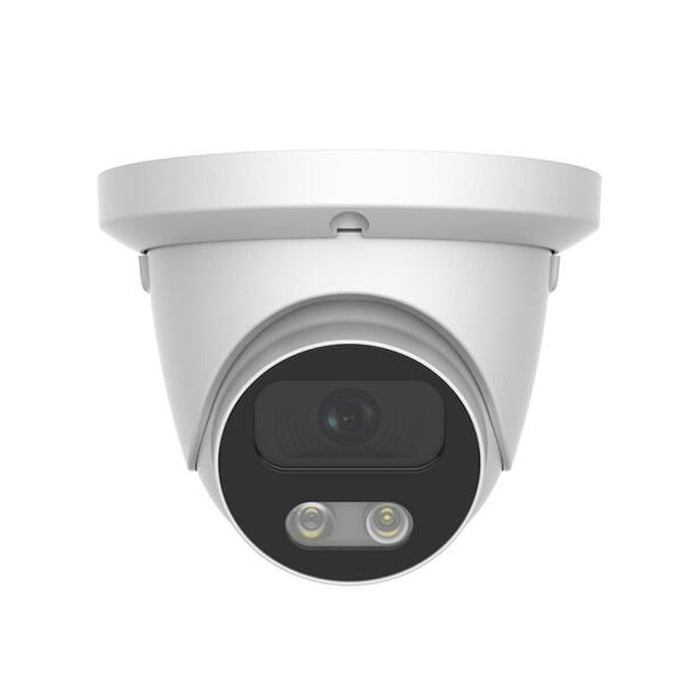

HI-D8SEKL28-DA 8MP IP Camera Turret IP67 Built in Mic Motion/Human Detection

HI-D8SEKL28-DA 8MP IP Camera Turret IP67 Built in Mic Motion/Human Detection
Availability:
in stock, ready to be shipped
SKU CST-HI-D8SEKL28-DA

HI-D8SEKL28-DA 8MP IP Camera Turret IP67 Built-in Mic Motion/Human Detection

  • Image Sensor: 1/2.8" Starvis Back-illuminated CMOS sensor
  • Resolution: 8MP
  • Effective Pixels: 3872(H)*2180(V)
  • Compression: H.264/H.264+/H.265/H.265+/JPEG/AVI /MJPEG
  • Audio Compression: G711A/U,AAC
  • TV System: PAL/NTSC
  • Electronic Shutter Time Auto: PAL 1/25-1/10000Sec; NTSC 1/30-1/10000Sec
  • Minimum Illumination Color:0.01 Lux
  • S/N Ratio: 60dB
  • Scanning System: Progressive
  • Video Output: Network
  • Plug and Play with Uniview / Hikvision NVR's

SPECIFICATION


Model NO. HI-D8SEKL28-DA


Lens

  • Focus Length: 2.8 mm, horizontal FOV 106°, vertical FOV 56°, diagonal FOV 127° Focus Control Fixed
  • Lens Type: Fixed
  • Pixels: 8MP

Night Vision

  • Supplement Light: 38µ x 2PCS(Warm light LED 4000K),38µ x 2PCS IR LED
  • Supplement Light: Distance: IR:40m, Warm light:30m
  • Supplement Light Status: Auto Control
  • Supplement Light Power: On Smart, Manual & Timed mode

Network

  • Ethernet: RJ-45 (10/100Base-T)
  • Wireless: N/A
  • Protocol: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP ,PPPoE, NTP, SMTP, UDP,SNMP
  • ONVIF Support: ONVIF 2.4(Profile S/T)
  • P2P: YES
  • POE Internal, Support: IEEE 802.3af
  • Video Delay 0.3S (Within the Lan)
  • Main Stream 1: 3840*2160@20fps
  • Main Stream 2: 2592*1536@20fps 2560*1440@20fps
  • Main Stream 3: 1920*1080@20fps 1280*720@20fps
  • Sub Stream 1: 1280*720@20fps
  • Sub Stream 2: 720*480@20fps
  • Sub Stream 3: /
  • Tri Stream 1280*720@20fps 720*480@20fps
  • IE Brower: IE8-11, Google Chrome, Firefox , Mac Safari
  • Smart Phone: iPhone, Android

AI Function

  • Intelligent Analysis: /

Camera Features

  • Day/Night Color/ B&W (IR-CUT )
  • Image Config Saturation/Brightness/Contrast /Sharpness, Mirror, 3D NR , White Balance, FLK(Flicker Control),Video Tampering, HLC, Distortion
  • Full Color: /
  • Corridor Pattern Support
  • Defog Mode Support
  • ROI Support
  • BLC Support
  • WDR HDR
  • Motion Detection Support
  • Privacy Masking
  • 3 Rectangular Zone
  • Recording Mode NVR/CMS/Web
  • Language :Chinese Simplified, Chinese Traditional, English, Bulgarian, Polish, Arabic, German, Russian, French,Korean, Portuguese, Japanese, Turkish, Spanish, Hebrew, Italian,Nederlands,Czech, Vietnamese

Interface

  • Audio: YES, Built-in MIC
  • Alarm: /
  • RS485: /

General

  • Housing: Metal , IP67
  • Anti-cut Bracket: NO
  • IR Cut Filter: YES
  • Operation Temperature: -20℃ ~ +60℃ RH95% Max
  • Storage Temperature: -20℃ ~ +60℃ RH95% Max
  • Power Source: DC12V±10%, 700mA
  • Dimension: ￠125 x 90.2(H) mm
  • Weight: 645g
