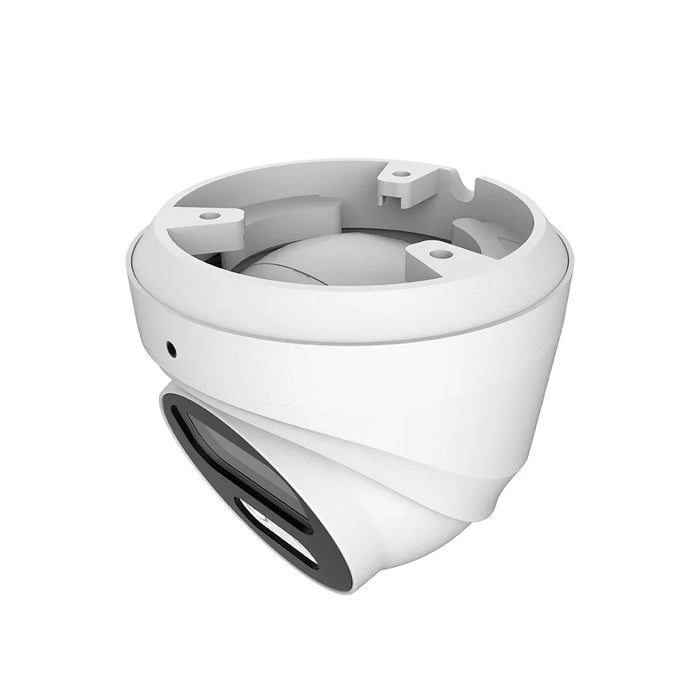

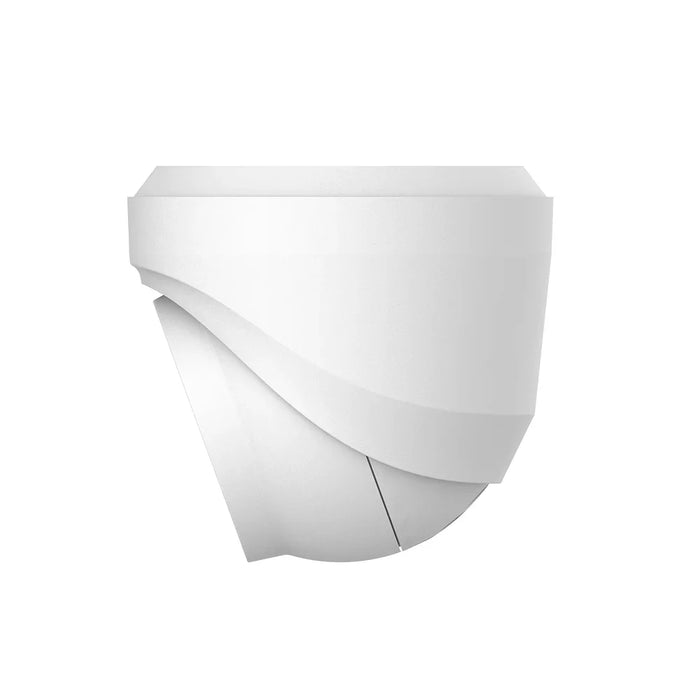

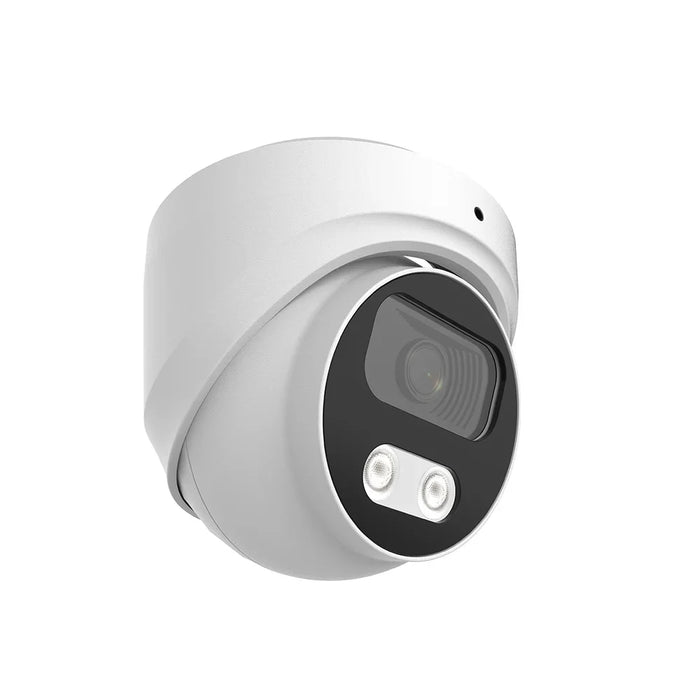

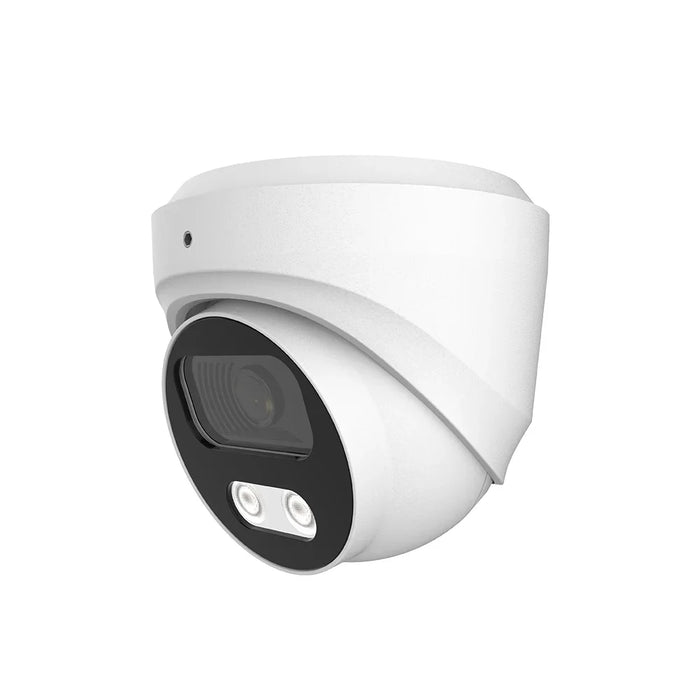

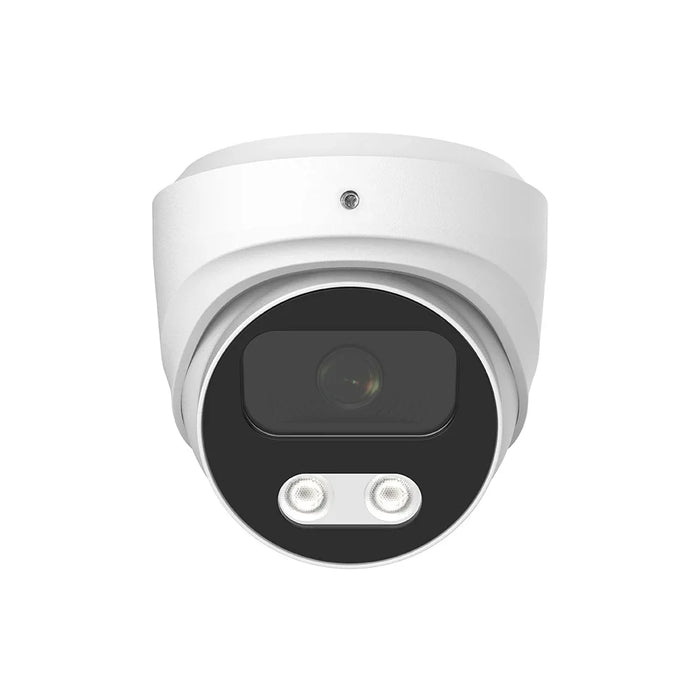

HT-D5SBFPE28-FX 5MP Full Color Turret AHD TVI Camera IP67 Built in Mic Motion/Human Detection

HT-D5SBFPE28-FX 5MP Full Color Turret AHD TVI Camera IP67 Built in Mic Motion/Human Detection
Availability:
in stock, ready to be shipped
SKU CST-HT-D5SBFPE28

HT-D5SBFPE28-FX 5MP Full Color Turret AHD TVI Camera IP67 Built in Mic Motion/Human Detection

  • Full Color
  • 5MP Turret Camera
  • 2.8mm Lens
  • IR Distance: 25m
  • 1/3″ CMOS sensor
  • AOC (Audio over Coax)
  • DWDR, DNR, MIRROR, OSD, UTC
  • TVI: 5M@20fps, 4M/2MP@30fps/25fps
  • Light LED: double 3015U*2, Warm white (4000K), up to 25m

Specifications:

  • Model NO. HT-D5SBFPE28-FX
  • Video Output Mode - AHD/TVI: 5M@20fps/12.5fps, 4M@30fps/25fps/15fps, 2M@30fps/25fps; CVI:4M@30fps/25fps, 2M@30fps/25fps

Camera

  • Image Sensor - 1/3″ CMOS Sensor
  • Image Resolution - 5M:2592*1944 4M:2560*1440 2M:1920*1080
  • TV System - PAL/NTSC
  • Minimun Illumination - Color : 0.03 lux@F2.0, 0 Lux with white light
  • Scanning System - Progressive Scan

Lens

  • Focus Length - 2.8 mm
  • Focus Control - Fixed
  • Lens Type - Fixed

Night Vision

  • IR Cut Filter - YES
  • Infrared LED - NO, Support Wram White(4000K)
  • Infrared Distance - up to 25m
  • IR Status - AGC Auto Control

Camera Features

  • Starlight - N/A
  • Day/Night - Color
  • OSD Menu - YES
  • WDR - DWDR
  • UTC - YES
  • Noise Reduction - DNR
  • Coaxial Audio - YES (only TVI)
  • White Balance - AUTO / MANUAL
  • Gain Control - AUTO

General

  • Housing - Metal, IP67
  • Bracket - NO
  • Operation Temperature - -10℃ ~ +60℃ RH95% Max
  • Storage Temperature - -20℃ ~ +60℃ RH95% Max
  • Power Source - DC12V±10%, 450mA
  • Dimension - ￠96 x 91(H) mm
  • Weight - 600g
