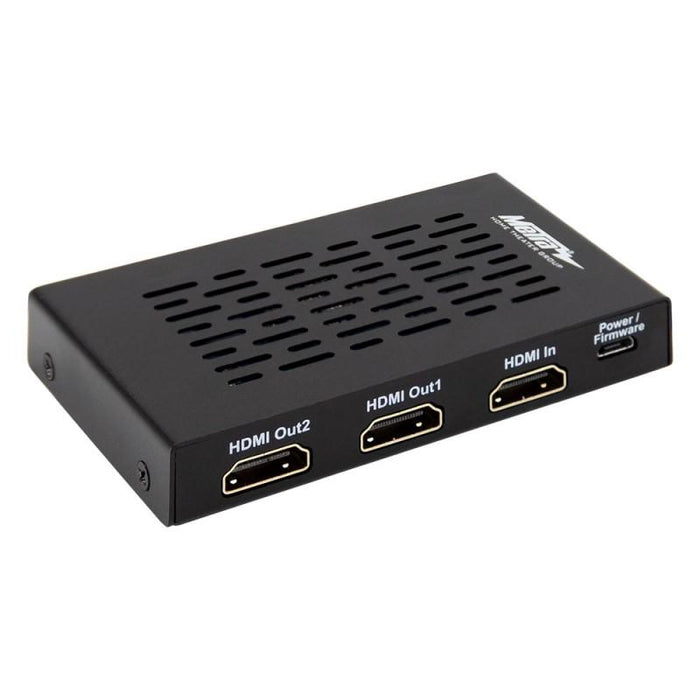

HDMI® 2.0 Splitter with 1 Input and 2 Outputs 4K UHD @60Hz HDR 18Gbps
This HDMI® Splitter with built-in scaling provides the ability to take any standard resolution and downscale it to match each of the connected displays (up to 2), simultaneously. For example, show 4K@60Hz content on a 4K display while also showing the same content scaled down on a 1080p display. Unlike traditional splitters, this built-in scaling allows legacy devices to work with newer higher resolution displays in the system, without automatically defaulting to the lowest resolution. Video quality on newer TVs is no longer sacrificed by having an older model in the mix.
- Supports HDMI® 2.0 and HDCP 2.2 (and earlier versions)
- Supports: 480p/i, 720p, 1080p/i, 3D, 4K@30/60Hz 4:4:4 up to 18Gbps
- Built-in scaling and EDID management allow multiple resolutions simultaneously
- All HDR formats supported

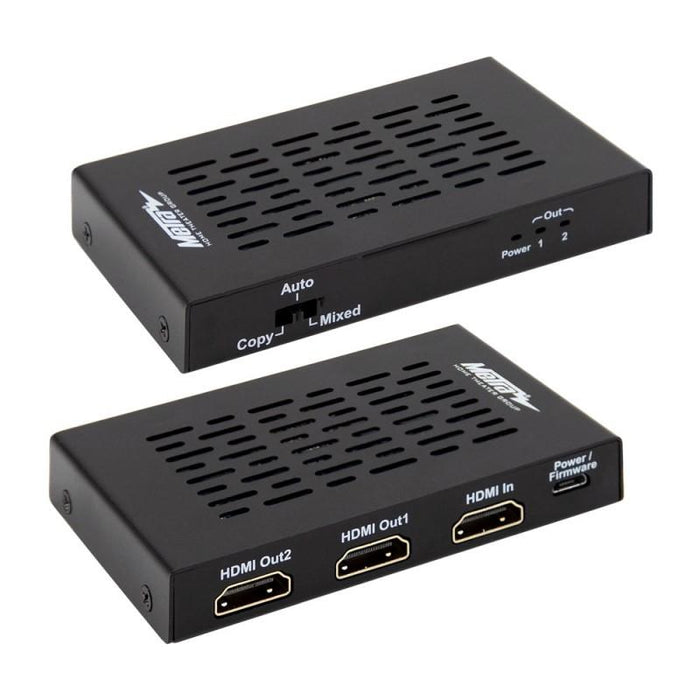

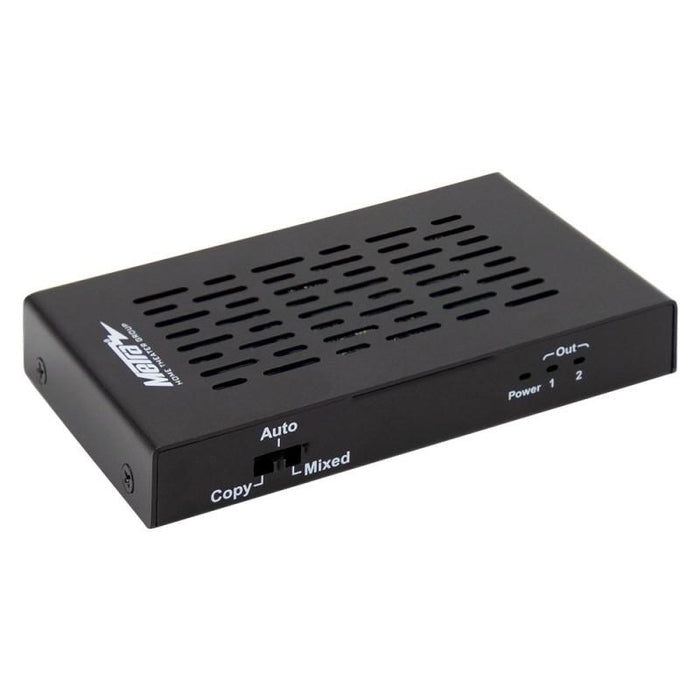

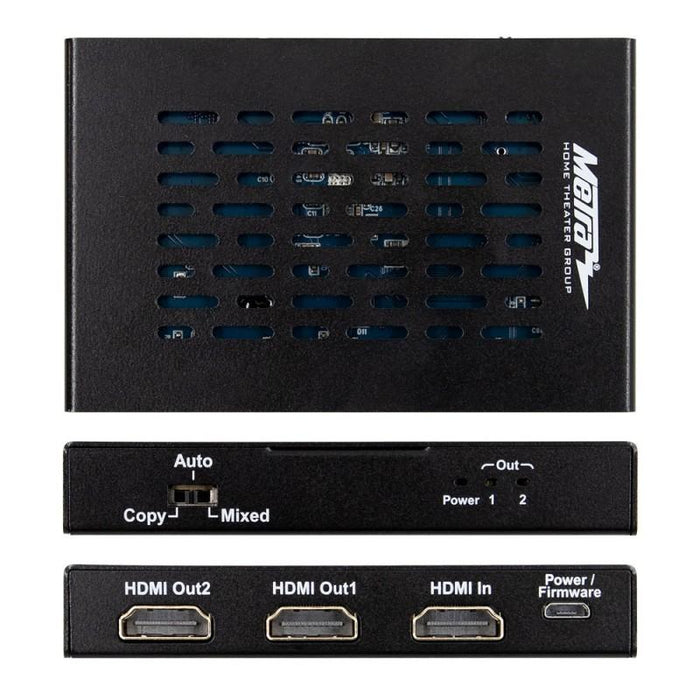

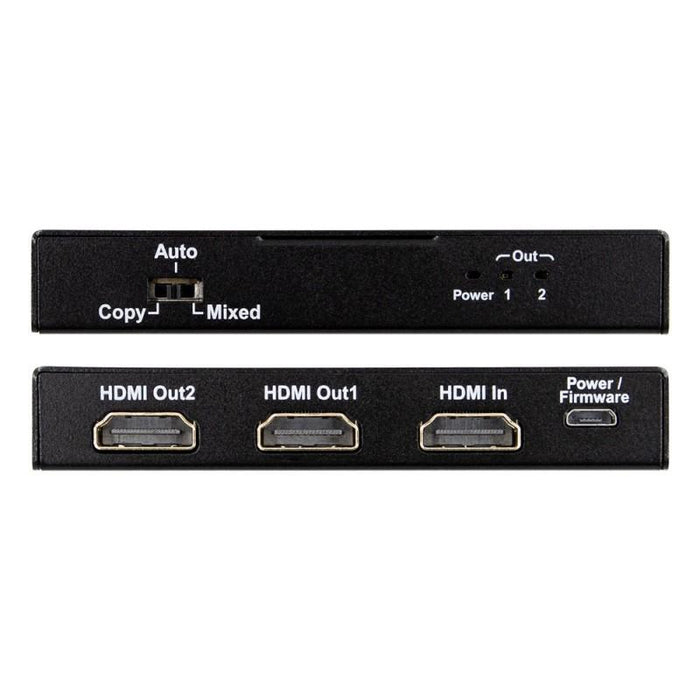

Copy = Copies the EDID of Display hooked up to output 1 and scales DOWN to the other display
Auto = Defaults the unit to only go as high as 4K@60Hz Non-HDR. It will still DOWN scale from there but if you have a TV and Source that are capable of HDR then it will NOT display the HDR signal.
Mixed = Classic HDMI Splitter setting using the highest common denominator. Meaning, if you have 1 TV that is 1080P and another tv that is 4K@60 HDR then it will only display 1080P like classic splitters.
NOTE: This unit scales resolution only and does NOT scale framerate. To ensure functionality, verify that all displays support the source framerate.
