5MP Motorized Turret Coaxial Security Camera TVI/AHD/CVI/CVBS

Availability:
in stock, ready to be shipped
SKU ENS-SCC35T4-MZ-H

5MP Motorized Turret Coaxial Security Camera TVI/AHD/CVI/CVBS

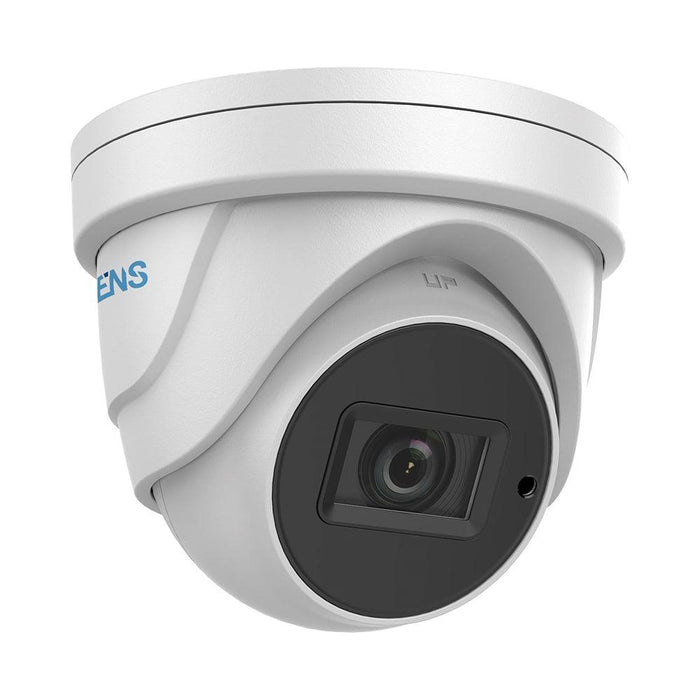

This 5MP IR WDR TVI/AHD/CVI/CVBS HD Outdoor analog Turret Dome Camera with 2.7 mm to 13.5 mm motorized vari-focal lens offers a 5MP high-performance COMS, EXIR 2.0, smart IR, up to 40 m IR distance, OSD menu, 2D DNR, DWDR, 4 in 1 video output (switchable TVI/AHD/CVI/CVBS) and IP67.

Features:

  • 5MP high-performance COMS
  • 2560 × 1944 resolution
  • 2.7 mm to 13.5 mm motorized vari-focal lens
  • EXIR 2.0, smart IR, up to 40 m IR distance
  • OSD menu, 2D DNR, DWDR
  • 4 in 1 video output (switchable TVI/AHD/CVI/CVBS)
  • IP67

Specification:



  • Image Sensor    5MP CMOS image sensor
  • Minimum Illumination
  • Color: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
  • Electronic Shutter    PAL: 1/25 s to 1/50, 000 s NTSC: 1/30 s to 1/50, 000 s
  • Video Resolution
  • 2560 (H) × 1944 (V)
  • Video Frame Rate
  • PAL: 5 MP@20fps, 4 MP@25fps, 1080p@25fps
  • NTSC: 5 MP@20fps, 4 MP@30fps, 1080p@30fps
  • Focal Length    2.7~13.5mm motorized varifocal lens
  • Angle of View    95.7° to 29.1°
  • Day / Night    IR cut filter
  • Day / Night Mode    Auto/Color/BW (Black and White)
  • Angle Adjustment
  • Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°
  • Wide Dynamic Range    DWDR
  • Digital Noise Reduction    2D DNR
  • IR Distance    40m
  • White Balance    ATW/MWB
  • General Function
  • Brightness, Sharpness, DNR , Mirror, Smart IR
  • Video Output    1 HD analog output
  • Switch Button    TVI/AHD/CVI/CVBS
  • Operating Temperature    -40 °C to 60 °C (-40 °F to 140 °F), Humidity 90% or less (non-condensation)
  • Power Supply    12 VDC±25%
  • Power Consumption    Max. 6.3 W
  • Ingress Protection    IP67
