SKU EAR-EQ7000PXI
Operating Voltage: 10.5---16VDC
Idle: 170 mA
Recommended Fuse Size: 1 Ampere

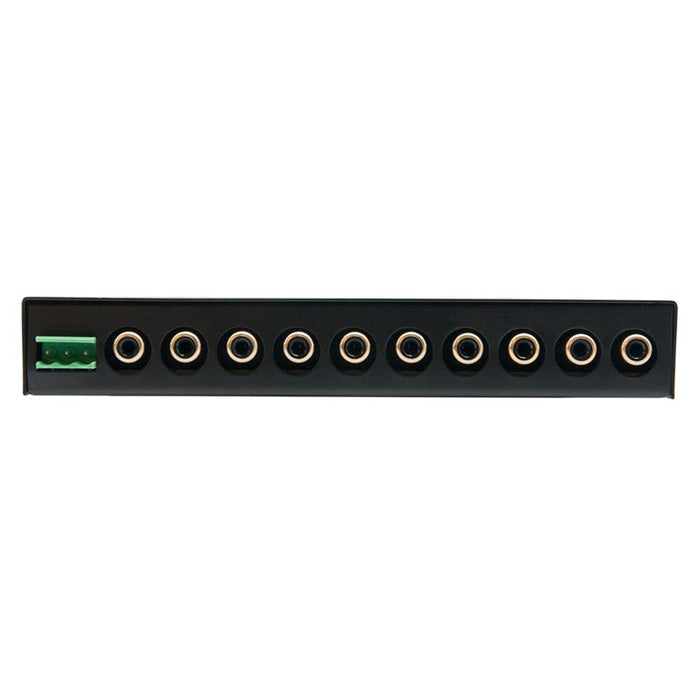

Input Source: 2 stereo RCA sources, 1 Phone source
Input Sensitivity: Adjustable from 100mVrms up to 14 Vrms
Input Impedance: Variable from 3.8 Kohm up to 10.2 Kohm
Output Impedance (Sub channel): 510 Ohm
Output Impedance (Front & Rear channels): 2.2 Kohm
Output Level (Subwoofer channels): 11 Vrms @ 0.1% THD
Output Level (Front & Rear channel): 7 Vrms @ 0.1% THD
THD @ 3 Volts Output: 0.003%
Frequency Response:15-34000Hz @ -3dB
Subwoofer Frequency Control Range: 60 to 160Hz (@ -3db, 18dB/oct.)
Subwoofer Upper Cut Off Frequency: 160Hz
Channel Separations: 68dB
Signal to Noise Ratio: 96dB
Center Frequencies (in Hz): 45, 120, 275, 700, 2000, 5000, 14000
Control Range: 18dB (12 O'clock ist the Bypass Position)
Dimensions (H x W x D): 1" x 7" x 4-1/4" - without face plate

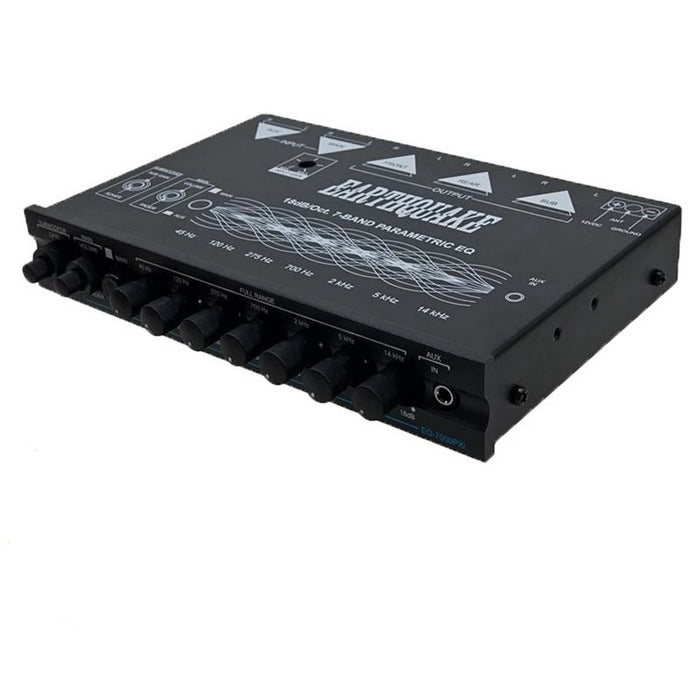

EQ-7000PXI Equalizer
Power Harness

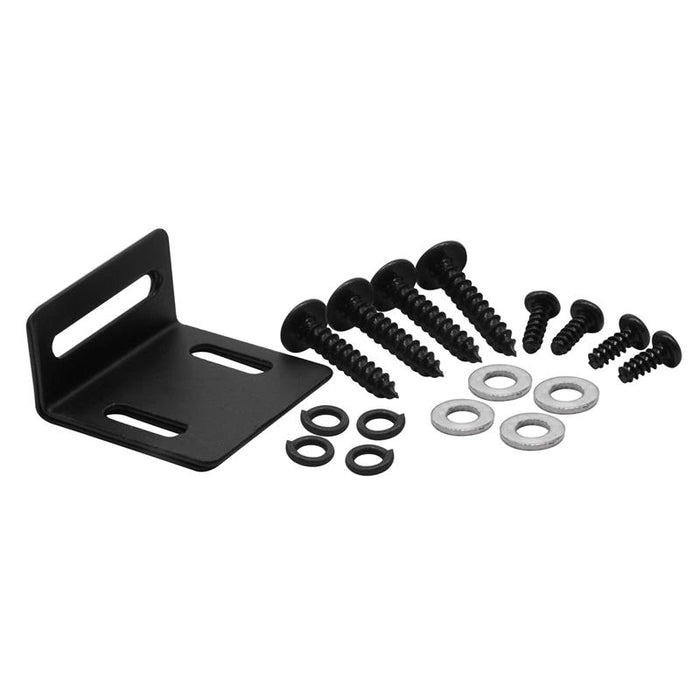

Mounting Brackets
4 x Phillips Mounting Screws
4 x Small Mounting Screws
4 x Washers
4 x Lock Washers
User Manual
