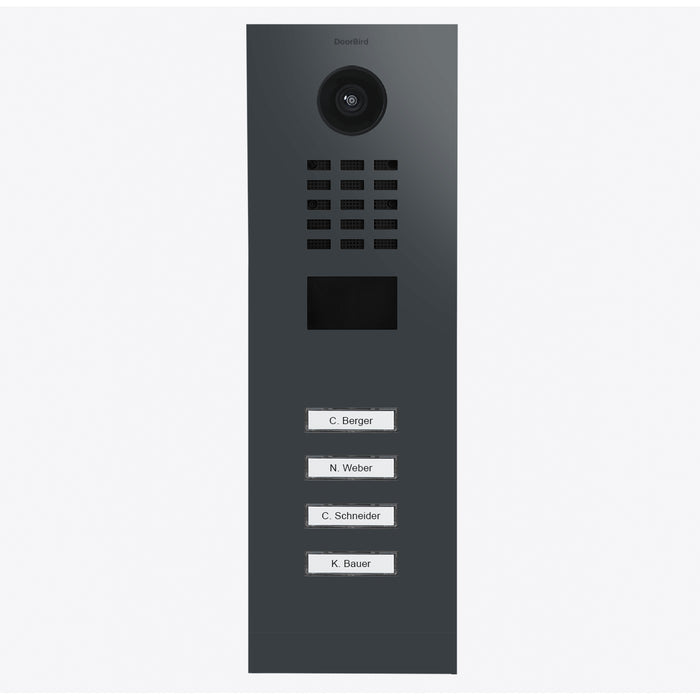

DoorBird D2104V IP Video Intercom Surface-Mount 4 Call Buttons RFID & HD Video Door Station

Authorised Distributor
DoorBird D2104V IP Video Intercom Surface-Mount 4 Call Buttons RFID & HD Video Door Station
Availability:
Out of stock
SKU DOB-D2104V-S-RAL-7016
Sold out

DoorBird D2104V Surface Mount IP Video Door Station, RAL 7016 Powder-Coated Stainless Steel Semi-Gloss - 4 Call Buttons - RFID Reader - 180° HD Camera - PoE Capable

The DoorBird D2104V is a professional-grade surface-mount IP video intercom designed for multi-tenant residential buildings, offices, and commercial properties with up to four units. Featuring four illuminated call buttons, a 180° ultra-wide HD camera with night vision, two-way audio, RFID access control, and advanced 4D motion detection, it provides secure and convenient visitor management from virtually anywhere. The intercom connects via LAN with PoE support and enables video and audio calls directly to smartphones, tablets, SIP phones, and landlines. With an open API, SIP compatibility, smart home integration, geofencing capabilities, customizable access schedules, and two configurable switching relays for controlling doors, gates, lighting, or other connected devices, the D2104V offers a powerful and flexible entry solution for modern smart buildings. Finished in RAL 7016 powder-coated stainless steel with a semi-gloss appearance, it combines durability, security, and elegant design.

  • Surface-mount housing included
  • Surface-mount IP video intercom for up to 4 units
  • 4 backlit call buttons with nameplates
  • 720p HD camera with 180° ultra-wide hemispheric lens
  • Night vision with 12 integrated infrared LEDs
  • Full-duplex 2-way audio communication
  • Built-in RFID reader with customizable access permissions
  • Advanced 4D motion sensor with adjustable detection range up to 10 m (32.8 ft)
  • PoE-enabled LAN connectivity
  • Open API and SIP support for third-party integration
  • Compatible with major smart home and NVR platforms
  • Smart Transmission Mode (STM) optimized for mobile devices
  • Geofencing for automatic door or gate opening
  • Two freely configurable bi-stable switching relays
  • Remote management and configuration through the mobile app
  • Durable RAL 7016 powder-coated stainless steel construction
  • Ideal for apartment buildings, offices, and medical practices

Docs/Instruction Links

Specifications:

General

  • Model: DoorBird D2104V
  • Mounting: Surface Mount
  • Finish: RAL 7016 Powder-Coated Stainless Steel, Semi-Gloss
  • Front Panel Thickness: 3 mm (0.12")
  • Call Buttons: 4 Illuminated Buttons
  • Nameplates: Illuminated, replaceable
  • Power Supply: PoE (802.3af Mode-A) or 15V DC (max. 15W)
  • Protection Rating: IP65 Weather Resistant, IK08 Impact Resistant
  • Dimensions: 403 × 131 × 48.75 mm (15.87 × 5.16 × 1.92 in)
  • Weight: 1.65 kg (3.64 lbs)
  • Operating Temperature: -25°C to +55°C (-13°F to 131°F)
  • Humidity: 10% to 85% RH (non-condensing)

Video

  • Camera Resolution: HD 720p
  • Viewing Angle: 180° Diagonal, 140° Horizontal, 100° Vertical
  • Lens Type: Ultra-Wide Hemispheric Lens
  • Night Vision: Built-in with 12 IR LEDs
  • Light Sensor: Automatic day/night switching
  • Simultaneous Video Streams: 1

Audio

  • Two-Way Full-Duplex Audio
  • Integrated Speaker & Microphone
  • Echo Cancellation (AEC)
  • Active Noise Reduction (ANR)

Network & Connectivity

  • Ethernet: RJ45 10/100 Base-T
  • PoE Support: IEEE 802.3af
  • SIP Compatible
  • Open API for Third-Party Integration
  • Supported Protocols: HTTP, HTTPS, RTSP, RTP, TCP/IP, UDP, DHCP, DNS, SIP, SSL/TLS

Access Control

  • Built-in RFID Reader
  • RFID Frequency: 125 kHz
  • RFID Standards: EM4100, EM4102
  • Read Range: Up to 3 cm
  • Supports Up to 500 RFID Tags
  • Remote RFID Management via App

Motion Detection

  • Advanced 4D Motion Sensor Technology
  • Detection Range: 1-10 m (3.3-32.9 ft), Adjustable
  • Detection Angle: 54° Horizontal, 70° Vertical
  • Custom Events & Scheduling via App

Relay & Control Functions

  • 2 Freely Configurable Bi-Stable Relays
  • Controls Two Doors, Gates, or Connected Devices
  • Relay Rating: Up to 24V AC/DC, 1A
  • External Door Release Button Input
  • Expandable with DoorBird I/O Door Controller

Smart Features

  • Smartphone & Tablet Support (iOS / Android)
  • SIP Phone & Landline Integration
  • Smart Transmission Mode (STM)
  • Geofencing Support
  • Custom Access Schedules
  • Push Notifications
  • Smart Home & NVR Compatible

Certifications

  • CE
  • FCC
  • IC
  • UKCA
  • RoHS
  • REACH
  • WEEE
  • UL 62368-1

Included in the Box

  • DoorBird D2104V Main Unit
  • Front Panel
  • RFID Key Fob
  • Screwdriver
  • Quick Start Guide
  • Installation Manual
  • Mounting Hardware & Small Parts

System Requirements

  • iOS or Android Device
  • Broadband Internet Connection
  • Ethernet Network with DHCP
  • Recommended Camera Height: Minimum 145 cm (57 in) from ground level
