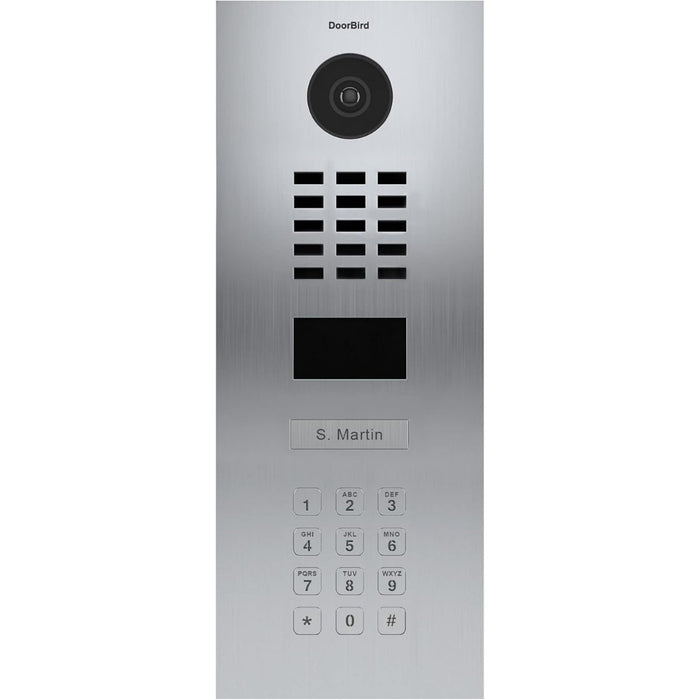

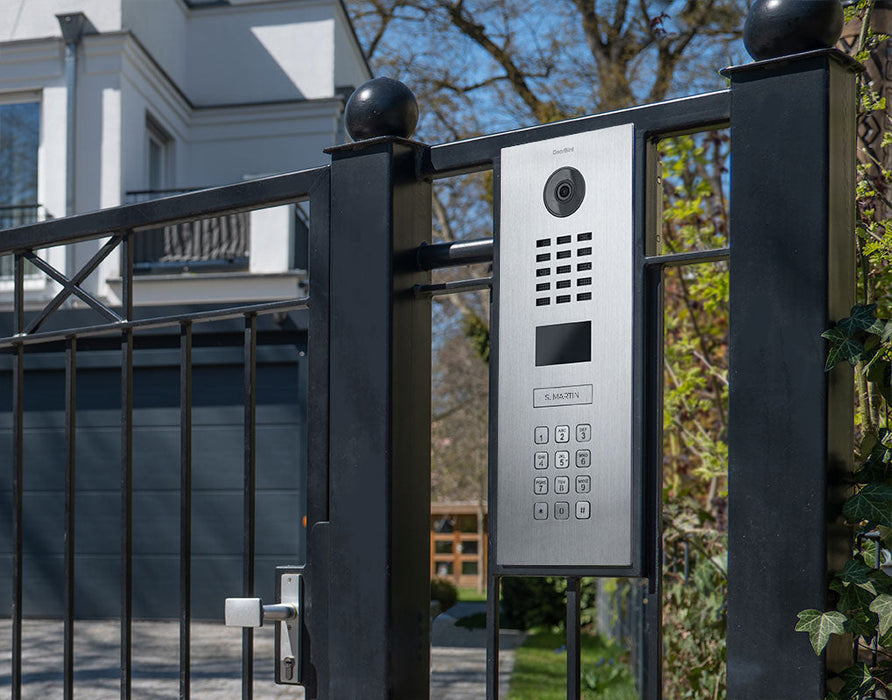

DoorBird D2101KV Flush Mount IP Video Door Station , Stainless Steel V2A Brushed - grinding dust resistant - 1 Call button- Keypad - POE Capable

DoorBird D2101KV Flush Mount IP Video Door Station , Stainless Steel V2A Brushed - grinding dust resistant - 1 Call button- Keypad - POE Capable
Availability:
Low stock
SKU DOB-D2101KV-F-V2A-BRUSHED

DoorBird D2101KV Flush Mount IP Video Door Station, Stainless Steel V2A Brushed - grinding dust resistant - 1 Call button- Keypad - POE Capable

A stylish member of the new family of Doorbirds. As well as the refined and sophisticated look, this new model introduces some new functionality. Integrated RFID for swipe access, Keypad for code access, more advanced sensor, an extra door/gate relay, and improved audio quality. And it looks so elegant! You can see your visitors, speak with them and open the door by smartphone or tablet from anywhere in the world. DoorBird combines innovative technology with elegant design. A smart solution, designed and manufactured in Germany. V2A Stainless Steel is IP65. V4A Stainless Steel is IP65 with chrome-nickel steel with molybdenum additive for harsh conditions and is Salt-Water resistant.

  • Flush-mount housing included
  • Automatic door buzzer - For use in medical offices and office environments
  • Free visitor history - Store still images for free, optional video recording available
  • Individual action schedules, e.g.: • RFID key fob “abc” has only access on Wednesday from 9 am until 11 am - 4D motion sensor switches on external lamp between 9 pm and 6 am REC
  • Geofencing - Automatic door and gate opening when returning home
  • Night vision - With 12 Infrared LEDs
  • Light sensor - For night vision mode
  • Motion sensor with 4D technology - Distance up to 10 m adjustable via App (interval: 1 m) HDTV video , Ultra wide-angle, hemispheric lens, 180°
  • Noise reduction and echo cancellation (AEC, ANR)
  • RFID reader - Configurable remotely via App (e.g. time frame)
  • Call button - With backlit nameplate
  • Easy connection to the network - Connection via a network cable or bell wire via 2-Wire Ethernet PoE+ Converter DoorBird A1072 (PoE, network data)
  • Two freely configurable bistable switching relays - Two doors or gates can be controlled via App • Status configurable via App: temporary or permanent circuit
  • Microphone - Clear voice transmission

GENERAL

  • Front panel3 mm (0.12 in) For materials and colors see material board and Online Shop.
  • Flush-mounting housing included
  • Power supply 15 V DC (max. 15 W) or Power over Ethernet (PoE 802.3af Mode-A)
  • Call button Illuminated
  • Nameplate Plastic Engravable metal nameplate sold separately
  • Keypad Module 12 keys, illuminated, configurable via App, e.g.
    • Individual PIN codes
    • Individual events (e.g. switch a relay, HTTP(s) request)
    • Individual schedules
    • Up to 500 PIN codes manageable
    • 30 most recent entries viewable in history
  • Weight 1510 g
  • Connectors
    • • RJ45, for LAN/PoE
    • • Bistable latching relay #1, max. 24 V DC / AC, 1 Ampere, e.g. for electric door opener
    • • Bistable latching relay #2, max. 24 V DC / AC, 1 Ampere, e.g. for electric door opener
    • • External input for external door opener button
    • • 15 V DC input (+, -), max. 15 W
    • • Relays can be expanded / detached with DoorBird I/O Door Controller
  • Protection class IP65, IK08
  • Approvals CE, FCC, IC, UKCA, RoHS, REACH, WEEE, IEC/EN 62368, IEC/EN 62471, UL 62368-1
  • Dimensions 351,5 x 131 x 49,6 mm (H x W x D) 13.84 x 5.16 x 1.95 in (H x W x D)
  • Operating conditions -25 to +55°C / -13 to 131°F
  • Humidity 10 to 85 % RH (non-condensing)

Scope of delivery

  • 1x Main Electrical Unit
  • 1x Front panel
  • 1x Nameplate for 1 call button, metal, bell
  • symbol
  • 1x RFID key fob
  • 1x Screwdriver
  • 1x Quickstart guide with Digital Passport
  • 1x Installation manual
  • 1x Small parts

CURRENT SYSTEM REQUIREMENTS

  • System requirements Mobile device: Newest iOS on iPhone/iPad, newest Android on Smartphone/Tablet Internet: High-Speed Landline Broadband Internet connection, DSL, cable or fiber optic, no socks or proxy server
  • Network: Ethernet Network, with DHCP

Recommended

  • installation height Camera lens should be at a min. height of 145 cm (57 in). Before the installation please determine your optimal installation height

VIDEO

  • Camera HDTV 720p, dynamic (VGA – HDTV)
  • Lens High-end ultra wide-angle hemispheric lens 180° (D), 140° (H), 100° (V), straightened, IR-capable
  • Night-vision Yes, light sensor, automatic IR-cut filter, 12 Infrared LEDs (850 nm)

AUDIO

  • Audio components Speaker and microphone, noise reduction and echo cancellation (ANR, AEC)
  • Audio streaming Two-way, full duplex

NETWORK

  • Ethernet RJ45 jack, PoE 802.3af Mode-A, 10/100 Base-T
  • Supported protocols HTTP, HTTPS, SSL/TLS, Bonjour, DNS, RTSP, RTP, TCP, UDP, RTCP, ICMP, DHCP, ARP, SIP, DTMF (RTP [RFC-2833], SIP INFO [RFC-2976]), STM

MOTION SENSOR

  • Type Active
  • Detection angle 54° (H), 70° (V)
  • Range 1 - 10 m (3.3 - 32.9 ft), depends on environment, configurable in 1 m (3.3 ft) steps.
  • Technology 4D. Based on multiple integrated sensors and algorithms, e.g. Radio Frequency Energy (RFE)
  • Configuration Via App, e.g.
    • Range (1 - 10 m / 3.3 - 32.9 ft)
    • Movement direction (coming, leaving, both)
    • Individual events (e.g. switch a relay, push notification, SIP call [audio/video],
  • HTTP(s) notification)
    • Individual schedules

RFID

  • Type Active Reader Passive Tag (ARPT) system
  • Standard ISO/IEC 18000-2:2009 Part 2, EM4100, EM4102
  • Frequency 125 KHz
  • Range 0 - 3 cm, depends on environment
  • Antenna Internal
  • Compatible
  • Transponder
  • Up to 500 tags manageable
  • Configuration
  • Via App, e.g.
    • • Tag (add, delete)
    • • Individual events (e.g. switch a relay,
    • SIP call [audio/video], HTTP(s) notification)
    • • Individual schedules
    • • RFID history available for 60 minutes in the app

INTEGRATED WIRELESS MODULES

  • RFID 125 KHz
  • Sensor 24 GHz, can be disabled
