DoorBird D1812 IP Video Intercom 1080p Ultra‑Wide Camera PoE RFID Reader Keypad 4D Motion Sensor – Stainless Steel

DoorBird D1812 IP Video Intercom 1080p Ultra‑Wide Camera PoE RFID Reader Keypad 4D Motion Sensor – Stainless Steel
Availability:
Low stock
SKU DOB-D1812-V2A-BRUSHED

DoorBird D1812 IP Video Intercom – 1080p Ultra‑Wide Camera, PoE, RFID Reader, Keypad, 4D Motion Sensor – Stainless Steel V2A – DoorKing 1812 Compatible

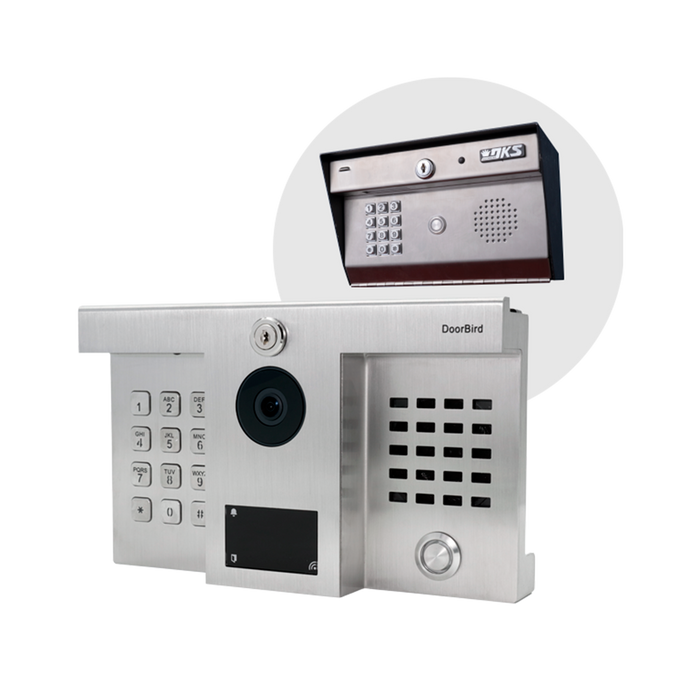

The DoorBird D1812 is a smart IP video door station designed to upgrade existing DoorKing® 1812 systems while keeping the original analog telephone intercom functional. It adds HD video, motion detection, and mobile app connectivity, allowing you to see and talk to visitors from anywhere. Built from durable stainless steel and engineered in Germany, it features a wide‑angle 1080p camera with night vision, an illuminated keypad, RFID and Bluetooth access options, and two relays for controlling doors or gates. With PoE or 15V DC power and simple panel‑swap installation, it brings modern smart‑home convenience to traditional DoorKing® installations without replacing existing infrastructure.

  • Hybrid upgrade for existing DoorKing® 1812 Classic & Plus systems — keeps the original analog system running.
  • LAN connection with PoE capability for simple network integration.
  • 1080p ultra‑wide‑angle video, night vision, and IR LEDs for clear day/night imagery.
  • 4D motion sensor with adjustable detection range up to 6 m (19.7 ft).
  • RFID reader for secure access control.
  • Keypad supporting up to 500 individual PIN codes.
  • Two freely configurable bi‑stable switching relays for controlling doors or gates.
  • Open API enabling integration with third‑party systems and SIP.
  • Smart Transmission Mode (STM) optimized for mobile audio/video performance (WiFi, 3G–5G).
  • Smart Home & NVR compatibility (Control4, Crestron, Synology, Dahua, URC, QNAP, RTI, ELAN, Bang & Olufsen, and more).
  • Free visitor history with still-image capture; optional video recording available.
  • Geofencing for automatic door/gate opening when arriving home.
  • Easy installation using QR-code setup and flexible network wiring (Ethernet or 2‑Wire PoE converter “A1071”).
  • Bluetooth Low Energy (BLE) For access control, compatible external sensors and smart locks.

Docs/Instruction Links

Specifications:

Network

  • Ethernet: PoE 802.3af Mode‑A, 10/100 Base‑T
  • WiFi: Not supported
  • Supported protocols: HTTP, HTTPS, SSL/TLS, Bonjour, DNS, RTSP, RTP, TCP, UDP, RTCP, ICMP, DHCP, ARP, SIP, DTMF (RFC‑2833, RFC‑2976), STM

Motion Sensor

  • Type: Active, 4D technology using multiple integrated sensors (incl. RFE)
  • Detection angle: 80° (H), 50° (V)
  • Range: 1–6 m, adjustable in 1 m steps via app
  • Configurable events: relay switching, push notifications, SIP calls, HTTP(s) requests, schedules

RFID Reader

  • Frequency: 13.56 MHz (ISO 14443A, MIFARE Classic, MIFARE DESFire EV1/EV2, NFC)
  • Range: 0–3 cm, internal antenna
  • Capacity: Up to 500 RFID tags, configurable via app (add/delete, events, schedules)

Wiegand Interface

  • Supported formats: 26, 30, 31, 34, 44‑bit (output only)
  • Cable length: Up to 150 m (492 ft)
  • Galvanic isolation; max 5 mA per output line

Integrated Wireless Modules

  • Bluetooth: Low Energy (BLE), compatible with DoorBird Bluetooth Keyfob A8007
  • RFID Sensor: 13.56 MHz
  • Motion Sensor Radio: 24 GHz (can be disabled)

Video

  • Camera: HDTV 1080p (dynamic resolution from VGA to HDTV)
  • Lens: 180° hemispheric, straightened image, IR‑capable
  • Night vision: IR LEDs, automatic IR‑cut filter, light sensor

Audio

  • Components: Speaker & microphone
  • Features: Echo cancellation (AEC) and noise reduction (ANR)
  • Two‑way audio

General

  • Compatibility: DoorKing® 1812 Classic & 1812 Plus (flush & surface mount), revisions 1871‑010 or 1970‑010
  • Front panel: 2 mm brushed stainless steel (V2A/V4A)
  • Call button: Stainless steel with LED ring
  • Keypad: 12 illuminated keys; up to 500 PIN codes; configurable via app
  • Weight: 1,700 g
  • Protection: IP65, IK08
  • Approvals: CE, UKCA, FCC, IC, RoHS, REACH, WEEE, Wi‑Fi CERTIFIED™

Power & Connectivity

  • Power: 12–15 V DC (min. 15 W) or PoE 802.3af Mode‑A
  • Connectors:
    • RJ45 for LAN/PoE
    • 2× bi‑stable relays (max. 30 V AC/DC, 3 A)
    • Wiegand output
    • External input (e.g., door opener button)

Dimensions & Environmental Conditions

  • Size: 150.5 × 248 × 73.5 mm (H × W × D)
  • Operating temperature: –25 to +55°C (–13 to 131°F)
  • Humidity: 10–85% (non‑condensing)
