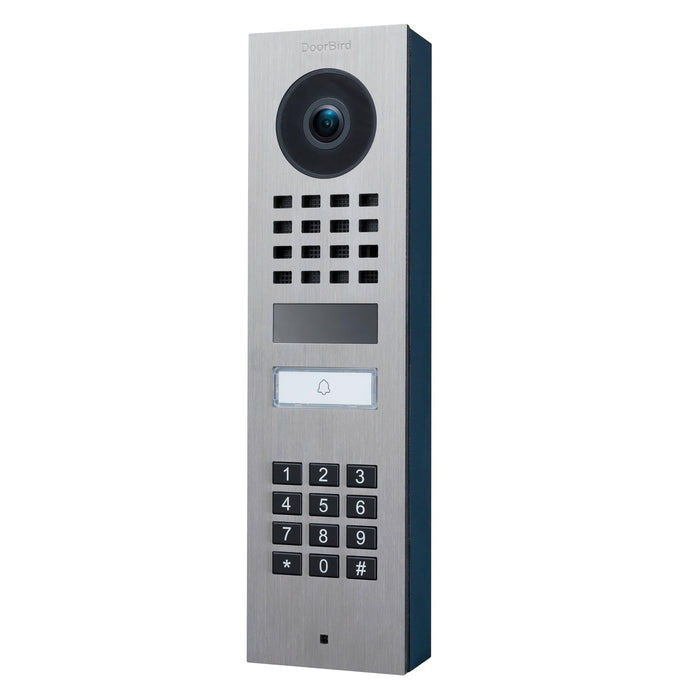

DoorBird D1101KV Surface-Mount IP Video Intercom 1080p Ultra‑Wide Camera Night Vision 4D Motion Sensor PoE LAN 1 Call Button - Stainless Steel

DoorBird D1101KV Surface-Mount IP Video Intercom 1080p Ultra‑Wide Camera Night Vision 4D Motion Sensor PoE LAN 1 Call Button - Stainless Steel
Availability:
Low stock
SKU DOB-D1101KV-S-V2A-BRUSHED

DoorBird D1101KV Surface-Mount IP Video Intercom 1080p Ultra‑Wide Camera Night Vision 4D Motion Sensor PoE LAN 1 Call Button - Stainless Steel

Intercom system for single-family homes and businesses with 1 unit, 1 call button

Open API
Local interface for integration with third-party systems and SIP

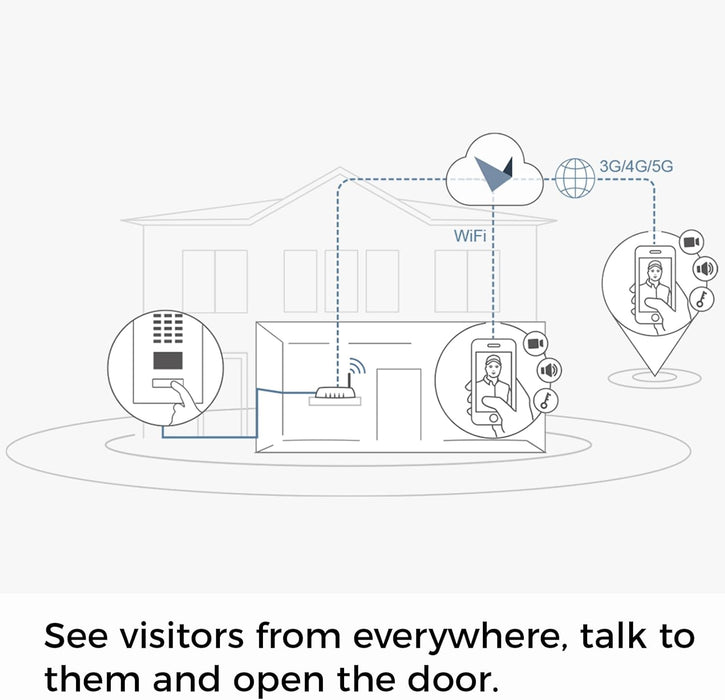

Video and audio call
On smartphones, tablets (iOS, Android), IP and landline phones (SIP)
Smart Transmission Mode (STM)
Real-time audio / video communication, optimized for mobile devices via WiFi, 3G, 4G, 5G
Smart Home & NVR compatible
Control4, Loxone, Crestron, Synology, AVM FRITZ!Fon, URC, QNAP, RTI, Nice, Fibaro, Bang & Olufsen and others
Microphone
Intercom with clear voice transmission
Automatic door buzzer
For use in medical offices and office environments
Free visitor history
Store still images for free, optional video recording available
Individual action schedules, e.g.:
Switch relay 1 for automatic door release Mon-Fri from 9 am until 4 pm when the call button is pressed
4D motion sensor switches on external lamp between 9 pm and 6 am
Geofencing
Automatic door and gate opening when returning home
Night vision
With Infrared LEDs
HDTV Video
Ultra wide-angle, hemispheric lens, 180°
Light sensor
For night vision mode
One freely configurable bistable latching relay
Control one door or one gate via App
Status configurable via App: temporary or permanent circuit
Easy self-install
Quick installation via QR code scan
Call button
With backlit nameplate
Motion sensor with 4D technology
Distance up to 6 m (19.7 ft) adjustable via App (interval: 1 m/ 3.3 ft)
Noise reduction and echo cancellation (AEC, ANR)
Easy connection of the intercom to the network
Connection via a network cable or bell wire via 2-Wire Ethernet PoE Converter (PoE, network data)
WiFi enabled
Works within a WiFi network, no LAN cable needed
Bluetooth Low Energy (BLE)
For access control, compatible external sensors and smart locks

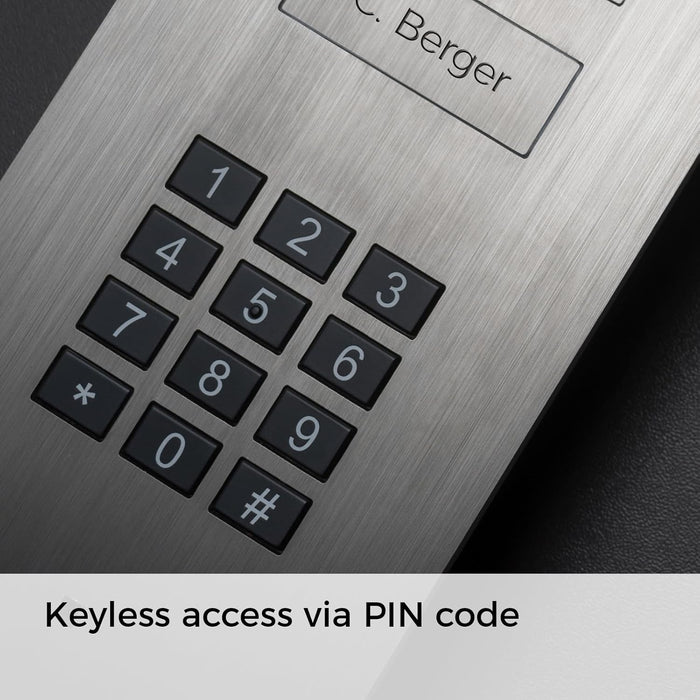

Keypad Module
Configurable via App
More to 500 individual PIN codes
Individual events (e.g. trigger a relay, HTTP(s) request)

  • Intercom with camera including keypad
  • WiFi / LAN connection (PoE capable)
  • Surface-mounting housing included
  • 2-way audio

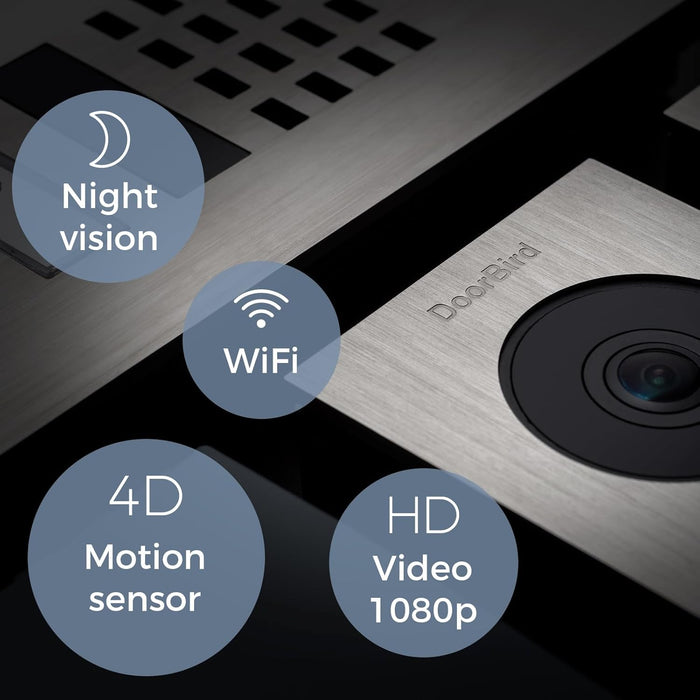

  • Ultra-wide angle lens, 1080p, night vision, IR LEDs
  • 4D motion sensor
  • Intercom with 1 freely configurable bistable switching relay

Docs/Instruction Links

Specifications

  • Front panel 3 mm (0.12 in) For materials and colors see material board and Online Shop.
  • Mounting housing (backbox) Polycarbonate
  • Mounting type Surface-mounted,
  • flush-mounted version sold separately
  • Call button Illuminated
  • Nameplate Plastic Metal cover plate and engraving available separately, see www.doorbird.com/buy
  • Keypad Module 12 keys, illuminated, configurable via App, e.g.
    • • Individual PIN codes
    • • Individual events (e.g. switch a relay,
  • HTTP(s) request)
    • • Individual schedules
    • • Up to 500 PIN codes manageable
  • Power supply 15 V DC (max. 15 W) or Power over
  • Ethernet (PoE 802.3af Mode-A)
  • Weight 530 g
  • Connectors
    • • LAN/PoE (T+, T-, R+, R-)
    • • Bistable latching relay, max. 1-24 V DC/AC, 1 A, e.g. for electric door opener
    • • External input for external door opener button
    • • 15 V DC input (+, -), max. 15 W Protection class IP65, IK08
  • Approvals CE, UKCA, FCC, IC, RoHS, REACH, WEEE, Wi-Fi CERTIFIED™
  • Dimensions 241 x 65 x 29,5 mm (H x W x D) 9.49 x 2.56 x 1.16 in (H x W x D)
  • Operating conditions -25 to +55°C / -13 to 131°F Humidity 10 to 85 % RH (non-condensing)

CURRENT SYSTEM REQUIREMENTS

  • System requirements Mobile device: Newest iOS on iPhone/iPad, newest Android on Smartphone/Tablet Internet: High-Speed Landline Broadband Internet connection, DSL, cable or fiber optic, no socks or proxy server Network: Ethernet Network, with DHCP
  • Recommended installation height Camera lens should be at a min. height of 145 cm (57 in). Before the installation please determine your optimal installation height

VIDEO

  • Camera HDTV 1080p, dynamic (VGA – HDTV)
  • Lens High-end ultra wide-angle hemispheric lens 180° (D), 150° (H), 82° (V), straightened, IR-capable
  • Night vision Yes, light sensor, automatic IR-cut filter, Infrared LEDs (850 nm)

AUDIO

  • Audio components Speaker and microphone, noise reduction and echo cancellation (ANR, AEC)
  • Audio streaming Two-way, full duplex

NETWORK

  • Ethernet PoE 802.3af Mode-A, 10/100 Base-T
  • WiFi 2.4 GHz b/g/n
  • Supported protocols HTTP, HTTPS, SSL/TLS, Bonjour, DNS, RTSP, RTP, TCP, UDP, RTCP, ICMP, DHCP, ARP, SIP, DTMF  (RTP [RFC-2833], SIP INFO [RFC-2976]), STM

MOTION SENSOR

  • Type Active
  • Detection angle 80° (H), 50° (V)
  • Range 1 - 6 m (3.3 - 19.7 ft), depends on environment, configurable in 1 m (3.3 ft) steps.
  • Technology 4D. Based on multiple integrated sensors and algorithms, e.g. Radio Frequency Energy (RFE)
  • Configuration Via App, e.g.
    • • Range (1 - 6 m / 3.3 - 19.7 ft)
    • • Movement direction (coming, leaving, both)
    • • Individual events (e.g. switch a relay, push notification, SIP call [audio/video],
  • HTTP(s) requests)
    • • Individual schedules

INTEGRATED WIRELESS MODULES

  • WiFi 2.4 GHz

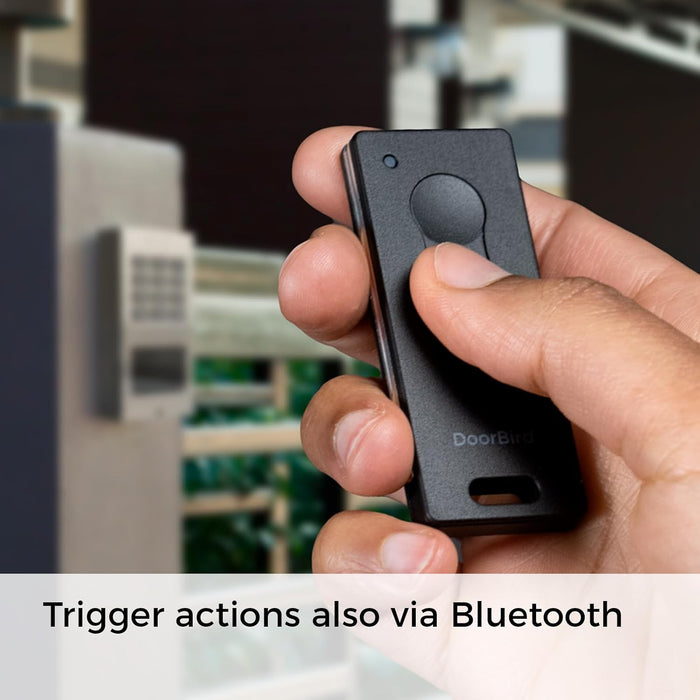

  • Bluetooth Bluetooth Low Energy (BLE), compatible with DoorBird Bluetooth Keyfob Remote A8007
  • Sensor 24 GHz, can be disabled

THIRD-PARTY INTEGRATION (DOORBIRD CONNECT)

  • Partner integrations see www.doorbird.com/connect
  • API see www.doorbird.com/api
  • Simultaneous video streams One, for event-based recording
