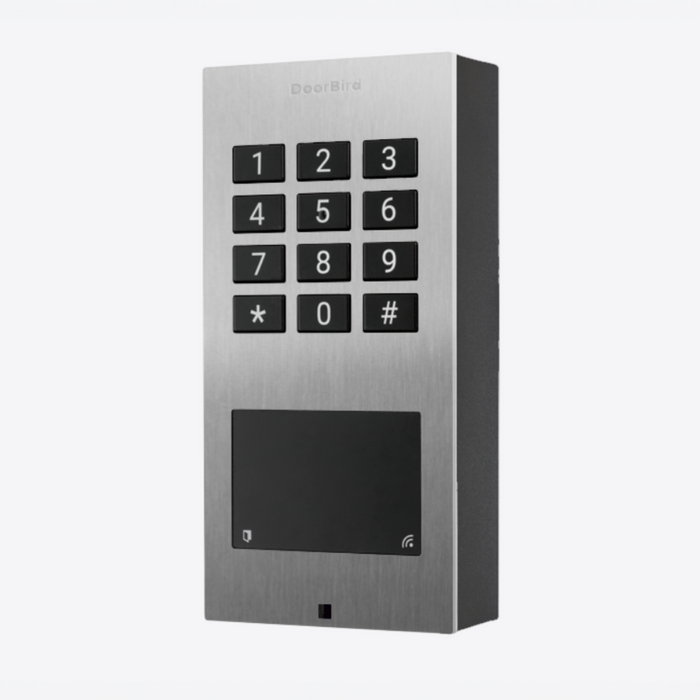

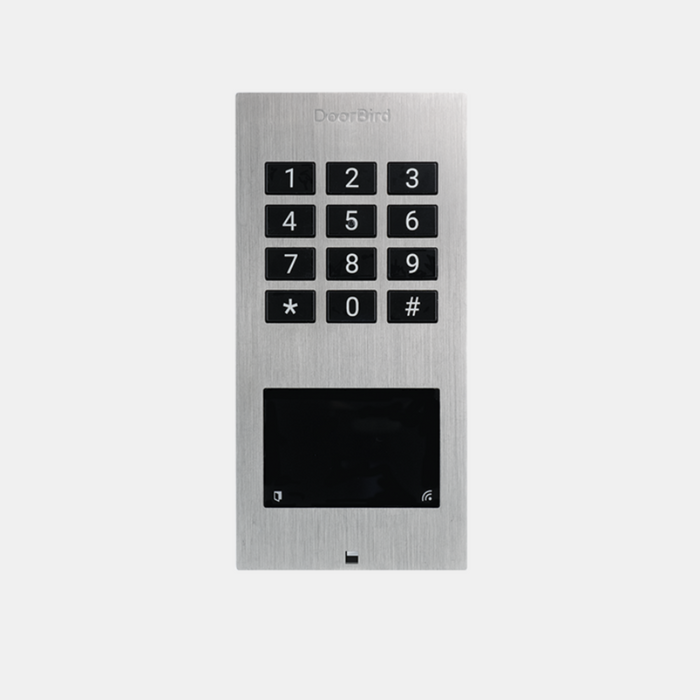

DoorBird A1121 Surface‑Mount IP Access System WiFi/LAN (PoE) Illuminated Keypad RFID Reader Bluetooth LE IP65 Weatherproof, Stainless Steel

DoorBird A1121 Surface‑Mount IP Access System WiFi/LAN (PoE) Illuminated Keypad RFID Reader Bluetooth LE IP65 Weatherproof, Stainless Steel
Availability:
Low stock
SKU DOB-A1121-S

DoorBird A1121 Surface‑Mount IP Access System, Stainless Steel, WiFi/LAN (PoE), Illuminated Keypad, RFID Reader, Bluetooth LE, Wiegand, Dual Relays, IP65 Weatherproof

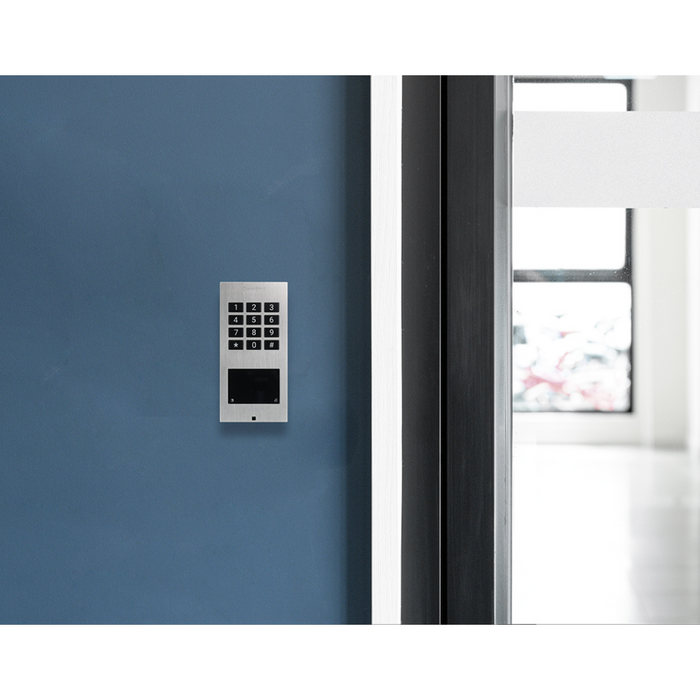

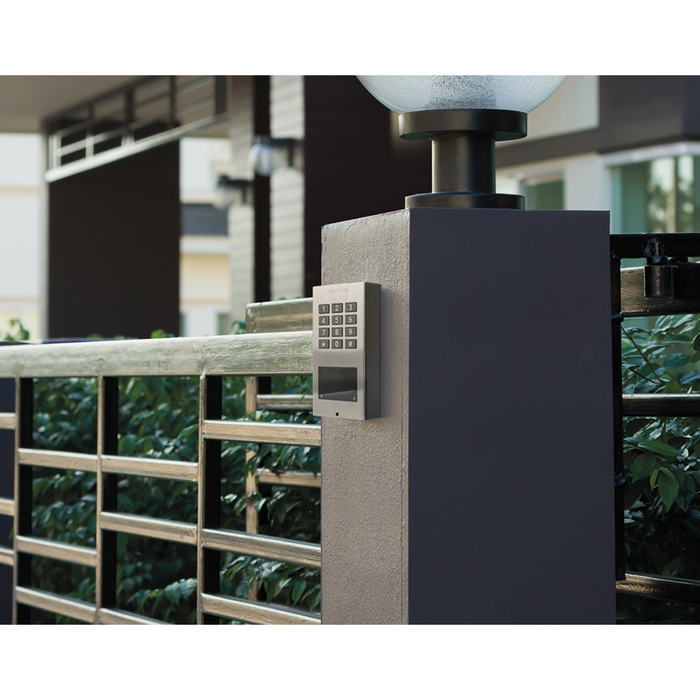

The DoorBird A1121 is a compact, IP-based multi-technology access control system that can also be installed as a stand-alone solution. It enables secure access control in areas where the installation of an IP video door station is not possible or desired, e.g. at back and side doors, garages and underground garages, storage and packing rooms or bicycle and machine rooms. It can also control elevators. The keypad is illuminated, so you can install the device even in an unlit environment. Thanks to its compact shape, the device can be easily installed on a door frame. The access control device is also ideal if you wish to create one-time or temporary access codes for visitors.

The device is designed for indoor and outdoor installation. The retrofit version is available for existing front panels. Our front panel is made of solid 3 mm (0.12 in) brushed stainless steel. All buttons are backlit. The DoorBird A1121 can be connected to the network via WLAN or LAN cable. If connected using a network cable, the device can be powered via Power over Ethernet (PoE). Should the Internet temporarily fail, all functions continue to operate within the local network.

QUALITY MADE IN GERMANY

All DoorBird products are designed, developed and produced by Bird Home Automation Group in Berlin, Germany. We manufacture all products with the greatest care and precision, and deliver them to our customers all over the world

  • Surface-mount housing included
  • WiFi / LAN connection (PoE capable)
  • Keypad
  • 125 KHz and 13.56 MHz RFID reader
  • Tamper sensor
  • Wiegand interface
  • 2 freely configurable bistable switching relays

Docs/Instruction Links

Specifications

  • Front panel - 3 mm (0.12 in) For further materials and colours see material board and Online Shop.
  • Mounting housing (backbox) - Polycarbonate
  • Mounting type - Surface-mounted. Flush-mounted and retrofit version sold separately
  • Power supply - 15 - 48 V DC (max. 15 W) or Power over Ethernet (PoE 802.3af Mode-A)
  • Keypad module - 12 keys, illuminated, configurable via App, e.g. • Individual PIN codes • Individual events (e.g. switch a relay, HTTP(s) request) • Individual schedules • Up to 500 PIN codes manageable
  • Tamper Sensor - Integrated
  • Weight - 250 g
  • Connectors
    • LAN/PoE (T+, T-, R+, R-)
    • 2 x Bistable latching relay (potential-free), max. 1-24 V DC/AC, 1 A, e.g. for electric door opener
    • 15 – 48 V DC input (+, -), max. 15 W
    • Wiegand
  • Weatherproof  - Yes, IP65
  • Approvals - IP65, CE, FCC, IC, RoHS, REACH, IEC/EN 62368
  • Dimensions - 128 x 62 x 28 mm (H x W x D) 5.04 x 2.44 x 1.1 in (H x W x D)
  • Operating conditions - -25 to +55°C / -13 to 131°F Humidity 10 to 85 % RH (non-condensing)

Scope of delivery

  • 1x Main Electrical Unit with front panel
  • 1x Wall mounting bracket
  • 1x Power supply unit (mains adaptor) with up to 4 country-specific outlet adaptors (100 - 240 V AC to 15 V DC) 1x RJ45 adapter
  • 1x Screwdriver
  • 1x Quickstart guide with Digital Passport
  • 1x Installation manual
  • 1x Small parts

CURRENT SYSTEM REQUIREMENTS

System requirements

  • Mobile device: Newest iOS on iPhone/iPad, newest Android on Smartphone/Tablet
  • Internet: High-Speed Landline Broadband Internet connection, DSL, cable or fiber optic, no socks or proxy server
  • Network: Ethernet Network, with DHCP

AUDIO

  • Audio components - Piezzo, for system messages

NETWORK

  • Ethernet - RJ45 jack, PoE 802.3af Mode-A, 10/100 Base-T
  • WiFi - 2.4 GHz b/g/n
  • Supported protocols - HTTP, HTTPS, SSL/TLS, Bonjour, DNS, TCP, UDP, ICMP, DHCP, ARP

125 KHZ RFID READER

  • Type Active Reader Passive Tag (ARPT) system
  • Standard ISO/IEC 18000-2:2009 Part 2, EM4100, EM4102
  • Frequency 125 KHz
  • Range 0 - 3 cm, depends on environment
  • Compatible Transponder RFID key fobs, sold separately,
  • Configuration Via App, e.g. • Tag (add, delete) • Individual events (e.g. switch a relay, HTTP(s) notification) • Individual schedules

13.56 MHZ RFID READER

  • Type Active Reader Passive Tag (ARPT) system
  • Standard UID (CSN) of: MIFARE Classic®, MIFARE DESFire® EV1 and EV2, ISO14443A, ISO14443B, ISO15693, NFC® (HCE support required)
  • Frequency 13.56 MHz
  • Range 0 - 3 cm, depends on environment
  • Compatible Transponder RFID key fobs, sold separately, Up to 500 transponders manageable Configuration Via App, e.g. • Transponder (add, delete) • Individual events (e.g. switch a relay, HTTP(s) notification) • Individual schedule

WIEGAND INTERFACE

  • Direction Output Supported protocols 26, 30, 31, 34, and 44 bit
  • Supported data output 125 MHz RFID transponder, 13.56 MHz RFID transponder, Keypad PIN codes
  • Maximum distance to controller (cable length) 18 AWG: Max. 500 ft. (150m) 20 AWG: Max. 300 ft. (90m) 22 AWG: Max. 200 ft. (60m)
  • Voltage When no data is being sent, both DATA0 and DATA1 are pulled up to the "high" voltage level, +5 V DC. The interface is galvanically isolated.

INTEGRATED WIRELESS MODULES

  • WiFi 2.4 GHz
  • RFID 125 KHz 13.56 MHz (Configuration: either-or) Bluetooth
  • Bluetooth Low Energy (BLE), compatible with DoorBird Bluetooth Keyfob Remote A8007
