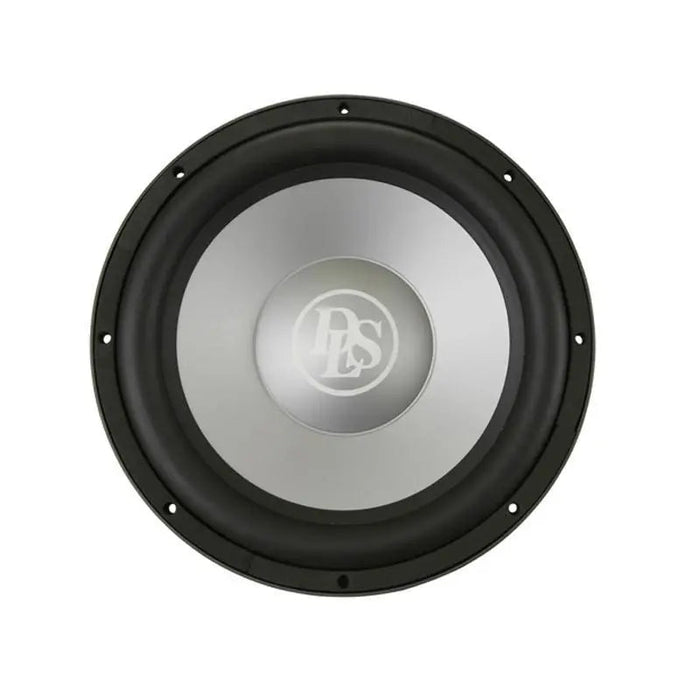

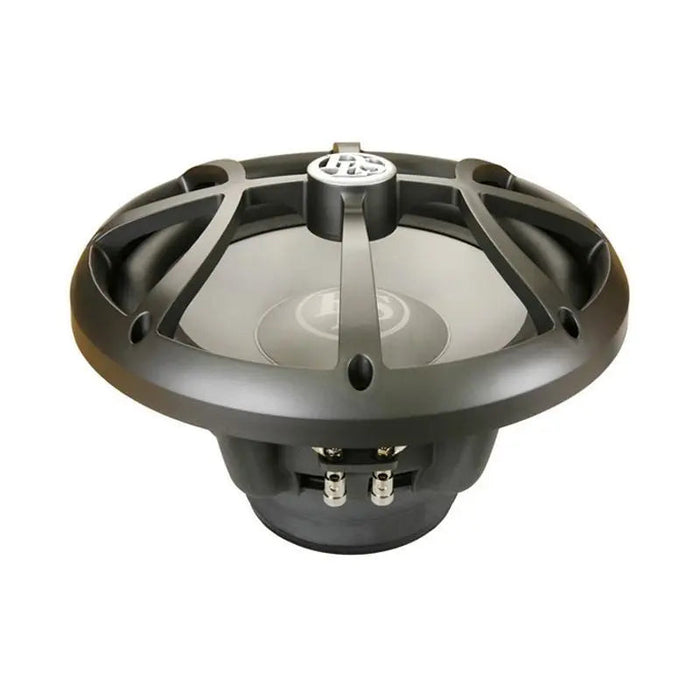

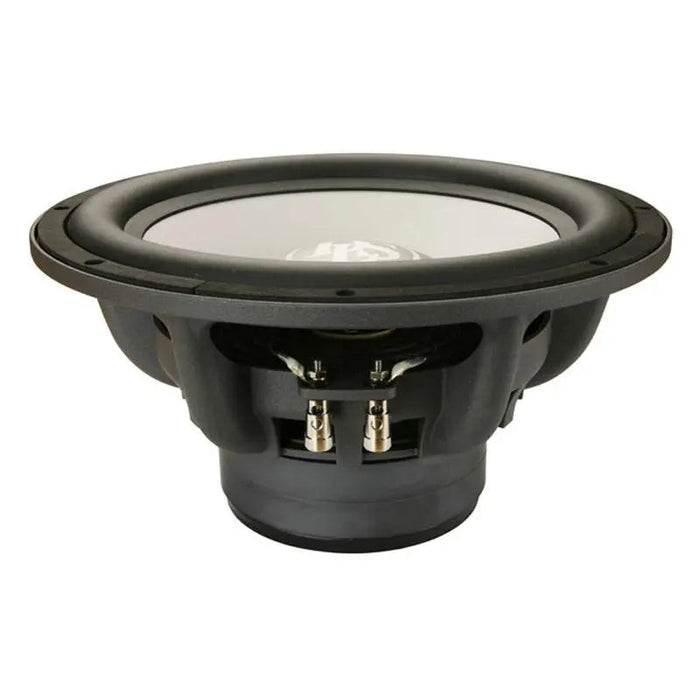

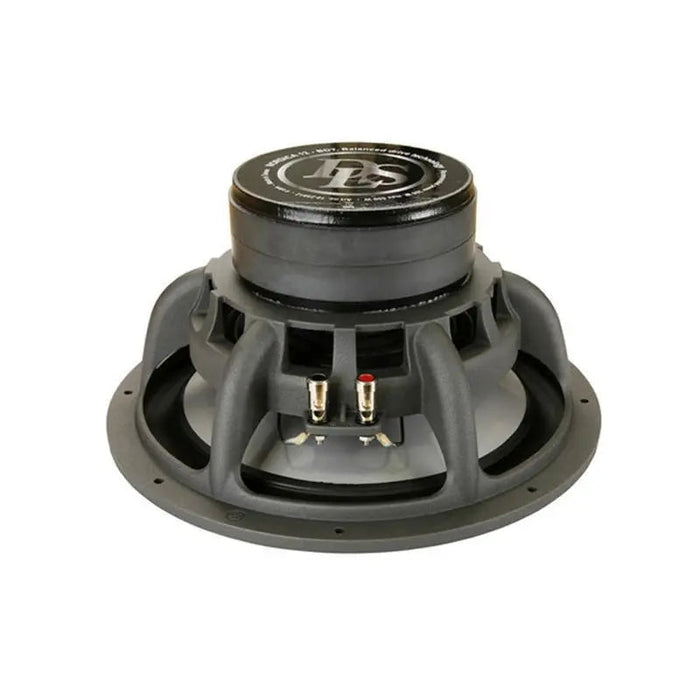

DLS Nordica 12 Ultimate Series 12" 1000 Watt 4 Ohm Car SQ Subwoofer

by DLS
Sold out
Checked Fast Shipping on all US Orders
Checked Contact Customer Service Representative for more info
Checked Buy Online, Free Local Pickup
DLS Nordica 12i Ultimate Series 12" 1000 Watt 4 Ohm Car Audio Subwoofer SQ Sub

Brand: DLS
Condition: New

It has a new solid cast basket in the same colour as the rest of the series. To improve the reliability and sound quality we have integrated the litz wires in the spider on this new version.

This is a subwoofer designed for SQ, not for SPL. Priorities during the developing process have been, low freq. bass capabilities, speed, timing, linearity, low distortion and phase correctness.

The” Balanced drive technology” ensures constant power being delivered to the voice coil during the full cone body movement.
- Cone of aluminium with superb sound qualities.
- Dual magnet system.
- Wide surround
- 4 ohm voice coil
- Open design for maximum voice coil cooling. .
- Designed for sealed boxes 30-33 litres.
This is the best 12" subwoofer we ever developed. Pre-production samples was used in many price winning cars at the EMMA finals in Rotterdam 2010.

Woofer size 12" (30 cm)
Impedance 4 ohm
Power handling capacity 300 W RMS
Max power handling capacity 800 W RMS
Peak power 1000 W
Frequency range 20-2500 Hz
Sensitivity 89,7 dB (1W/1m)
Magnet size 144 mm (5,7")
Outer diameter of woofer 315 mm (12,4")
Mounting depth 148 mm ( 5,8")
Mounting hole 282 mm (11,1")
X-max +- 11,5 mm (0,45")
Weight 7,2 kg (15,8 lb)
