Conductor
AWG: 20AWG / 0.81mm
Conductor Material: Copper Clad Steel (CCS)
Insulation
Insulation Material: Foam PE
Insulation Diameter: 3.66mm
Shield
Braid: 9x16x0.12mm
Coverage: 95%
Outer Jacket
Diameter: 6.0mm
Jacket Material: Polyvinyl Chloride (FR-PVC)
Color: Black
18AWG/2C
Conductor: Electroplated CCA
Diameter: 7mm x 0.38mm (18AWG)
Insulation: PVC (Black, Red)
Insulation Diameter: 1.70mm
Jacket Material: PVC
Jacket Diameter: 4.5mm
Electrical Characteristics
Sparker Test: 3000VAC
Impedance: 75±3 Ohms
Capacitance: 53±3pF/m
Velocity of Propagation: 83%
Temperature Rating: -30ºC to 70ºC

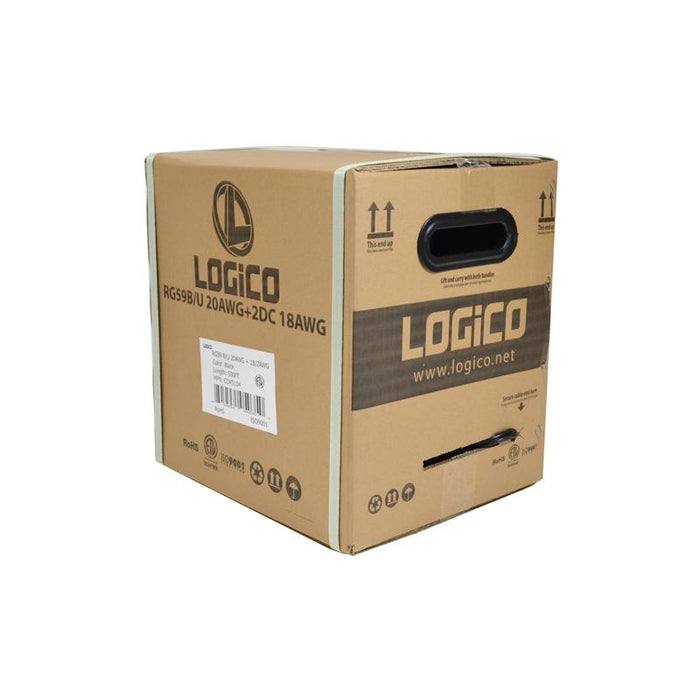

One RG59 Siamese Cable+18/2 500FT Black
