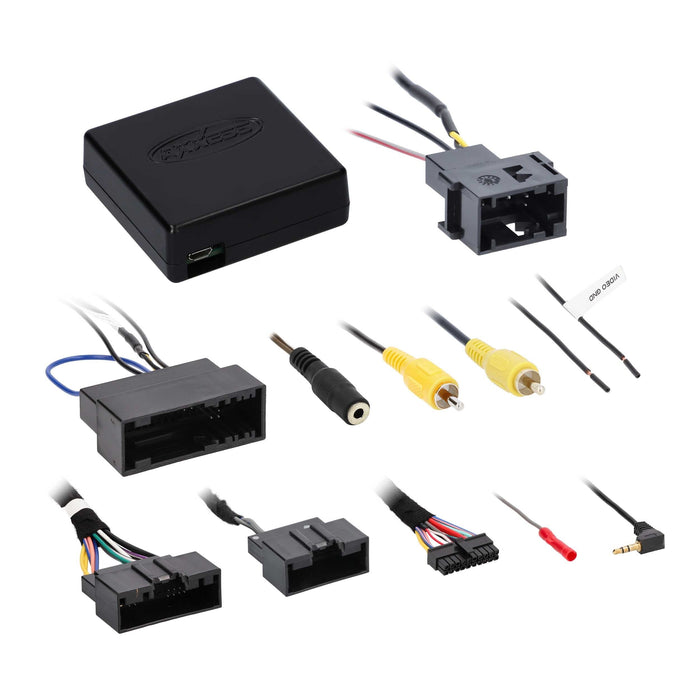

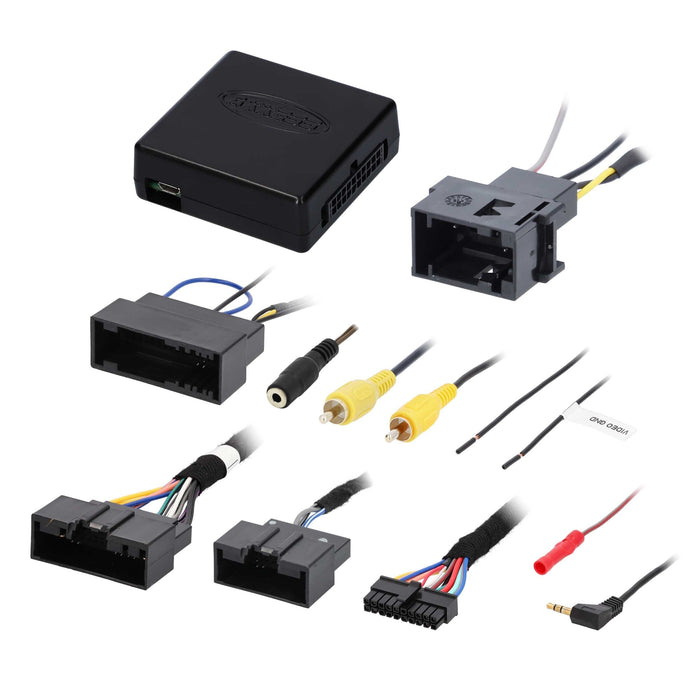

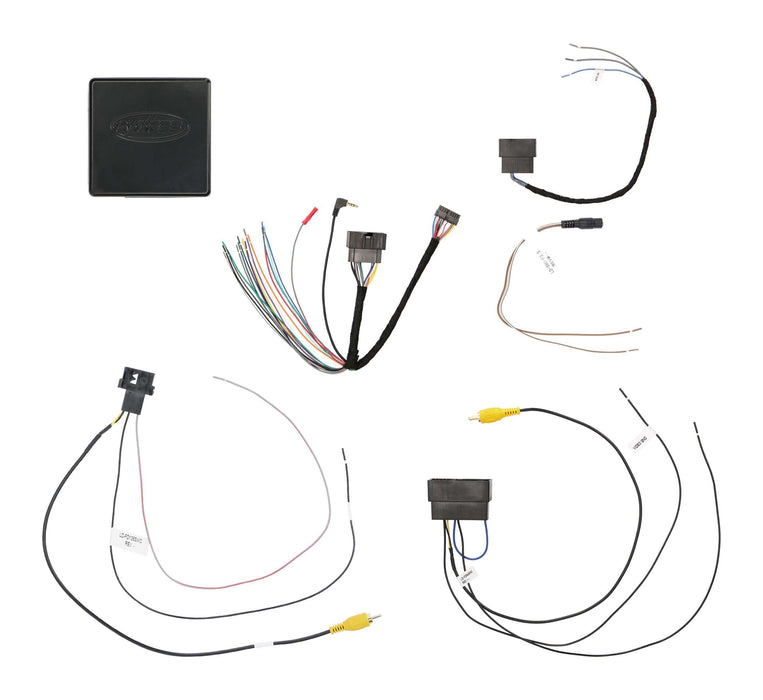

Axxess AXTC-FOC Data Interface with SWC for select Ford 2014-2019

Axxess AXTC-FOC Data Interface with SWC for select Ford 2014-2019

This Total Control Series Interface is designed for use when replacing the radio in select Ford 2015-2018 vehicles. Patented Auto-Detect technology automatically detects the vehicle type, radio connection, and preset controls, while allowing the ability to dual-assign steering wheel controls. It provides NAV outputs, accessory power, and a 12-volt illumination output, in addition to retaining R.A.P., and balance and fade. The Axxess Total Control Series is a universal solution designed to work with all major radio brands and both amplified and non-amplified audio systems. This interface can be manually programmed for most vehicles and will retain settings even after battery disconnection or interface removal.

• Provides accessory power (10- amp)
• Provides wires for multimedia radios (park brake, reverse, speed sense)
• Retains audio controls on the steering wheel
• Designed to be compatible with all major radio brands
• Auto detects vehicle type, radio connection, and preset controls
• Ability to dual assign steering wheel control buttons
• Retains memory settings even after battery disconnection or interface removal (nonvolatile
• memory)
• Provides illumination output
• Retains the OE backup camera
• Micro “B” USB updatable
