Brand: Audio Control
The Epicenter contains a bass maximization circuit that accurately recreates and injects low frequency information back into the signal path. What that means in everyday terms is that The Epicenter will give more bass impact to your best compact discs or even your old tapes.
The Epicenter has a unique equalization circuit that contours the restored bass to your speaker system.

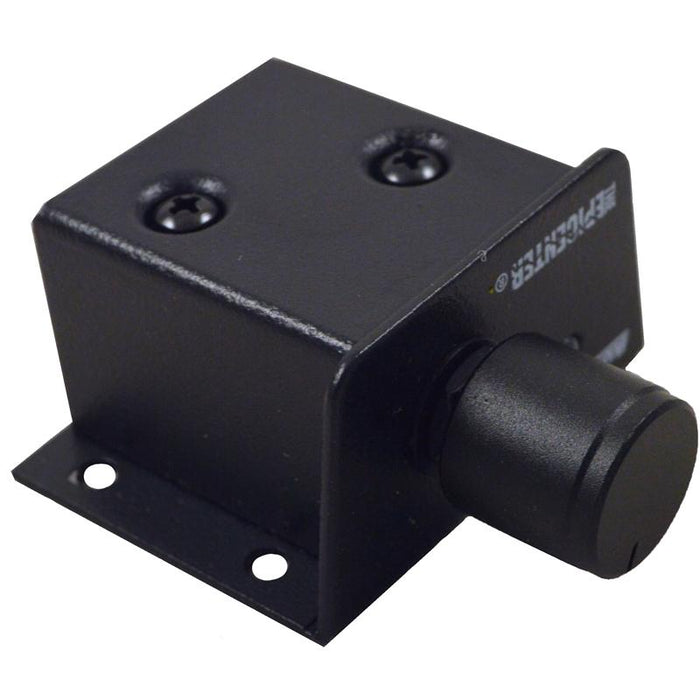

Dash Mount Control
The Epicenter is designed to be mounted anywhere in the vehicle, with the exception of the front bumper or radiator. It comes with a dash mountable control that allows you to enjoy the effects of The Epicenter without having to leave the driver seat. The dash mount control also has a dual control LED indicator that can be rainforest green or sunshine amber. This LED will grow brighter as you add more bass or dimmer when you decrease it.
Bass Maximizer Indicator
On the chassis of The Epicenter is a backlighted logo that flashes when the bass maximization circuit is activated. Special effects in your trunk!
PFM Subsonic Filter
This unique feature is legendary with many AudioControl fanatics for its ability to fine tune the bass response of any system.
Bass Output Control
The Epicenter circuitry has the ability to produce large amounts of deep, mind shattering bass without damaging your speakers. The Bass Output Control circuit allows The Epicenter to maximize the bass output of any autosound audio system while restraining destructive bursts.
All specifications are measured at 14.4VDC (standard automotive voltage).
Maximum Input Level: 15 Vrms
Maximum Output Level: 13.5 Vpeak
Frequency Response: 10Hz-100kHz;+/-1dB
Total Harmonic Distortion: 0.003%
Signal to Noise Ratio: -130dB
Balanced Input Noise Rejection: >60dB
Input Impedance: 10 Kohms
Output Impedance: 150 Ohms
Power Supply: High headroom PWM
Power Draw: 150mA
Recommended Fuse Rating: 1 Amp
Size: 8" W x 5.5" D x 1.2" H
Country of Origin: USA

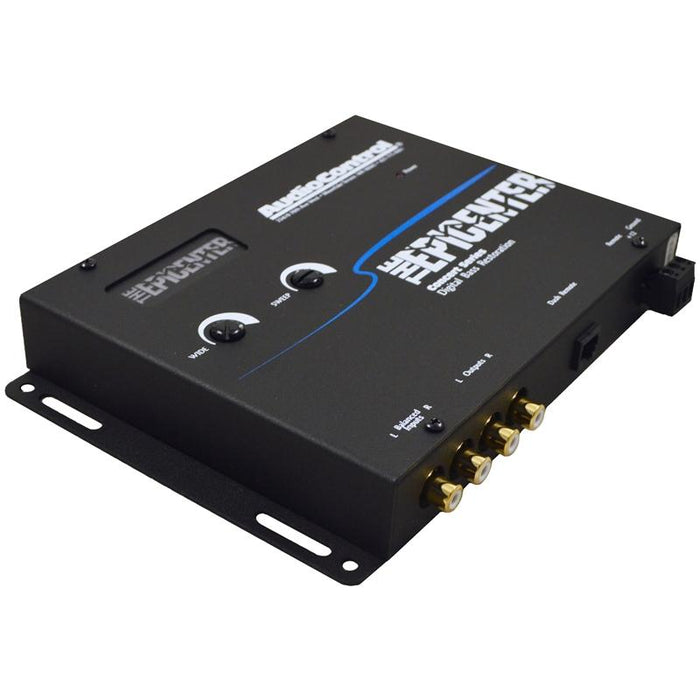

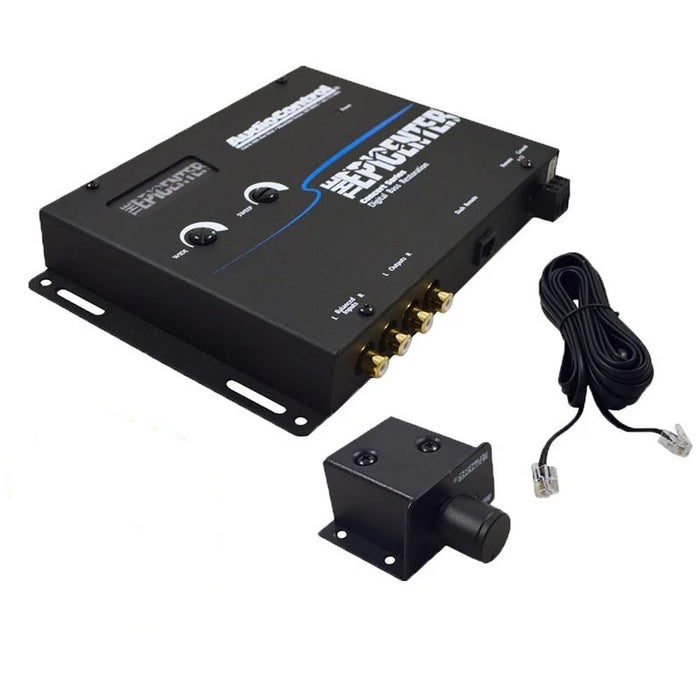

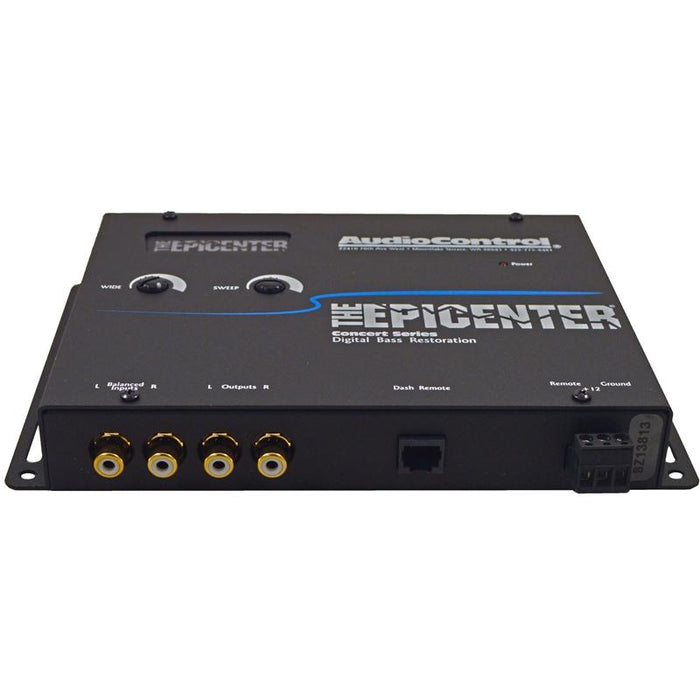

Pre-amp Bass Restoration Processor
Remote dash mount control

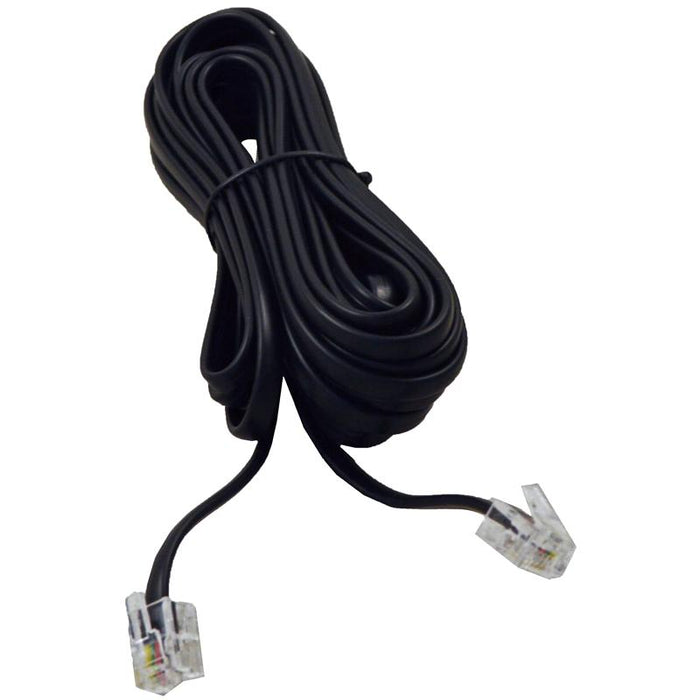

20' RJ-14 cable
