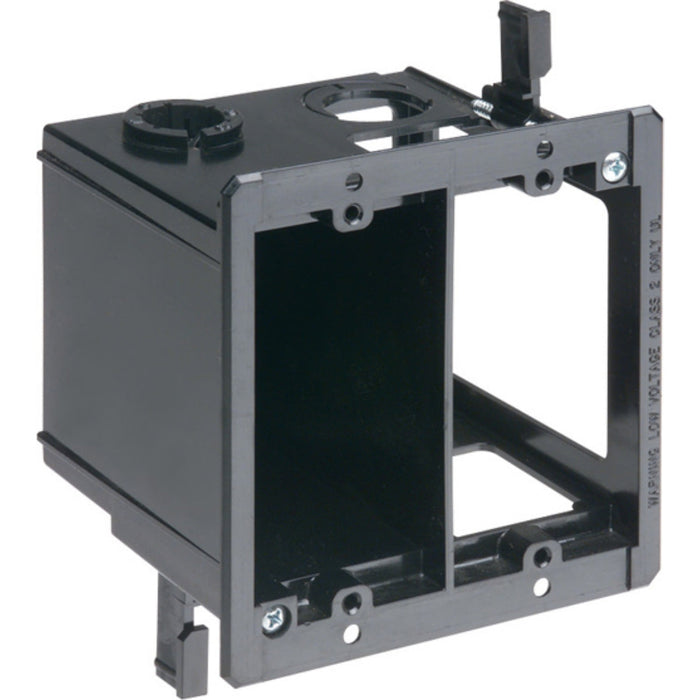

Arlington LVDR2 2-Gang Power and Low Voltage Box for Existing Construction Black

Availability:
in stock, ready to be shipped
SKU ARL-LVDR2

Arlington LVDR2 2-Gang Power and Low Voltage Box for Existing Construction Black

Power and low voltage box for existing construction, nail on. Low voltage side provides combination 1/2" and 3/4" knockout. 2 hour fire rating. 20 cu. in.

  • Saves time and money
  • Neatly installs power and phone/cable outlets together in one location
  • Fast and easy installation, bracket isits own template for cut out
  • Adjusts to fit 1/4” to 1-1/2” thickwallboard, paneling, or drywall
  • Mounting wings hold bracket securely againstwall when screws are tightened
  • Includes installed NM connector on power side
  • For raceway, the low voltage side provides acombo 1/2” and 3/4” KO
  • Competitively priced!
  • 2 hour fire rating

Specifications

Physical Information

  • Weight  -  0.250 lbs/each
  • Height  -  4.250"
  • Width  -  4.185"
  • Color   -  Black
  • Material(s)  -  Plastic

Technical Information

  • Cubic Inches   - 17.0 (Power Side)
  • Fire Rating   - 2 Hour
  • Knockout Size(s)  -  1/2" and 3/4"
  • Style  -  Two-Gang Power/Low-Voltage Combination Box for Existing Construction
  • Trade Size  -  2-Gang
  • Usage  -  Easy Installation of Power and Phone/Cable/Fiber Optic Outlets Together

Comes With

  • (1)  - Power and low voltage box
  • (1)  -  NM94 Cable Connector
