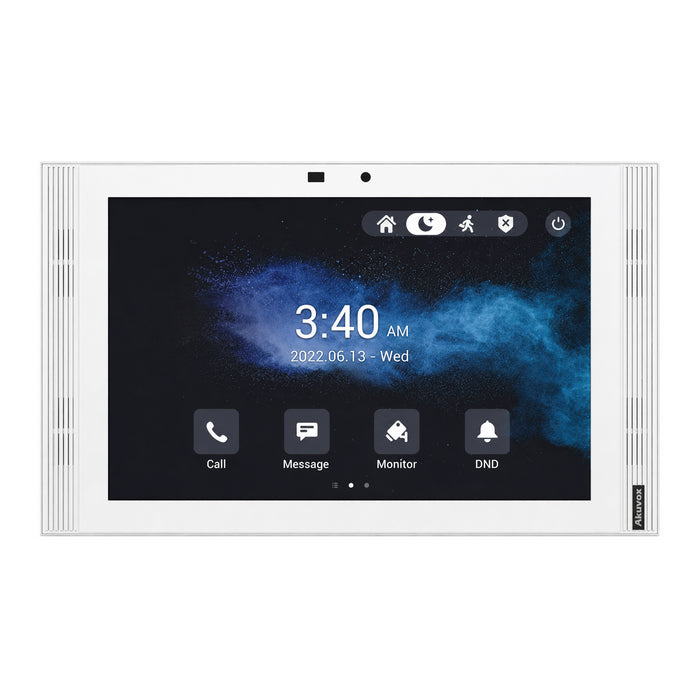

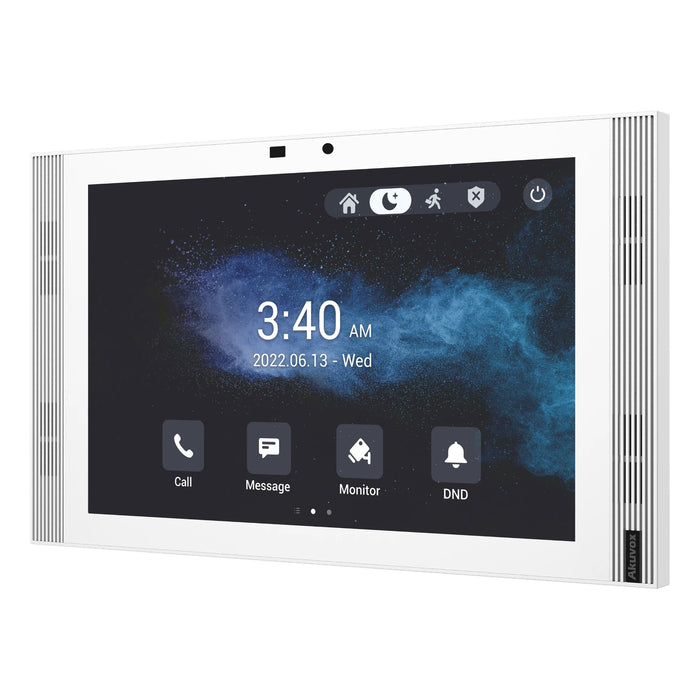

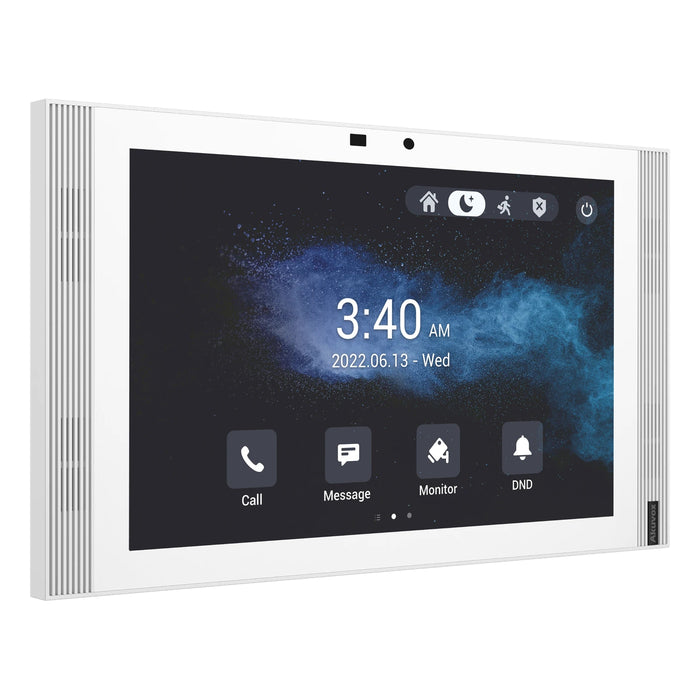

Akuvox S567A 10.1" On-Wall Mounted Android 12 OS IP Indoor Monitor with Capacitive Touch Screen, 5MP Camera, Bluetooth, Wi-Fi 6, RS485 and PoE Support

Availability:
Out of stock
SKU AKU-S567A-WHITE
Sold out

Akuvox S567A 10.1" On-Wall Mounted IP Indoor Monitor with Capacitive Touch Screen, 5MP Camera, Bluetooth, Wi-Fi 6, RS485 and PoE Support - White

The Akuvox S567A Indoor monitor with an Android 12 operating system, provides an
unparalleled audio-visual intercom experience with four high level speakers. Automatically
adjust screen brightness through environment sensing, voice assistant and Voice Changer
to bring convenience and safety to your home.

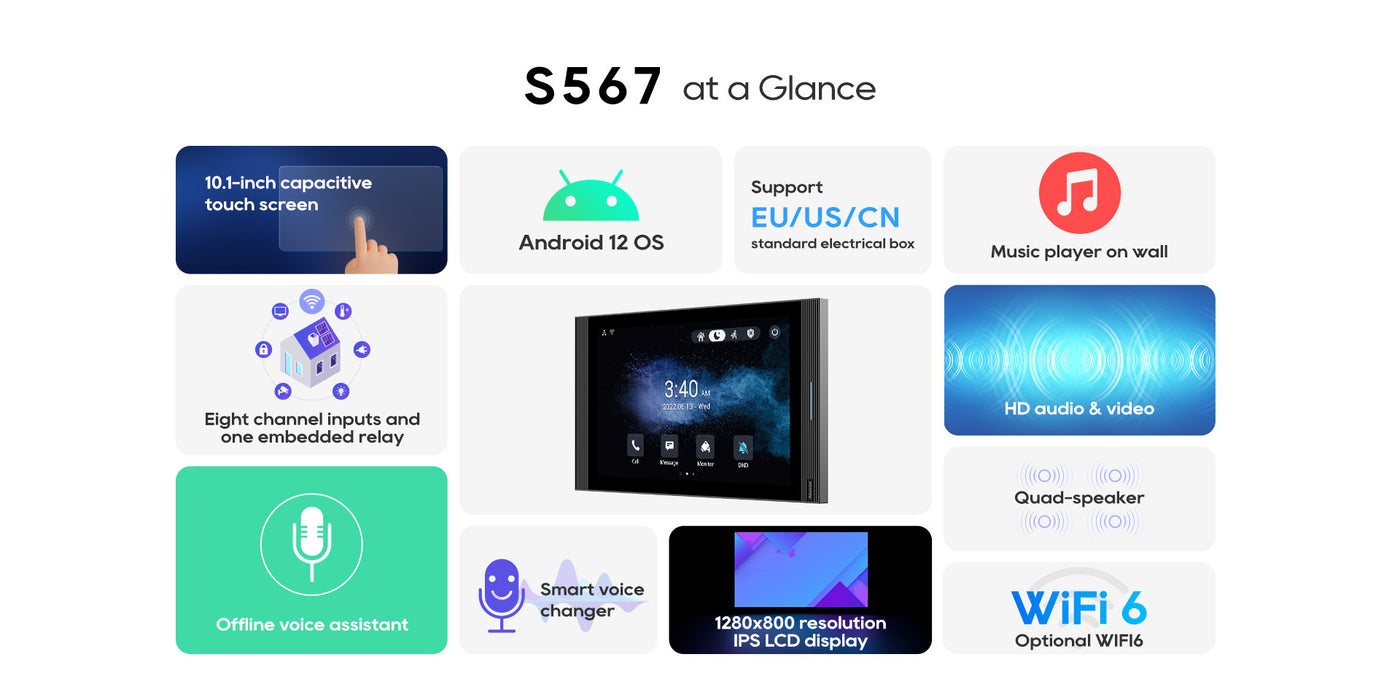

  • Strong compatibility with Android 12 OS
  • Completely solve the stability problem of Wi-Fi with Wi-Fi 6
  • Two-way audio communication with other units in the network
  • Complies with SIP standard for easy integration in every SIP capable PBXes
  • Powered by PoE or external source
  • Automatically adjust the screen brightness according to the ambient brightness to protect eyes and save energy
  • Support Voice Changer to protect the children and women living alone
  • Support US or European electrical wall box mounting
  • Built-in smart voice assistant

Docs/Instruction Links

Akuvox S567 cutsheet
Akuvox S567A Spec Sheet
Akuvox S567 Quick Start Guide
Akuvox S567 Indoor Monitor User Manual

Specifications

Physical & Power

  • Front panel: Plastic
  • RAM / ROM: 4GB / 16GB
  • Display: 10 Inch IPS LCD
  • Screen: 10 Inch capacitive touch screen
  • Wi-Fi: IEEE802.11 b/g/n/ax
  • Bluetooth:5.0
  • RS485 Port: Support
  • Relays Out: 1
  • Bell in: 1
  • Alarm Input:8
  • Camera:5 MP
  • Microphone: Dual microphones,-26dB
  • Speaker: Quad speakers, 8Ω / 2W
  • Ethernet Ports: 1xRJ45, 10/100Mbps adaptive
  • 802.3af Power-over-Ethernet
  • 12V DC Connector (if not using PoE)
  • Tamper Resistant: Support
  • Installation: Wall-mounted & Desktop
  • Dimension: 278.5x165.1x22.8 mm
  • Working Humidity: 10~90%
  • Working Temperature:-10°C ~ +45°C
  • Storage Temperature:-20°C ~ +70°C

Touch Screen Display

  • Display Mode: Normally black, Transmissive
  • LCD Size: 10inch (Diagonal)
  • Aspect Ratio: 16:10
  • Resolution: 1280x800
  • Contrast ratio: 900:1
  • Luminance: 290 cd/m²
  • Viewing Angle: 80° Left, 80° Right,
  • 80° Upper, 80° Lower
  • Touch Screen: Projected capacitive

Audio

  • SIP v1 (RFC2543), SIP v2 (RFC3261)
  • Narrowband audio codec: G.711a, G.711μ, G.729
  • Broadband audio codec: G.722
  • DTMF: In-band, out-of-band DTMF (RFC2833), SIPInfo
  • Echo Cancellation
  • Voice Activation Detection
  • Comfort Noise Generator
  • Automatic Gain Control

Video

  • Streaming formats: H.263 & H.264

Networking

  • Protocols support: IPv4, IPv6, HTTP, HTTPS, FTP,TFTP, SNMP, DNS, SNTP, RTSP, SRTP, RTP, TCP,UDP, TLS, ICMP, DHCP, ARP

Deployment & Maintenance

  • Auto-Provisioning
  • Web management portal
  • Web-based packet dump
  • Configuration backup / restore
  • Firmware upgrade
  • System logs (include door access logs)

Voice Assistant

  • Voice pickup distance up to 5 meters
  • Voice recognition accuracy up to 95%
  • Privacy protection with native voice data
  • Support English

Application Scenario

  • Villas
  • Apartment complexes
  • Home automation systems
  • Modern interiors
