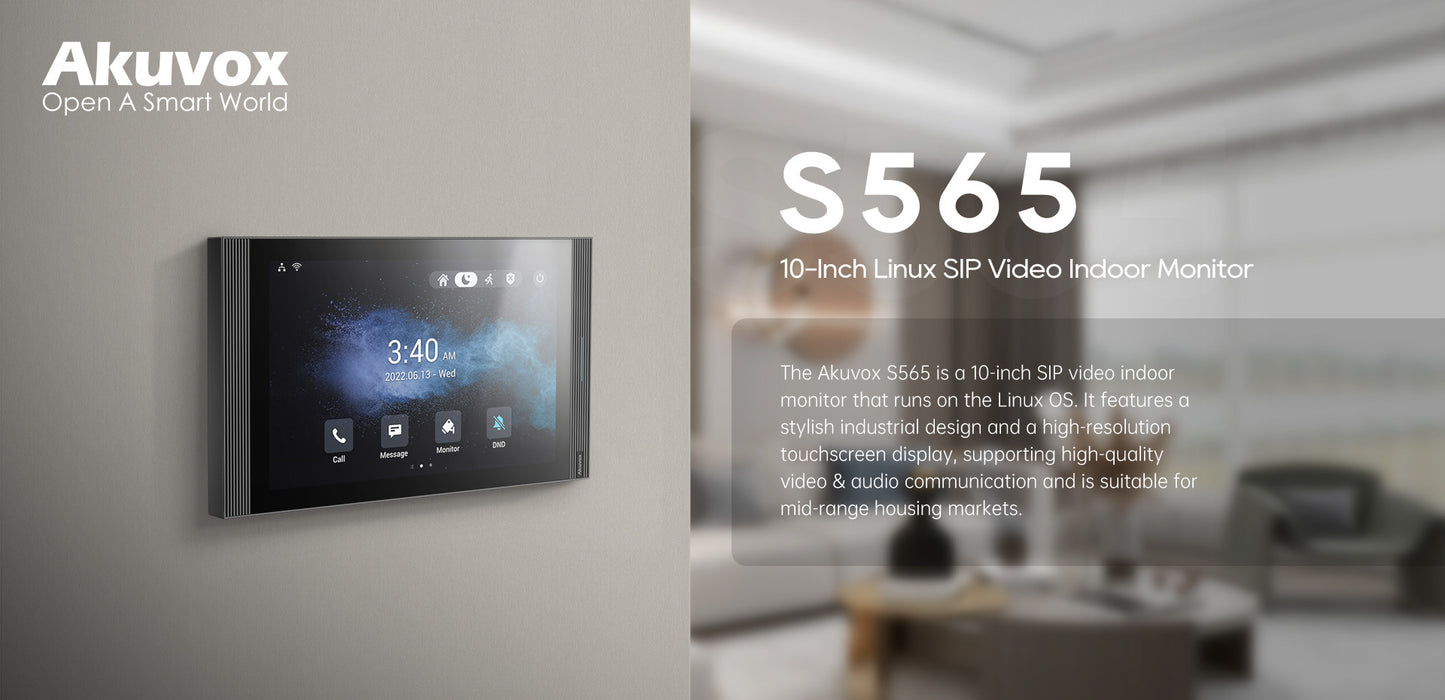

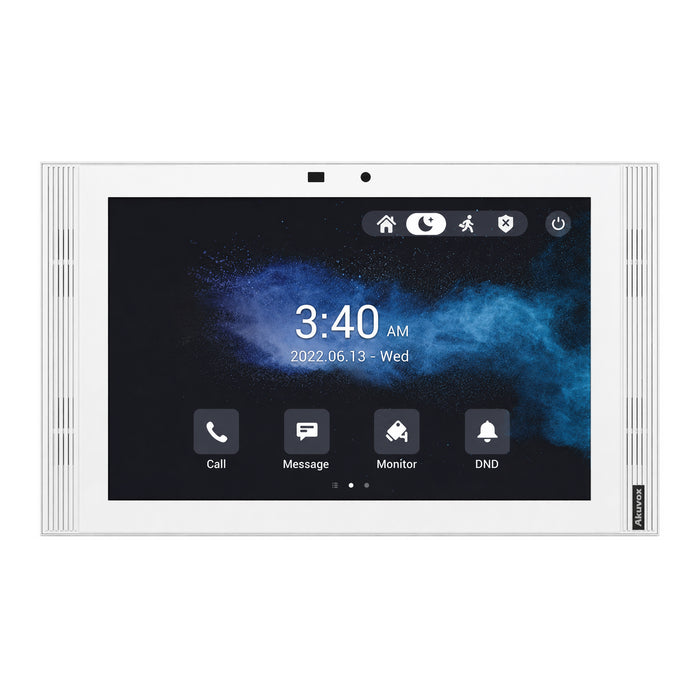

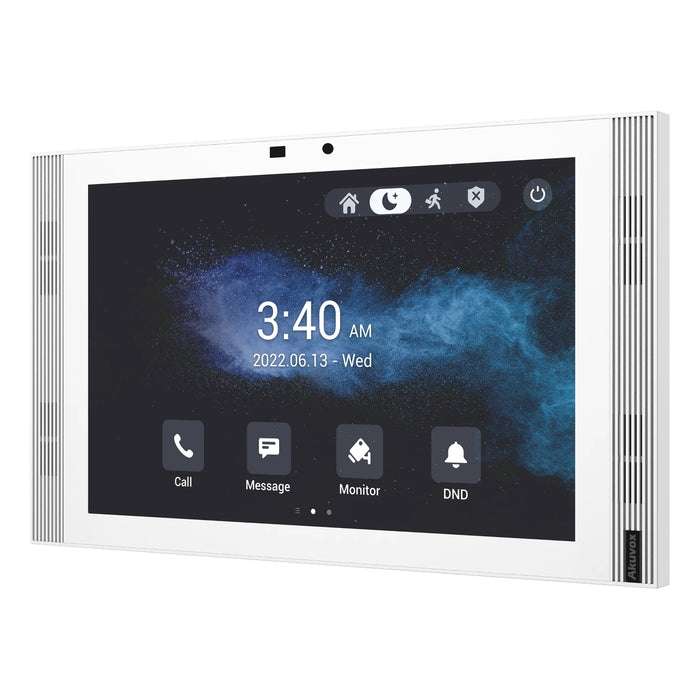

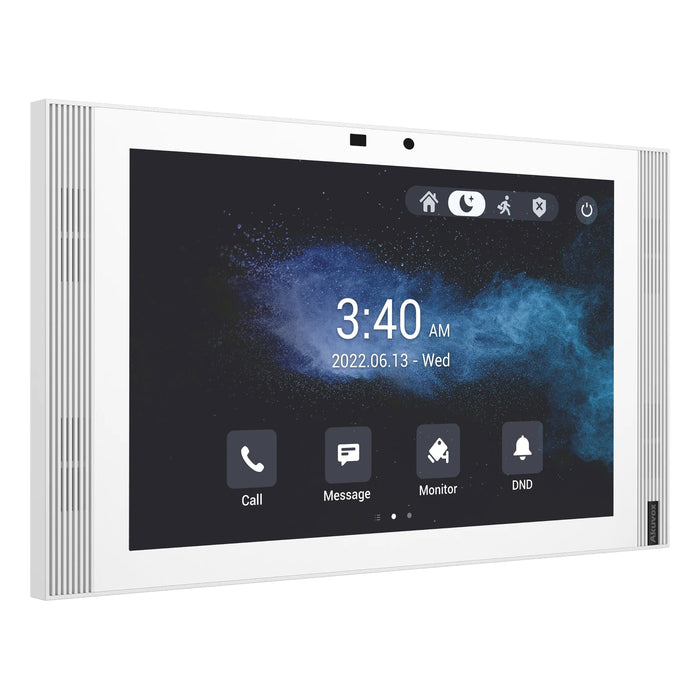

Akuvox S565W 10-Inch Linux SIP WiFi Video Indoor Monitor - White

Docs/Instruction Links

• Akuvox S565 cutsheet
• Akuvox S565 Spec Sheet
• Akuvox S565 Quick Start Guide
• Akuvox S565 Indoor Monitor User Manual

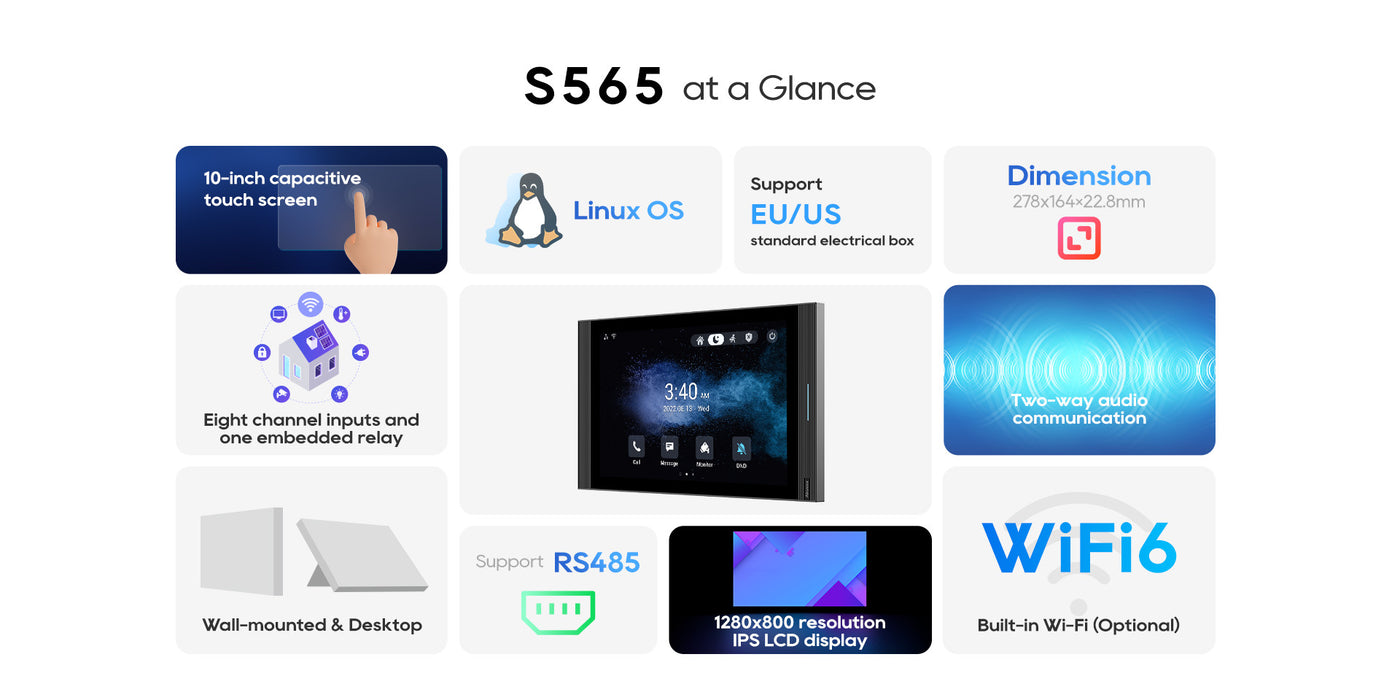

Specifications

Physical & Power

• Front panel: Plastic
• RAM/ROM: 128MB / 256MB
• Display: 10 Inch IPS LCD 1280x800 resolurion
• Screen: 10 Inch capacitive touch screen
• Wi-Fi: IEEE802.11 b/g/n, @2.4GHz
• RS485 port: Support
• Relay out: 1
• Bell in: 1
• I/O: 8

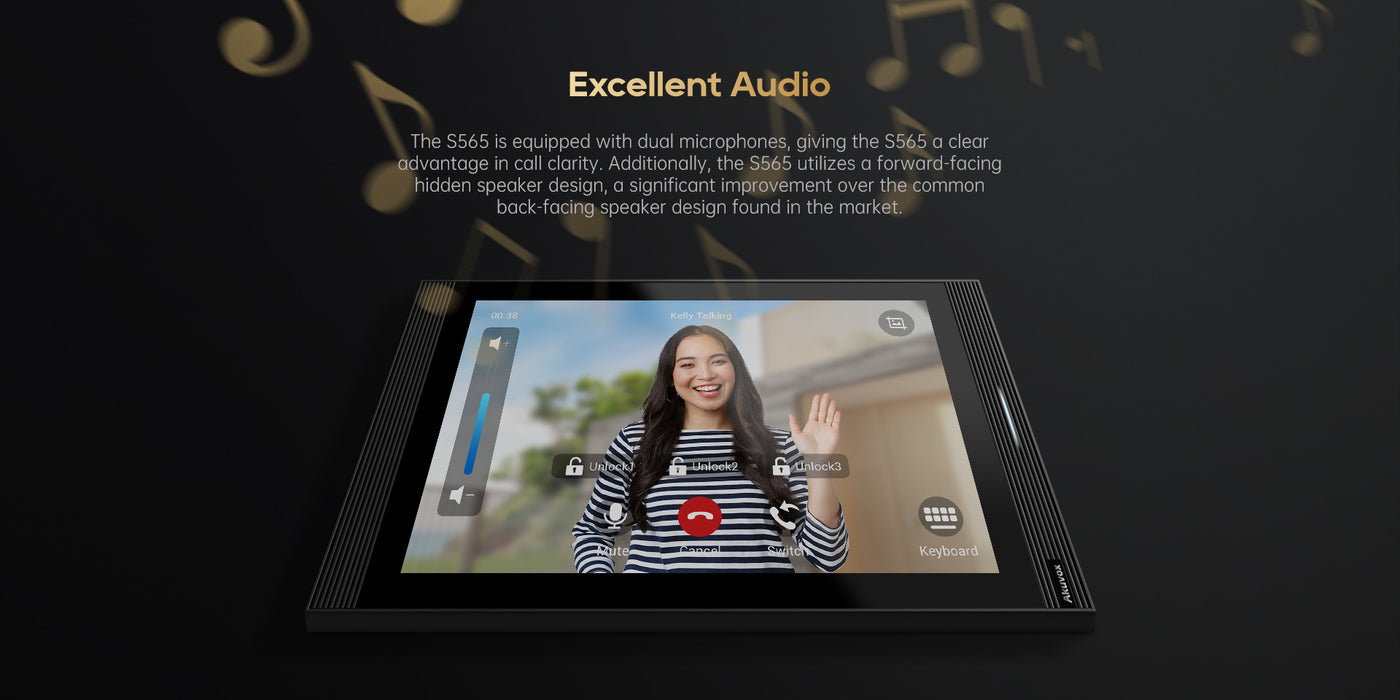

• Microphone: Dual microphones
• Speaker: One speaker
• Ethernet Ports: 2xRJ45,10/100Mbps adaptive
• PoE: 802.3af Power-over-Ethernet
• Power: 12V DC Connector

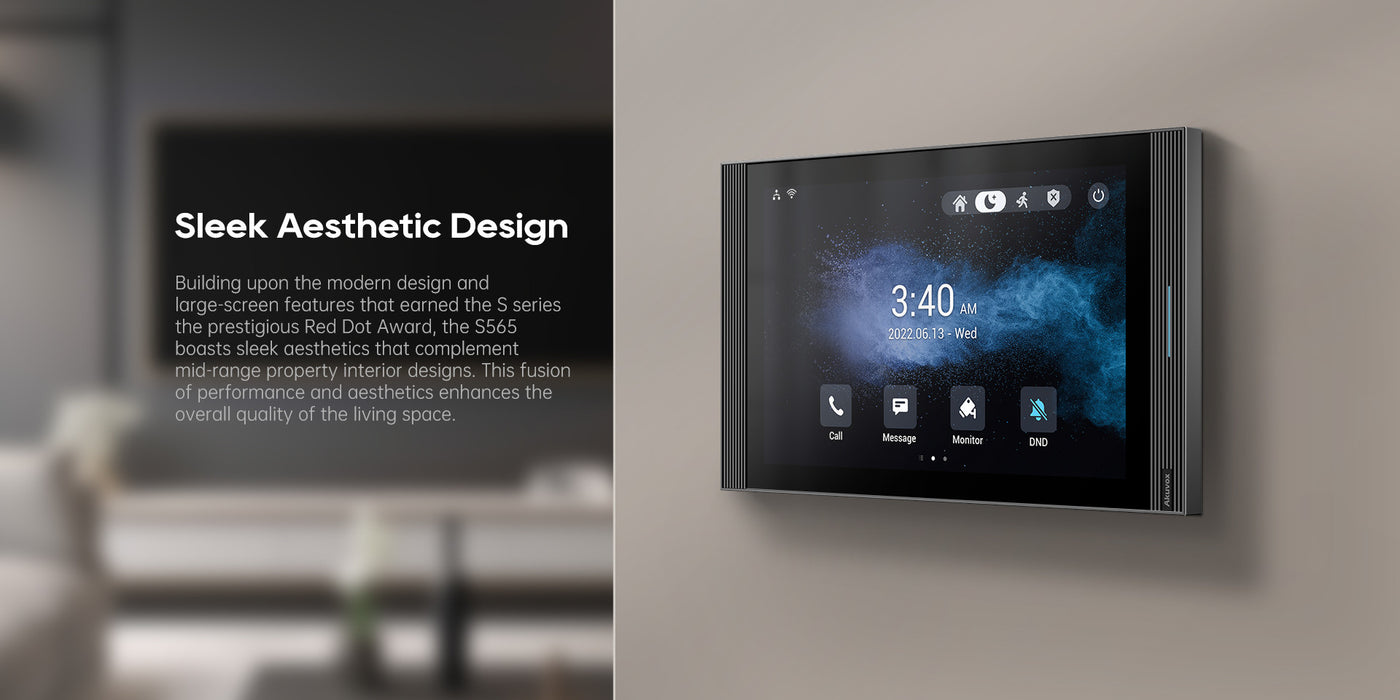

• Installation: Wall-mounted & Desktop
• Dimension: 278x164x22.8 mm
• Working Humidity: 10~90%
• Working Temperature:-10°C ~ +45°C
• Storage Temperature:-20°C ~ +70°C

Touch Screen & Display

• Display Mode: Normally white, Transmissive
• LCD Size: 10 Inch (Diagonal)
• Resolution: 1280x800
• Contrast ratio: 900:1
• Luminance: 350 cd/m²
• Viewing Angle: 80° Left, 80° Right, 80° Upper, 80° Lower
• Touch Screen: Projected capacitive

Audio

• SIP v1 (RFC2543), SIP v2 (RFC3261)
• Narrowband audio codec: G.711a, G.711μ, G.729
• Broadband audio codec: G.722
• DTMF: Out-of-band DTMF (RFC2833), SIP Info
• Echo Cancellation

Video

• Streaming formats: H.264

Networking

• Protocols support: IPv4, HTTP, HTTPS, FTP, TFTP,SNMP, DNS, SNTP, RTSP, SRTP, RTP, TCP, UDP,TLS, ICMP, DHCP, ARP

Deployment & Maintenance

• Auto-Provisioning
• Web management portal
• Web-based packet dump
• Configuration backup / restore
• Firmware upgrade
• System logs (including door access logs)

Application Scenario

• Villas
• Apartment complexes
• Home automation systems
• Modern interiors
