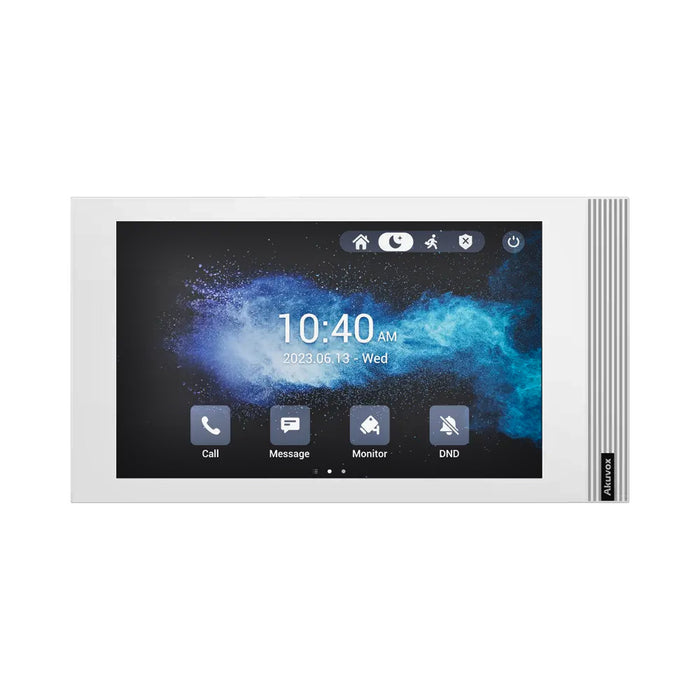

Akuvox S562 7″ Indoor Touchscreen Answering Panel Linux Monitor – White

Availability:
Out of stock
SKU AKU-S562-WHITE
Sold out

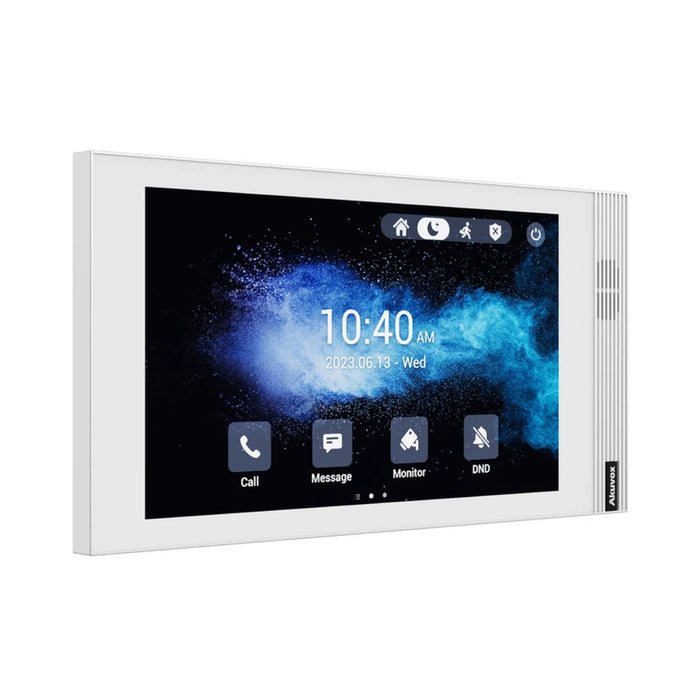

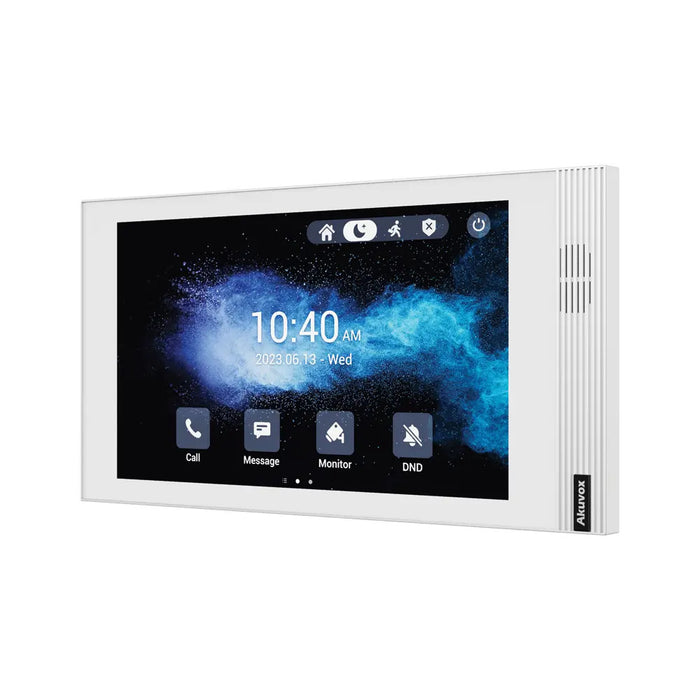

Akuvox S562 7-inch Indoor Touchscreen Answering Panel Linux Monitor – White

The Akuvox S562 multifunctional communicator, with a Linux operating system, provides
audio and video communication with door phones via SIP 2.0 protocol.

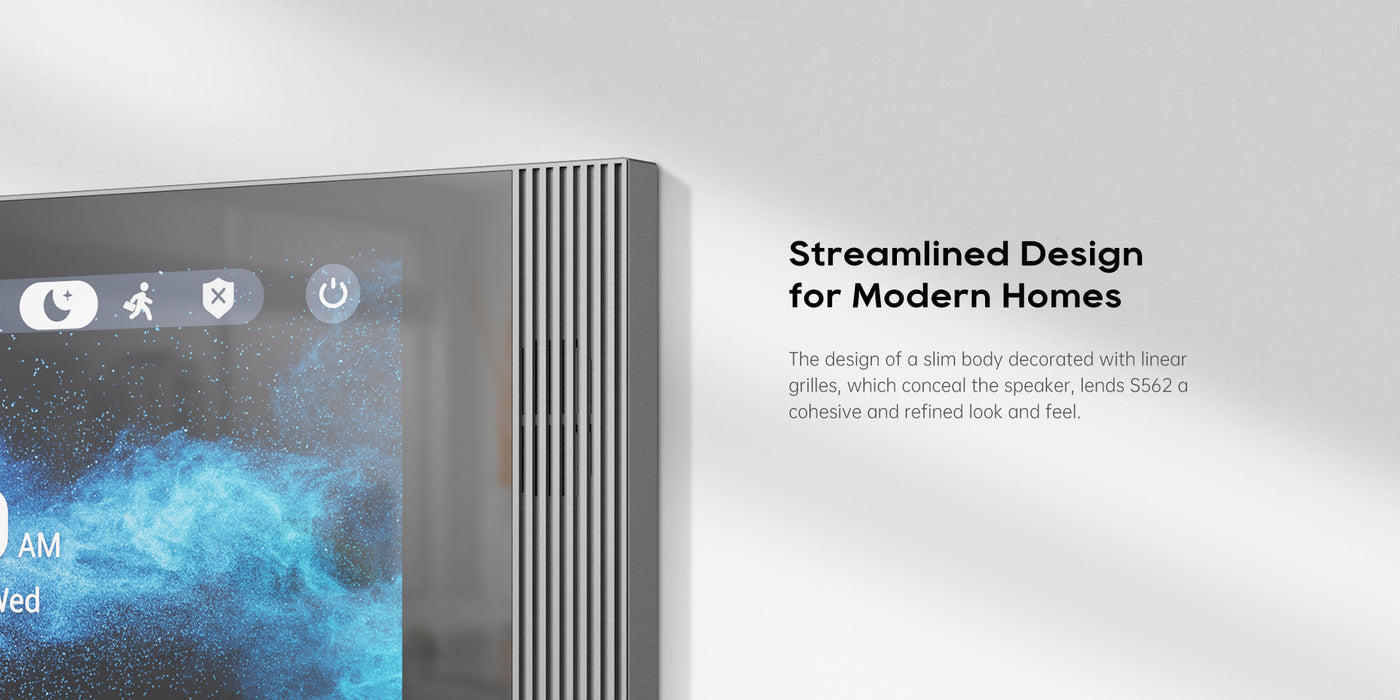

It delivers the ultimate touch screen experience in an unobtrusive, space-saving design
featuring a brilliant 7-inch capacitive touch screen display.

  • Ultra-clear, stylish appearance;
  • 7-inch capacitive touch screen with energy saving mode;
  • Two-way audio communication with other units in the network;
  • Complies with SIP standard for easy integration in every SIP capable PBXes;
  • Powered by PoE or external source
  • Support US or European electrical wall box mounting

Docs/Instruction Links

Specifications

Physical & Power

  • Front panel: Plastic
  • RAM / ROM: 128MB / 128MB

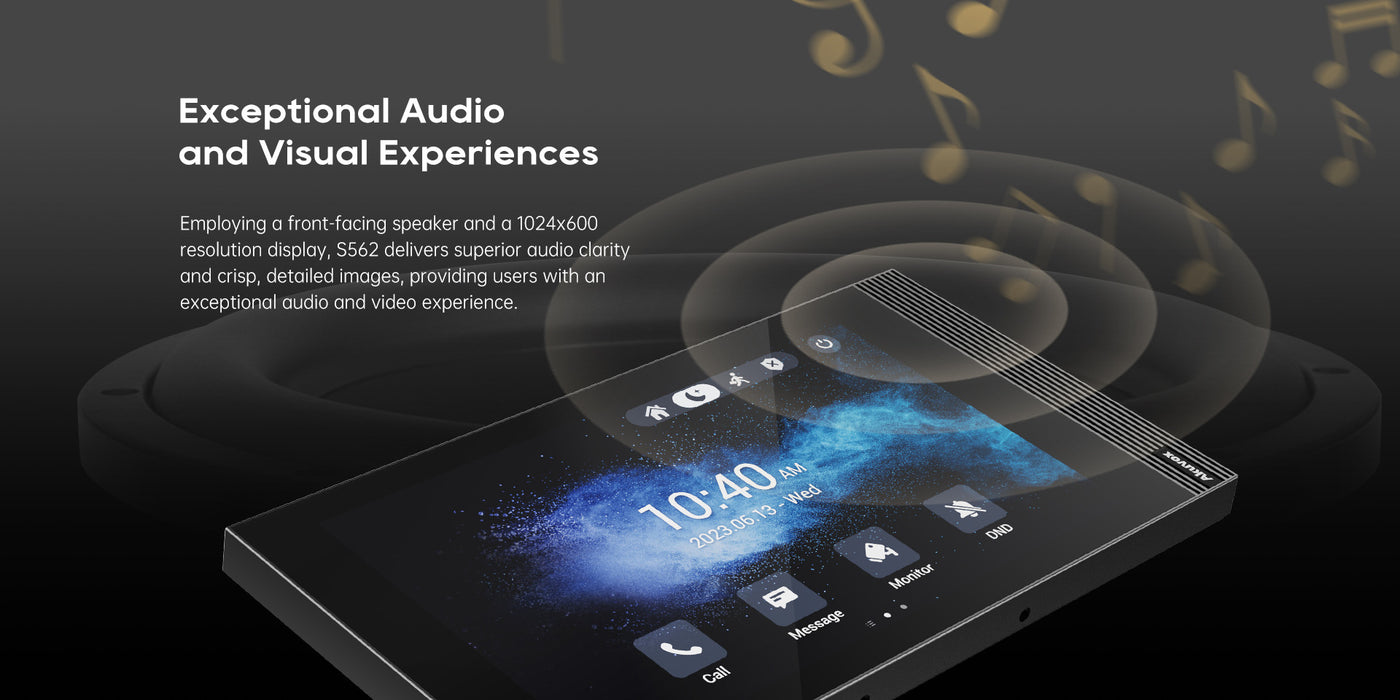

  • Display: 7 Inch TFT LCD 1024x600 resolurion
  • Screen: 7 Inch capacitive touch screen
  • RS485 port: Support
  • Relay out: 1
  • Bell in: 1
  • I/O: 8
  • Microphone:-42dB
  • Speaker: 4Ω / 2W
  • Ethernet ports: 2xRJ45, 10/100Mbps adaptive
  • 802.3af Power-over-Ethernet
  • 12V DC connector (if not using PoE)
  • Installation: Wall-mounted & Desktop
  • Dimension: 216.4x118.8x21.7mm
  • Working Humidity: 10~90%
  • Working Temperature:-10°C ~ +45°C
  • Storage Temperature:-20°C ~ +70°C

Touch Screen Display

  • Display Mode: Normally white, Transmissive
  • LCD Size: 7inch (Diagonal)
  • Resolution: 1024x600
  • Contrast ratio: 600:1
  • Luminance: 250 cd/m²
  • Viewing Angle: 50° Left, 50° Right, 40° Upper, 50° Lower
  • Touch Screen: Projected capacitive

Audio

  • SIP v1 (RFC2543), SIP v2 (RFC3261)
  • Narrowband audio codec: G.711a, G.711μ, G.729
  • Broadband audio codec: G.722
  • DTMF: Out-of-band DTMF (RFC2833), SIP Info
  • Echo Cancellation

Video

  • Streaming formats: H.264

Networking

  • Protocols support: IPv4, HTTP, HTTPS, FTP, SNMP,DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP

Deployment & Maintenance

  • Auto-Provisioning
  • Web management portal
  • Web-based packet dump
  • Configuration backup / restore
  • Firmware upgrade
  • System logs (include door access logs)

Application Scenario

  • Villas
  • Apartment complexes
  • Home automation systems
  • Modern interiors
