Akuvox S539 10" Touchscreen Video Door Phone Android SIP Intercom with QR NFC Bluetooth & Card Access Control

Akuvox S539 10" Touchscreen Video Door Phone Android SIP Intercom with QR NFC Bluetooth & Card Access Control
Availability:
Out of stock
SKU AKU-S539
Sold out

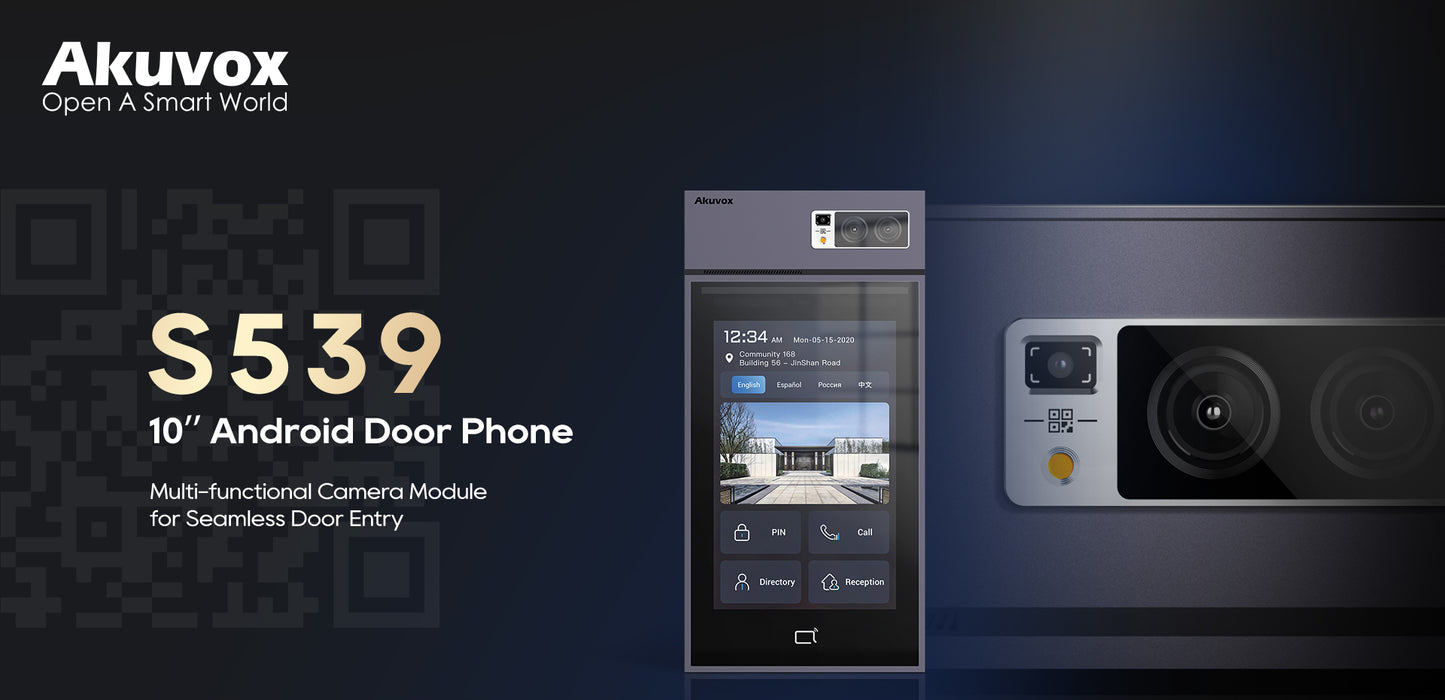

Akuvox S539 10" Touchscreen Video Door Phone | Android SIP Intercom with QR, NFC, Bluetooth & Card Access Control

The Akuvox S539 is a premium Android-based video door phone designed for residential communities, office buildings, gated properties, and commercial facilities. Combining video intercom, access control, and security monitoring into one sleek device, it delivers a modern and intuitive experience for both residents and visitors. The S539 supports multiple convenient entry methods, including cards, NFC, Bluetooth, QR codes, and voice-enabled access, while offering seamless integration with building security and management systems. Built with a durable, vandal-resistant design, it features a large 10-inch touchscreen, advanced camera technology, and customizable functionality to enhance security, convenience, and communication at any entrance.

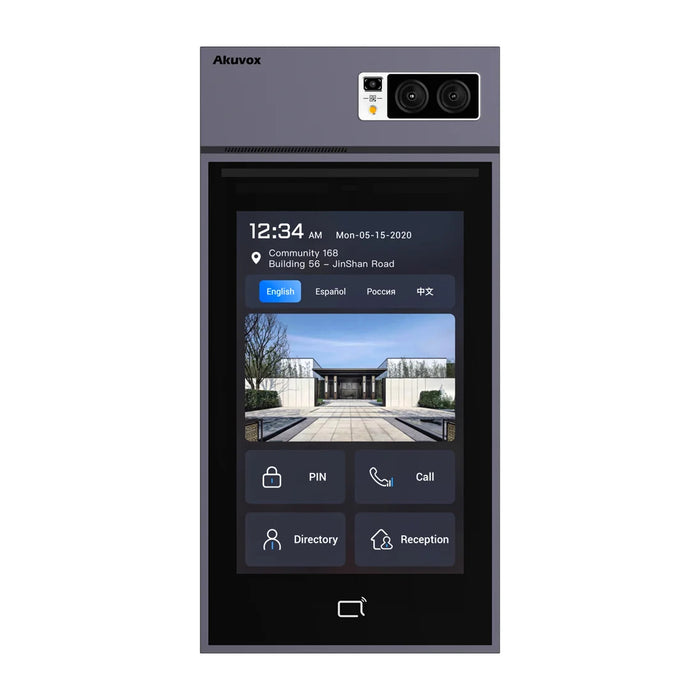

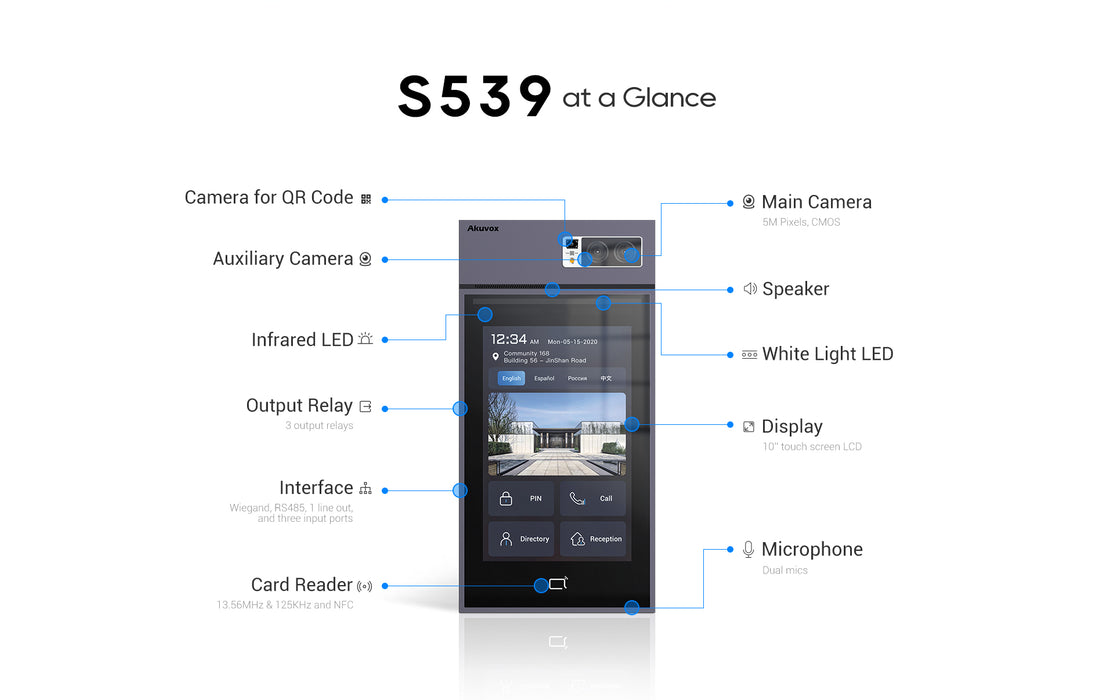

  • Aluminum panel with 10inch touchscreen
  • Android operation system
  • Wide-angle camera: 120º (H), 72º (V)
  • Two-way audio communication over IP networks with Echo Cancel feature
  • Multi-way access feature including: Face, EM/Mifare Card, PIN, BLE & QR code
  • Supports Surface Mount and Flush Mount Installation
  • Complies with SIP & ONVIF

Docs/Instruction Links:

Specifications:

Display & Design

  • 10-inch IPS LCD touchscreen display

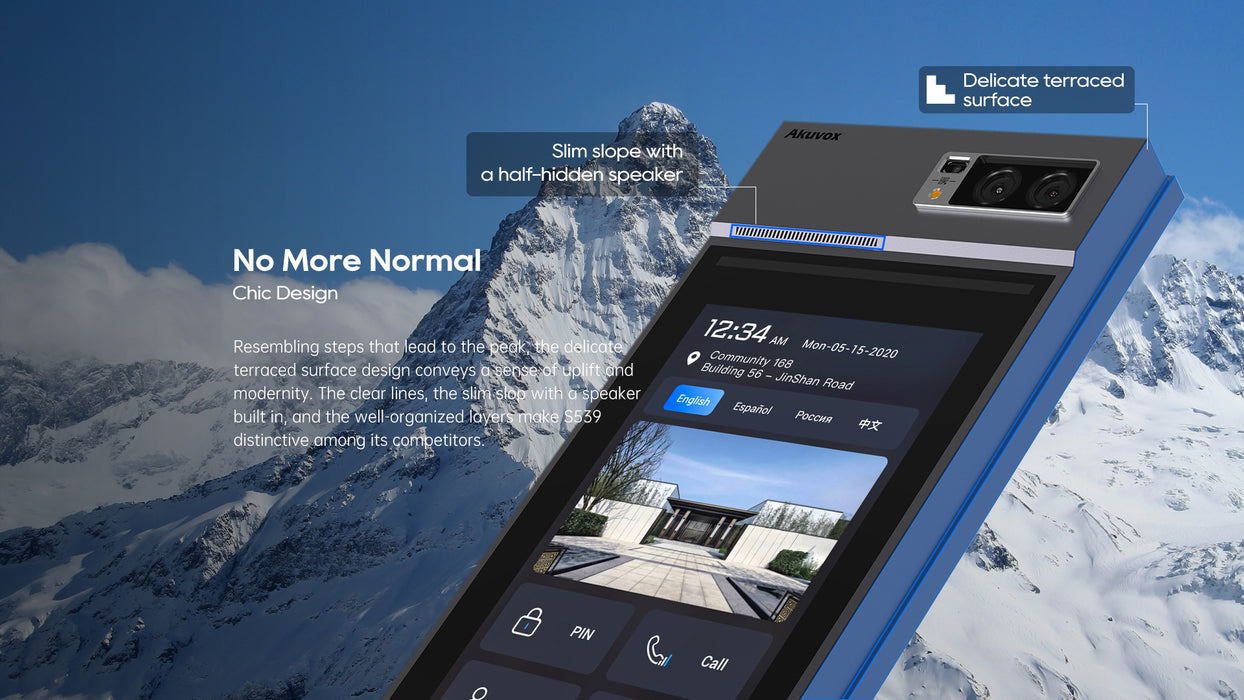

  • Premium aluminum front panel
  • Surface mount or flush mount installation
  • Dimensions: 363.5 × 179.8 × 30.8 mm
  • IP66 weatherproof rating
  • IK08 vandal-resistant protection
  • Built-in tamper alarm

Camera & Video

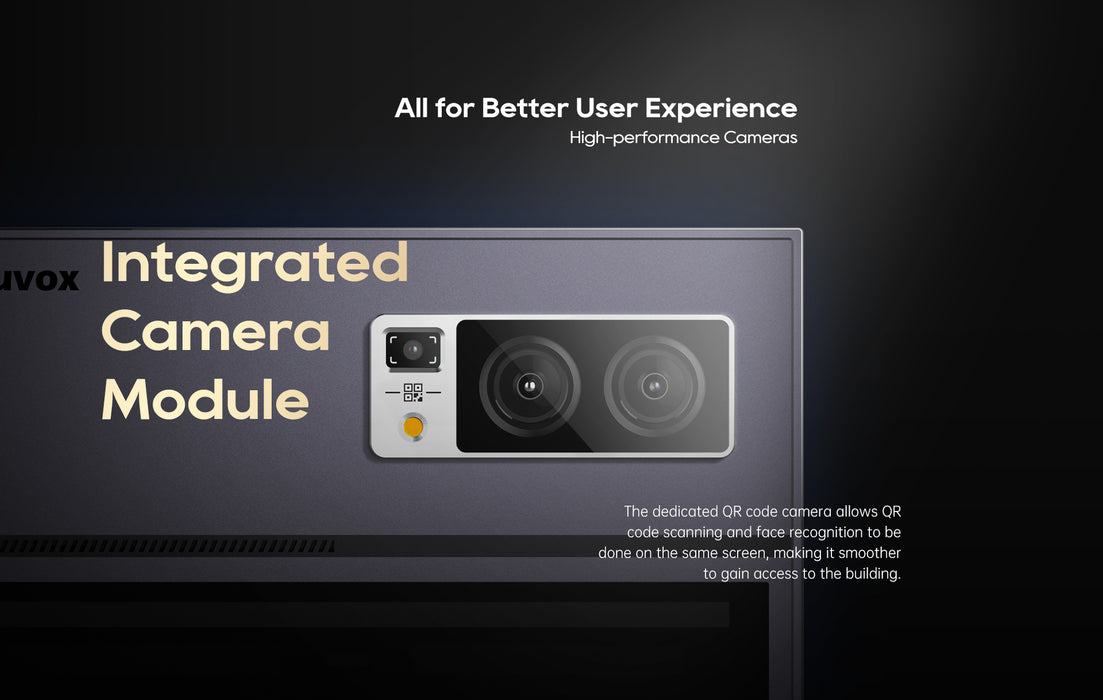

  • 5MP main camera with starlight technology
  • HDR video support
  • Up to 1920 × 1080 (Full HD) resolution
  • Maximum frame rate: 30fps at 1080p
  • Wide viewing angle: 120° horizontal / 72° vertical
  • Auto white balance
  • Minimum illumination: 0.1 lux
  • Compatible with third-party video systems and NVRs
  • Continuous camera operation

Audio Features

  • Dual microphones
  • Dual speakers
  • Echo cancellation
  • Voice activity detection (VAD)
  • Comfort noise generation (CNG)
  • Supports G.711a, G.711μ, and G.722 audio codecs
  • SIP v1 and SIP v2 compatible

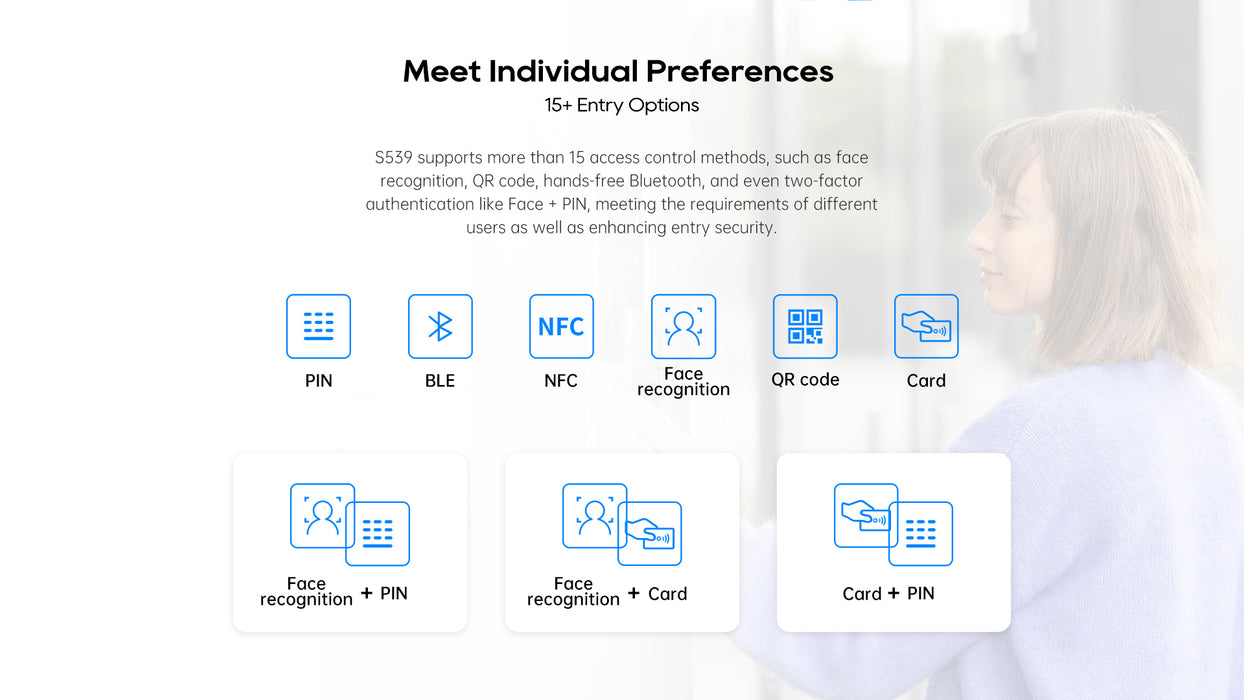

Access Control

  • Supports Face Recognition
  • RFID card access (13.56MHz & 125kHz)
  • NFC access (Android devices)
  • Bluetooth 5.0 (BLE) access
  • QR Code access
  • PIN code entry
  • Supports multiple relay-controlled doors (3 relays)

Supported Card Types

  • EM Cards
  • MIFARE Cards
  • DESFire Cards (EV1 / EV2 / EV3)
  • Felica Cards

Connectivity & Interfaces

  • 1 × RJ45 Ethernet Port (10/100 Mbps)
  • RS485 Interface
  • Wiegand Input/Output (Selectable)
  • Line-Out Port
  • 3 Input Ports
  • 3 Relay Outputs
  • Reset Button

Sensors

  • Ambient light sensor
  • Motion detection sensor

Power

  • IEEE 802.3at PoE (Power over Ethernet)
  • DC 12V / 3A
  • DC 24V / 1.5A

Capacity

  • Up to 50,000 users
  • Up to 50,000 face templates
  • Up to 200,000 cards
  • Up to 50,000 PIN codes

Network Support

  • IPv4, HTTP, HTTPS
  • FTP, DNS, NTP
  • RTSP, RTP
  • TCP, UDP
  • ICMP, DHCP, ARP

Deployment & Management

  • Android-based platform for customization and third-party applications
  • Auto provisioning
  • Web-based management portal
  • Configuration backup and restore
  • Firmware upgrades
  • System and access event logs

Operating Environment

  • Operating Temperature: -30°C to +55°C (-22°F to +131°F)
  • Storage Temperature: -30°C to +70°C (-22°F to +158°F)
  • Operating Humidity: 10% to 90% RH
