Akuvox S535 5" Smart Video Door Phone with Face Recognition Fingerprint & Mobile Access

Akuvox S535 5" Smart Video Door Phone with Face Recognition Fingerprint & Mobile Access
Availability:
Out of stock
SKU AKU-S535
Sold out

Akuvox S535 5" Smart Video Door Phone with Face Recognition, Fingerprint & Mobile Access

The Akuvox S535 is a premium 5-inch video door phone designed for residential and commercial properties that require secure, convenient, and modern access control. Featuring a responsive touchscreen and multiple entry options, including facial recognition, fingerprint, PIN, card, QR code, and mobile app access, it provides a seamless experience for residents, visitors, and staff. Its durable weatherproof and vandal-resistant design ensures reliable operation in both indoor and outdoor environments, while support for flexible system integration makes it suitable for apartments, condominiums, office buildings, gated communities, and industrial sites. With a sleek metal-and-glass finish, intuitive interface, remote management capabilities, and compatibility with Akuvox indoor monitors, cloud services, and smart home systems, the S535 delivers a stylish, user-friendly, and adaptable solution for modern building access management.

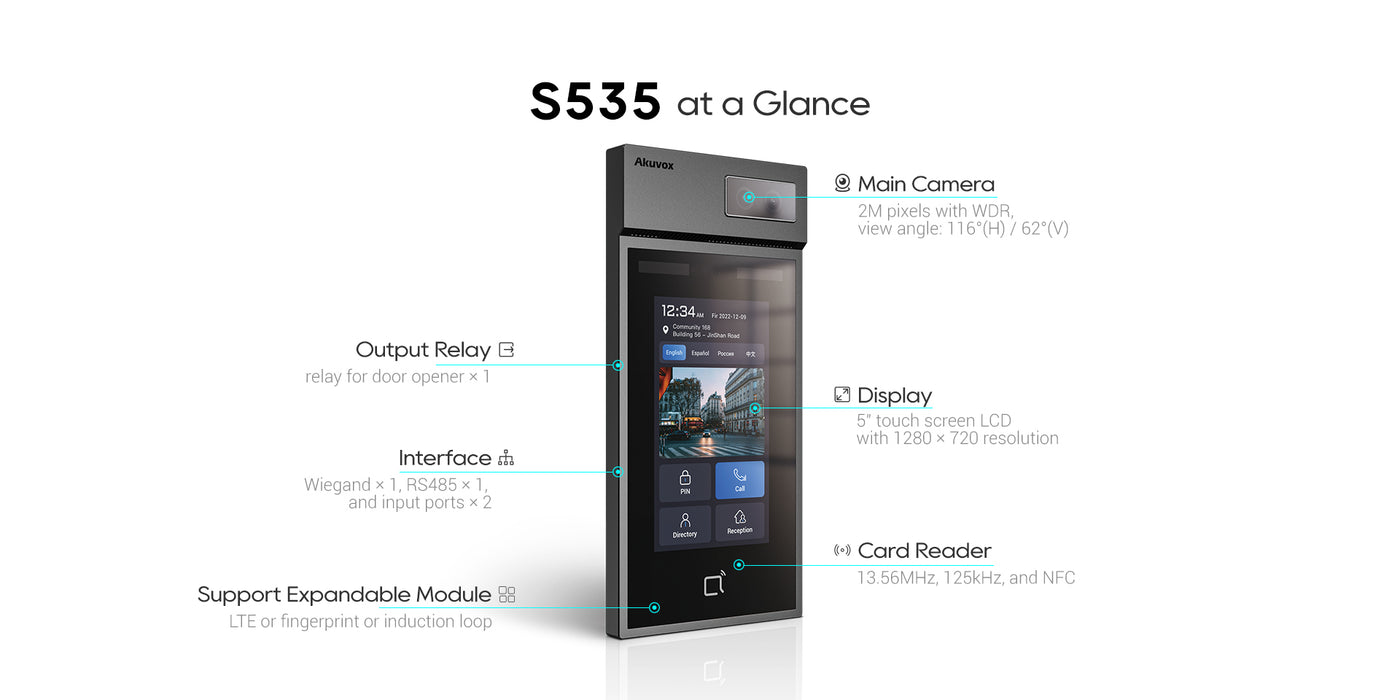

  • Aluminum panel with 5inch touchscreen
  • Linux operation system
  • Wide-angle camera: 116º (H), 62º (V)
  • Two-way audio communication over IP networks with Echo Cancel feature
  • Multi-way access feature including: Face, EM/Mifare Card, PIN, BLE & QR code
  • Support expandable module: LTE or Fingerprint or Induction Loop
  • Supports Surface Mount and Flush Mount Installation
  • Complies with SIP & ONVIF

Docs/Instruction Links:

Specifications:

Display & Design

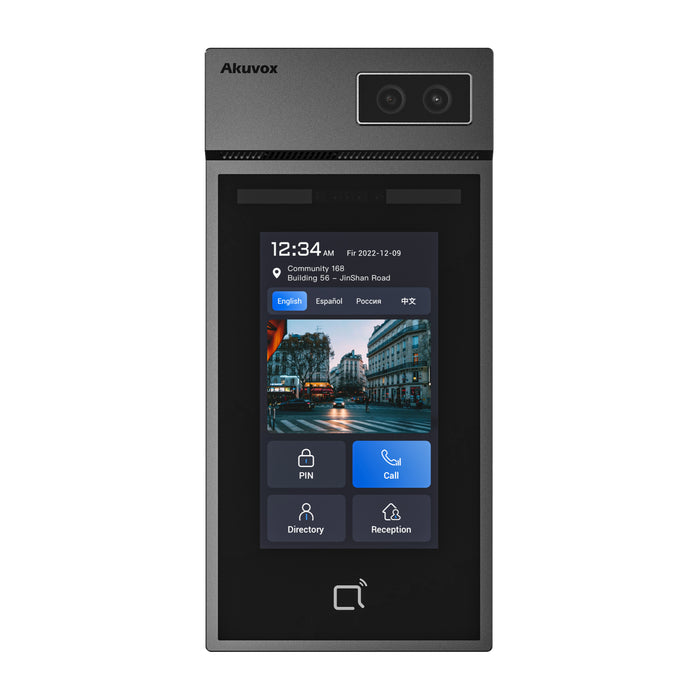

  • 5-inch IPS LCD touchscreen
  • Premium aluminum front panel
  • Compact design: 210 × 100 × 27 mm

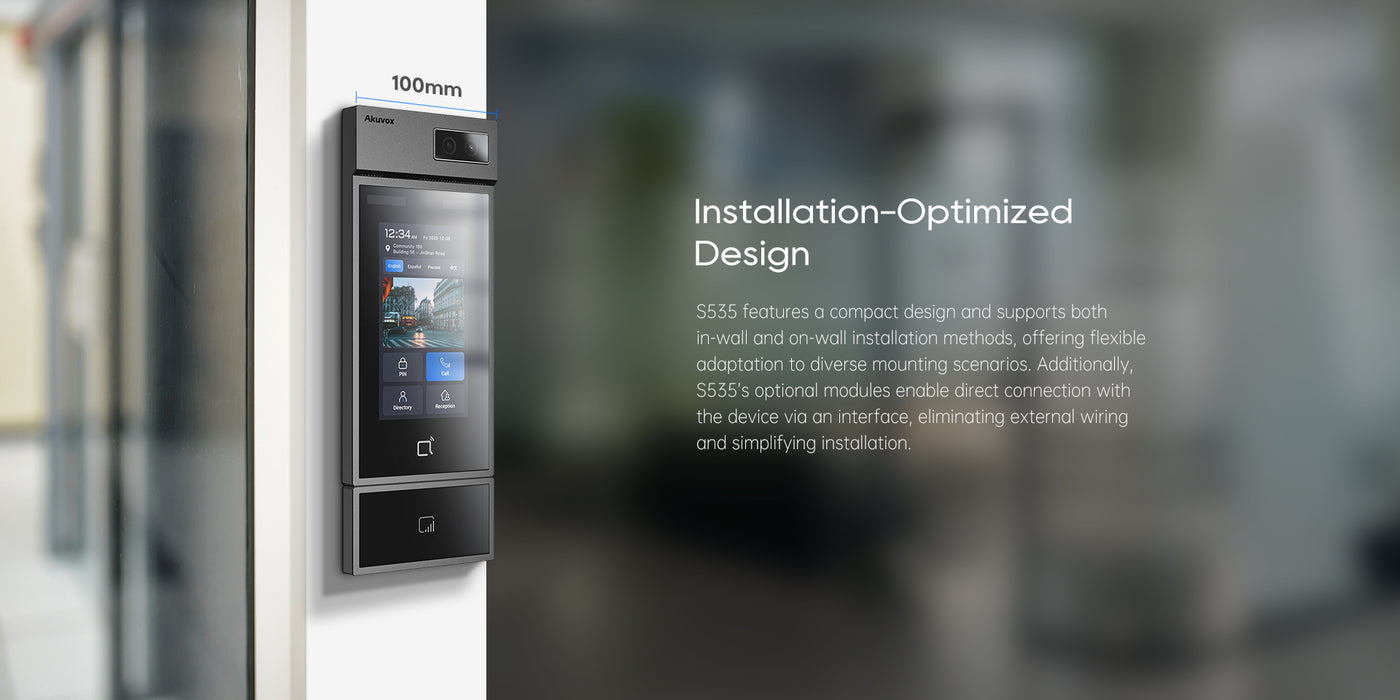

  • Available for flush-mount or wall-mount installation

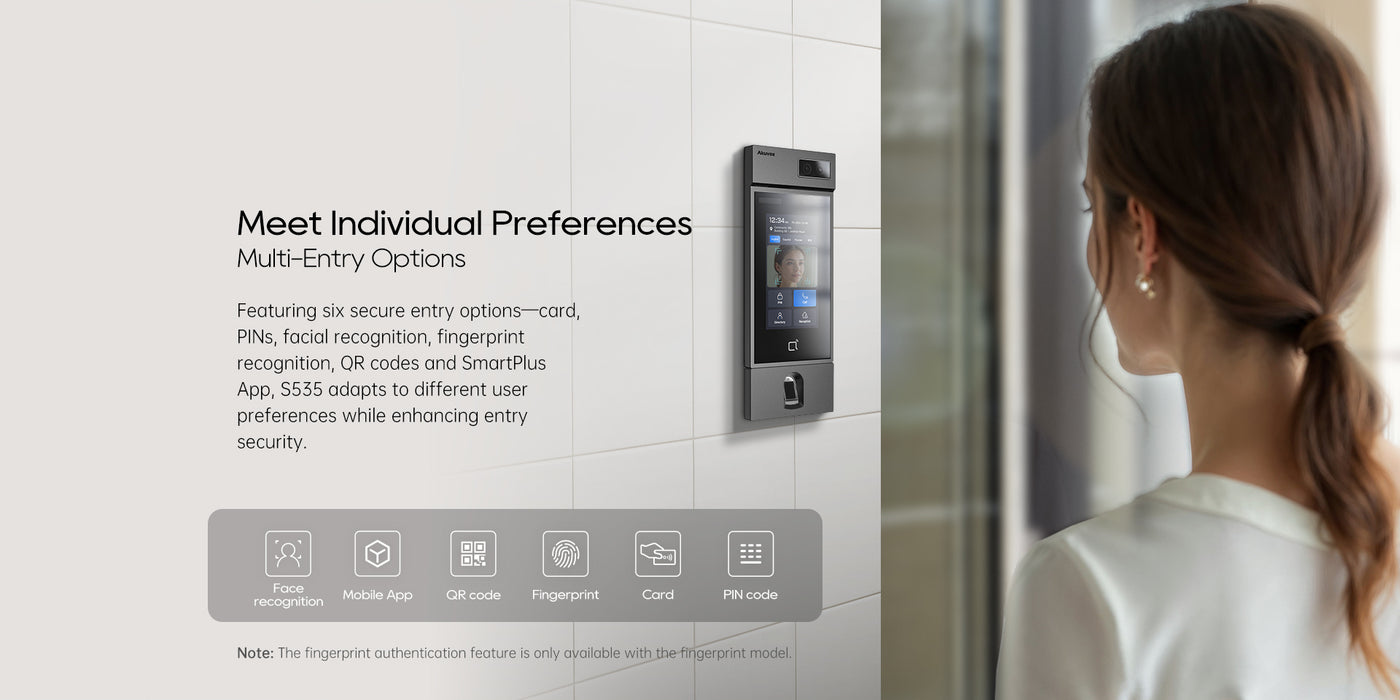

Access & Entry Methods

  • Face recognition
  • Fingerprint authentication (optional module)
  • PIN code access
  • RFID card access
  • QR code access
  • Bluetooth (BLE 5.0) access
  • Mobile app access

Camera & Video

  • 2MP main camera with automatic lighting
  • HDR video technology
  • Full HD resolution up to 1920 × 1080
  • Up to 30fps video streaming
  • Wide viewing angle: 110° horizontal, 62° vertical
  • Compatible with third-party NVR systems
  • Automatic white balance
  • Minimum illumination: 0.1 lux

Audio Features

  • Two-way audio communication
  • HD voice support (G.722)
  • Echo cancellation
  • Voice activity detection
  • Comfort noise generation

Connectivity & Interfaces

  • 10/100 Mbps Ethernet (RJ45)
  • PoE (802.3at) support
  • DC 12V power input
  • Wiegand input/output
  • RS485 interface
  • 1 relay output
  • 2 inputs
  • NFC support (Android devices)

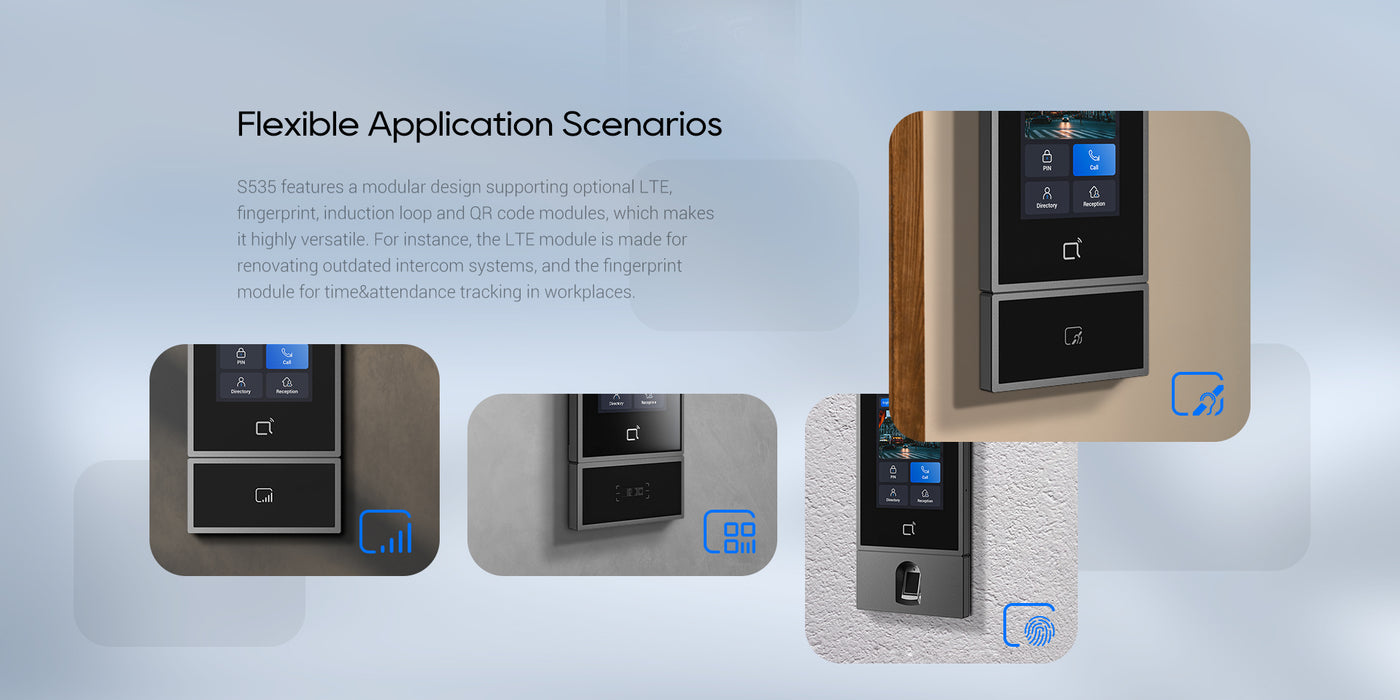

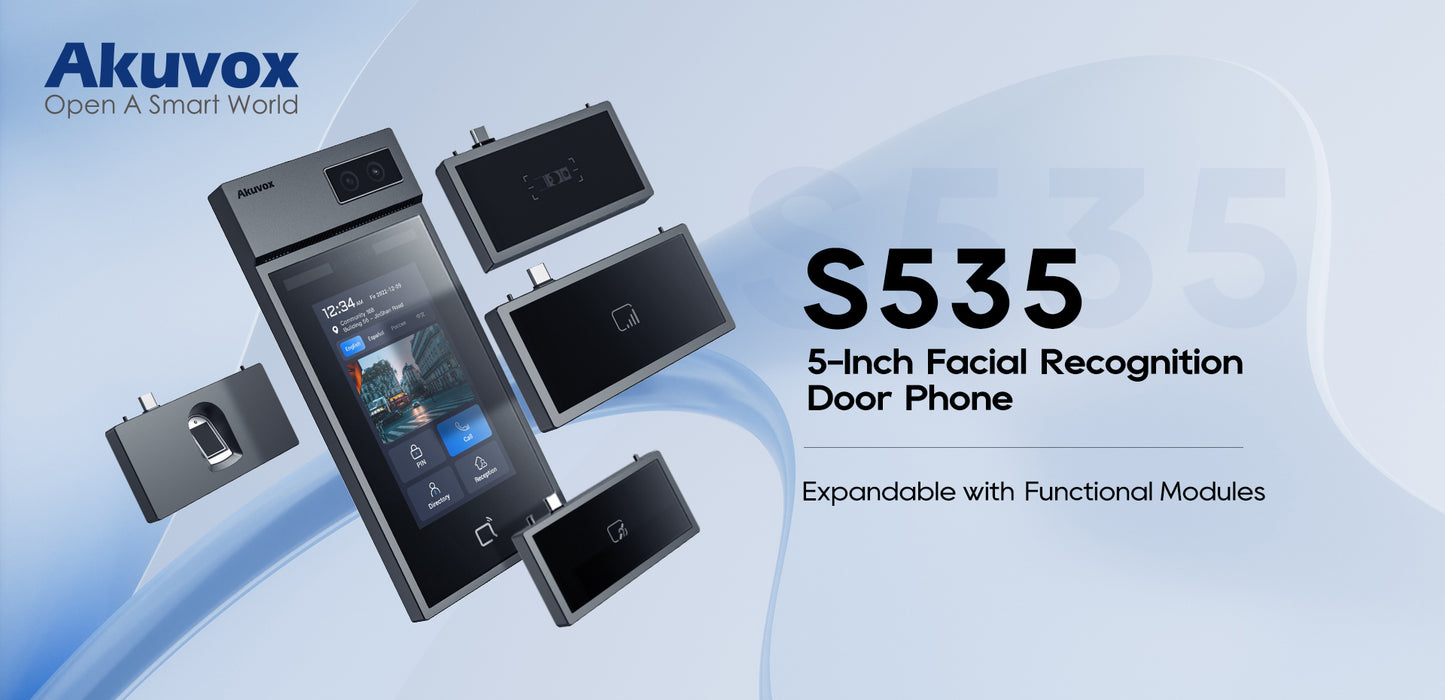

  • Expandable module support (LTE, fingerprint, induction loop)

Security & Durability

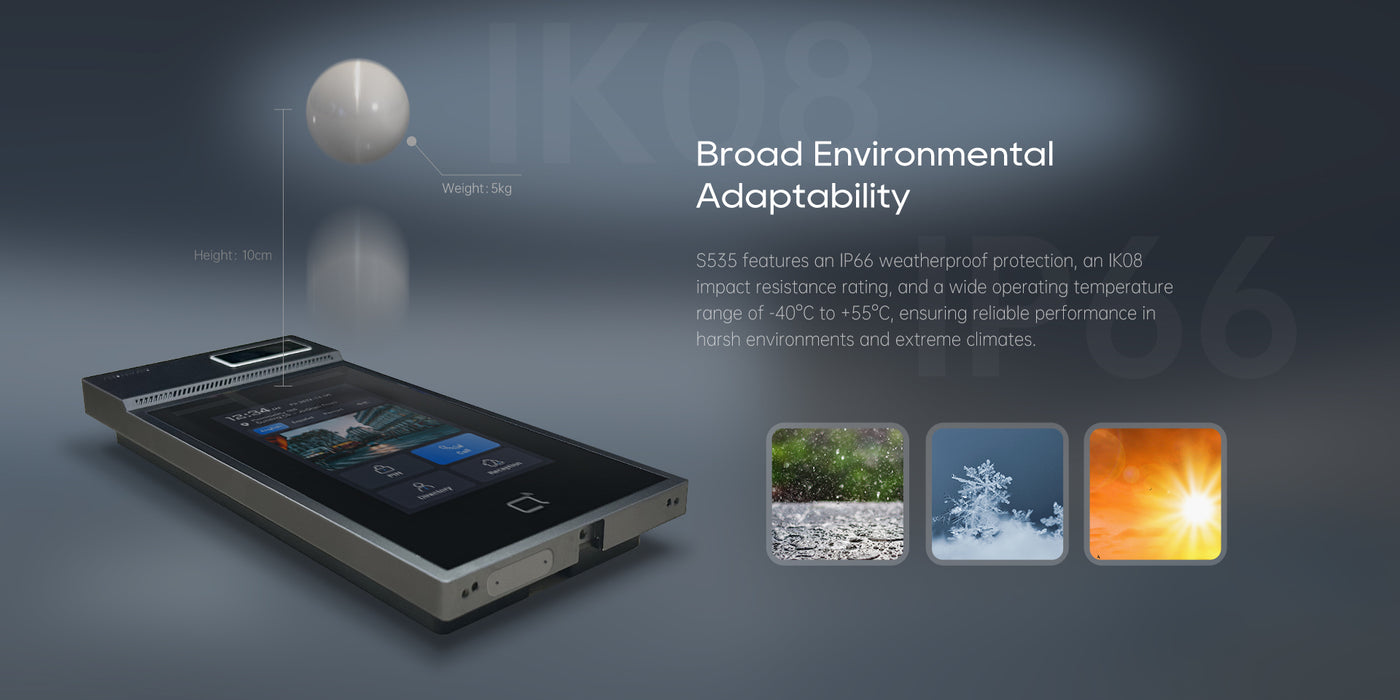

  • IP66 weatherproof rating
  • IK08 vandal-resistant rating
  • Tamper alarm protection
  • Integrated light sensor
  • Motion detection sensor

User Capacity

  • Up to 20,000 users
  • Up to 20,000 face templates
  • Up to 100,000 access cards
  • Up to 50,000 PIN codes

Supported Card Types

  • EM Card
  • MIFARE Card
  • DESFire EV2 / EV3
  • FeliCa Card

Network & Protocol Support

  • IPv4
  • HTTP / HTTPS
  • FTP
  • DNS
  • NTP
  • RTSP / RTP
  • TCP / UDP
  • DHCP
  • ICMP
  • ARP

Management & Maintenance

  • Auto-provisioning
  • Web-based management interface
  • Configuration backup and restore
  • Firmware upgrades
  • Entry log export
  • Access database import/export
  • System and access event logging

Environmental Specifications

  • Operating temperature: -40°C to +55°C (-40°F to +131°F)
  • Storage temperature: -40°C to +70°C (-40°F to +158°F)
  • Operating humidity: 10% to 90%

Package Highlights

  • 5" touchscreen display
  • Full HD video camera
  • Six access methods
  • PoE support
  • IP66 & IK08 rated protection
  • Smart home and cloud platform integration
  • Residential and commercial access control ready
