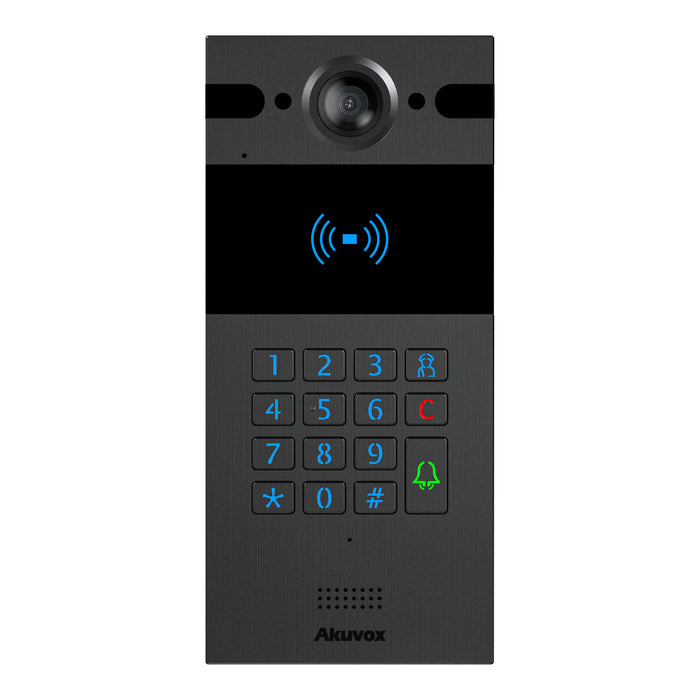

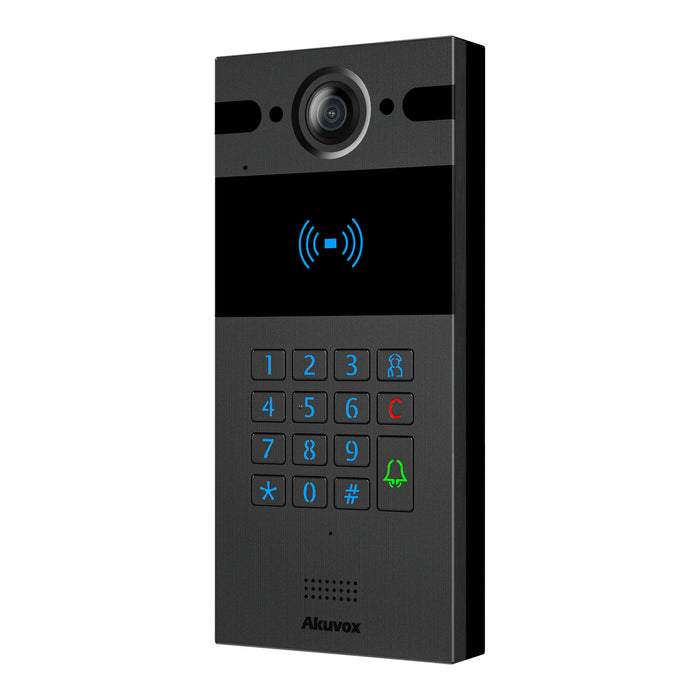

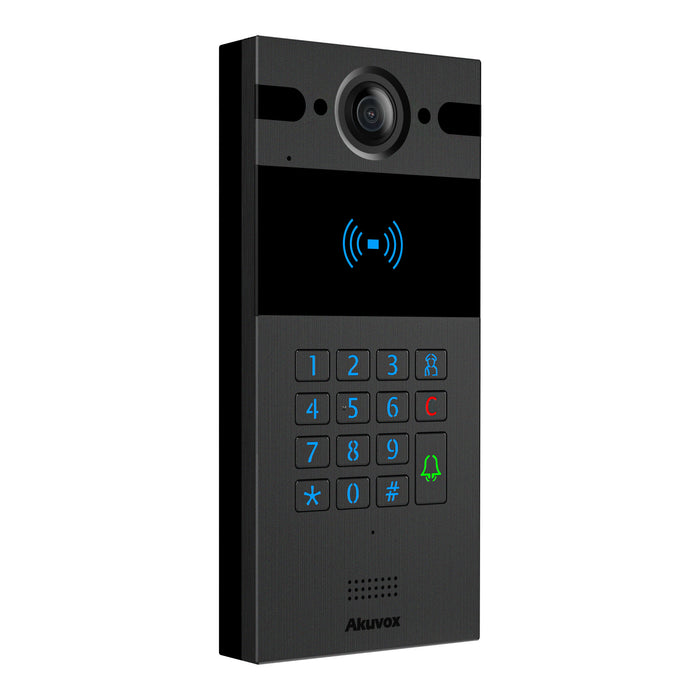

Akuvox R25K 4MP 10" Ultra Wide-angle Video Door Phone Fisheye Cam Reader Pinpad - Black

Akuvox R25K 4MP 10" Ultra Wide-angle Video Door Phone Fisheye Cam Reader Pinpad - Black
Availability:
Out of stock
SKU AKU-R25K
Sold out

Akuvox R25K 4MP 10" Ultra Wide-angle Video Door Phone Fisheye Cam Reader Pinpad - Black

Featuring a high-resolution camera with WDR, an ultra wide-angle coverage, IP65-rated protection, as well as multiple access methods, R25K door phone delivers a secure, flexible, and stylish door entry experience.

  • Aluminum panel with numeric keypad
  • Linux operation system
  • Wide-angle camera: 150º (H), 150º (V)
  • Two-way audio communication over IP networks with Echo Cancellation feature
  • Flush-mounted & surface-mounted
  • Complies with SIP & ONVIF

Docs/Instruction Links

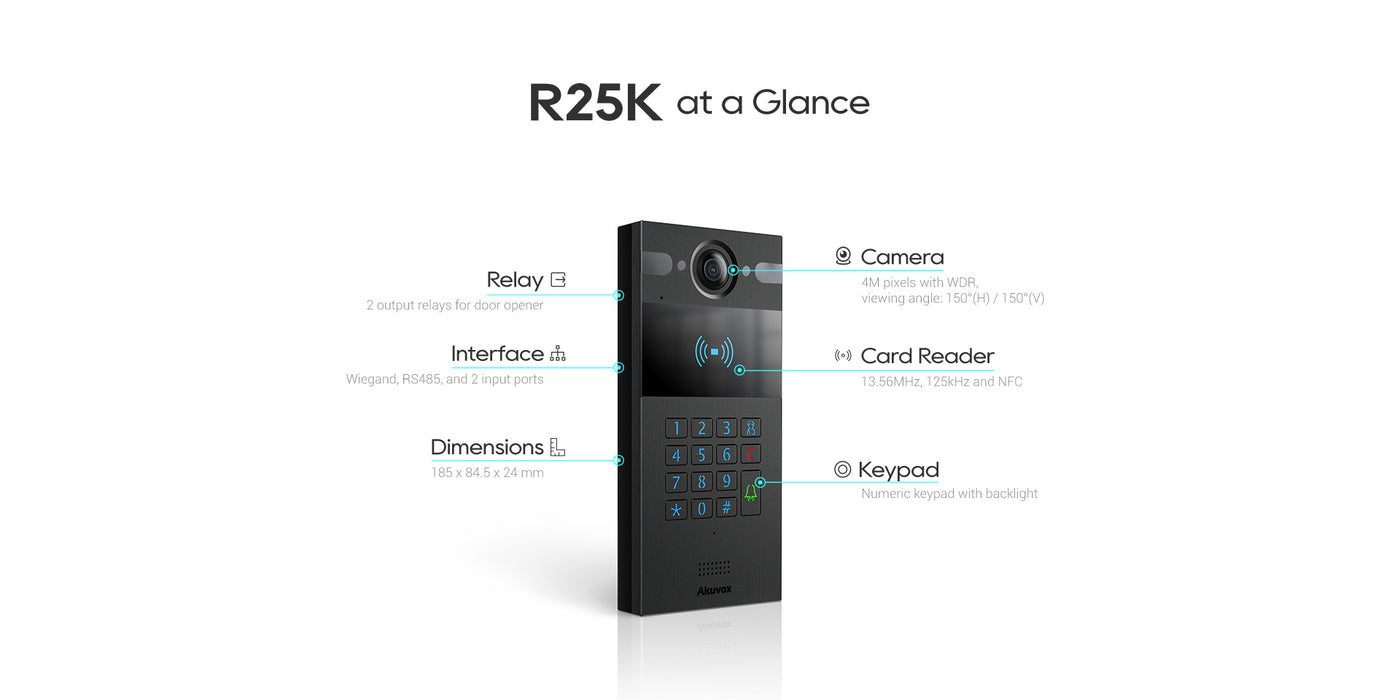

Specifications

Physical & Power

  • Front panel: Aluminum
  • Camera: 4M pixels, automatic lighting
  • Numeric keypad with extra buttons
  • Light sensor: Support
  • Motion sensor: Support
  • Wiegand port: 1ch input/output(selectable)
  • RS485 port: Support
  • RF reader: 13.56MHz&125kHz, NFC (only Android)
  • Relays out: 2
  • Inputs: 2
  • Microphone: 1
  • Infrared (IR) LED: Support
  • Speaker: 1
  • Tamper Alarm: Support
  • Ethernet port: RJ45, 10/100Mbps adaptive
  • 802.3af Power-over-Ethernet  IP Rating: IP65
  • Installation: Flush-mounted or Wall-mounted
  • Dimension (HxWxD): 185x85x24mm
  • Working Humidity: 10~90%
  • Working Temperature: -30°C~+60°C
  • Storage Temperature: -40°C~+70°C

Audio

  • SIP v1 (RFC2543), SIP v2 (RFC3261)
  • Narrowband audio codec: G.711a, G.711μ
  • Wideband audio codec: G.722
  • DTMF: In-band, out-of-band DTMF (RFC2833), SIP Info
  • Echo Cancellation
  • Voice Activation Detection
  • Comfort Noise Generator

Video

  • Sensor: 1/3.2”, CMOS
  • Pixels: CIF, VGA, 4CIF, 720p, 1080p, 2K
  • Video codec: H.264
  • Video resolution: up to 2000x2000
  • Max. image transfer rate: 2K – 30fps
  • Viewing angle: 150°(H) / 150°(V)
  • Compatible to 3
  • rd-Party-Video components, e.g. NVRs

Networking and Protocol

  • Protocols support: IPv4, HTTP, HTTPS, FTP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP

Door Entry Feature

  • Relays controlled individually by DTMFtones
  • Multi-way Unlock: EM/Mifare CardandPIN
  • Camera permanently operational
  • White balance: auto
  • Minimum illumination: 0.1LUX

Capacity

  • User: 1,000
  • Contact: 1,000
  • Card: 5,000
  • PIN：1,000

Card Type

  • EM card
  • Mifare card
  • DesFire card（EV1/EV2/EV3）

Deployment &Maintenance

  • Auto-Provisioning
  • Web management portal  Web-based packet dump
  • Configuration backup / restore
  • Entry log export  Access table export / import  Firmware upgrade
  • System logs (include door access logs)
