Akuvox C313S 7" Touchscreen Indoor Video Intercom Monitor Linux OS PoE SIP Compatible - White

Akuvox C313S 7" Touchscreen Indoor Video Intercom Monitor Linux OS PoE SIP Compatible - White
Availability:
Low stock
SKU AKU-C313S-V3-WHITE

Akuvox C313S White V3 7" Touchscreen Indoor Video Intercom Monitor | Linux OS, PoE, SIP Compatible

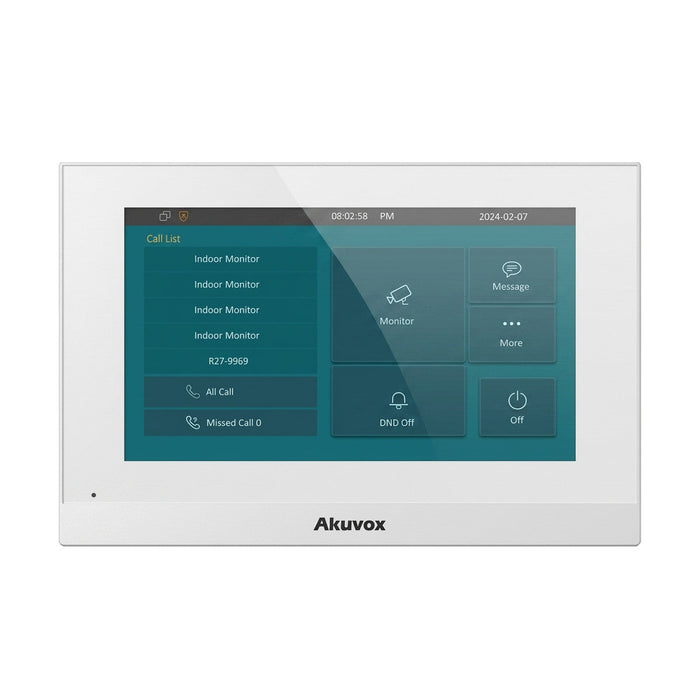

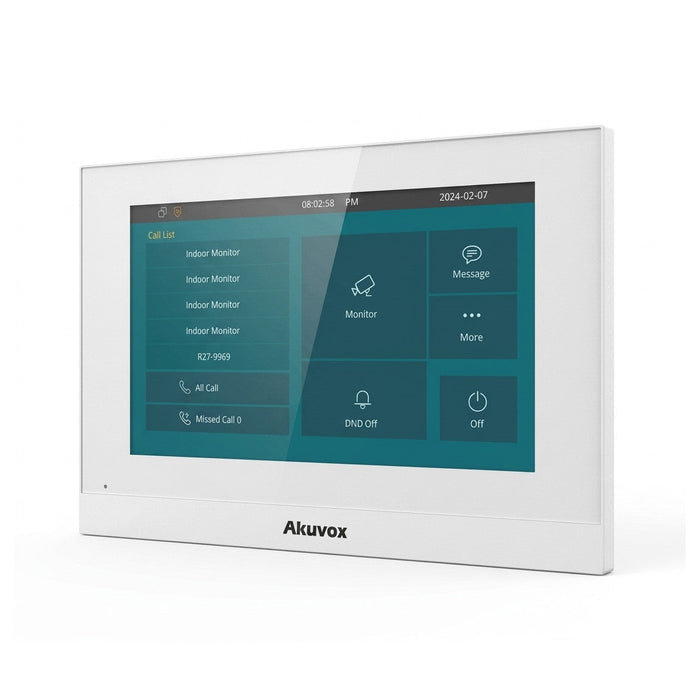

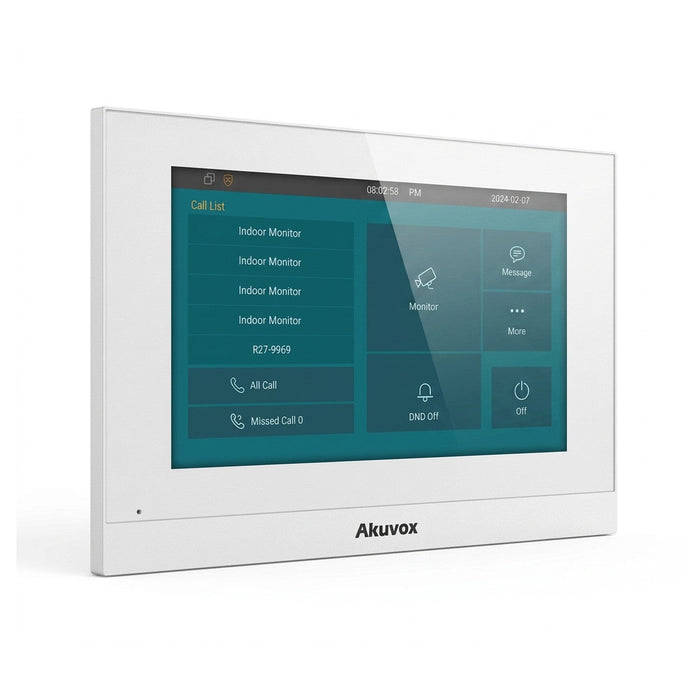

The Akuvox C313S White V3 is a sleek and compact 7-inch touchscreen indoor monitor designed to enhance communication, convenience, and security in homes, apartments, villas, and multi-unit buildings. Featuring a modern, space-saving design and intuitive touch controls, it allows residents to view and speak with visitors, monitor entry points, and remotely unlock doors when connected to a compatible Akuvox door phone. Powered by a reliable Linux operating system, the C313S supports clear two-way audio and video communication, seamlessly integrates with SIP-based systems, and can be powered via PoE or an external power source. Its slim profile, stylish appearance, and flexible wall-mounting options make it an ideal solution for modern residential access control.

  • Ultra-clear, stylish appearance
  • Thin profile and small footprint
  • 7-inch capacitive touch screen with energy saving mode
  • Two-way audio communication with other units in the network
  • Complies with SIP standard for easy integration in every SIP capable PBXes
  • Powered by PoE or external source
  • Support US or European electrical wall box mounting

Docs/Instruction Links

Akuvox C313 cutsheet
Akuvox C313S Spec Sheet
Akuvox C313 Quick Start Guide
Akuvox C313 Indoor Monitor User Manual

Specifications

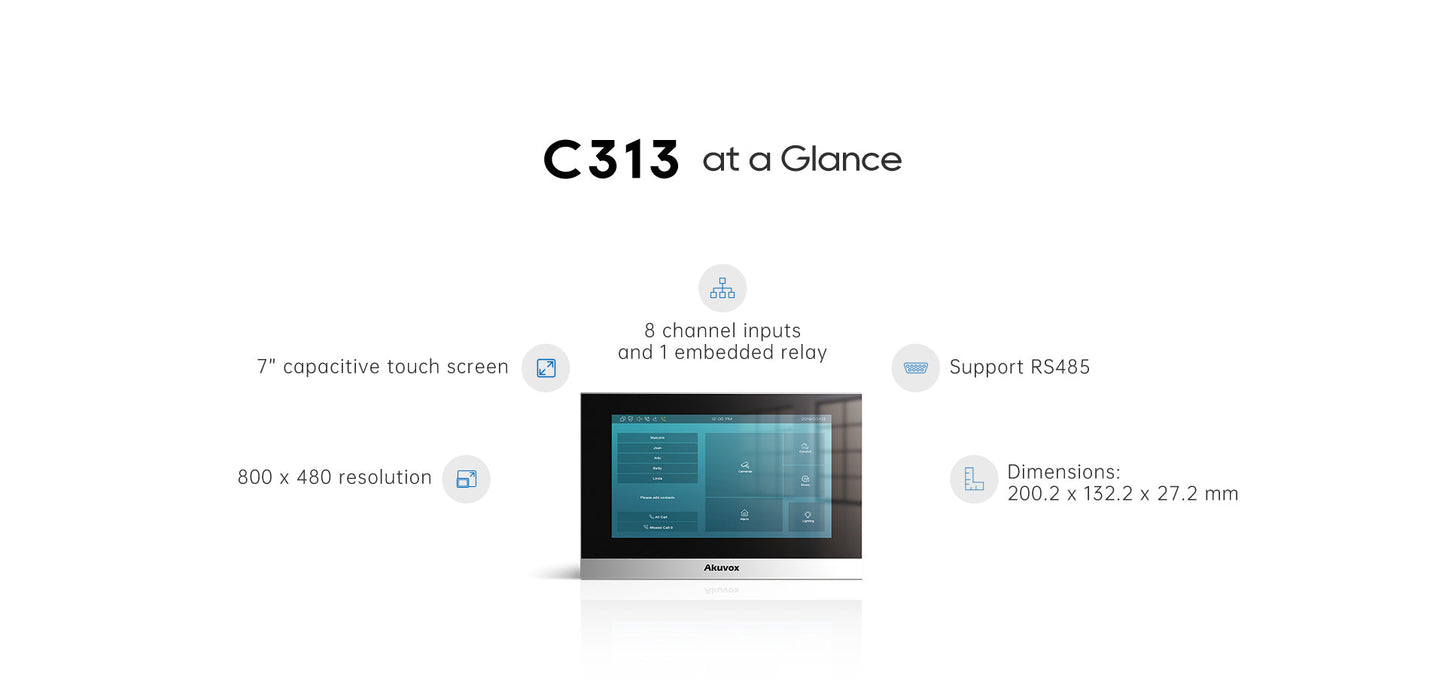

Display

  • 7" TFT LCD Display
  • 7" Capacitive Touchscreen
  • Resolution: 800 × 480
  • Contrast Ratio: 500:1
  • Brightness: 220 cd/m²
  • Display Mode: Normally White, Transmissive
  • Viewing Angle:
    • Left: 50°
    • Right: 50°
    • Up: 40°
    • Down: 50°

Audio

  • Two-Way Audio Communication
  • SIP v1 (RFC2543) and SIP v2 (RFC3261) Support
  • Audio Codecs:
    • G.711a
    • G.711μ
    • G.729
    • G.722 (HD Audio)
  • DTMF Support (RFC2833 & SIP INFO)
  • Echo Cancellation
  • Built-in Microphone: -58dB
  • Built-in Speaker: 4Ω / 2W

Video

  • Video Compression: H.264

Connectivity & Interfaces

  • 2 × RJ45 Ethernet Ports (10/100 Mbps)
  • RS485 Port
  • 1 × Relay Output
  • 1 × Doorbell Input
  • 8 × I/O Inputs

Network Support

  • IPv4
  • HTTP / HTTPS
  • FTP
  • SNMP
  • DNS
  • NTP
  • RTSP
  • RTP
  • TCP / UDP
  • ICMP
  • DHCP
  • ARP

Power

  • IEEE 802.3af Power over Ethernet (PoE)
  • 12V DC Power Input (when PoE is not used)

Installation

  • Wall-Mount Installation
  • Desktop Placement Supported
  • Compatible with US and European Electrical Wall Boxes

Physical Specifications

  • Color: White
  • Front Panel Material: Plastic
  • Memory: 64MB RAM / 128MB ROM
  • Dimensions: 200.2 × 132.2 × 27.2 mm

Environmental

  • Operating Temperature: -10°C to +45°C (14°F to 113°F)
  • Storage Temperature: -20°C to +70°C (-4°F to 158°F)
  • Operating Humidity: 10% to 90% (Non-Condensing)

Management & Maintenance

  • Automatic Provisioning
  • Web-Based Management Interface
  • Remote Firmware Updates
  • Configuration Backup & Restore
  • Packet Capture Diagnostics
  • System & Door Access Logs

Ideal Applications

  • Villas & Private Homes
  • Apartment Buildings & Condominiums
  • Residential Door Entry Systems
  • Smart Home & Home Automation Installations
  • Modern Residential Interiors
