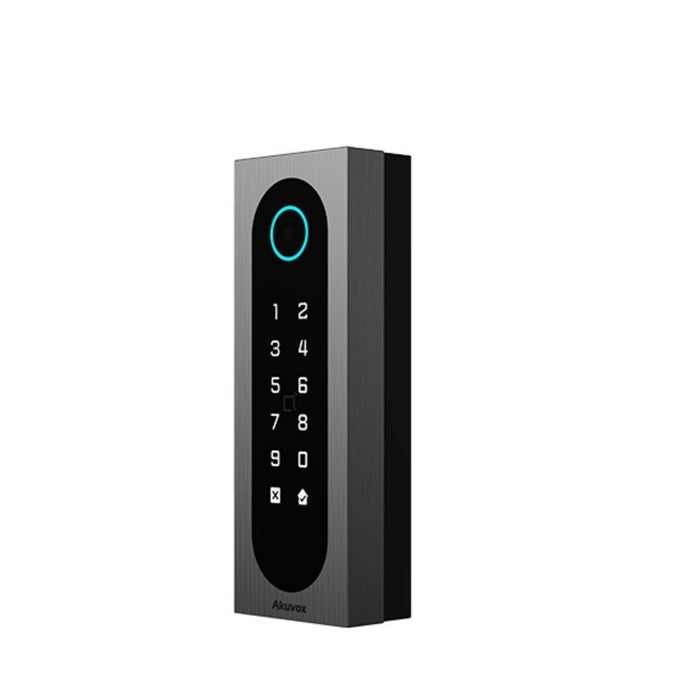

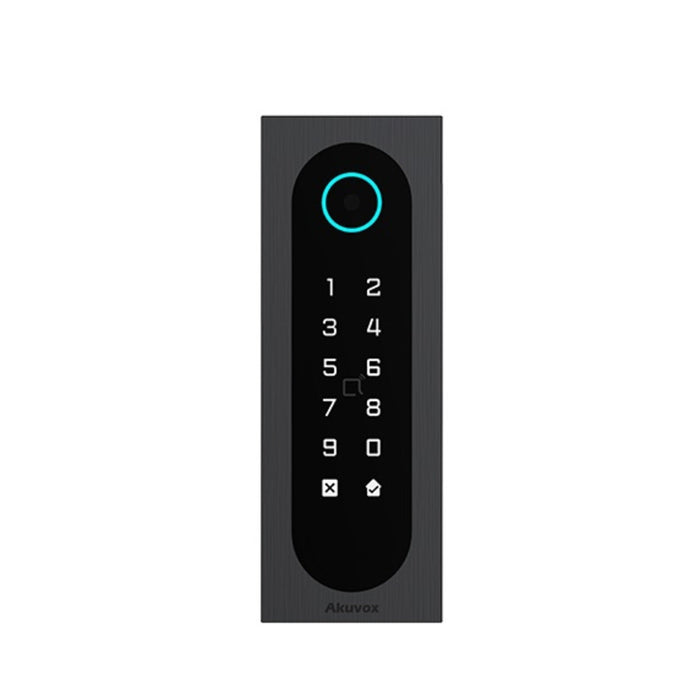

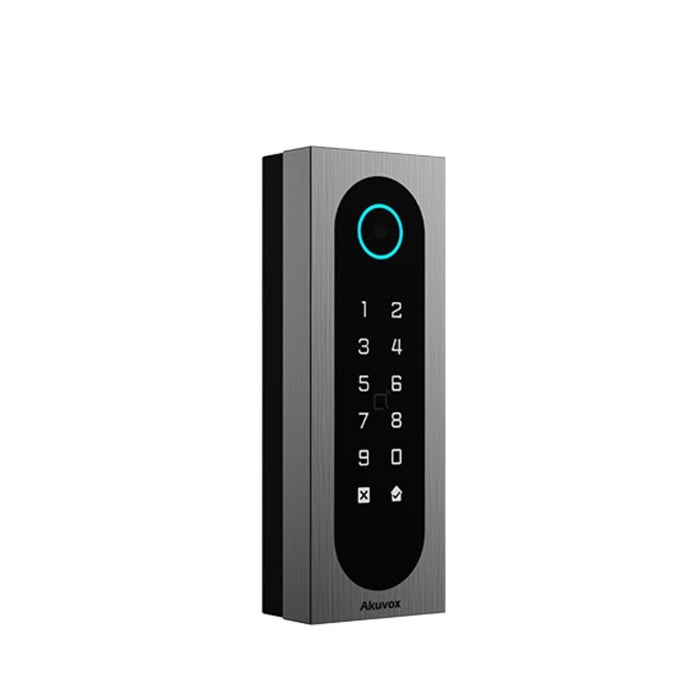

Akuvox A08S IP Slimline Access Control Mullion Style Reader Pinpad, QR, NFC Reader

Availability:
Out of stock
SKU AKU-A08S
Sold out

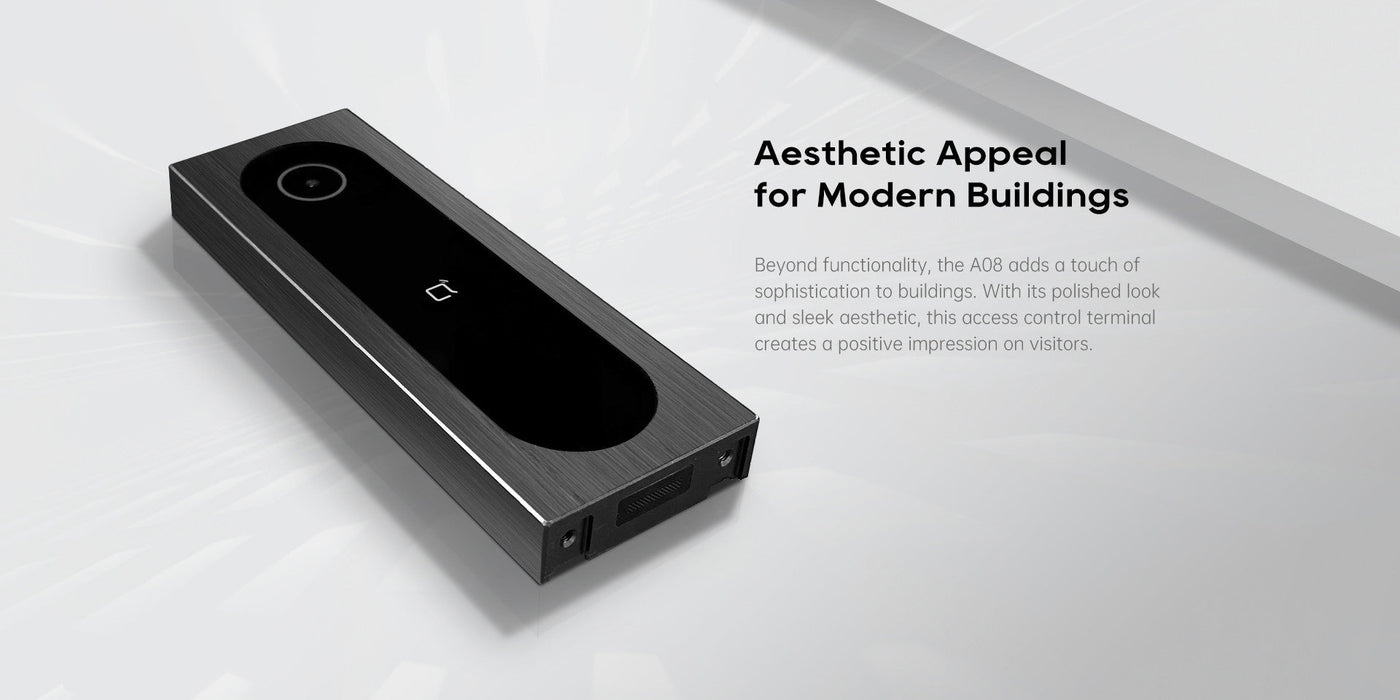

Akuvox A08S IP Slimline Access Control Mullion Style Reader Pinpad, QR, NFC Reader

The Akuvox A08S Smart Access Control Terminal is a compact and intelligent access control device designed to enhance security while simplifying entry management for residential, commercial, and industrial environments. The A08S combines advanced facial recognition technology with a sleek, modern design, allowing fast and accurate identification of authorised users while preventing unauthorised access. Equipped with a high-definition camera, responsive touchscreen interface, and durable construction, the A08S supports multiple verification methods including facial recognition, RFID cards, PIN codes, and QR codes. Its IP65 and IK09-rated housing ensures reliable operation in both indoor and outdoor installations.

  • Facial Recognition Authentication: Enables fast, contactless user verification using advanced recognition algorithms, improving access speed while maintaining strong security controls.

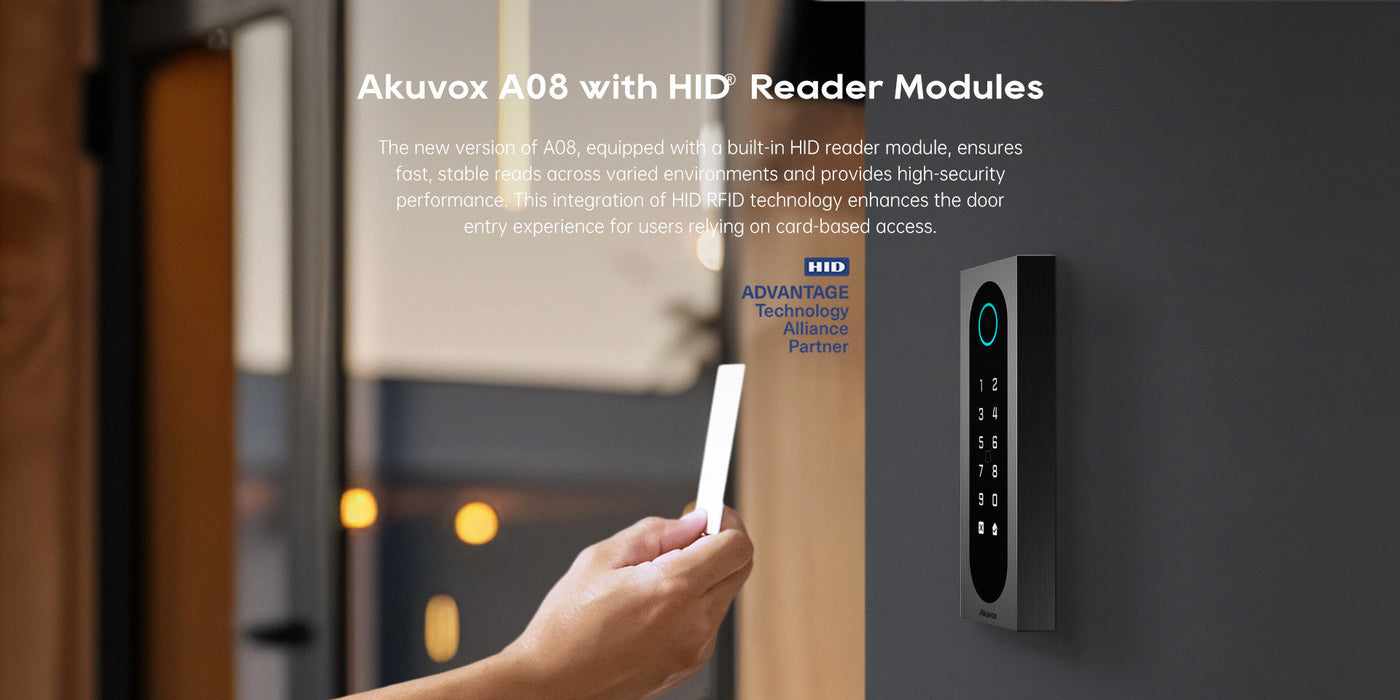

  • RFID Card and PIN Support: Compatible with 13.56 MHz and 125 kHz RFID cards and secure PIN entry, providing flexible credential options for different users.

  • QR Code Access: Allows temporary or visitor access using QR codes, ideal for deliveries, guests, or short-term authorisation without issuing physical credentials.

  • High-Definition Camera: Integrated camera captures clear facial images to ensure accurate recognition and reliable access verification.

  • Anti-Spoofing Protection: Built-in security algorithms prevent access attempts using photos or video playback, enhancing system integrity.

  • PoE and Flexible Power Options: Supports Power over Ethernet for simplified installation, with 12V DC input available when PoE is not used.

Docs/Instruction Links

Specifications

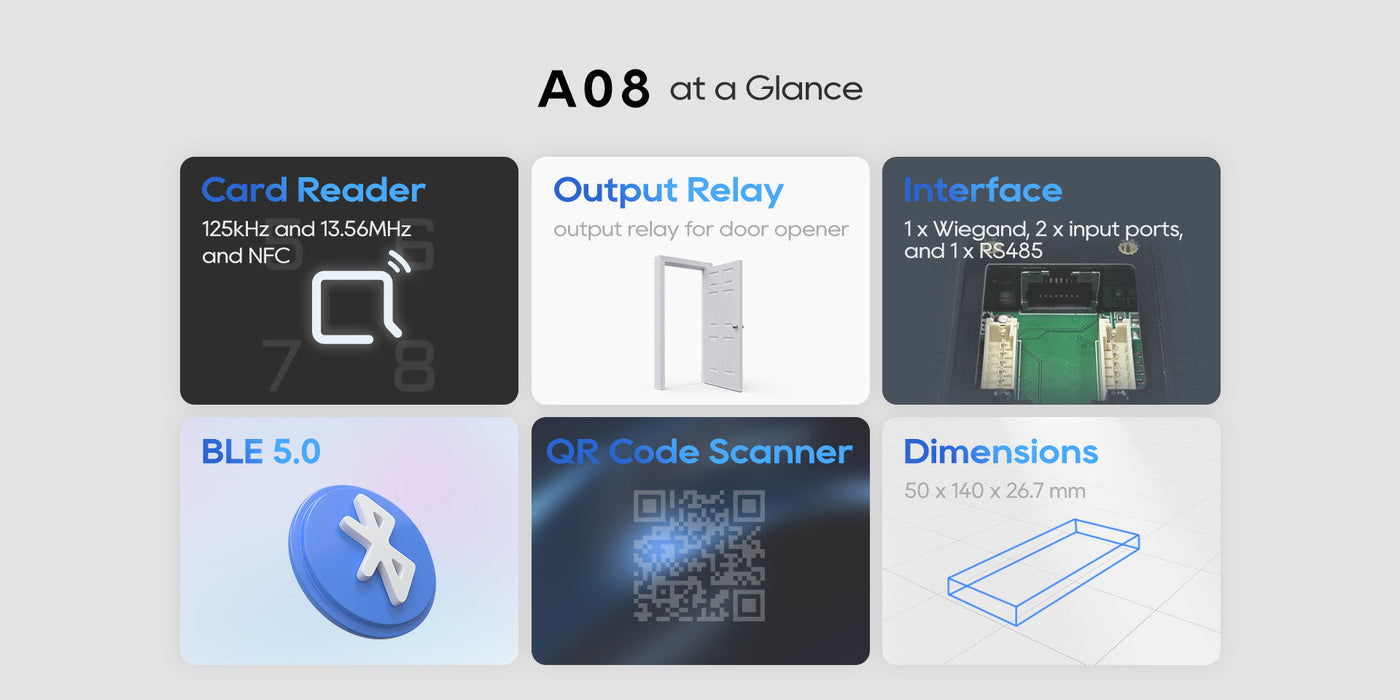

Physical & Power

  • Front panel: Toughened Glass
  • Frame: Aluminum
  • RF reader: 13.56MHz & 125kHz, NFC (only Android)
  • Relay out: 1
  • Inputs: 2
  • Wiegand: 1ch input/output(selectable)
  • RS485: Support
  • BLE: Support BT5.0
  • Speaker: 8Ω / 0.5W
  • Tamper proof alarm: Support
  • Ethernet port: RJ45, 10/100Mbps adaptive  802.3af Power-over-Ethernet
  • 12V DC connector (if not using PoE)
  • Power output: 12V 600mA
  • IP Level: IP65
  • IK Rating: IK09
  • Installation: Flush-mounted or Wall-mounted

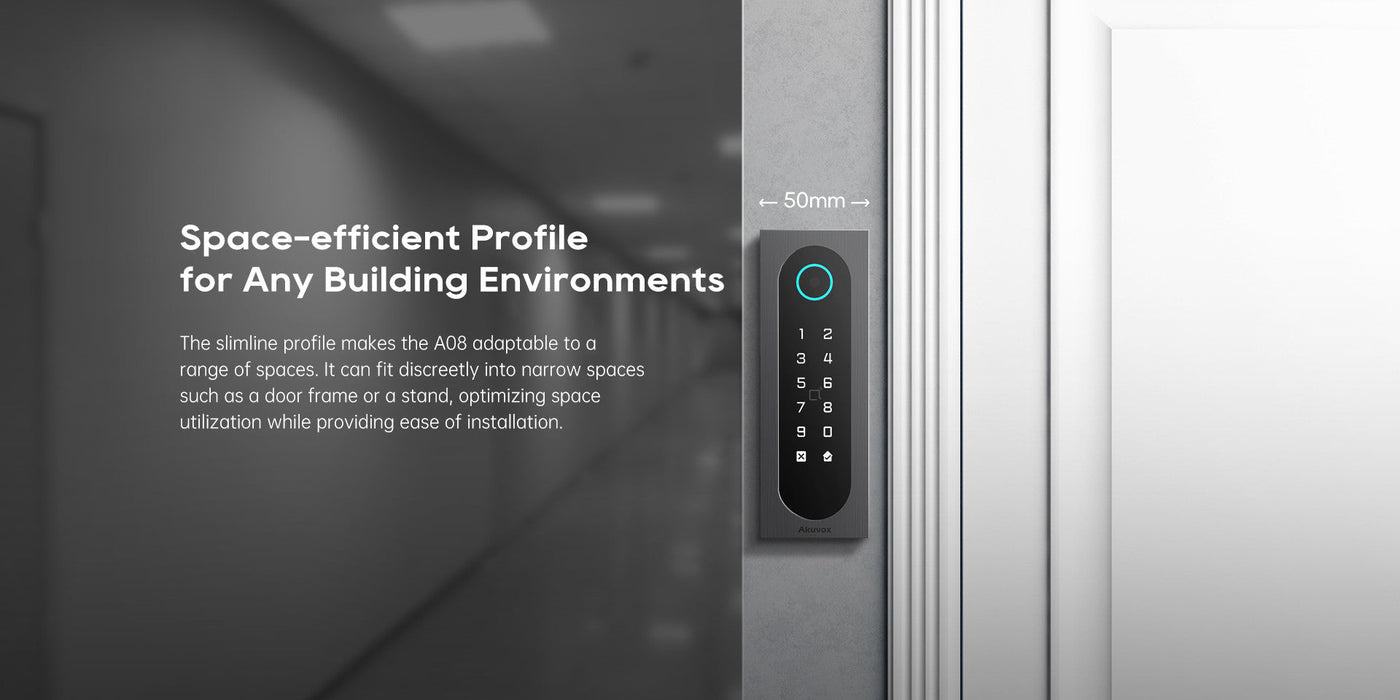

  • Dimension (HxWxD): 140x50x26.7 (mm)
  • Working Humidity: 10~90%,no condensing
  • Working Temperature: -20°C ~ +55°C
  • Storage Temperature: -30°C ~ +70°C

Networking & Protocol

  • Protocols support: IPv4, HTTP, HTTPS, FTP, DNS, NTP, TCP, UDP, ICMP, DHCP, ARP

Capacity

  • User: 20,000
  • Card: 100,000
  • PIN: 20,000
  • Access Log: 100,000

Deployment & Maintenance

  • Auto-Provisioning
  • Web management portal
  • Web-based packet dump
  • Configuration backup / restore
  • Firmware upgrade
  • Akuvox Cloud management
  • Akuvox SDMC & ACMS

Door Entry Feature

  • Access schedule
  • Access level management
  • Support switch to reader mode
  • Door access logs
  • Flexible shift scheduling and attendance  management

Application Scenario

  • Provides access control for buildings such as condominiums, apartment buildings, office buildings, gated communities and industrial buildings
