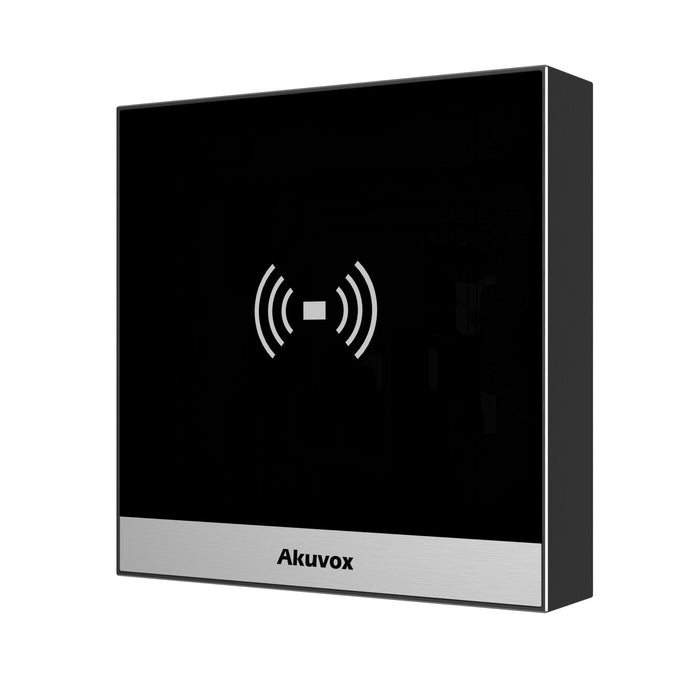

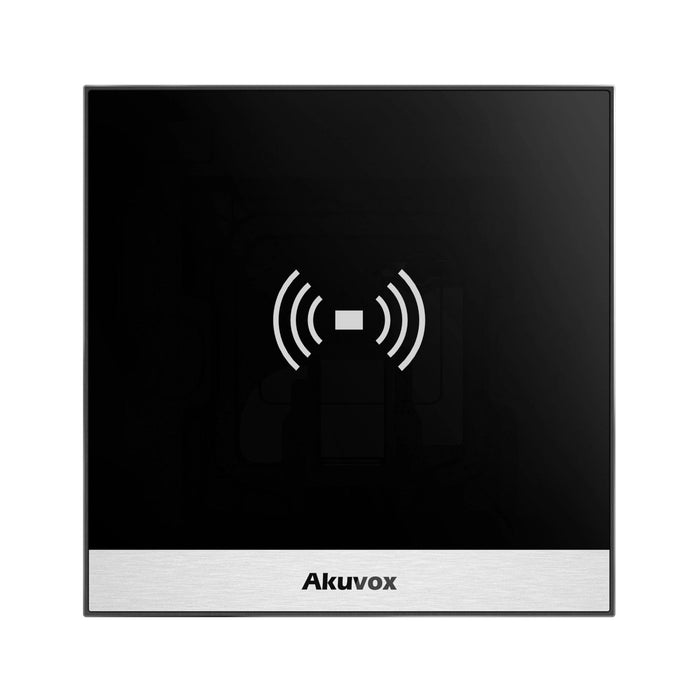

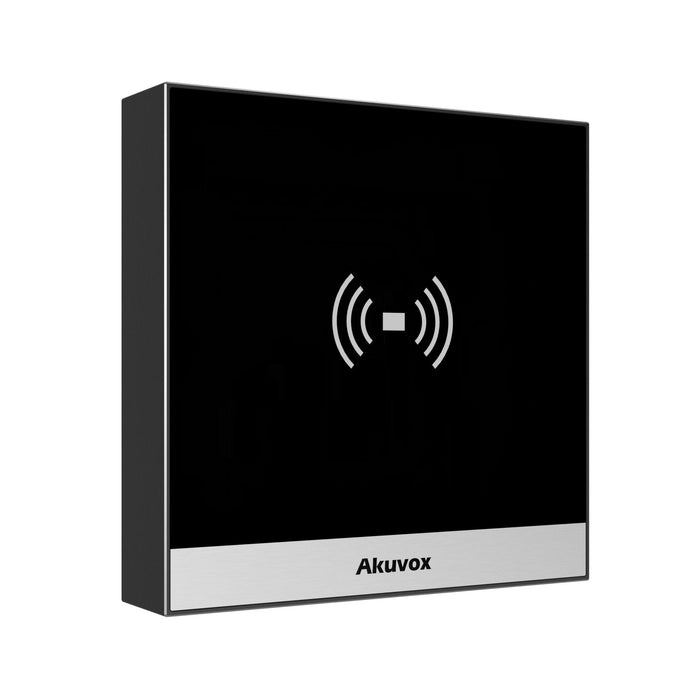

Akuvox A01S IP RFID & NFC Access Control Terminal Reader with PoE

Akuvox‘s A01S access control terminal incorporates door controller and an RIFD
reader in one standalone device, thus saving your solution costs. Equipped with an
RFID reader ( 125kHz and 13.56MHz) which is capable of handling a majority of cards
in wide use currently. A01S is designed to provide you with greater flexibility and
security than those traditional access control systems.

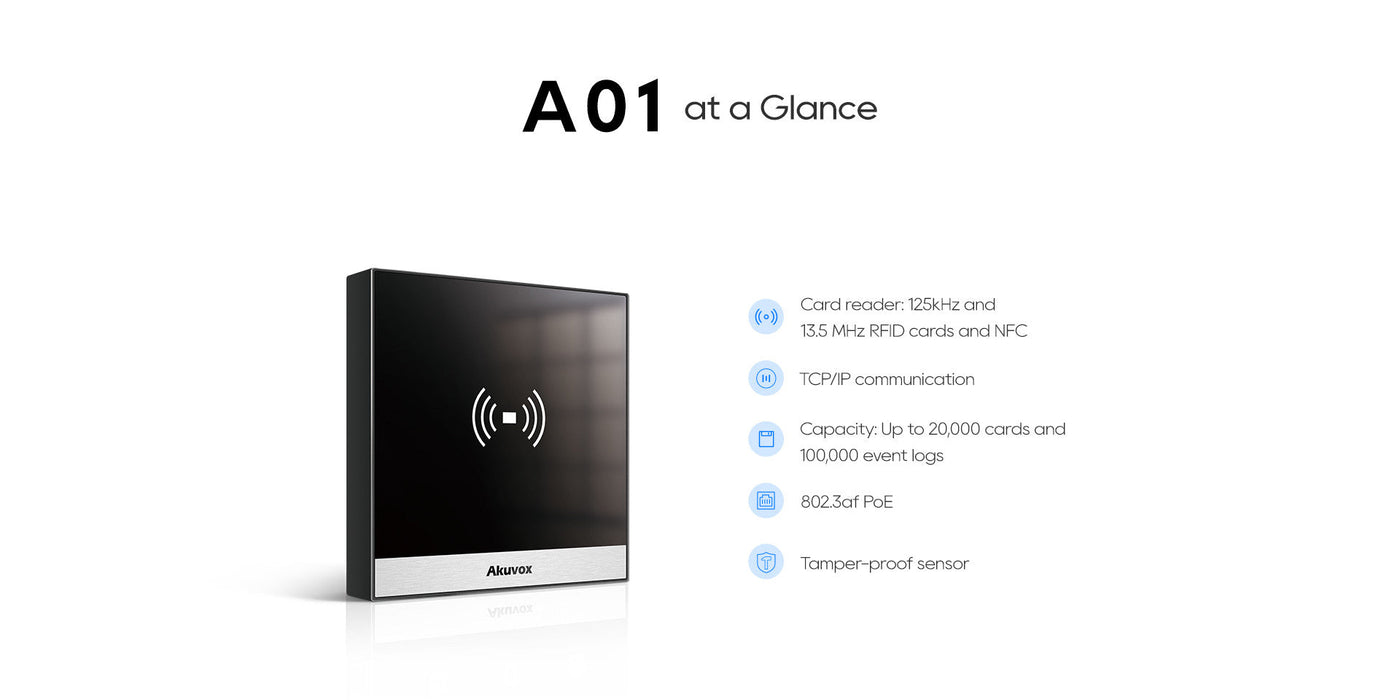

At a Glance

  • Aluminum alloy with toughened glass front
  • Linux operation systems
  • Multi-frequency RFID card reader
  • 20,000 card capacity & 100,000 Access Logs
  • Flush-mounted & Wall-mounted
  • IP65 & IK07 for outdoor usage
  • Compatible with Akuvox cloud & ACMS

Docs/Instruction Links

Specifications

Physical & Power

  • Front panel: Toughened Glass
  • Frame: Aluminum
  • RF reader: 13.56MHz & 125kHz, NFC (only Android)
  • Relay out: 1
  • Inputs: 2
  • Wiegand: 1ch input/output(selectable)
  • Speaker: 1
  • Tamper Alarm: Support
  • Ethernet port: RJ45, 10/100Mbps adaptive
  • 802.3af Power-over-Ethernet
  • 12V DC connector (if not using PoE)
  • IP Rating: IP65
  • IK Rating: IK07
  • Installation: Flush-mounted or Wall-mounted
  • Dimension (HxWxD): 86x86x33 (mm)
  • Working Humidity: 10~90%，no condensing
  • Working Temperature: -20°C ~ +55°C
  • Storage Temperature: -30°C ~ +70°C

Capacity

  • User Capacity: 20,000
  • Card Capacity: 20,000
  • Access Log: 100,000

Deployment & Maintenance

  • Auto-Provisioning
  • Web management portal
  • Web-based packet dump
  • Configuration backup / restore
  • Firmware upgrade
  • System logs

Networking

  • Protocols support: IPv4, HTTP, HTTPS, FTP,  DNS, NTP, TCP, UDP, ICMP, DHCP, ARP

Door Entry Feature

  • Access schedule export/import
  • Access level management
  • Support switch to reader mode
  • Door access logs query and export
  • Flexible shift scheduling and attendance  management
